CSV Series 7.5 to 15 kW

The Senator CSV series offers the best value choice of 4-in-1 industrial compressed air stations with energy-saving variable speed drive technology. Each unit comprises a rotary compressor, refrigerant dryer and both pre- and post-filters in an integrated package that’s ready for plug-and-play installation.

Sydney & Perth based customers, please select "PICK UP" on purchase for FREE delivery and FREE commissioning. If installation is required we can arrange.

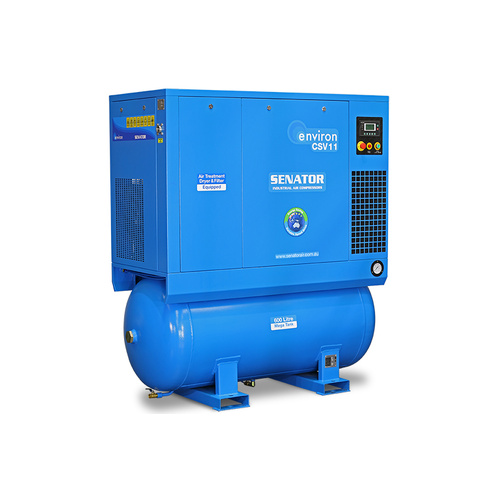

Senator CSV11

Senator CSV11

Compact turn-key compressed air station offers a convenient plug-and- play solution with the lowest installation cost and space requirements.

Soundproofed cabinet and anti- vibration mounting of rotating components enables the unit to be installed directly at the work site.

Precision technology rotary screw air-end with advanced rotor profile and slow rotor speed ensures 24/7 reliability, high flow rate, low energy consumption and long service life.

High efficiency, MEPS compliant electric motor reduces energy consumption and carbon footprint.

7, 8 and 10 bar (102, 116 and 145 psi) outlet pressure capability that is suitable for a broad range of compressed air applications.

Largest-in-class 600 litre air receiver tank provides ample air storage capacity to prevent excessive system pressure fluctuations and facilitates more effective condensate removal.

Star-delta motor starter on CS models reduces both peak electrical demand and mechanical shock-loading during compressor start-up.

Microprocessor-based variable speed drive (VSD) on CSV models provides optimised motor speed and power control under all operating conditions.

Multi-function electronic controller with LED display serves as a user- friendly interface for compressor operation, systems monitoring

and protection, and maintenance scheduling. Sequential control and remote start/stop capable.

Refrigerant dryer in its own thermally segregated compartment continuously removes moisture from the compressed air stream.

Two compressed air filters with element condition gauges remove particulates down to 0.01 micron and limit oil carry-over to 0.01 ppm.

Timer drain valves plumbed to a single connection point facilitate automatic, clean and safe disposal of water condensate from the air receiver tank, dryer and filters.

Lift-off cabinet panels are easily removable for maintenance access.

Spin-on oil filter and air/oil separator elements minimise service downtime.

Compliant with Australian Workplace Health and Safety Regulations for industrial workplace use.
