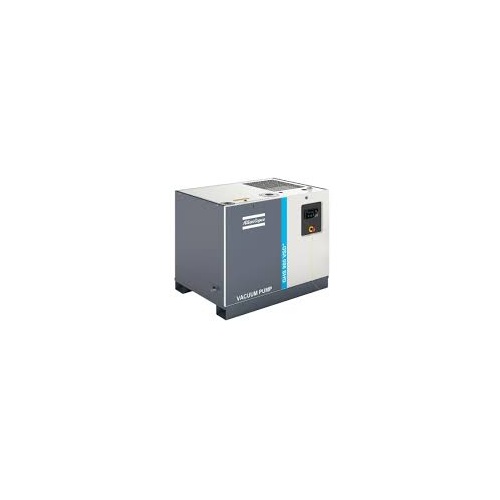

Service Kits of Atlas Copco GHS 350-900 Vacuum Pumps

Service Kits of Atlas Copco GHS 350-900 Vacuum Pumps

$0.00

Contact info@ScrewCompressorSpares.com.au for Pricing



Parts NO.

Name
1630203000 1630 2030 00 – Vacuum fluid basic (20L) (Mineral)
1630112600 1630 1126 00 – Vacuum fluid (20L) (Synthetic)
1630112601 1630 1126 01 – Vacuum fluid ultra (20L) (Synthetic)
1630112602 1630 1126 02 – Vacuum fluid foodgrade (20L)

3001400003

3001 4000 03 – Filter kit GHS 350 VSD+
3001400016 3001 4000 16 – Mounting kit (element)
3001400017 3001 4000 17 – Motor overhaul kit GHS 350 VSD+
3001400019 3001 4000 19 – Motor overhaul kit GHS 585 VSD+ Turbo

Parts NO.

Name
3001400011 3001 4000 11 – Cubicle ventilation kit
3001400012 3001 4000 12 – Thermostat kit
3001400013 3001 4000 13 – Thermostat kit HWHCAP
1622706407 1622 7064 07 – Thermostatic valve 87°C

3001400014

3001 4000 14 – Vacuum control valve kit
3001400004 3001 4000 04 – Filter kit GHS 350 VSD+ Turbo, GHS 585 VSD+
3001400005 3001 4000 05 – Filter kit GHS 585 VSD+ Turbo, GHS 730 VSD+
3001400006 3001 4000 06 – Filter kit GHS 730 VSD+ Turbo, GHS 900 VSD+

Drive of Atlas Copco GHS 350-900 Vacuum Pumps

Parts NO. Name

1625390159

1625 3901 59 – Pad
1079147206 1079 1472 06 – Bolt
1625396371 1625 3963 71 – Coupling housing
0147136403 0147 1364 03 – Hex.bolt
0301234400 0301 2344 00 – Washer
0663715300 0663 7153 00 – O-ring

1625396400

1625 3964 00 – Cover
0147132303 0147 1323 03 – Hex.bolt
0663210322 0663 2103 22 – O-ring
0101195140 0101 1951 40 – Dowell pin
0663210784 0663 2107 84 – O-ring
1625390292 1625 3902 92 – Oil injection nozzle
0147132003 0147 1320 03 – Hexagon bolt

1625390135

1625 3901 35 – Bushing
1616647000 1616 6470 00 – Seal lip
0337605100 0337 6051 00 – Parallel key
1625390139 1625 3901 39 – Clamping ring
0147140803 0147 1408 03 – Hexagon bolt
1625390280 1625 3902 80 – Coupling
1625390138 1625 3901 38 – Spider coupling
Parts NO. Name

1625390161

1625 3901 61 – Housing
0663210657 0663 2106 57 – O-ring
0663210667 0663 2106 67 – O-ring
0211136503 0211 1365 03 – Cap screw
0211196474 0211 1964 74 – Cap screw
0686371816 0686 3718 16 – Plug
1625390110 1625 3901 10 – Pipe

0663713700

0663 7137 00 – O-ring
0301234400 0301 2344 00 – Washer
0211136303 0211 1363 03 – Screw
1616811890 1616 8118 90 – Element
1619603200 1619 6032 00 – SPM nipple
0147196264 0147 1962 64 – Bolt

0581202592

0581 2025 92 – Fitting pipe
0070600276 0070 6002 76 – AR Plastic tube
1625390065 1625 3900 65 – Support
0147196308 0147 1963 08 – Screw
1625390198 1625 3901 98 – Plate
0147196419 0147 1964 19 – Hexagon bolt

Motor assembly of Atlas Copco GHS 350-900 Vacuum Pumps

Parts NO.

Name
1625390142 1625 3901 42 – Motor GHS 350 VSD+
1625390143 1625 3901 43 – Motor GHS 585 VSD+ Turbo
1625390144 1625 3901 44 – Motor GHS 730 VSD+ Turbo

1625390472

1625 3904 72 – Motor fan
1619603200 1619 6032 00 – SPM nipple
5541212300 5541 2123 00 – Screw

Parts NO.

Name
0337711000 0337 7110 00 – Parallel key
1625390433 1625 3904 33 – Baffle assy

1079147206

1079 1472 06 – Bolt
1625390438 1625 3904 38 – Baffle
0697980904 0697 9809 04 – Lock nut

Separator of Atlas Copco GHS 350-900 Vacuum Pumps

Parts NO.

Name
1625390454 1625 3904 54 – Vessel assembly
0301233500 0301 2335 00 – Plain washer
0266211000 0266 2110 00 – Nut
0333322700 0333 3227 00 – Lock washer

1613896712

1613 8967 12 – Grounding wire
0226030100 0226 0301 00 – Tapping screw
0663212008 0663 2120 08 – O-ring
1625390256 1625 3902 56 – Shield
1625390296 1625 3902 96 – Separator

Parts NO.

Name
1625390297 1625 3902 97 – Plug
0663212008 0663 2120 08 – O-ring
0301233500 0301 2335 00 – Plain washer

0147132803

0147 1328 03 – Hexagon bolt
0663713700 0663 7137 00 – O-ring
1625390445 1625 3904 45 – Outlet pipe
1079147206 1079 1472 06 – Bolt
0686371815 0686 3718 15 – Plug

Air system – Air inlet of Atlas Copco GHS 350-900 Vacuum Pumps

Parts NO.

Name
1625390407 1625 3904 07 – Air filter
1625390408 1625 3904 08 – Filter element
0147196429 0147 1964 29 – Hexagon bolt
1625390258 1625 3902 58 – Pipe
0663211316 0663 2113 16 – O-ring

Parts NO.

Name
0266211200 0266 2112 00 – Nut
0300013018 0300 0130 18 – Washer
0686371812 0686 3718 12 – Plug
2236002500 2236 0025 00 – Air filter
0605830048 0605 8300 48 – Bushing

Valve of Atlas Copco GHS 350-900 Vacuum Pumps

Parts NO.

Name
0301234400 0301 2344 00 – Washer
0147136303 0147 1363 03 – Hex.bolt
0663715000 0663 7150 00 – O-ring
0147140303 0147 1403 03 – Hexagon bolt
0300013018 0300 0130 18 – Washer

0581202592

0581 2025 92 – Fitting pipe
0070600276 0070 6002 76 – AR Plastic tube
1625390264 1625 3902 64 – Housing
1622369002 1622 3690 02 – Bushing
1625390153 1625 3901 53 – Seal

0663712000

0663 7120 00 – O-ring
1625390268 1625 3902 68 – Disc
1625390263 1625 3902 63 – Membrane
1625390267 1625 3902 67 – Plate
0661102000 0661 1020 00 – Sealing washer

Parts NO.

Name
9090050800 9090 0508 00 – Silencer
1625390451 1625 3904 51 – Nut
1625390154 1625 3901 54 – Spring
1625390403 1625 3904 03 – Cover

0147196069

0147 1960 69 – Hex.bolt
0261211200 0261 2112 00 – Hexagon nut
1625390389 1625 3903 89 – Piston
0663210616 0663 2106 16 – O-ring
0663715000 0663 7150 00 – O-ring

1625390309

1625 3903 09 – Valve
1625390151 1625 3901 51 – Plate
0147132603 0147 1326 03 – Screw
0147195889 0147 1958 89 – Hexagon bolt
1079990385 1079 9903 85 – Label

(GHS350)

SKU GHS350
Brand Atlas Copco
Shipping Weight 4.0000kg
