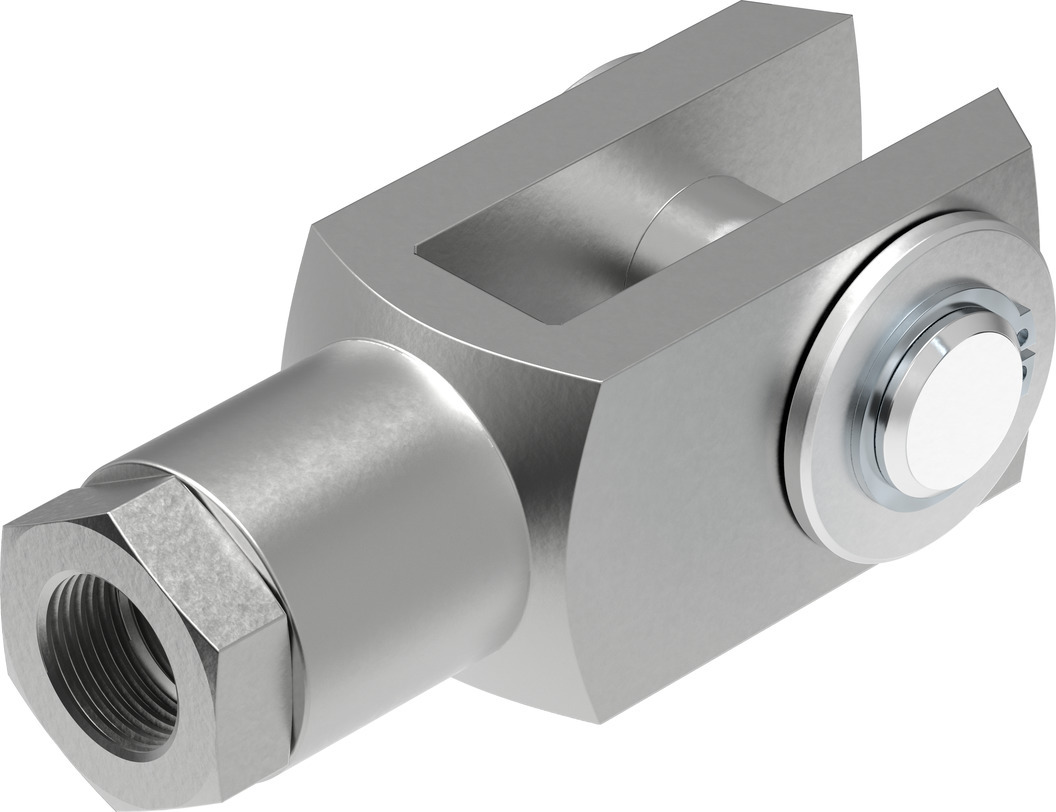

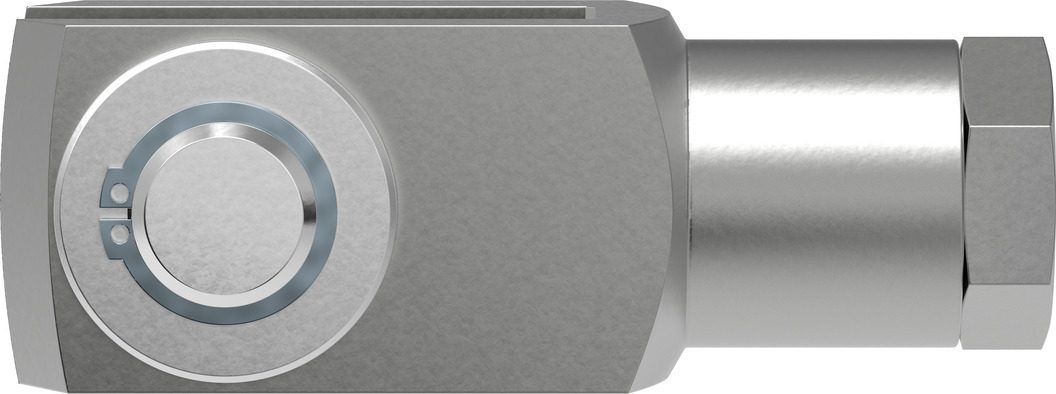

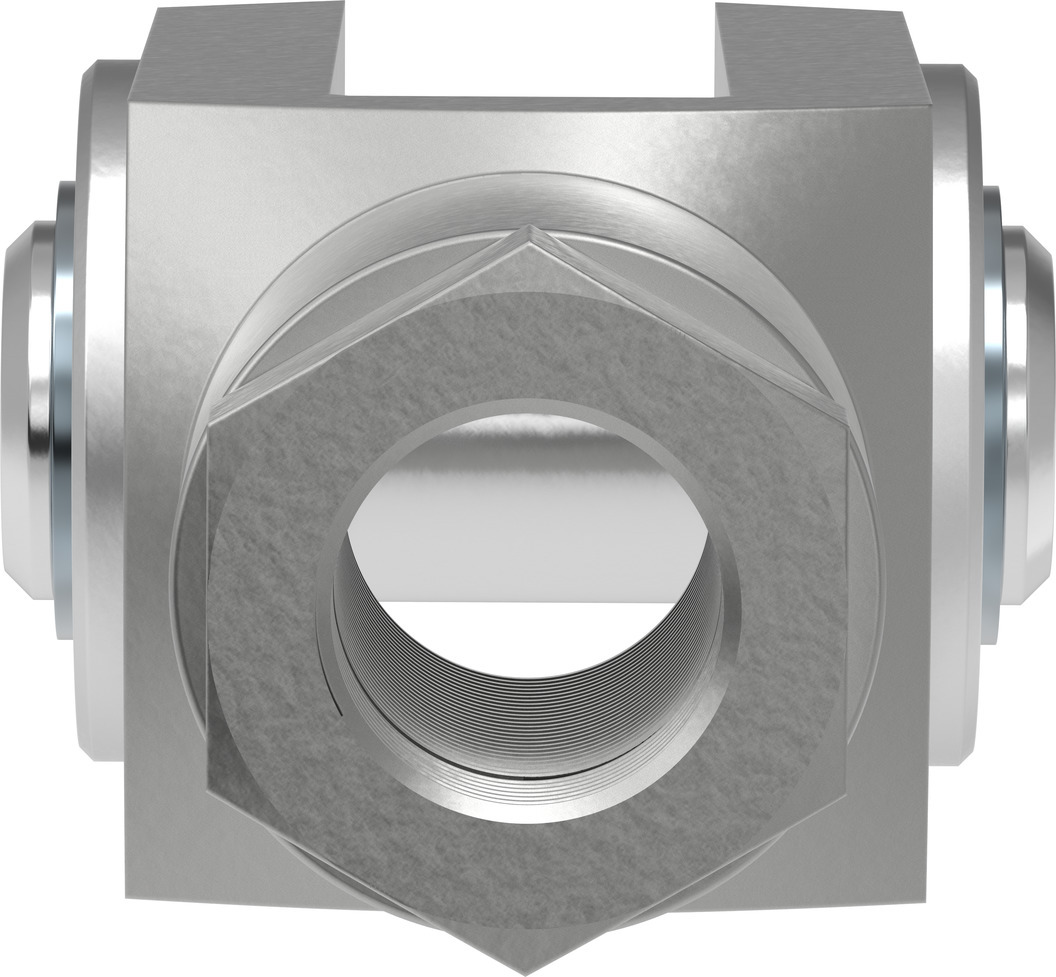

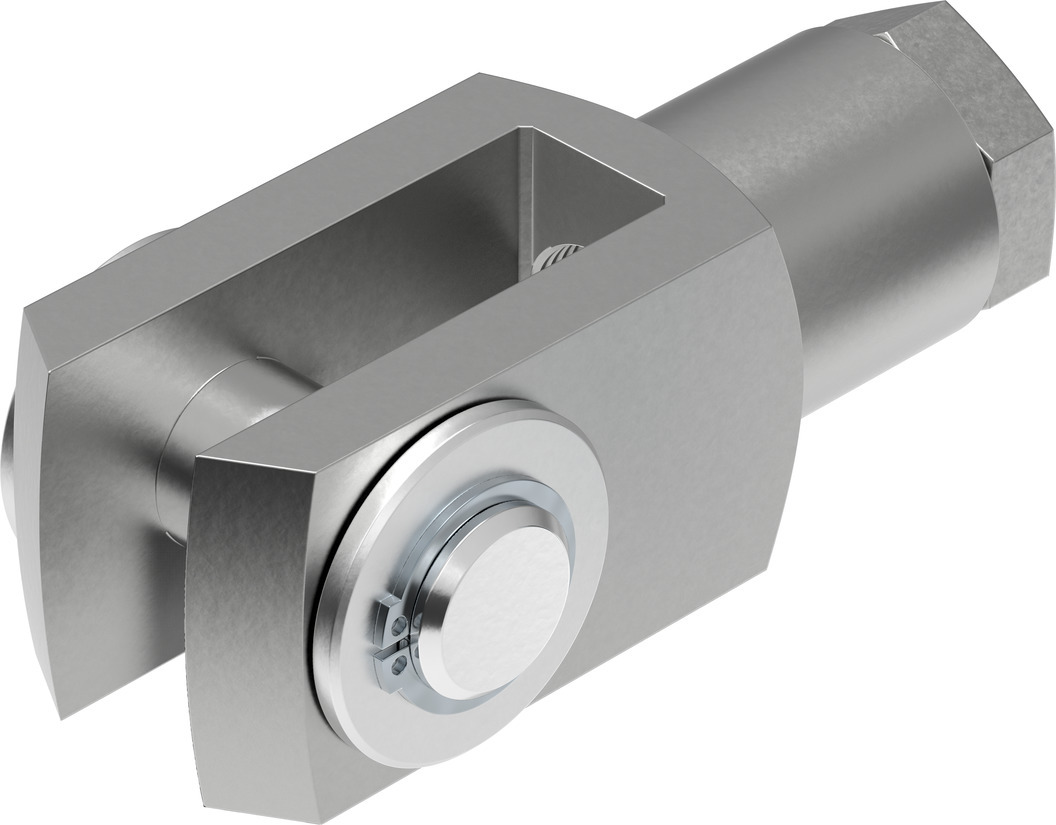

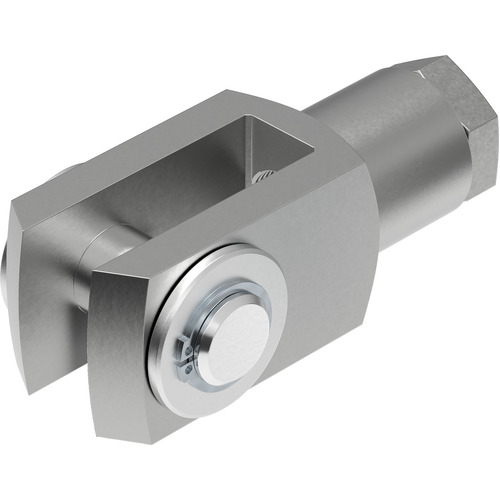

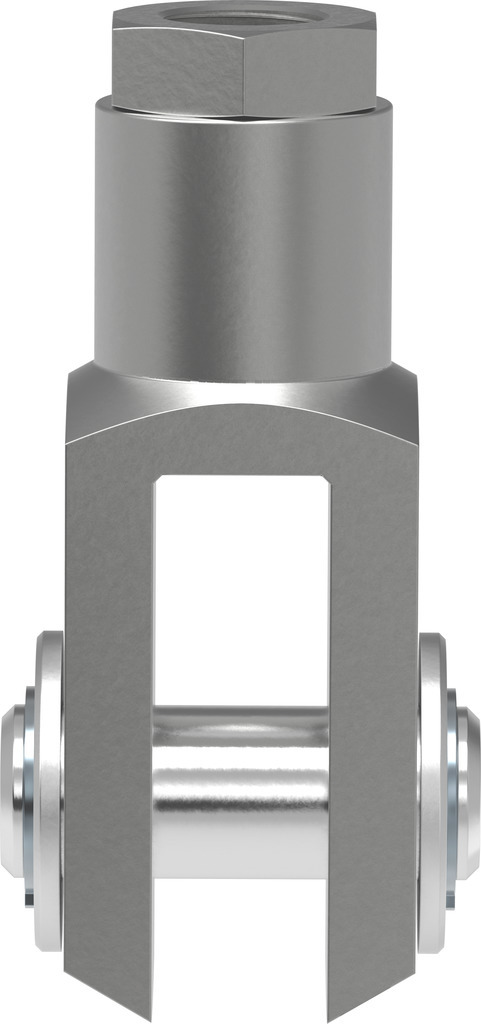

Rod clevis

SG-M20X1,5

6147

Technical Data

  • SizeM20x1.5
  • Conforms to standardISO 8140
  • Threaded connectionFemale thread M20x1.5
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Suitability for the production of Li-ion batteriesMetals with more than 1% by mass of copper are excluded from use. Exceptions are printed circuit boards, cables, electrical plug connectors and coils
  • Ambient temperature-40 °C ... 150 °C
  • Max. load capacity9 kN
  • Product weight793 g
  • Note on materialsRoHS-compliant
  • Material boltSteel Galvanised
  • Material clevisSteel Galvanised
  • Material nutSteel Galvanised

GTIN: 4052568001117

Downloads

PISTON-ROD-ATTACHMENTS_EN.PDF

Technical data

Links

Spare parts

SKU 6147
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
