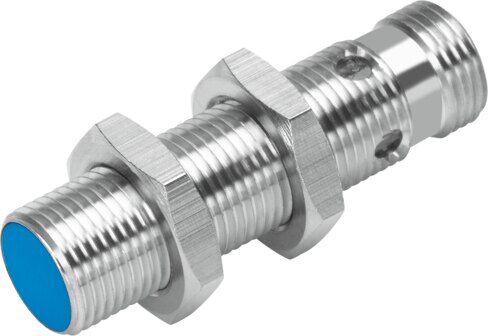

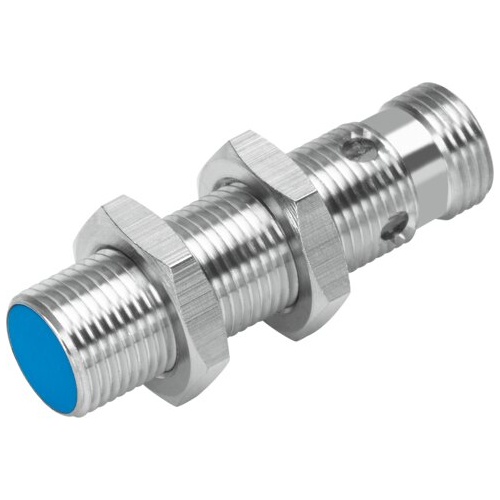

Proximity sensor

Technical Data

• Conforms to standardEN 60947-5-2
• Symbol00992831
• ApprovalC-Tick c UL us listed (OL)
• CE mark (see declaration of conformity)To EU EMC Directive In accordance with EU RoHS Directive
• UKCA marking (see declaration of conformity)according to UK RoHS instructions (UK-R)
• Rated operating distance4 mm
• Assured operating distance3.24 mm
• Reduction factorsAluminium = 0.4 Stainless steel St 18/8 = 0.8 Copper = 0.4 Brass = 0.5 Steel St 37 = 1.0
• Ambient temperature-25 °C ... 70 °C
• Repetition accuracy with constant conditions0.2 mm
• Switching outputNPN
• Switching element functionN/C contact
• Hysteresis≤0.36 mm
• Max. switching frequency2500 Hz
• Max. output current200 mA
• Voltage drop≤2 V
• Inductive protective circuitIntegrated
• Short circuit current ratingPulsed
• Operational voltage range DC10 V ... 30 V
• Residual ripple± 10%
• No-load supply current≤10 mA
• Reverse polarity protectionFor all electrical connections
• Electrical connection 1, connection typePlugs
• Electrical connection 1, connector systemM12x1, A-coded to EN 61076-2-101
• Electrical connection 1, number of connections/cores4
• Electrical connection 1, type of mountingNot rotatable
• Electrical connection 1, compatible type of mountingCompatible with rotatable screw-type lock
• SizeM12
• Type of mountingVia lock nut
• Mounting typeFlush
• Product weight30 g
• Material housingPBTP Nickel-plated
• Switching status indicationYellow LED
• Ambient temperature with moving cable-5 °C ... 70 °C
• Degree of protectionIP65 IP67
• Corrosion resistance class CRC2 - Moderate corrosion stress
• LABS (PWIS) conformityVDMA24364-B2-L
• Additional information for sensor selectionwith increased sensing distance
• Electrical outputNPN
• Selection of sensor designStandard
