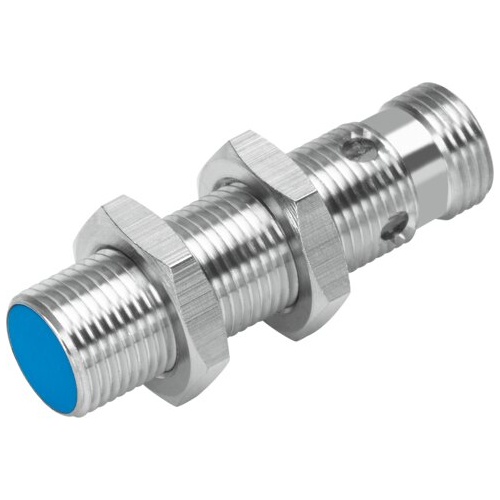

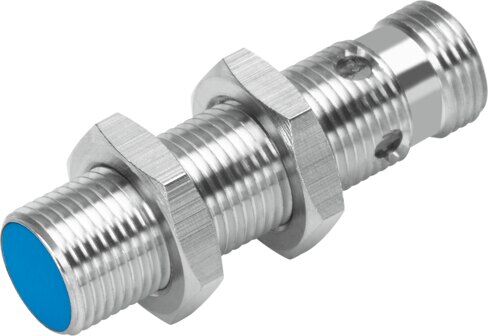

Proximity sensor

SIEH-M12B-PS-S-L

150451





GTIN: 4052568069612

Size
M12
Switching output
PNP
Switching element function
N/O contact
Operational voltage range DC
10 V - 30 V

Technical Data

  • Conforms to standardEN 60947-5-2
  • Symbol00991701
  • ApprovalC-Tick c UL us listed (OL)
  • CE mark (see declaration of conformity)To EU EMC Directive In accordance with EU RoHS Directive
  • UKCA marking (see declaration of conformity)according to UK RoHS instructions (UK-R)
  • Rated operating distance4 mm
  • Assured operating distance3.24 mm
  • Reduction factorsAluminium = 0.4 Stainless steel St 18/8 = 0.8 Copper = 0.4 Brass = 0.5 Steel St 37 = 1.0
  • Ambient temperature-25 °C ... 70 °C
  • Repetition accuracy with constant conditions0.2 mm
  • Switching outputPNP
  • Switching element functionN/O contact
  • Hysteresis≤0.36 mm
  • Max. switching frequency2500 Hz
  • Max. output current200 mA
  • Voltage drop≤2 V
  • Inductive protective circuitIntegrated
  • Short circuit current ratingPulsed
  • Operational voltage range DC10 V ... 30 V
  • Residual ripple± 10%
  • No-load supply current≤10 mA
  • Reverse polarity protectionFor all electrical connections
  • Electrical connection 1, connection typePlugs
  • Electrical connection 1, connector systemM12x1, A-coded to EN 61076-2-101
  • Electrical connection 1, number of connections/cores4
  • Electrical connection 1, type of mountingNot rotatable
  • Electrical connection 1, compatible type of mountingCompatible with rotatable screw-type lock
  • SizeM12
  • Type of mountingVia lock nut
  • Mounting typeFlush
  • Product weight30 g
  • Material housingPBTP Nickel-plated
  • Switching status indicationYellow LED
  • Ambient temperature with moving cable-5 °C ... 70 °C
  • Degree of protectionIP65 IP67
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Additional information for sensor selectionwith increased sensing distance
  • Electrical outputPNP
  • Selection of sensor designStandard





SKU 150451
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
