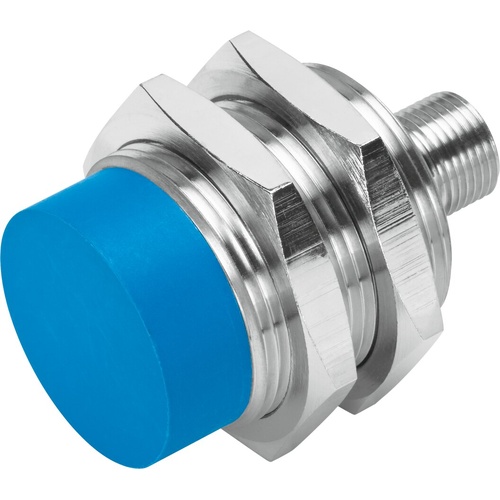

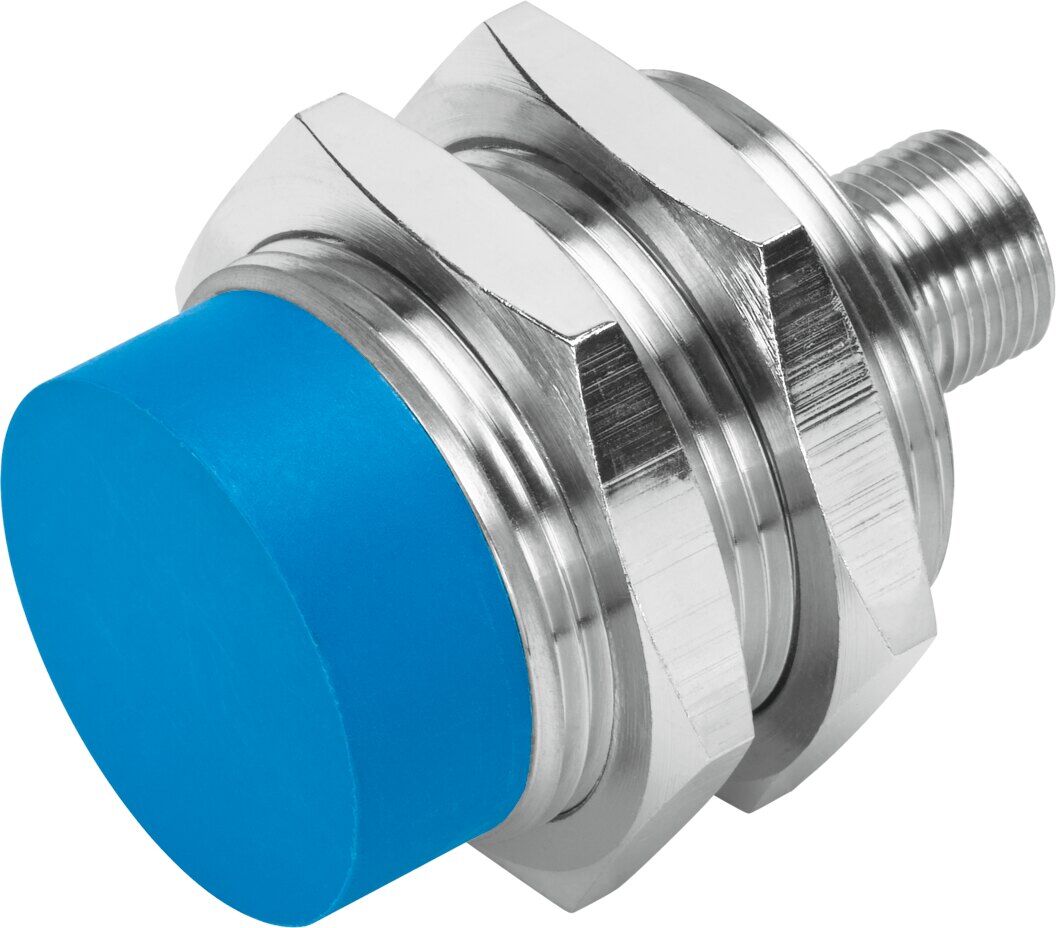

Proximity sensor

Technical Data

• Conforms to standardEN 60947-5-2
• Symbol00991701
• ApprovalRCM trademark c UL us listed (OL)
• CE mark (see declaration of conformity)To EU EMC Directive In accordance with EU RoHS Directive
• UKCA marking (see declaration of conformity)according to UK RoHS instructions (UK-R)
• Note on materialsRoHS-compliant
• Rated operating distance15 mm
• Assured operating distance12.15 mm
• Reduction factorsAluminium = 0.5 Stainless steel St 18/8 = 0.85 Copper = 0.43 Brass = 0.53 Steel St 37 = 1.0
• Ambient temperature-25 °C ... 70 °C
• Repetition accuracy0.75 mm
• Switching outputPNP
• Switching element functionN/O contact
• Hysteresis≤1.65 mm
• Max. switching frequency700 Hz
• Max. output current200 mA
• Voltage drop≤2 V
• Short circuit current ratingPulsed
• Operational voltage range DC12 V ... 30 V
• Residual ripple+/- 20 %
• No-load supply current≤10 mA
• Reverse polarity protectionFor all electrical connections
• Electrical connection 1, connection typePlugs
• Electrical connection 1, connector systemM12x1, A-coded to EN 61076-2-101
• Electrical connection 1, number of connections/cores4
• Electrical connection 1, type of mountingNot rotatable
• Electrical connection 1, compatible type of mountingCompatible with rotatable screw-type lock
• SizeM30x1.5
• Type of mountingVia lock nut
• Tightening torque40 Nm
• Mounting typeNot flush
• Product weight100 g
• Material housingPBTP Chrome-plated
• Switching status indicationYellow LED
• Ambient temperature with moving cable-5 °C ... 70 °C
• Degree of protectionIP67
• Immunity to surge0.8 kV
• LABS (PWIS) conformityVDMA24364-B2-L
• Pollution degree3
• Additional information for sensor selectionwith standard sensing distance
• Electrical outputPNP
• Selection of sensor designStandard
