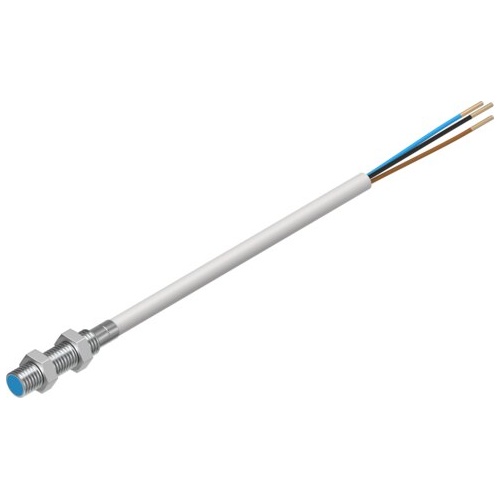

Proximity sensor

SIEN-M5B-NS-K-L

150368





GTIN: 4052568068783

Size
M5x0.5
Switching output
NPN
Switching element function
N/O contact
Operational voltage range DC
10 V - 30 V

Technical Data

  • Conforms to standardEN 60947-5-2
  • Symbol00991704
  • ApprovalRCM trademark c UL us listed (OL)
  • CE mark (see declaration of conformity)To EU EMC Directive In accordance with EU RoHS Directive
  • UKCA marking (see declaration of conformity)according to UK RoHS instructions (UK-R)
  • Note on materialsRoHS-compliant
  • Rated operating distance0.8 mm
  • Ambient temperature-25 °C ... 70 °C
  • Repetition accuracy with constant conditions0.01 mm
  • Switching outputNPN
  • Switching element functionN/O contact
  • Max. switching frequency5000 Hz
  • Max. output current200 mA
  • Short circuit current ratingPulsed
  • Operational voltage range DC10 V ... 30 V
  • Reverse polarity protectionFor all electrical connections
  • Electrical connection 1, connection typeCable
  • Electrical connection 1, connector systemOpen end
  • Electrical connection 1, number of connections/cores3
  • Cable length2.5 m
  • Material cable sheathTPE-U(PUR)
  • SizeM5x0.5
  • Type of mountingVia lock nut
  • Tightening torque1.5 Nm
  • Mounting typeFlush
  • Product weight33.6 g
  • Material housingHigh-alloy stainless steel
  • Switching status indicationYellow LED
  • Ambient temperature with moving cable-5 °C ... 70 °C
  • Degree of protectionIP67
  • Immunity to surge1 kV
  • Corrosion resistance class CRC4 - Very high corrosion stress
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Pollution degree3
  • Additional information for sensor selectionwith standard sensing distance
  • Electrical outputNPN
  • Selection of sensor designStandard



SKU 150368
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
