Product Lifecycle Information




Product is planned to be discontinued. Do not use for new designs.



04/2026 - Product is being phased out. Do not use for new designs.




11/2026 - Product is discontinued. Products for replacement may be available while stocks permit.




12/2026 - Product is discontinued.

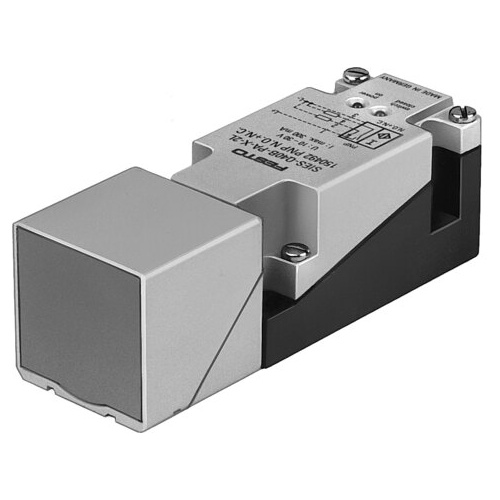

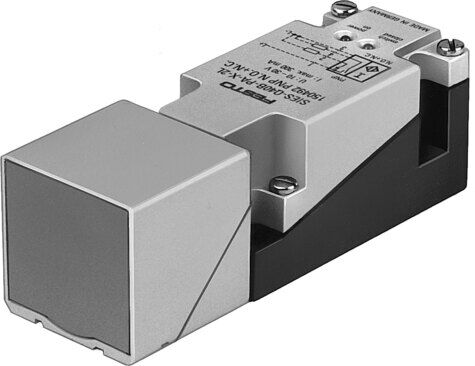

Proximity sensor

SIES-Q40B-PA-X-2L

150492





GTIN: 4052568116507

Size
40x40x120 mm
Switching output
PNP
Switching element function
Antivalent
Electrical connection
Screw terminal
Operational voltage range DC
10 V - 30 V



Technical Data

  • Conforms to standardEN 60947-5-2
  • Symbol00991612
  • ApprovalRCM trademark c UL us listed (OL)
  • CE mark (see declaration of conformity)To EU EMC Directive
  • Rated operating distance15 mm
  • Assured operating distance12.2 mm
  • Reduction factorsAluminium = 0.3 Stainless steel St 18/8 = 0.7 Copper = 0.25 Brass = 0.3 Steel St 37 = 1.0
  • Ambient temperature-25 °C ... 85 °C
  • Repetition accuracy0.75 mm
  • Switching outputPNP
  • Switching element functionAntivalent
  • Max. switching frequency100 Hz
  • Max. switching frequency DC100 Hz
  • Max. output current as a function of temperature200 mA at <= 50 °C 150 mA at <= 85 °C
  • Voltage drop3.5 V
  • Short circuit current ratingPulsed
  • Operational voltage range DC10 V ... 30 V
  • Residual ripple10 %
  • No-load supply current≤40 mA
  • Reverse polarity protectionFor all electrical connections
  • Electrical connectionScrew terminal
  • Material connector housingPA PBT
  • Cable fittingM20x1.5
  • Permissible cable diameter7.5 mm ... 12.5 mm
  • Size40x40x120 mm
  • Type of mountingWith through-hole
  • Mounting typeFlush
  • Product weight230 g
  • Material housingPET
  • Ready status indicationGreen LED
  • Switching status indicationYellow LED
  • Degree of protectionIP65
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Additional information for sensor selectionSpecial design
  • Electrical outputPNP
  • Selection of sensor designStandard
SKU 150492
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
