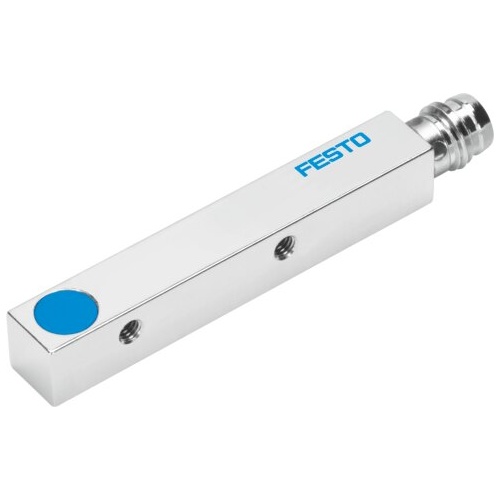

Proximity sensorSIES-Q8B-PO-S-L

Technical Data Proximity sensor SIES-Q8B-PO-S-L

• Conforms to standardEN 60947-5-2
• Symbol00991614
• ApprovalRCM c UL us - Listed (Oil)
• CE mark (see declaration of conformity)To EU EMC Directive In accordance with EU RoHS Directive
• UKCA marking (see declaration of conformity)according to UK RoHS instructions (UK-R)
• Note on materialsRoHS compliant
• Rated operating distance1.5 mm
• Assured operating distance1.2 mm
• Reduction factorsAluminium = 0.45 Stainless steel St 18/8 = 0.8 Copper = 0.4 Brass = 0.55 Steel St 37 = 1.0
• Ambient temperature-25 °C ... 70 °C
• Repetition accuracy0.07 mm
• Switching outputPNP
• Switching element functionN/C contact
• Max. switching frequency3500 Hz
• Max. switching frequency DC1500 Hz
• Max. output current200 mA
• Voltage drop2 V
• Short circuit current ratingPulsed
• Operational voltage range DC10 V ... 30 V
• Residual ripple10%
• No-load supply current≤10 mA
• Reverse polarity protectionFor all electrical connections
• Electrical connection 1, connection typePlug
• Electrical connection 1, connector systemM8x1, A-coded, to EN 61076-2-104
• Electrical connection 1, number of connections/cores3
• Electrical connection 1, type of mountingNot rotatable
• Electrical connection 1, compatible type of mountingCompatible with latching lock Compatible with rotatable screw-type lock
• Size8x8x59 mm
• Type of mountingWith female thread
• Mounting typeFlush
• Product weight12 g
• Material housingDie-cast zinc Chrome-plated nickel-plated
• Switching status indicationYellow LED
• Degree of protectionIP67
• LABS (PWIS) conformityVDMA24364-B2-L
• Additional information for sensor selectionSpecial design
• Electrical outputPNP
• Selection of sensor designStandard
