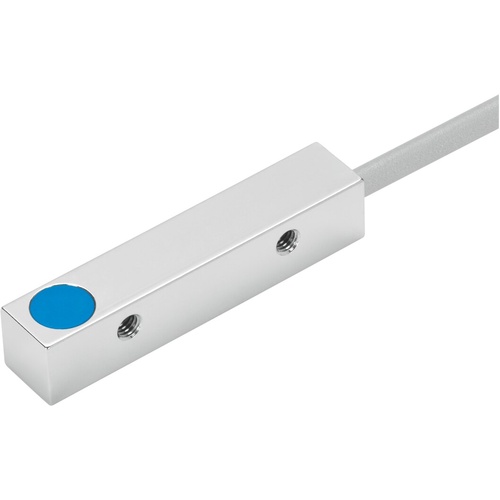

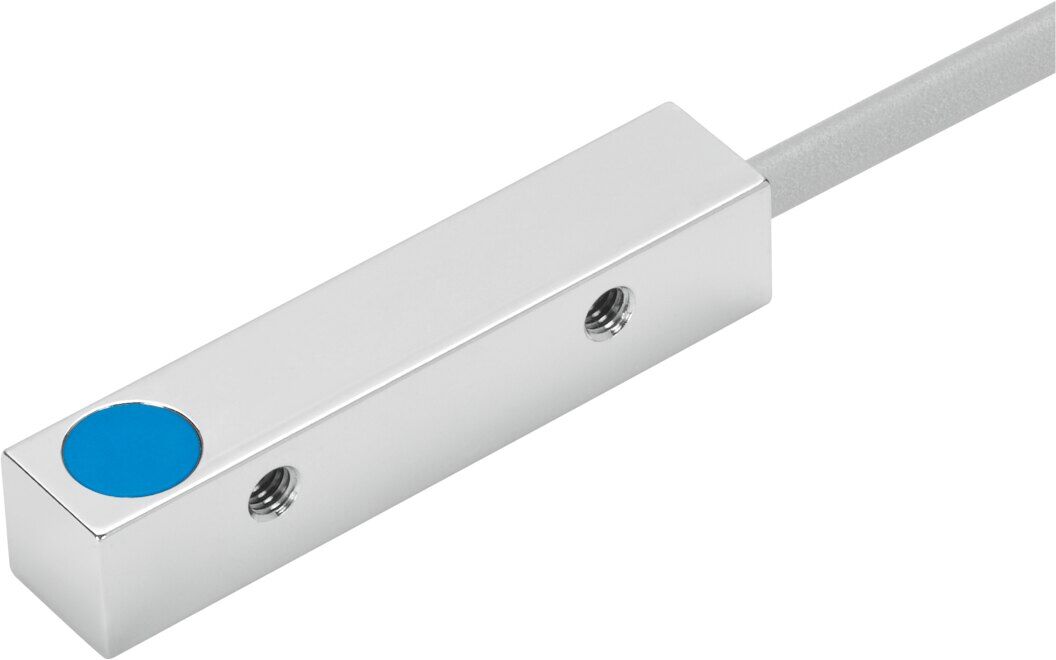

Proximity sensorSIES-Q8B-PS-K-L

178294

GTIN: 4052568075767

Size
8x8x40 mm
Switching output
PNP
Switching element function
N/O contact
Operational voltage range DC
10 V - 30 V



Technical Data Proximity sensor SIES-Q8B-PS-K-L

  • Conforms to standardEN 60947-5-2
  • Symbol00991702
  • ApprovalRCM c UL us - Listed (Oil)
  • CE mark (see declaration of conformity)To EU EMC Directive In accordance with EU RoHS Directive
  • UKCA marking (see declaration of conformity)according to UK RoHS instructions (UK-R)
  • Note on materialsRoHS compliant
  • Rated operating distance1.5 mm
  • Assured operating distance1.2 mm
  • Reduction factorsAluminium = 0.45 Stainless steel St 18/8 = 0.8 Copper = 0.4 Brass = 0.55 Steel St 37 = 1.0
  • Ambient temperature-25 °C ... 70 °C
  • Repetition accuracy0.07 mm
  • Switching outputPNP
  • Switching element functionN/O contact
  • Max. switching frequency3500 Hz
  • Max. switching frequency DC1500 Hz
  • Max. output current200 mA
  • Voltage drop2 V
  • Short circuit current ratingPulsed
  • Operational voltage range DC10 V ... 30 V
  • Residual ripple10%
  • No-load supply current≤10 mA
  • Reverse polarity protectionFor all electrical connections
  • Electrical connection 1, connection typeCable
  • Electrical connection 1, connector systemOpen end
  • Electrical connection 1, number of connections/cores3
  • Cable length2.5 m
  • Material cable sheathTPE-U(PUR)
  • Size8x8x40 mm
  • Type of mountingWith female thread
  • Mounting typeFlush
  • Product weight39 g
  • Material housingDie-cast zinc Chrome-plated nickel-plated
  • Switching status indicationYellow LED
  • Degree of protectionIP67
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Additional information for sensor selectionSpecial design
  • Electrical outputPNP
  • Selection of sensor designStandard





SKU 178294
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
