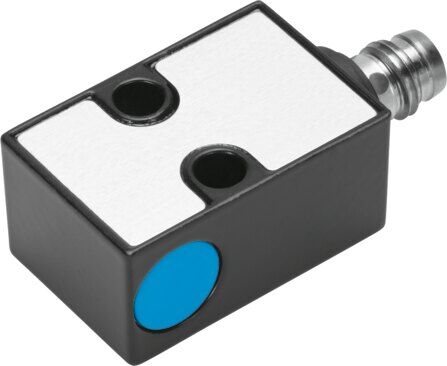

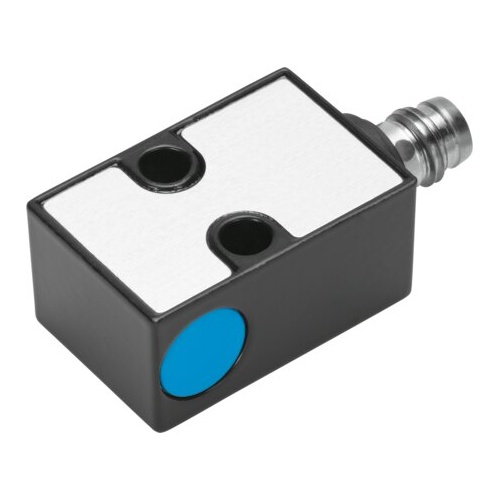

Proximity sensor

Technical Data

• Conforms to standardEN 60947-5-2
• Symbol00991701
• ApprovalRCM trademark c UL us listed (OL)
• CE mark (see declaration of conformity)To EU EMC Directive In accordance with EU RoHS Directive
• UKCA marking (see declaration of conformity)To UK RoHS instructions
• Rated operating distance2 mm
• Assured operating distance1.6 mm
• Reduction factorsAluminium = 0.45 Stainless steel St 18/8 = 0.7 Copper = 0.3 Brass = 0.5 Steel St 37 = 1.0
• Ambient temperature-25 °C ... 85 °C
• Repetition accuracy0.1 mm
• Switching outputPNP
• Switching element functionN/O contact
• Max. switching frequency1200 Hz
• Max. switching frequency DC1200 Hz
• Max. output current as a function of temperature200 mA at <= 50 °C 150 mA at <= 85 °C
• Voltage drop3.2 V
• Short circuit current ratingPulsed
• Operational voltage range DC10 V ... 30 V
• Residual ripple10 %
• No-load supply current≤30 mA
• Reverse polarity protectionFor all electrical connections
• Electrical connection 1, connection typePlugs
• Electrical connection 1, connector systemM8x1, A-coded, to EN 61076-2-104
• Electrical connection 1, number of connections/cores3
• Electrical connection 1, type of mountingNot rotatable
• Electrical connection 1, compatible type of mountingCompatible with latching lock Compatible with rotatable screw-type lock
• Size15x20x30 mm
• Type of mountingWith through-hole
• Mounting typeFlush
• Product weight120 g
• Material housingDie-cast zinc
• Switching status indicationYellow LED
• Degree of protectionIP67
• LABS (PWIS) conformityVDMA24364-B2-L
• Additional information for sensor selectionSpecial design
• Electrical outputPNP
• Selection of sensor designStandard
