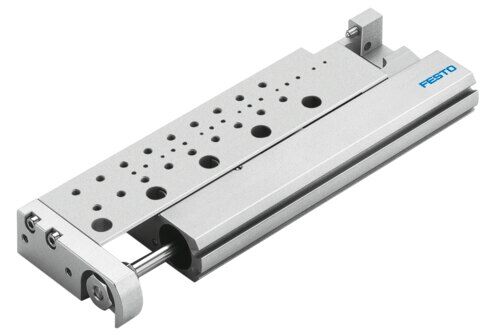

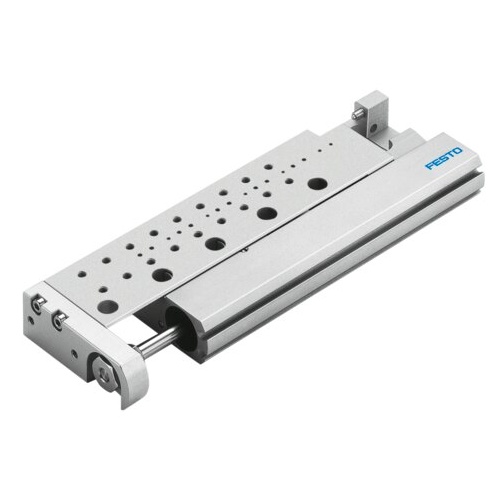

Mini slide

SLF-10-20-P-A

170507





GTIN: 4052568139131

Piston diameter
10 mm
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
47 N
Stroke
20 mm
Cushioning
Elastic cushioning rings/plates at both ends
Position detection
Via proximity switch

Technical Data

  • Stroke20 mm
  • Adjustable end-position range/length5 mm
  • Piston diameter10 mm
  • Operating mode, drive unitYoke
  • CushioningElastic cushioning rings/plates at both ends
  • Mounting positionAny
  • GuideBall bearing cage guide
  • DesignYoke Piston Piston rod Ball cage guide Slide
  • Position detectionVia proximity switch
  • Symbol00991737
  • Operating pressure0.1 MPa ... 1 MPa
  • Operating pressure1 bar ... 10 bar
  • Operating pressure14.5 psi ... 145 psi
  • Mode of operationDouble-acting
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC0 - No corrosion stress
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Ambient temperature-20 °C ... 60 °C
  • Impact energy in end positions0.05 J
  • Max. force Fy150 N
  • Max. force Fz150 N
  • Max. moment Mx1.1 Nm
  • Max. moment My1.1 Nm
  • Max. moment Mz0.7 Nm
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke40 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke47 N
  • Moving mass48 g
  • Product weight156 g
  • Basic weight for 0 mm stroke156 g
  • alternative connectionsSee product drawing
  • Type of mountingWith through-hole
  • Pneumatic connectionM5
  • Note on materialsRoHS compliant
  • Material coverWrought aluminium alloy
  • Material sealsHNBR
  • Material housingWrought aluminium alloy
  • Material piston rodHigh-alloy stainless steel
