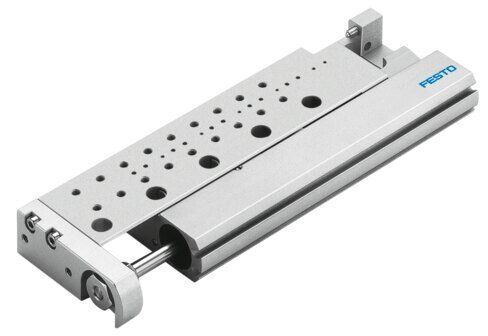

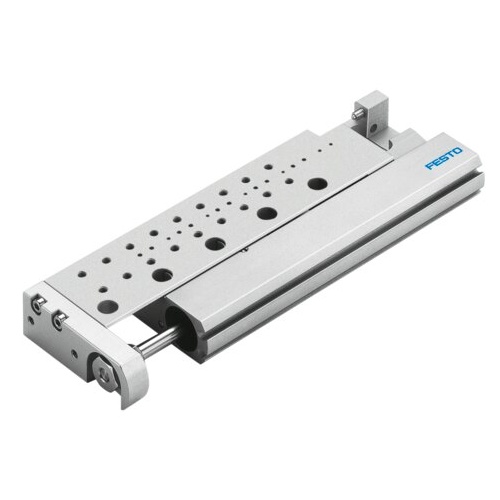

Mini slide

SLF-16-50-P-A

170515





GTIN: 4052568139216

Piston diameter
16 mm
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
121 N
Stroke
50 mm
Cushioning
Elastic cushioning rings/plates at both ends
Position detection
Via proximity switch

Technical Data

  • Stroke50 mm
  • Adjustable end-position range/length5 mm
  • Piston diameter16 mm
  • Operating mode, drive unitYoke
  • CushioningElastic cushioning rings/plates at both ends
  • Mounting positionAny
  • GuideBall bearing cage guide
  • DesignYoke Piston Piston rod Ball cage guide Slide
  • Position detectionVia proximity switch
  • Symbol00991737
  • Operating pressure0.1 MPa ... 1 MPa
  • Operating pressure1 bar ... 10 bar
  • Operating pressure14.5 psi ... 145 psi
  • Mode of operationDouble-acting
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC0 - No corrosion stress
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Ambient temperature-20 °C ... 60 °C
  • Impact energy in end positions0.1 J
  • Max. force Fy390 N
  • Max. force Fz390 N
  • Max. moment Mx3.1 Nm
  • Max. moment My3.1 Nm
  • Max. moment Mz1.4 Nm
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke104 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke121 N
  • Moving mass153 g
  • Product weight407 g
  • Basic weight for 0 mm stroke407 g
  • alternative connectionsSee product drawing
  • Type of mountingWith through-hole
  • Pneumatic connectionM5
  • Note on materialsRoHS compliant
  • Material coverWrought aluminium alloy
  • Material sealsHNBR
  • Material housingWrought aluminium alloy
  • Material piston rodHigh-alloy stainless steel



SKU 170515
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
