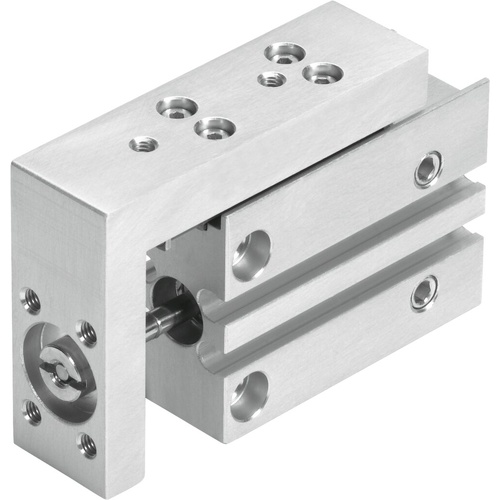

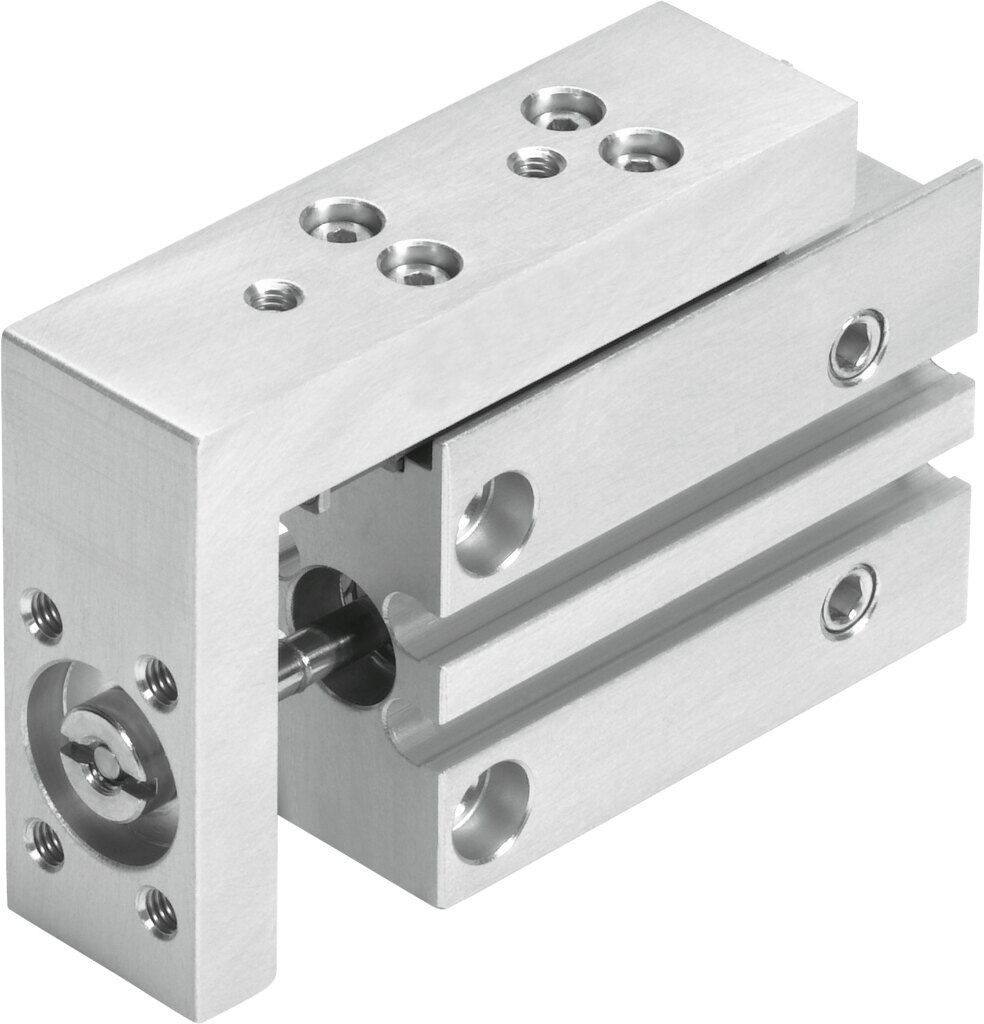

Mini slide

SLS-6-15-P-A

170487





GTIN: 4052568138936

Piston diameter
6 mm
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
17 N
Stroke
15 mm
Cushioning
Elastic cushioning rings/plates at both ends
Position detection
Via proximity switch

Technical Data

  • Stroke15 mm
  • Piston diameter6 mm
  • Operating mode, drive unitYoke
  • CushioningElastic cushioning rings/plates at both ends
  • Mounting positionAny
  • GuideBall bearing cage guide
  • DesignYoke Piston Piston rod Ball cage guide Slide
  • Position detectionVia proximity switch
  • Symbol00991737
  • Operating pressure0.15 MPa ... 1 MPa
  • Operating pressure1.5 bar ... 10 bar
  • Operating pressure21.75 psi ... 145 psi
  • Mode of operationDouble-acting
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC0 - No corrosion stress
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Ambient temperature-20 °C ... 60 °C
  • Impact energy in end positions0.008 J
  • Max. force Fy180 N
  • Max. force Fz180 N
  • Max. moment Mx0.9 Nm
  • Max. moment My0.9 Nm
  • Max. moment Mz0.6 Nm
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke13 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke17 N
  • Moving mass32 g
  • Product weight113 g
  • alternative connectionsSee product drawing
  • Type of mountingWith through-hole
  • Pneumatic connectionM5
  • Note on materialsRoHS compliant
  • Material coverAnodised wrought aluminium alloy
  • Material guideSteel
  • Material housingHigh-alloy stainless steel





SKU 170487
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
