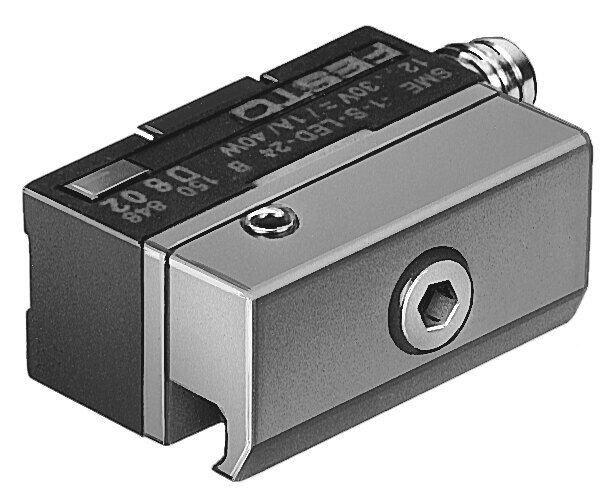

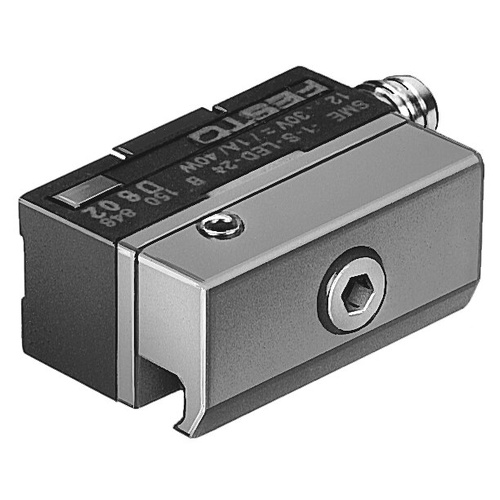

Proximity sensor

SME-1-S-LED-24-B

150851





GTIN: 4052568069841

Operational voltage range DC
12 V - 27 V
Switching element function
N/O contact
Switching output
Contacting, bipolar

Technical Data

  • DesignBlock design
  • Symbol00991148
  • ApprovalRCM trademark
  • CE mark (see declaration of conformity)To EU EMC Directive In accordance with EU RoHS Directive
  • UKCA marking (see declaration of conformity)To UK RoHS instructions
  • Note on materialsRoHS-compliant
  • Measured variablePosition
  • Measuring principleMagnetic reed
  • Ambient temperature-20 °C ... 70 °C
  • Repetition accuracy0.2 mm
  • Switching outputContacting, bipolar
  • Switching element functionN/O contact
  • Switch-on time≤0.5 ms
  • Max. output current1000 mA
  • Max. switching capacity AC27 VA
  • Max. switching capacity DC27 W
  • Short circuit current ratingno
  • Overload protectionNot available
  • Operational voltage range AC12 V ... 27 V
  • Operational voltage range DC12 V ... 27 V
  • Reverse polarity protectionno
  • Electrical connection 1, connection typePlugs
  • Electrical connection 1, connector systemM8x1, A-coded, to EN 61076-2-104
  • Electrical connection 1, number of connections/cores3
  • Electrical connection 1, type of mountingNot rotatable
  • Electrical connection 1, compatible type of mountingCompatible with latching lock Compatible with rotatable screw-type lock
  • Electrical connection 1, connection pattern00991155
  • Connection outlet orientationIn-line
  • Type of mountingWith accessories
  • Mounting positionoptional
  • Product weight45 g
  • Housing colourBlack
  • Material housingPET Steel Galvanised steel Die-cast zinc
  • Switching status indicationYellow LED
  • Ambient temperature with moving cable-5 °C ... 70 °C
  • Degree of protectionIP67
  • LABS (PWIS) conformityVDMA24364-B2-L





SKU 150851
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
