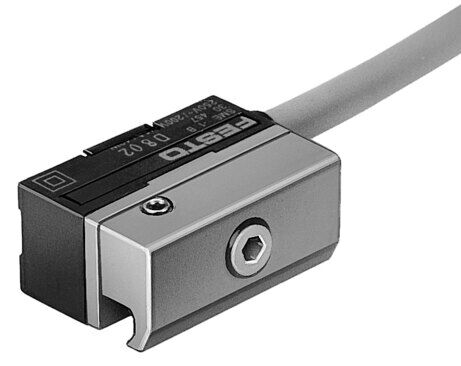

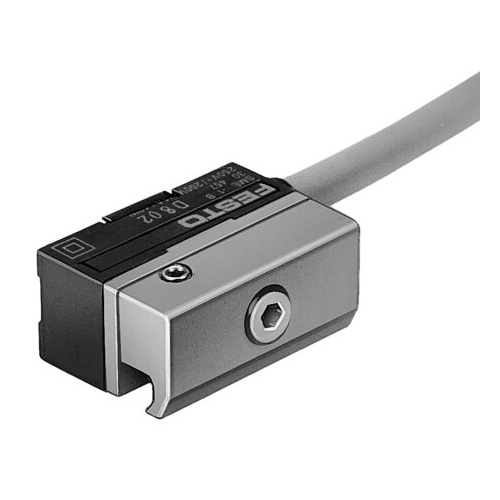

Proximity sensor

SME-1-S6-C

151670





GTIN: 4052568117016

Operational voltage range DC
0 V - 200 V
Switching element function
N/O contact
Switching output
Contacting, bipolar

Technical Data

  • DesignBlock design
  • Conforms to standardEN 60947-5-2
  • Symbol00991624
  • CE mark (see declaration of conformity)To EU EMC Directive To EU Low Voltage Directive In accordance with EU RoHS Directive
  • UKCA marking (see declaration of conformity)To UK RoHS instructions To UK regulations for electrical equipment
  • Note on materialsRoHS-compliant
  • Measured variablePosition
  • Measuring principleMagnetic reed
  • Ambient temperature-50 °C ... 120 °C
  • Repetition accuracy0.2 mm
  • Switching outputContacting, bipolar
  • Switching element functionN/O contact
  • Switch-on time0.5 ms
  • Switch-off time0.03 ms
  • Max. switching frequency500 Hz
  • Max. output current1000 mA
  • Max. switching capacity AC40 VA
  • Max. switching capacity DC40 W
  • Voltage drop≤0 V
  • Off-state current0 mA
  • Short circuit current ratingno
  • Overload protectionNot available
  • Operational voltage range AC0 V ... 250 V
  • Operational voltage range DC0 V ... 200 V
  • Reverse polarity protectionno
  • Electrical connection 1, connection typeCable
  • Electrical connection 1, connector systemOpen end
  • Electrical connection 1, number of connections/cores2
  • Connection outlet orientationIn-line
  • Cable length2.5 m
  • Cable sheath colourGrey
  • Material cable sheathTPE-S
  • Type of mountingWith accessories
  • Tightening torque2.9 Nm
  • Mounting positionoptional
  • Product weight130 g
  • Housing colourBlack
  • Material housingPC PET Steel TPE-O Die-cast zinc
  • Ambient temperature with moving cable-40 °C ... 120 °C
  • Degree of protectionIP67
  • Insulation voltage250 V
  • Immunity to surge4 kV
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Pollution degree3



SKU 151670
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
