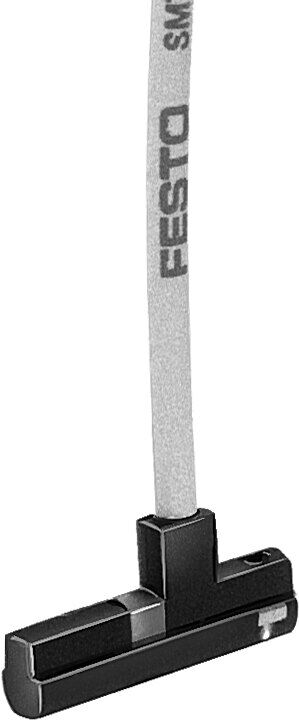

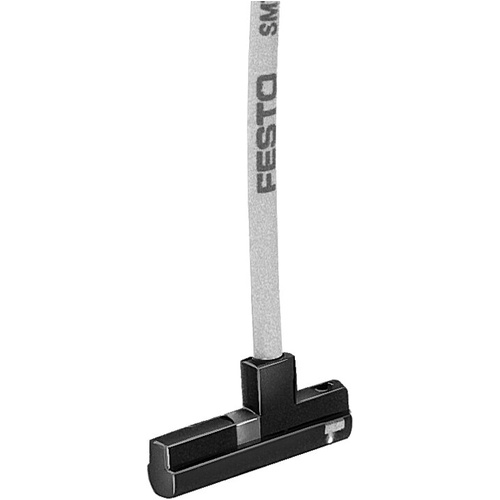

Proximity sensorSME-10-KQ-LED-24

173211

GTIN: 4052568074616

Operational voltage range DC
12 V - 27 V
Switching element function
N/O contact
Switching output
Contacting, bipolar

Technical Data Proximity sensor SME-10-KQ-LED-24

  • DesignFor C-slot
  • Conforms to standardEN 60947-5-2
  • Symbol00991620
  • ApprovalRCM
  • CE mark (see declaration of conformity)To EU EMC Directive In accordance with EU RoHS Directive
  • UKCA marking (see declaration of conformity)To UK instructions for EMC To UK RoHS instructions
  • Note on materialsRoHS compliant
  • Instructions on useSupport / actuator-sensor overview "The right sensor for the actuator"
  • Measured variablePosition
  • Measuring principleMagnetic reed
  • Ambient temperature-20 °C ... 70 °C
  • Repetition accuracy0.2 mm
  • Switching outputContacting, bipolar
  • Switching element functionN/O contact
  • Switch-on time≤0.6 ms
  • Switch-off time≤0.05 ms
  • Max. switching frequency500 Hz
  • Max. output current100 mA
  • Max. switching capacity DC1 W
  • Voltage drop0 V
  • Short circuit current ratingNo
  • Overload protectionNot provided
  • Operational voltage range AC12 V ... 27 V
  • Operational voltage range DC12 V ... 27 V
  • Reverse polarity protectionNo
  • Electrical connection 1, connection typeCable
  • Electrical connection 1, connector systemOpen end
  • Electrical connection 1, number of connections/cores3
  • Connection outlet orientationLateral
  • Cable length2.5 m
  • Cable sheath colourGrey
  • Material cable sheathTPE-U(PUR)
  • Type of mountingClamped in C-slot Inserted into the slot lengthwise
  • Tightening torque0.1 Nm
  • Mounting positionAny
  • Product weight20 g
  • Housing colourBlack
  • Material housingPPS High-alloy stainless steel
  • Switching status indicationYellow LED
  • Ambient temperature with moving cable-5 °C ... 70 °C
  • Degree of protectionIP65 IP67
  • Insulation voltage50 V
  • Immunity to surge0.8 kV
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Pollution degree3
