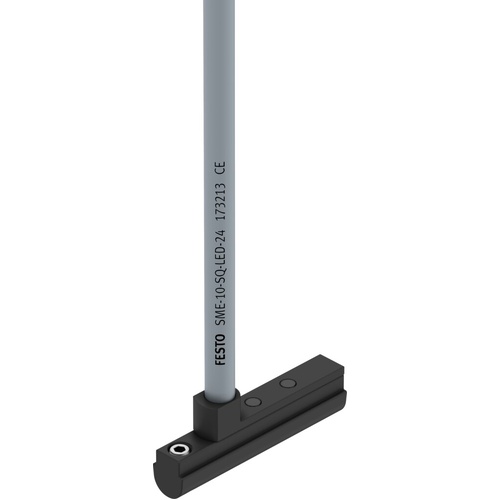

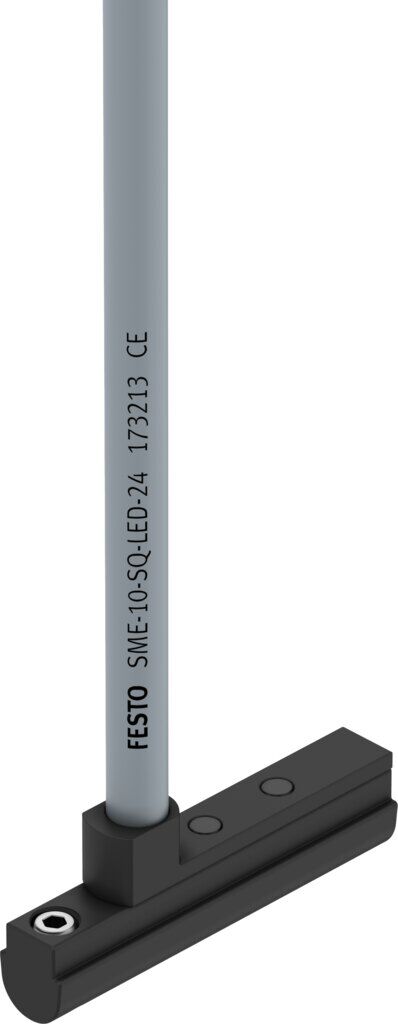

Proximity sensorSME-10-SQ-LED-24

Technical Data Proximity sensor SME-10-SQ-LED-24

• DesignFor C-slot
• Conforms to standardEN 60947-5-2
• Symbol00991619
• ApprovalRCM
• CE mark (see declaration of conformity)To EU EMC Directive In accordance with EU RoHS Directive
• UKCA marking (see declaration of conformity)To UK instructions for EMC To UK RoHS instructions
• Note on materialsRoHS compliant
• Instructions on useSupport / actuator-sensor overview "The right sensor for the actuator"
• Measured variablePosition
• Measuring principleMagnetic reed
• Ambient temperature-20 °C ... 70 °C
• Repetition accuracy0.2 mm
• Switching outputContacting, bipolar
• Switching element functionN/O contact
• Switch-on time≤0.6 ms
• Switch-off time≤0.05 ms
• Max. switching frequency500 Hz
• Max. output current100 mA
• Max. switching capacity DC1 W
• Voltage drop0 V
• Short circuit current ratingNo
• Overload protectionNot provided
• Operational voltage range AC12 V ... 27 V
• Operational voltage range DC12 V ... 27 V
• Reverse polarity protectionNo
• Electrical connection 1, connection typeCable with plug
• Electrical connection 1, connector systemM8x1, A-coded, to EN 61076-2-104
• Electrical connection 1, number of connections/cores3
• Electrical connection 1, type of mountingSnap-locking Screw-type lock Not rotatable
• Electrical connection 1, compatible type of mountingCompatible with latching lock Compatible with rotatable screw-type lock
• Electrical connection 1, connection pattern00991155
• Connection outlet orientationLateral
• Cable length0.3 m
• Cable sheath colourGrey
• Material cable sheathTPE-U(PUR)
• Type of mountingClamped in C-slot Inserted into the slot lengthwise
• Tightening torque0.1 Nm
• Mounting positionAny
• Product weight5 g
• Housing colourBlack
• Material housingBrass, nickel-plated PPS TPE-U(PU) High-alloy stainless steel
• Switching status indicationYellow LED
• Ambient temperature with moving cable-5 °C ... 70 °C
• Degree of protectionIP65 IP67
• Insulation voltage50 V
• Immunity to surge0.8 kV
• LABS (PWIS) conformityVDMA24364-B2-L
• Pollution degree3
