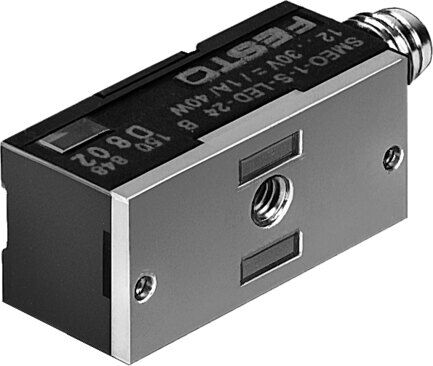

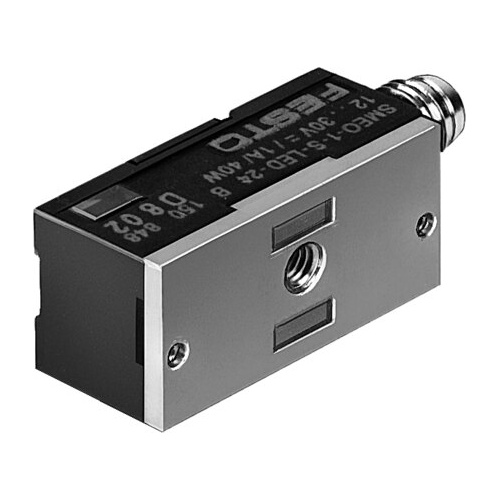

Proximity sensor

SMEO-1-S-24-B

150847





GTIN: 4052568069827

Operational voltage range DC
0 V - 30 V
Switching element function
N/O contact
Switching output
Contacting, bipolar



Technical Data

  • DesignBlock design
  • Symbol00995365
  • CE mark (see declaration of conformity)To EU EMC Directive In accordance with EU RoHS Directive
  • UKCA marking (see declaration of conformity)To UK RoHS instructions
  • Note on materialsRoHS-compliant
  • Measured variablePosition
  • Measuring principleMagnetic reed
  • Ambient temperature-20 °C ... 70 °C
  • Repetition accuracy0.2 mm
  • Switching outputContacting, bipolar
  • Switching element functionN/O contact
  • Switch-on time≤0.5 ms
  • Max. switching frequency500 Hz
  • Max. output current1000 mA
  • Max. switching capacity AC27 VA
  • Max. switching capacity DC27 W
  • Short circuit current ratingno
  • Overload protectionNot available
  • Operational voltage range DC0 V ... 30 V
  • Reverse polarity protectionno
  • Electrical connection 1, connection typePlugs
  • Electrical connection 1, connector systemM8x1, A-coded, to EN 61076-2-104
  • Electrical connection 1, number of connections/cores3
  • Electrical connection 1, type of mountingNot rotatable
  • Electrical connection 1, compatible type of mountingCompatible with latching lock Compatible with rotatable screw-type lock
  • Electrical connection 1, connection pattern00992826
  • Connection outlet orientationIn-line
  • Type of mountingWith accessories
  • Mounting positionoptional
  • Product weight20 g
  • Housing colourBlack
  • Material housingPET Steel Die-cast zinc
  • Ambient temperature with moving cable-5 °C ... 70 °C
  • Degree of protectionIP67
  • LABS (PWIS) conformityVDMA24364-B2-L
SKU 150847
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
