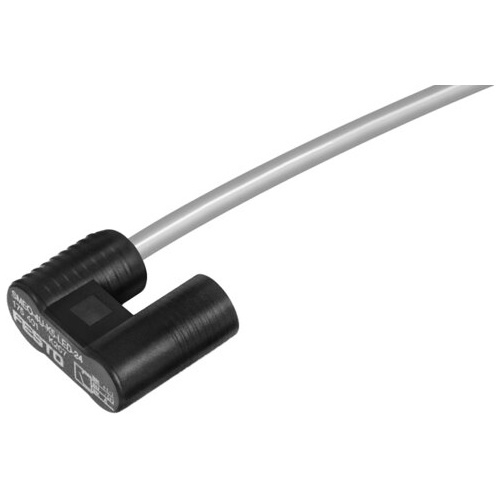

Proximity sensor

SMEO-4U-K-LED 230

150011





GTIN: 4052568068660

Technical Data

  • DesignRound
  • Conforms to standardDIN EN 60947-5-2
  • Symbol00992153
  • ApprovalRCM trademark
  • CE mark (see declaration of conformity)To EU EMC Directive To EU Low Voltage Directive In accordance with EU RoHS Directive
  • UKCA marking (see declaration of conformity)To UK RoHS instructions To UK regulations for electrical equipment
  • Measuring principleMagnetic reed
  • Ambient temperature-20 °C ... 60 °C
  • Repetition accuracy0.2 mm
  • Switching outputContacting, bipolar Without LED function
  • Switching element functionN/O contact
  • Switch-on time≤2 ms
  • Switch-off time0.05 ms
  • Max. switching frequency500 Hz
  • Max. output current AC250 mA
  • Max. output current DC120 mA
  • Max. switching capacity AC10 VA
  • Max. switching capacity DC10 W
  • Voltage drop≤4.5 V
  • Short circuit current ratingno
  • Overload protectionNot available
  • Operational voltage range AC12 V ... 250 V
  • Operational voltage range DC12 V ... 250 V
  • Reverse polarity protectionno
  • Electrical connection 1, connection typeCable
  • Electrical connection 1, connector systemOpen end
  • Electrical connection 1, number of connections/cores2
  • Connection outlet orientationIn-line
  • Cable length2.5 m
  • Material cable sheathPVC
  • Type of mountingWith accessories
  • Tightening torque0.8 Nm
  • Mounting positionoptional
  • Product weight70 g
  • Material housingPET TPE-O
  • Switching status indicationYellow LED
  • Degree of protectionIP67
  • Immunity to surge4 kV
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Pollution degree3





SKU 150011
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
