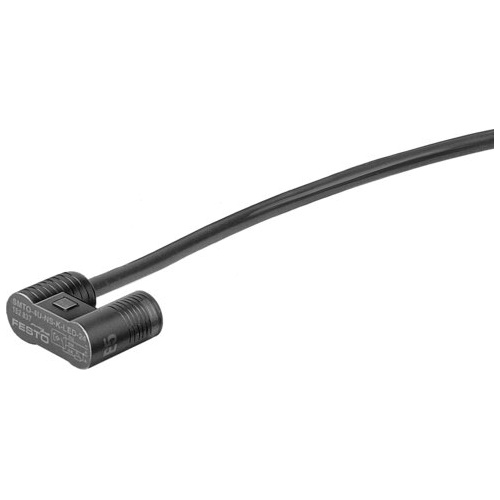

Proximity sensorSMEO-4U-K5-LED-24

175401

GTIN: 4052568075033

Technical Data Proximity sensor SMEO-4U-K5-LED-24

  • DesignRound
  • Symbol00991145
  • ApprovalRCM
  • CE mark (see declaration of conformity)To EU EMC Directive In accordance with EU RoHS Directive
  • UKCA marking (see declaration of conformity)To UK RoHS instructions
  • Measuring principleMagnetic reed
  • Ambient temperature-20 °C ... 60 °C
  • Repetition accuracy0.2 mm
  • Switching outputContacting, bipolar
  • Switching element functionN/O contact
  • Switch-on time≤0.5 ms
  • Switch-off time0.03 ms
  • Max. switching frequency800 Hz
  • Max. output current500 mA
  • Max. switching capacity DC10 W
  • Inductive protective circuitAdapted to MZ, MY, ME coils
  • Short circuit current ratingNo
  • Operational voltage range DC12 V ... 27 V
  • Residual ripple10%
  • Reverse polarity protectionNo
  • Electrical connection 1, connection typeCable
  • Electrical connection 1, connector systemOpen end
  • Electrical connection 1, number of connections/cores3
  • Connection outlet orientationIn-line
  • Cable length5 m
  • Cable sheath colourGrey
  • Material cable sheathTPE-U(PUR)
  • Type of mountingWith accessories
  • Mounting positionAny
  • Product weight130 g
  • Material housingPET
  • Switching status indicationYellow LED
  • Ambient temperature with moving cable-5 °C ... 60 °C
  • Degree of protectionIP67
  • LABS (PWIS) conformityVDMA24364-B2-L





SKU 175401
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
