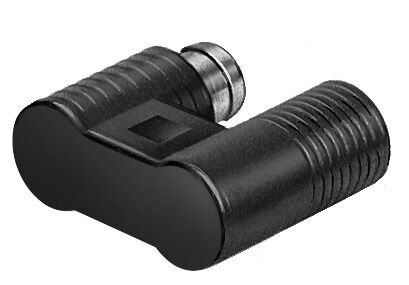

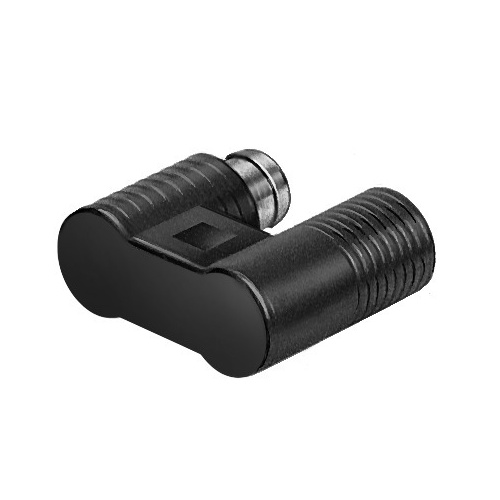

Proximity sensor

SMEO-4U-S-LED-24 B

151526





GTIN: 4052568069971





Technical Data

  • DesignRound
  • Symbol00991148
  • ApprovalRCM trademark
  • CE mark (see declaration of conformity)To EU EMC Directive In accordance with EU RoHS Directive
  • UKCA marking (see declaration of conformity)To UK RoHS instructions
  • Measuring principleMagnetic reed
  • Ambient temperature-20 °C ... 60 °C
  • Repetition accuracy0.2 mm
  • Switching outputContacting, bipolar
  • Switching element functionN/O contact
  • Switch-on time≤0.5 ms
  • Switch-off time0.03 ms
  • Max. switching frequency800 Hz
  • Max. output current500 mA
  • Max. switching capacity DC10 W
  • Inductive protective circuitAdapted to MZ, MY, ME coils
  • Short circuit current ratingno
  • Operational voltage range DC12 V ... 27 V
  • Residual ripple10 %
  • Reverse polarity protectionno
  • Electrical connection 1, connection typePlugs
  • Electrical connection 1, connector systemM8x1, A-coded, to EN 61076-2-104
  • Electrical connection 1, number of connections/cores3
  • Electrical connection 1, type of mountingNot rotatable
  • Electrical connection 1, compatible type of mountingCompatible with latching lock Compatible with rotatable screw-type lock
  • Electrical connection 1, connection pattern00991155
  • Type of mountingWith accessories
  • Mounting positionoptional
  • Product weight6 g
  • Material housingPET
  • Switching status indicationYellow LED
  • Degree of protectionIP67
  • LABS (PWIS) conformityVDMA24364-B2-L





SKU 151526
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
