Product Lifecycle Information




Product is planned to be discontinued. Do not use for new designs.



04/2023 - Warning: Product to be discontinued. Do not use for new designs. Please use the modern alternative product.




12/2026 - Product is discontinued. Products for replacement may be available while stocks permit.




12/2028 - Product is discontinued.

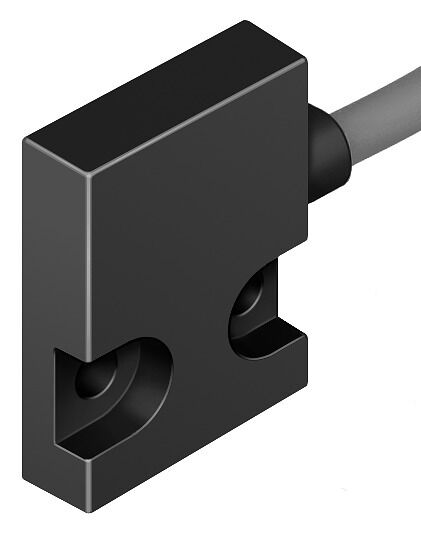

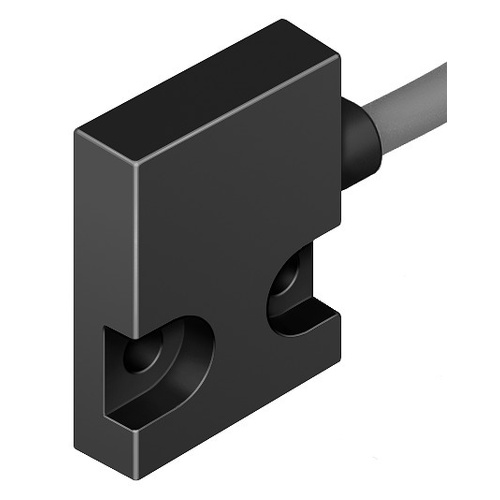

Position sensorSMH-S1-HGP06

175710

GTIN: 4052568143190





Design
For grippers



Technical Data Position sensor SMH-S1-HGP06

  • DesignFor grippers
  • Symbol00991630
  • CE mark (see declaration of conformity)To EU EMC Directive In accordance with EU RoHS Directive
  • UKCA marking (see declaration of conformity)To UK RoHS instructions
  • Note on materialsRoHS compliant
  • Measured variablePosition
  • Measuring principleMagnetic Hall
  • Ambient temperature5 °C ... 60 °C
  • Short circuit current ratingNo
  • Overload protectionNot provided
  • Output signalAnalogue
  • Reverse polarity protectionNo
  • Electrical connection 1, connection typeCable with plug
  • Electrical connection 1, connector systemM8x1, A-coded, to EN 61076-2-104
  • Electrical connection 1, number of connections/cores4
  • Material electrical contactGold-plated brass
  • Cable length0.5 m
  • Cable sheath colourGrey
  • Material cable sheathTPE-U(PUR)
  • Type of mountingScrewed onto gripper
  • Mounting positionAny
  • Product weight20 g
  • Housing colourBlack
  • Material housingPUR
  • Degree of protectionIP65
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B2-L





SKU 175710
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
