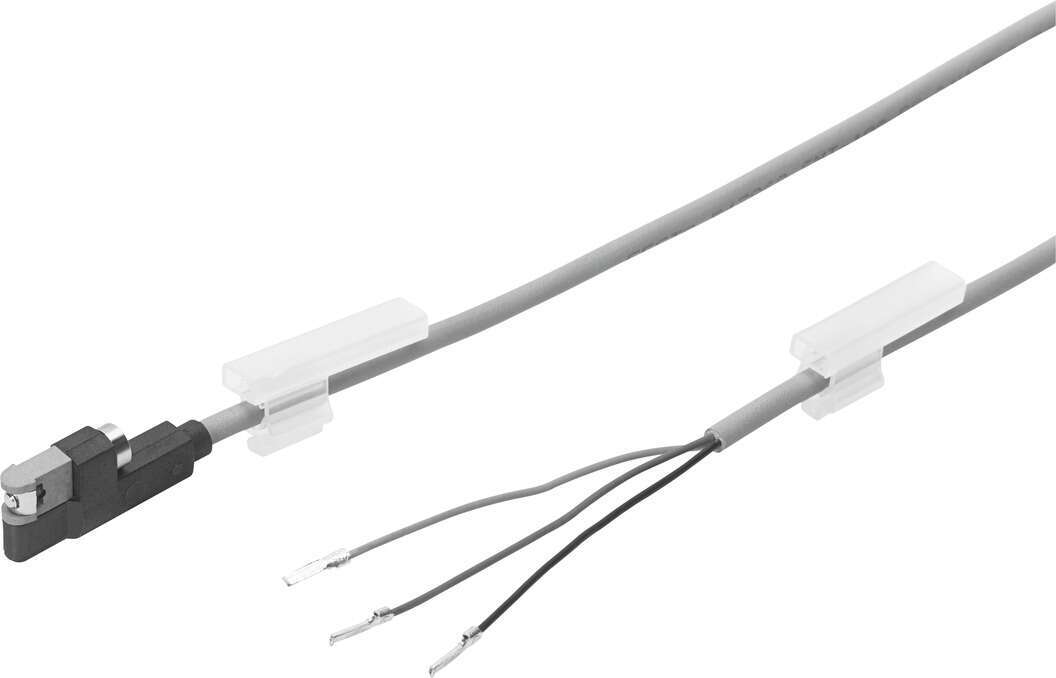

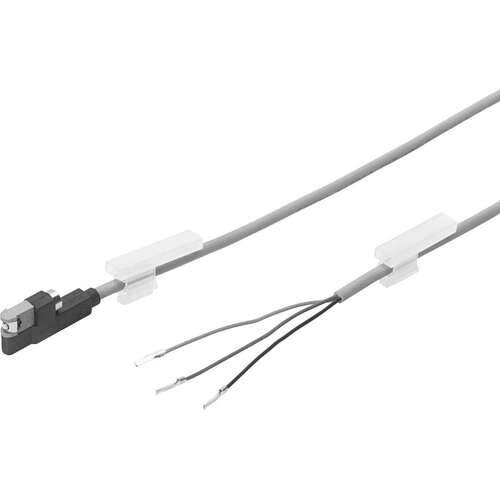

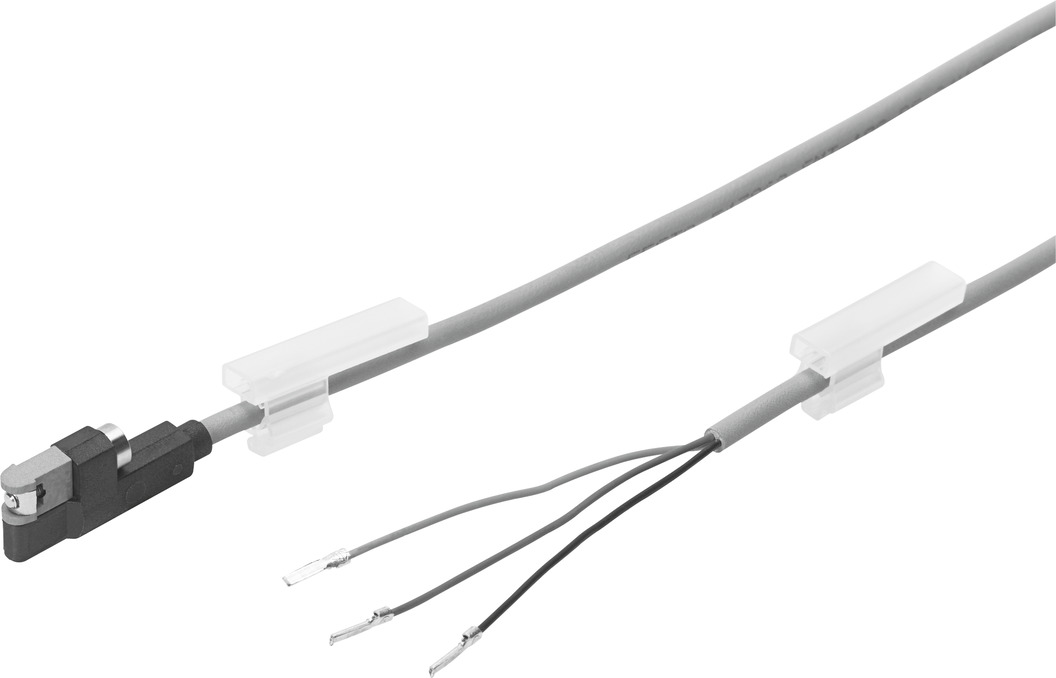

Proximity sensor

SMT-10G-PS-24V-E-2,5Q-OE

547862

GTIN: 4052568093037

Technical Data

• DesignFor C-slot
• Based on standardEN 60947-5-2

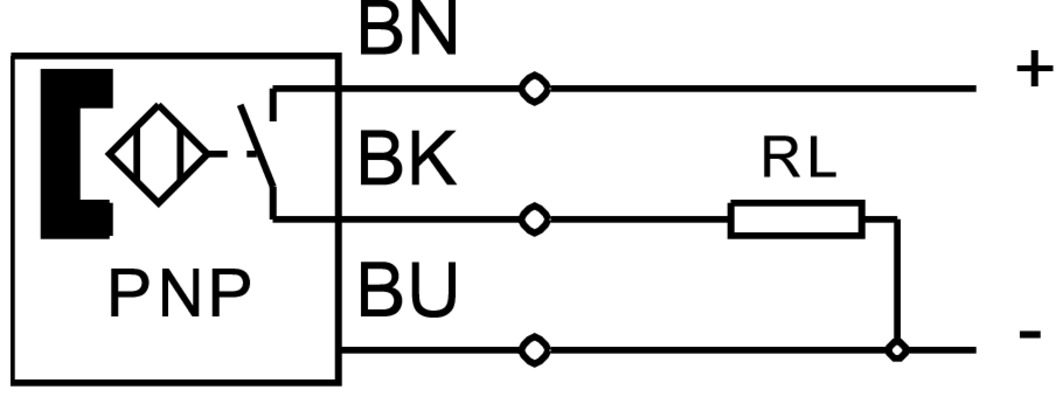

• Symbol00991152
• ApprovalRCM trademark c UL us listed (OL)
• CE mark (see declaration of conformity)To EU EMC Directive In accordance with EU RoHS Directive
• UKCA marking (see declaration of conformity)To UK instructions for EMC To UK RoHS instructions
• Certificate issuing authorityUL E232949
• Note on materialsRoHS-compliant
• Instructions on usehttps://www.festo.com/Drive-Sensor-Overview
• Measured variablePosition
• Measuring principleMagneto-resistive
• Ambient temperature-20 °C ... 70 °C
• Repetition accuracy0.2 mm
• Switching outputPNP
• Switching element functionN/O contact
• Switch-on time≤1 ms
• Switch-off time≤1 ms
• Max. switching frequency150 Hz
• Max. output current100 mA
• Max. switching capacity DC2.8 W
• Voltage drop≤2 V
• Inductive protective circuitAdapted to MZ, MY, ME coils
• Off-state current≤0.01 mA
• Short circuit current ratingyes
• Overload protectionYes
• Rated operational voltage DC24 V
• Operational voltage range DC10 V ... 30 V
• Residual ripple10 %
• Reverse polarity protectionFor all electrical connections
• Electrical connection 1, connection typeCable
• Electrical connection 1, connector systemOpen end
• Electrical connection 1, number of connections/cores3
• Connection outlet orientationLateral
• Test conditions cableBending strength: to Festo standard Test conditions on request Torsional strength: > 300,000 cycles, ±270°/0.1 m Energy chain: > 5 million cycles, bending radius 28 mm
• Cable length2.5 m
• Cable characteristicSuitable for energy chains/robot applications
• Cable sheath colourGrey
• Material cable sheathTPE-U(PU)
• Wire endsWire ferrule
• Type of mountingClamped in C-slot Insertable in the slot lengthwise
• Max. tightening torque0.6 Nm
• Mounting positionoptional
• Product weight30 g
• Housing colourBlack
• Material housingHigh-alloy stainless steel
• Switching status indicationYellow LED
• Ambient temperature with moving cable-5 °C ... 70 °C
• Degree of protectionIP65 IP68
• LABS (PWIS) conformityVDMA24364-B2-L
• Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
• Cleanroom suitability, measured according to ISO 14644-14Element installed statically, no meaningful evaluation possible according to ISO 14644-1
