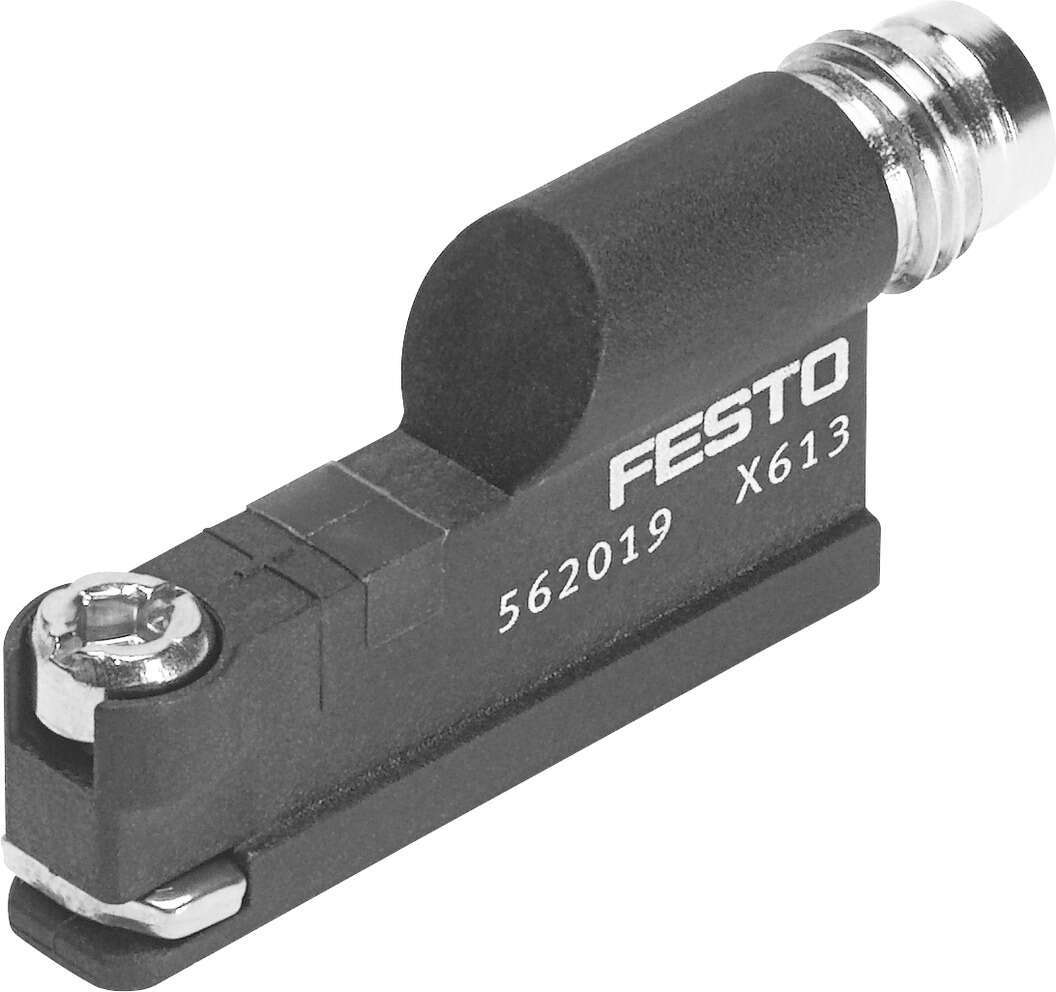

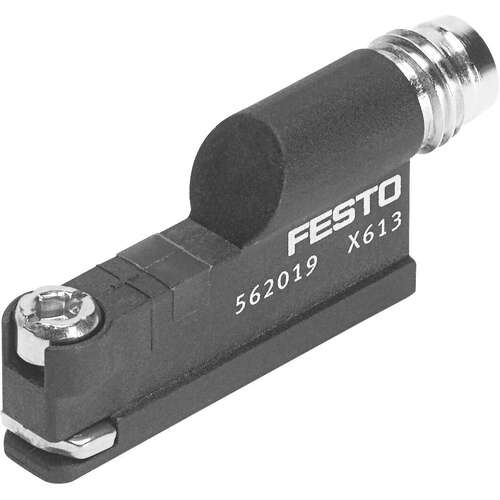

Proximity sensor

SMT-8-SL-PS-LED-24-B

562019

GTIN: 4052568099053

Technical Data

• DesignFor T-slot
• Based on standardEN 60947-5-2
• Symbol00991153
• ApprovalRCM trademark c UL us listed (OL)
• CE mark (see declaration of conformity)To EU EMC Directive In accordance with EU RoHS Directive
• UKCA marking (see declaration of conformity)To UK instructions for EMC To UK RoHS instructions
• Certificate issuing authorityUL E232949
• Note on materialsRoHS-compliant
• Instructions on usehttps://www.festo.com/Drive-Sensor-Overview
• Measured variablePosition
• Measuring principleMagneto-resistive
• Ambient temperature-20 °C ... 70 °C
• Repetition accuracy0.2 mm
• Switching outputPNP
• Switching element functionN/O contact
• Switch-on time≤1 ms
• Switch-off time2 ms ... 6 ms
• Max. switching frequency140 Hz
• Max. output current100 mA
• Max. switching capacity DC3 W
• Voltage drop≤2 V
• Inductive protective circuitAdapted to MZ, MY, ME coils
• Min. load current0.1 mA
• Off-state current<0.002 mA
• Short circuit current ratingyes
• Overload protectionYes
• Rated operational voltage DC24 V
• Operational voltage range DC10 V ... 30 V
• Residual ripple10 %
• Reverse polarity protectionFor all electrical connections
• Electrical connection 1, connection typePlugs
• Electrical connection 1, connector systemM8x1, A-coded, to EN 61076-2-104
• Electrical connection 1, number of connections/cores3
• Electrical connection 1, type of mountingSnap-locking Screw-type lock Not rotatable
• Electrical connection 1, compatible type of mountingCompatible with latching lock Compatible with rotatable screw-type lock
• Electrical connection 1, connection pattern00991155
• Connection outlet orientationIn-line
• Material electrical contactGold-plated brass
• Material screw-type lockHigh-alloy stainless steel
• Type of mountingScrew-clamped Insertable in the slot lengthwise
• Tightening torque0.12 Nm ... 0.4 Nm
• Max. tightening torque0.4 Nm
• Mounting positionoptional
• Product weight4.2 g
• Housing colourBlack
• Material housingHigh-alloy stainless steel
• Switching status indicationYellow LED
• Degree of protectionIP65 IP68
• LABS (PWIS) conformityVDMA24364-B2-L
