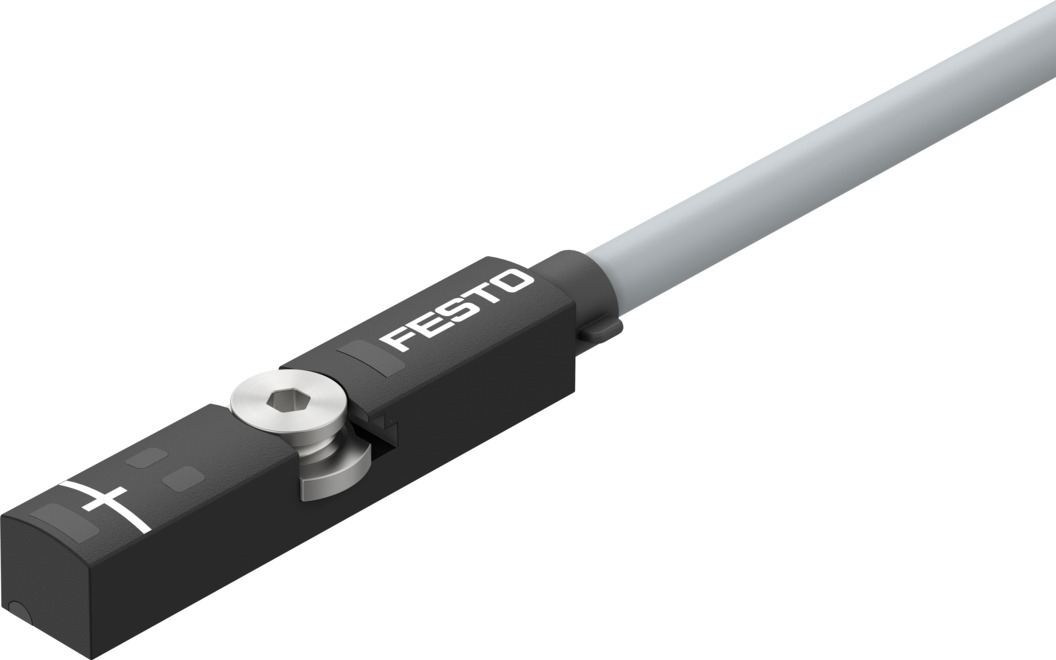

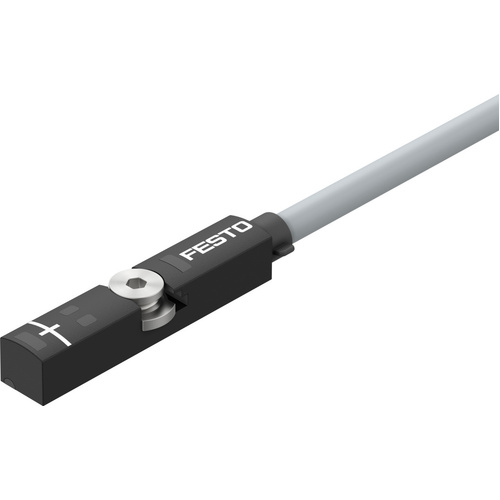

Proximity sensor

SMT-8M-A-PS-24V-E-2,5-OE

574335

Technical Data

• DesignFor T-slot
• Based on standardEN 60947-5-2
• Symbol00991152
• ApprovalRCM trademark c UL us listed (OL)
• CE mark (see declaration of conformity)To EU EMC Directive In accordance with EU RoHS Directive
• UKCA marking (see declaration of conformity)To UK instructions for EMC To UK RoHS instructions
• Certificate issuing authorityUL E232949
• Special characteristicsOil resistant
• Note on materialsRoHS-compliant Free of halogen
• Instructions on usehttps://www.festo.com/Drive-Sensor-Overview
• Measured variablePosition
• Measuring principleMagneto-resistive
• Ambient temperature-40 °C ... 85 °C
• Repetition accuracy0.2 mm
• Switching outputPNP
• Switching element functionN/O contact
• Switch-on time≤1.3 ms
• Switch-off time≤7.3 ms
• Max. switching frequency130 Hz
• Max. output current100 mA
• Max. output current using mounting kits100 mA
• Max. switching capacity DC2.8 W
• Max. switching capacity DC using mounting kits2.8 W
• Voltage drop<1.5 V
• Short circuit current ratingyes
• Overload protectionYes
• Rated operational voltage DC24 V
• Operational voltage range DC5 V ... 30 V
• Reverse polarity protectionFor all electrical connections
• Electrical connection 1, connection typeCable
• Electrical connection 1, connector systemOpen end
• Electrical connection 1, number of connections/cores3
• Connection outlet orientationIn-line
• Test conditions cableTest conditions on request Torsional strength: > 300,000 cycles, ±270°/0.1 m Flexural strength: >50000 cycles, bending radius 5 mm Energy chain: > 5 million cycles, bending radius 28 mm
• Cable length2.5 m
• Cable characteristicSuitable for energy chains/robot applications
• Cable sheath colourGrey
• Material cable sheathTPE-U(PUR)
• Material insulating sheathPP
• Wire endsWire ferrule
• Type of mountingScrew-clamped Insertable in the slot from above
• Max. tightening torque0.6 Nm
• Mounting positionoptional
• Product weight29.1 g
• Housing colourBlack
• Material housingHigh-alloy stainless steel
• Switching status indicationYellow LED
• Function reserve indicationOrange LED
• Ambient temperature with moving cable-20 °C ... 85 °C
• Degree of protectionIP65 IP68 IP69K
• LABS (PWIS) conformityVDMA24364-B2-L
• Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
• Cleanroom suitability, measured according to ISO 14644-14Element installed statically, no meaningful evaluation possible according to ISO 14644-1
