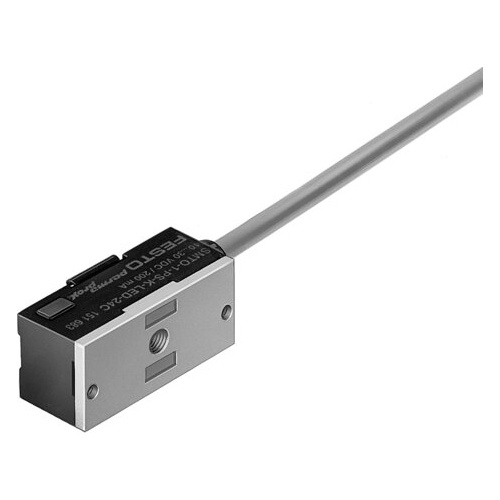

Proximity sensor

SMTO-1-PS-K-LED-24-C

151683





GTIN: 4052568117030

Operational voltage range DC
10 V - 30 V
Switching element function
N/O contact
Switching output
PNP

Technical Data

  • DesignBlock design
  • Based on standardEN 60947-5-2
  • Symbol00991152
  • ApprovalRCM trademark
  • CE mark (see declaration of conformity)To EU EMC Directive In accordance with EU RoHS Directive
  • UKCA marking (see declaration of conformity)To UK RoHS instructions
  • Note on materialsRoHS-compliant
  • Measured variablePosition
  • Measuring principleMagneto-inductive
  • Ambient temperature-25 °C ... 70 °C
  • Repetition accuracy0.2 mm
  • Switching outputPNP
  • Switching element functionN/O contact
  • Hysteresis0.1 mm ... 1.5 mm
  • Switch-on time≤1 ms
  • Switch-off time≤1 ms
  • Max. switching frequency1000 Hz
  • Max. output current200 mA
  • Max. switching capacity DC6 W
  • Voltage drop≤3 V
  • Inductive protective circuitAdapted to MZ, MY, ME coils
  • Off-state current≤0.01 mA
  • Short circuit current ratingPulsed
  • Overload protectionAvailable
  • Operational voltage range DC10 V ... 30 V
  • Residual ripple10 %
  • Reverse polarity protectionFor all electrical connections
  • Electrical connection 1, connection typeCable
  • Electrical connection 1, connector systemOpen end
  • Electrical connection 1, number of connections/cores3
  • Connection outlet orientationIn-line
  • Cable length2.5 m
  • Cable characteristicStandard
  • Cable sheath colourGrey
  • Material cable sheathPVC
  • Material insulating sheathPVC
  • Wire endsWire ferrule
  • Type of mountingWith accessories
  • Mounting positionoptional
  • Product weight85 g
  • Housing colourBlack
  • Material housingPET Die-cast zinc
  • Switching status indicationYellow LED
  • Ambient temperature with moving cable-5 °C ... 70 °C
  • Degree of protectionIP67
  • LABS (PWIS) conformityVDMA24364-B2-L



SKU 151683
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
