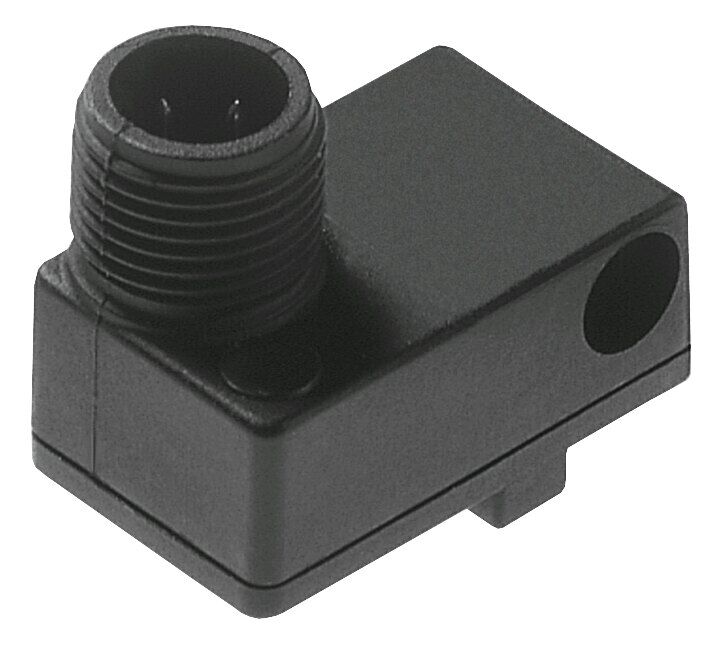

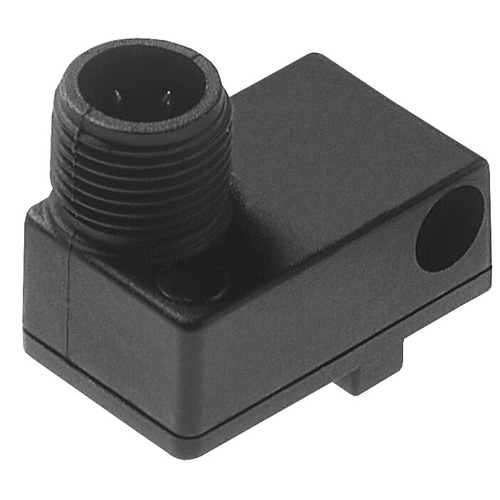

Proximity sensorSMTO-8E-NS-M12-LED-24

Technical Data Proximity sensor SMTO-8E-NS-M12-LED-24

• DesignFor T-slot
• Based on standardEN 60947-5-2
• Symbol00991150
• ApprovalRCM
• CE mark (see declaration of conformity)To EU EMC Directive In accordance with EU RoHS Directive
• UKCA marking (see declaration of conformity)To UK RoHS instructions
• Note on materialsRoHS compliant
• Instructions on useSupport / actuator-sensor overview "The right sensor for the actuator"
• Measured variablePosition
• Measuring principleMagneto-resistive
• Ambient temperature-20 °C ... 60 °C
• Repetition accuracy0.2 mm
• Switching outputNPN
• Switching element functionN/O contact
• Switch-on time≤1.3 ms
• Switch-off time≤7.3 ms
• Max. switching frequency130 Hz
• Max. output current100 mA
• Max. switching capacity DC2.8 W
• Voltage drop≤1.8 V
• Inductive protective circuitAdapted to MZ, MY, ME coils
• Off-state current≤0.15 mA
• Short circuit current ratingYes
• Overload protectionYes
• Operational voltage range DC10 V ... 30 V
• Residual ripple10%
• Reverse polarity protectionFor all electrical connections
• Electrical connection 1, connection typePlug
• Electrical connection 1, connector systemM12x1, A-coded to EN 61076-2-101
• Electrical connection 1, number of connections/cores3
• Electrical connection 1, type of mountingNot rotatable
• Electrical connection 1, compatible type of mountingCompatible with rotatable screw-type lock
• Electrical connection 1, connection pattern00995573
• Connection outlet orientationLateral
• Material electrical contactGold-plated brass
• Max. tightening torque connector0.5 Nm
• Type of mountingClamped in T-slot With accessories Insertable in the slot from above
• Tightening torque0.5 Nm
• Mounting positionAny
• Product weight12 g
• Housing colourBlack
• Material housingTPE-U(PU) High-alloy stainless steel
• Switching status indicationYellow LED
• Degree of protectionIP65 IP67
• LABS (PWIS) conformityVDMA24364-B2-L
