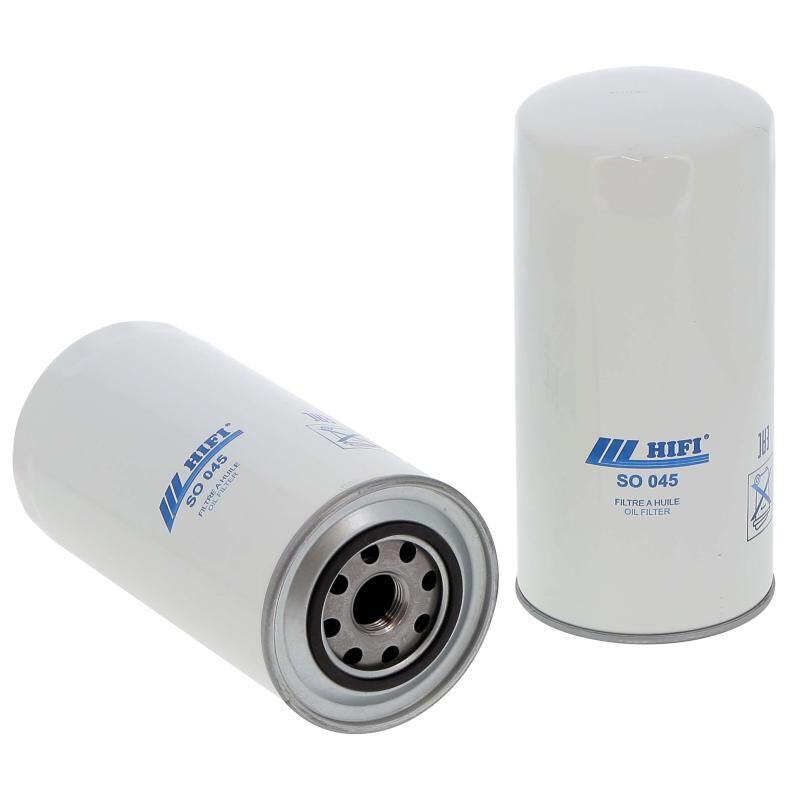

SO045 Oil Filter

• Number of check valve 2.0 Pcs

• Number of by-pass valves 1.0 Pcs

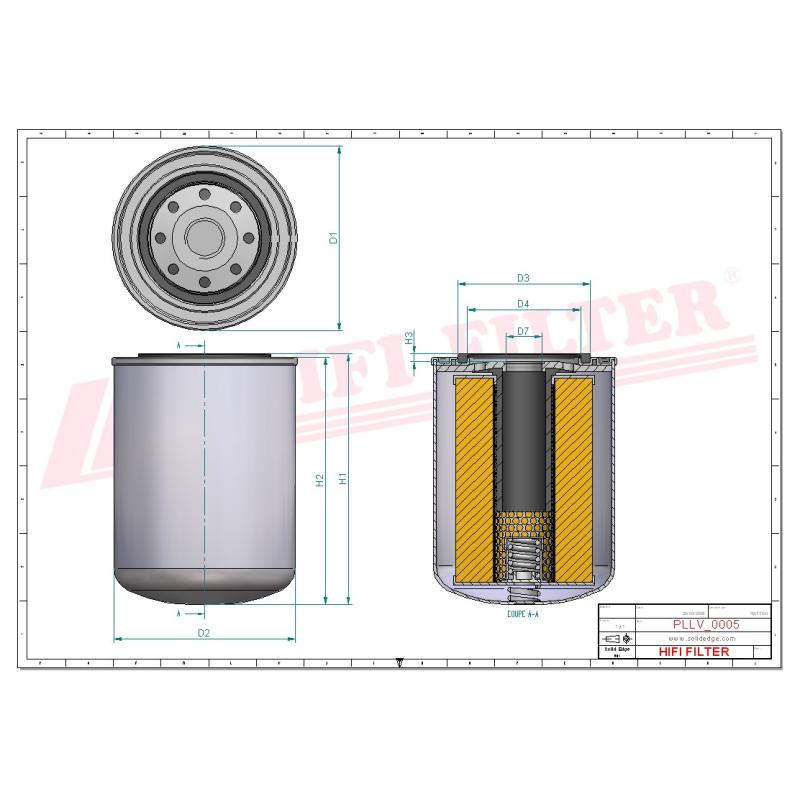

• D1 (mm) 111.0 mm

• D2 (mm) 108.0 mm

• D3 (mm) 71.0 mm

• D7 thread 1 1"-12UNF

• H1 (mm) 229.0 mm

• H2 (mm) 226.5 mm

• H3 (mm) 8.0 mm

• Gencod 3661200102511

• Volume (m3) 0.003456 m3

• Weight (kg) 1.119 kg





Compatibility

• 2H ENERGY

  SERIE 8210

• ANSALDO

  M 2B 250 SB4

• ASTRA

  5 T 300BM 501RD 28

• ATMOS

  SEC 370

• BARIGELLI

  B/3 4X4 S

• BCMH

  SB 8000

• BELLOLI

  DM 210 B

• BELOTTI

  B 92

• BOTTARINI

  KS 96

• CARRARO

  1151.4

• FIAC

  AIRBLOCK 50AIRBLOCK 60

• FIAT

  1580160-90 DT180-90 DT18801880645 B945 BAD 10 CAD 14 CFD 10 EFD 145FD 14 EFD 175FD 20FE 20FE 24FE 28FG 75FG 85FG 95FL 10FL 10 CFL 10 EFL 145FL 14 BFL 14 CFL 14 DFL 14 EFL 175FL 20FL 28FL 55FL 7FR 12 CFR 15S 15S 15 B

• FIAT HITACHI

  FH 400FH 400 LCFL 175

• FIAT IVECO

  820582108210.228210 I 03.008210 L038210 SI 02.008210 SI 15.0082208220.0282808280.018280 SRI82818281 I 03.008281 SI 10.008281 SRI 10.008281 SRI 26.0183608360.058360.058360.2583618361-18361 SI 10.008361 SRI 10.008361 SRI 25.058361 SRI 26.05

• FORD

  F 12000F 14000

• FRANEX

  F 392

• FRANQUET

  DEBARDEUSE BETTERAVES

• GENELEC

  GTC 350MAGNUM

• GENERAC

  TC 350

• HERRIAU

  TH 4TH 5

• HESSTON

  771577207725

• HYDROVANE

  218 NEW TYPE258 NEW TYPE830837845HV 04HV 05HV 06HV 07

• IRMER & ELZE

  IRMAIR 11

• IVECO

  130 NR 20130 NT 20150 NC 17150 NC 20159.20159 F 20159 NC 17165.24170.30170 F 20170 F 26170 F 35170 NC 26170 NT 26190.30 TURBO190 F 20190 F 26190 F 35190 NC 26190 NT 26190 PAC 26240.30240 F 26240 F 35260 D 26260 PAC 26300 PC320.30320 D 32330.30330 F 358210 M821 M8220 MST 630 CE 400 A

• LANCER BOSS

  FRONT LOADER

• LAVERDA

  3600 R3700390077207725L 521 MCSM 150 SERIE IIM 182M 240MX 240MX 300RX 300

• LEFORT

  C 500 TSPM

• LEYBOLD

  SOGEVAC SV 1200

• MOREAU

  GR 4

• NEW HOLLAND

  160-90180-9080308040806080708080TF 42TF 42

• PERKINS

  4006-23TAG4008 TAG4012-46TAG4012-46TWG4012 TAGDGAHDGAMDGBFDGBHDGBMDGDFDGDMDGKMDGLH

• PMI

  13002200822

• RENAULT

  LGT 11

• TURBOFOREST

  TF 155

• VAN HOOL

  750 ALIZEE760 ALIZEE815 ACRON815 ALIZEE

• VOLKSWAGEN

  15.180 EOD15.180 EOD16.180 CO16.210 CO17.210 EOD17.210 EOD17.210 OD17.230 EOD17.230 EOD V-TRONIC17.240 OT17.260 EOT17.260 EOT V-TRONIC18.320 EOT23.210CONSTELLATION 19.370 ECONSTELLATION 25.370 ECONSTELLATION 31.370 EVOLKBUS 16.180 COVOLKBUS 16.210 COVOLKBUS 17.210 ODWORKER 26.260WORKER 31.260 E

• WILSON

  P 1100P 1250P 1500P 730 P1 50HZP 730 P1 60HZP 800P 800 E1 50HZP 800 E1 60HZ



• HIFI-FILTER SO045:

HIFI-FILTER SO045 replacement filters

AIR-PN H1H149

Alco Filters SP1013

ALDAIR AOF61369

ALSAFA OBS152

AMA-AGRICULTURAL 15405

ASAS SP1010

ASAS SP410

AA8350 (AA 8350)

ASAS SP678

ASTRA 048003

ASTRA 48003

ATMOS 627963062130

AVELAIR 627963062130

Baldwin BT349

Baldwin BT8302

BENATI 1836107

BENGBU JX1020A

BEPCO-GROUP 609728

Bosch 0451301088

Bosch 0451301156

BOSS BS03106

BOSS BS03108

BOSS BS03131

BOTTARINI 223475

CARQUEST 85832

CASE L2750557

CERMAG 10804

CLEAN DO268

CM-FILTER CMO7053

COMPAIR 75279

COOPERS AZL120

CROSLAND 9304

Donaldson P551272

Donaldson P551604

DORMAN SE111

DORMAN SE111B

DORMAN SE111P

FG-WILSON 1000051283

FG-WILSON 901136

FIAAM FT4804

FIAAM FT4857

FIAAM FT5237

FIAC 7200030500

FIAC 7211131500

FIAT 1162757

FIAT 1901604

FIAT 1907570

FIAT 1909137

FIAT 1909604

FIAT 1930544

FIAT 20009251

FIAT 4371580

FIAT 4667338

FIAT 4667339

FIAT 4667755

FIAT 61589106

FIAT 704667755

FIAT 71901604

FIAT 71909137

FIAT 74036791

FIAT 74663338

FIAT 74667338

FIAT 74667339

FIAT 74667755

FIAT 78826586

FIAT 79026104

FIAT 8826585

FIAT 8826586

Filtron OP5923

Fleetguard LF3346

FRAD 101704110

Fram PH2883

Fram PH5449

GUD Z209

HENGST H220W

HIFI-FILTER SO260

HYDROVANE 59946

IRMER-ELZE 650357

ISOTECH FHPL013

KOLBENSCHMIDT 50013017

LANCER BOSS 8922459

LAUTRETTE ELH4700

LB-FILTRI LB448EC

LUBER-FINER LFP2229

LUBER-FINER LFP4104

MACO-MEUDON 599946

MAHLE AW91

MAHLE CV406

MAHLE OC35

MAHLE OC43

MAHLE PC232

MANN & HUMMEL W1170

MANN & HUMMEL W1170/15

MANN & HUMMEL W117015

MANN & HUMMEL W117016

MATCH 158462

MISFAT Z120

MOTORCRAFT EFL173

MWM 905411880011

MWM 905411880037

MWM 9054118801

NASA NS1025

NEW HOLLAND 437072

NEW HOLLAND 76042660

NEW HOLLAND 76076924

NOITECH NO014980

ONERGYS 30004792

OXFIL OF8149

SO228

PERFIL PO6537

PERKINS 4324909

PRAMAC PEP00219

PRAMAC PEPSE111B

Purolator L57232

Purolator L57532

PZL-SEDZISZOW PP191

ROMA LUS339

SAFI-FILTRES OS406

Sakura C61011

Sakura C7008

SAVARA SO260

SDMO 330071713

SDMO 330560160

SDMO 330560748

SEINECA SOFS2183

SF-FILTER SP4332

SF-FILTER SP4383

SF-FILTER SP96019

SIERRA FH268

Sofima S0230R

STEP-FILTERS HC5733

TECFIL PSL339

TECNOCAR R320

TECNOCAR R88

TUTELA LB158

UFI 2312000

UFI 2312001

UNI-FILTER USL236

UNIFLUX-FILTERS XO100

VAG 2T2115561

VALTRA 3338079

VAPORMATIC CPD5039

VAPORMATIC VPD5039

VOX LB2814

VW Group TAE115561

WEGA WO610

WISMET WOS45173

Wix 51825

Wix 51825E

Wix 51832

WOODGATE WGL3346

WOODGATE WGL4104
