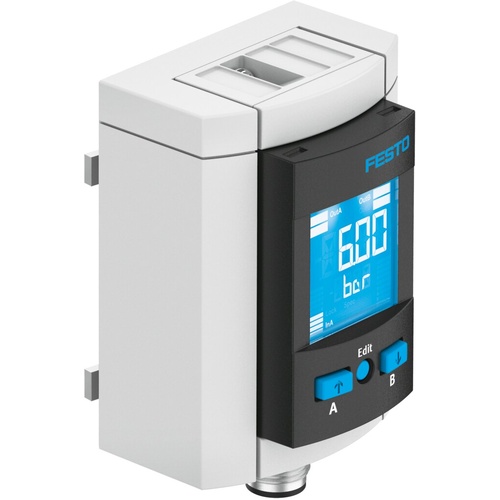

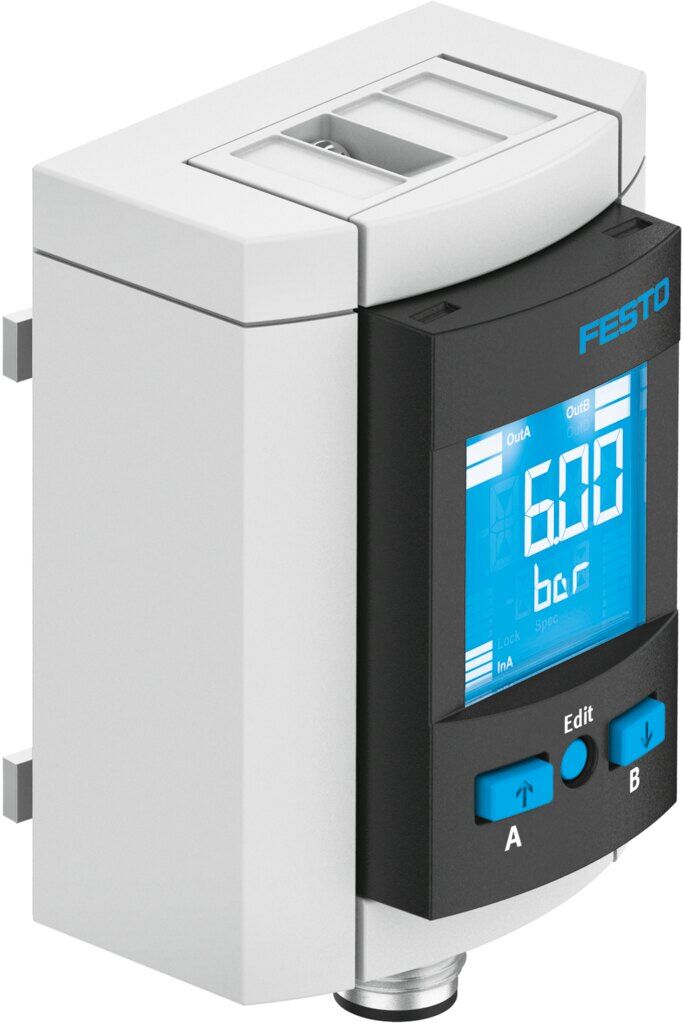

Pressure sensor

Technical Data

• Symbol00995410
• ApprovalRCM trademark c UL us listed (OL)
• CE mark (see declaration of conformity)To EU EMC Directive In accordance with EU RoHS Directive
• UKCA marking (see declaration of conformity)To UK RoHS instructions
• KC markKC-EMV
• Note on materialsRoHS-compliant
• Measured variableRelative pressure
• Measurement methodPiezoresistive pressure sensor
• Start value for pressure measuring range0 MPa
• Start value for pressure measuring range0 bar
• Start value for pressure measuring range0 psi
• End value for pressure measuring range1 MPa
• End value for pressure measuring range10 bar
• End value for pressure measuring range145 psi
• Overload pressure1.5 MPa
• Overload pressure15 bar
• Overload pressure217.5 psi
• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Inert gas
• Note on operating and pilot mediumLubricated operation possible
• Media temperature0 °C ... 50 °C
• Ambient temperature0 °C ... 50 °C
• Resolution ADC12 bit
• Accuracy in ± % FS1.5 %FS
• Repetition accuracy in ± %FS0.3 %FS
• Temperature coefficient in ± %FS/K0.05 %FS/K
• Switching output2 x PNP or 2 x NPN, switchable
• Switching functionFreely programmable
• Switching element functionN/C or N/O contact, switchable
• Max. output current100 mA
• Analogue output0 - 10 V 4 - 20 mA 1 - 5 V
• Rise time3 ms
• Max. load resistance current output500 Ohm
• Min. load resistance voltage output10 kOhm
• Short circuit current ratingyes
• ProtocolIO-Link®
• IO-Link, Protocol versionDevice V 1.1
• IO-Link, ProfileSmart sensor profile
• IO-Link, Function classesBinary data channel (BDC) Process data variable (PDV) Identification Diagnostics Teach channel
• IO-Link, communication modeCOM2 (38.4 kBaud)
• IO-Link, SIO-Mode supportYes
• IO-Link, Port classA
• IO-Link, Process data length OUT0 bytes
• IO-Link, Process data length IN2 bytes
• IO-Link, Process data content IN14 bit PDV (pressure measurement value) 2 bit BDC (pressure monitoring)
• IO-Link, Min. cycle time3 ms
• IO-Link, Data storage required500 Byte
• Operational voltage range DC20 V ... 30 V
• Reverse polarity protectionFor all electrical connections
• Electrical connection 1, connection typePlugs
• Electrical connection 1, connector systemM8x1, A-coded, to EN 61076-2-104
• Electrical connection 1, number of connections/cores4
• Electrical connection 1, type of mountingNot rotatable
• Electrical connection 1, compatible type of mountingCompatible with latching lock Compatible with rotatable screw-type lock
• Electrical connection 1, connection pattern00991171

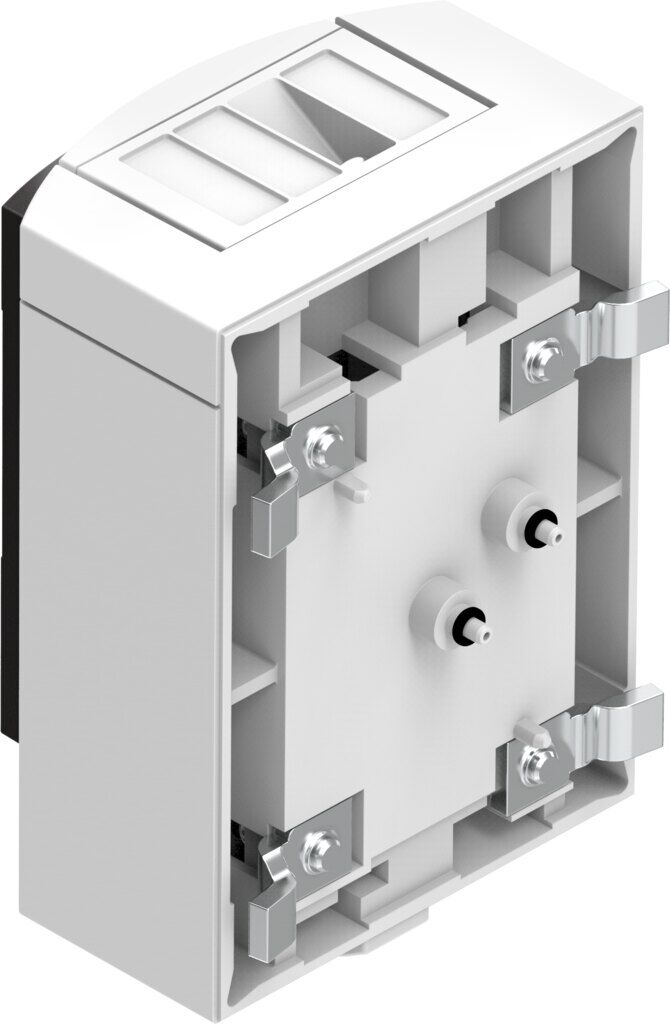

• Type of mountingOn service unit
• Mounting positionoptional
• Pneumatic connectionFlange
• Product weight80 g
• Material in contact with the mediumFPM PA-reinforced
• Display typeIlluminated LCD
• Displayable unitsMPa bar inH2O inHg kPa kgf/cm² mmHg psi
• Setting optionsIO-Link® Teach-in Via display and keys
• Protection against tamperingIO-Link PIN code
• Setting range threshold value0 % ... 100 %
• Setting range hysteresis0 % ... 90 %
• Degree of protectionIP65
• Corrosion resistance class CRC2 - Moderate corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
