FESTO

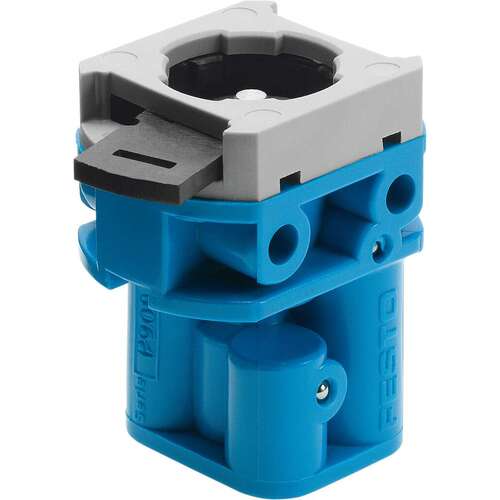

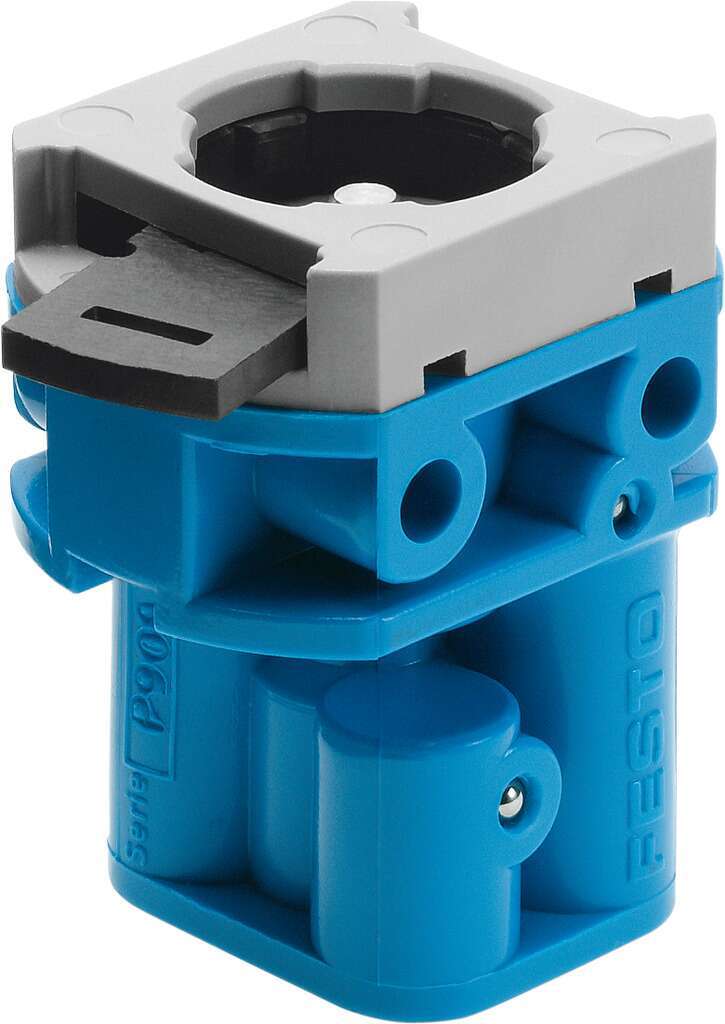

Front panel valve

SV-3-M5

6817

Technical Data

  • Valve function3/2-way, closed, monostable
  • Type of actuationManual
  • Standard nominal flow rate (standardised to DIN 1343)65 l/min
  • Operating pressure-0.095 MPa ... 0.8 MPa
  • Operating pressure-0.95 bar ... 8 bar
  • DesignPoppet valve with spring return
  • Type of resetMechanical spring
  • Nominal size2 mm
  • Sealing principleSoft
  • Mounting positionoptional
  • Type of pilotingDirect
  • Flow directionNon-reversible

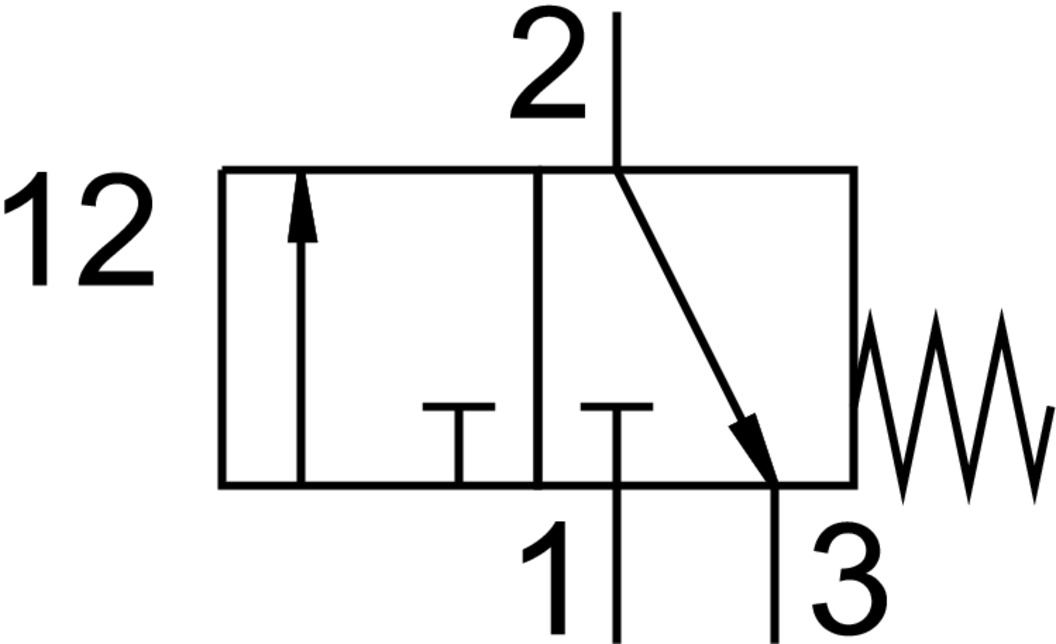

  • Symbol00991292
  • lapOverlap
  • Explosion protectionZone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature-10 °C ... 60 °C
  • Actuating force12 N
  • Product weight40 g
  • Type of mountingWith through-hole
  • Pneumatic connection, port 1M5
  • Material sealsNBR
  • Material housingPolymer Brass

GTIN: 4052568001384

SV_EN.PDF

Selector SWITCH N-22-SW

Front panel valve

Front panel valve

SKU 6817
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
