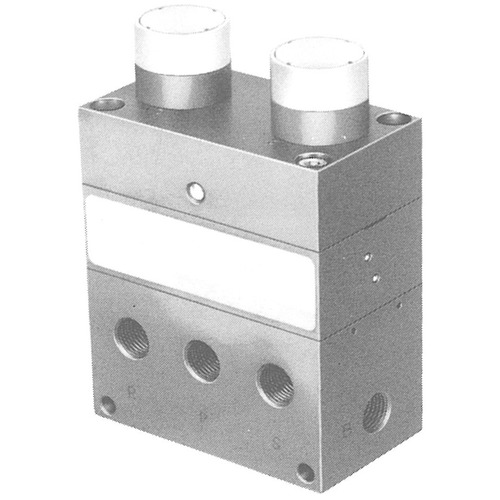

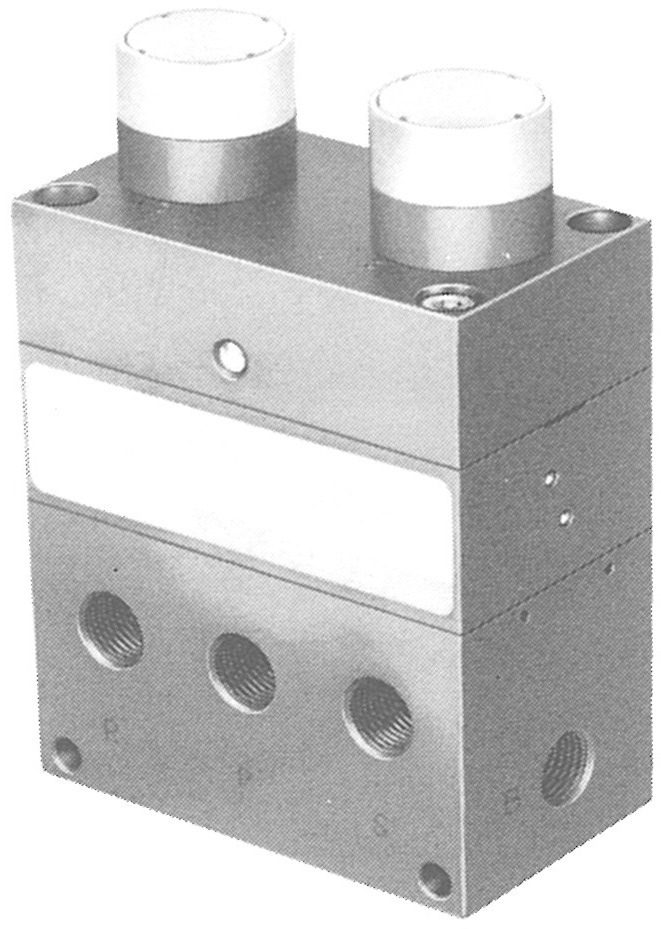

Pushbutton valve FESTO

T-5/3-1/4

4578

Technical Data

  • Valve function5/3 closed
  • Type of actuationManual
  • Standard nominal flow rate (standardised to DIN 1343)680 l/min
  • pneumatic working portG1/4
  • Operating pressure0.2 MPa ... 1 MPa
  • Operating pressure2 bar ... 10 bar
  • Nominal size7 mm
  • Sealing principleSoft
  • Type of pilotingPilot actuated

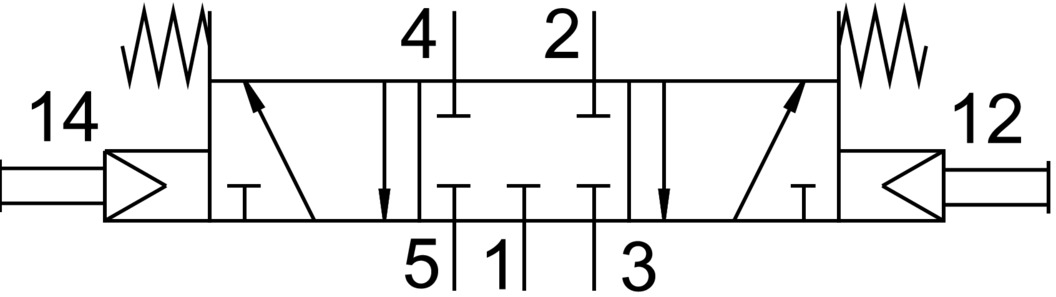

  • Symbol00991156
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature-10 °C ... 60 °C
  • Product weight1160 g
  • Pneumatic connection, port 1G1/4
  • Pneumatic connection, port 2G1/4
  • Pneumatic connection, port 3G1/4



GTIN: 4052568008536

Downloads



VHEM_EN.PDF

Technical data



Pushbutton valve

Pushbutton valve

SKU 4578
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
