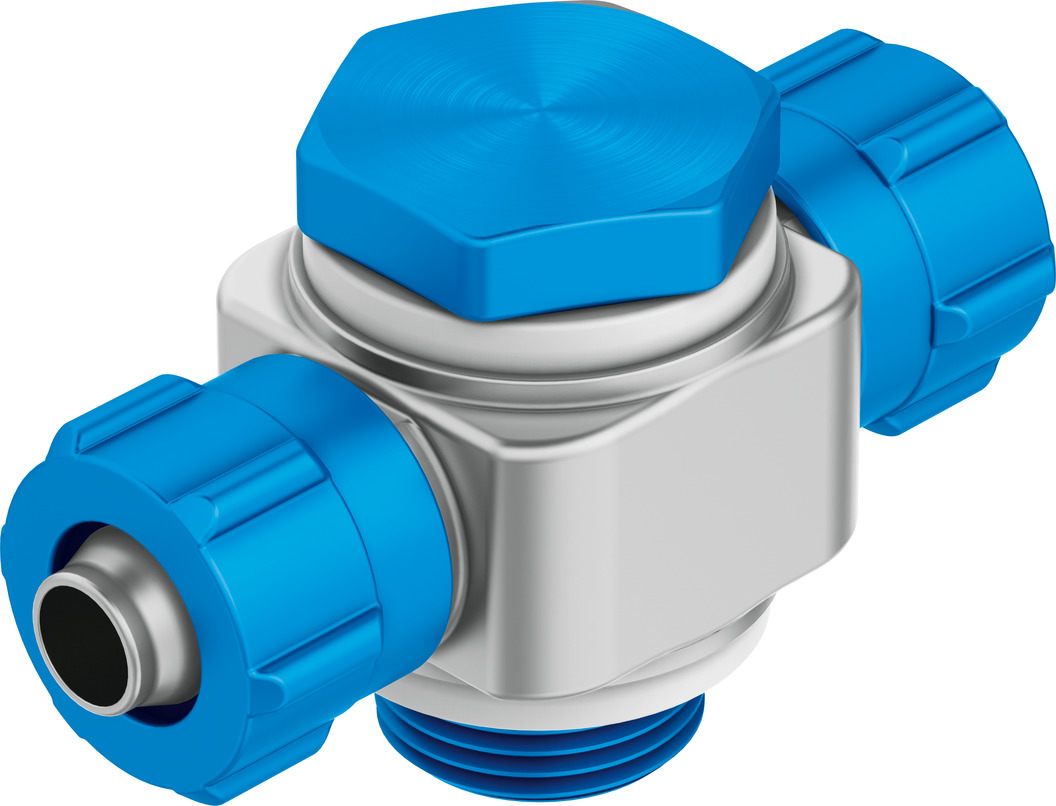

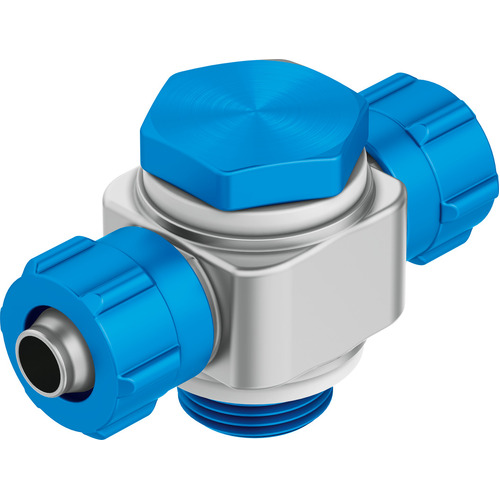

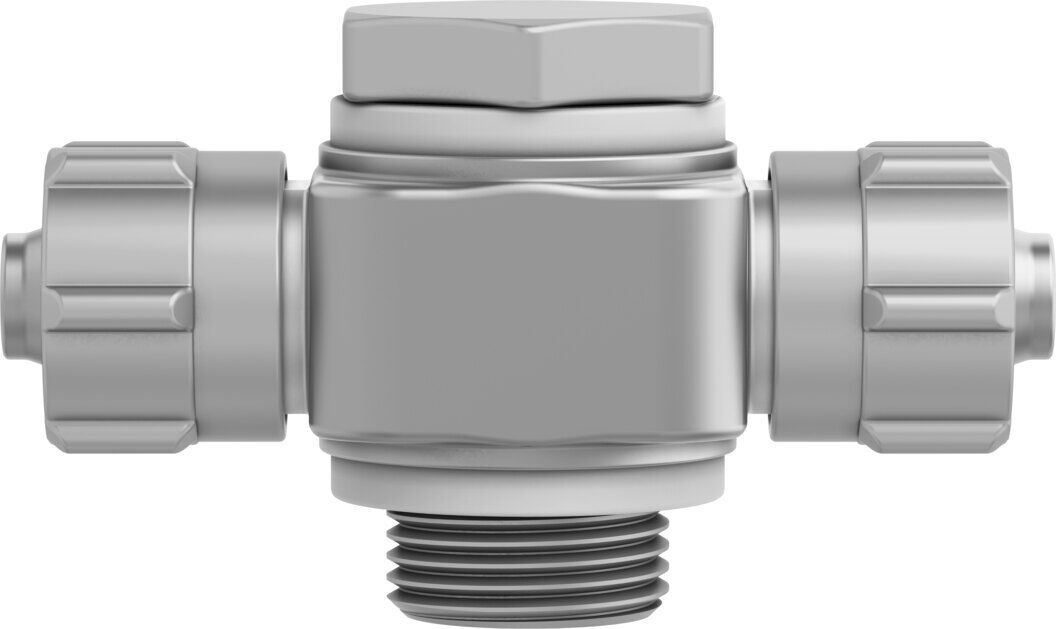

T quick connector (x10 pack)

TCK-1/8-PK-4

4485

Pneumatic connection, port 1
Male thread G1/8
Pneumatic connection, port 2
For tubing outside diameter of 6 mm - For barbed fitting inside diameter of 4 mm with nut
Ambient temperature
-10 °C - 60 °C
Material housing
Die-cast zinc

GTIN: 4052568018917

Technical Data

  • Nominal size2.9 mm
  • Type of seal on screwed plugSealing ring
  • Mounting positionoptional
  • DesignT-shape
  • Size of pack10
  • Operating pressure complete temperature range-0.095 MPa ... 1 MPa
  • Operating pressure complete temperature range-0.95 bar ... 10 bar
  • Operating pressure complete temperature range-13.775 psi ... 145 psi
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot mediumLubricated operation possible
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature-10 °C ... 60 °C
  • Nominal torque3.5 Nm
  • Tolerance for nominal tightening torque± 20%
  • Pneumatic connection, port 1Male thread G1/8
  • Pneumatic connection, port 2For tubing outside diameter of 6 mm For barbed fitting inside diameter of 4 mm with nut
  • Material union nutWrought aluminium alloy, anodised
  • Note on materialsRoHS-compliant
  • Material sealing ringReinforced PA TPE-U(PU)
  • Material housingDie-cast zinc
  • Material hollow boltWrought aluminium alloy, anodised
  • Material swivel fittingDie-cast zinc

Downloads

Technical data

Links

Spare parts

Pneumatic connection, port 1- Male thread G1/8

Pneumatic connection, port 2 - For tubing outside diameter of 6 mm - For barbed fitting inside diameter of 4 mm with nut

Ambient temperature - -10 °C - 60 °C

Material housing - Die-cast zinc

T quick connectorT quick connectorT quick connector

SKU 4485
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
