UNLOADER SERVICE KIT

Replacement UNLOADER SERVICE KIT

2902016100 Atlas Copco UNLOADER SERVICE KIT

2902 0161 00 Atlas Copco UNLOADER SERVICE KIT

Atlas Copco
Oil-injected compressors
GA 11+, GA 15+, GA 18+, GA 22+, GA 26+, GA 30

28/02/2020
No. 9829 3527 14
www.atlascopco.com
Atlas Copco
Oil-injected compressors
GA 11+, GA 15+, GA 18+, GA 22+,
GA 26+, GA 30
Parts List
From following serial number onwards: WUX 243 288
Copyright, Atlas Copco Wuxi,China.
Any unauthorized use or copying of the contents or any part thereof is
prohibited. This applies in particular to trademarks, model denominations,
part numbers and drawings.
Use only authorized parts. Any damage or malfunction caused by the use
of unauthorized parts is not covered by Warranty or Product Liability.

Table of Contents
9829 3527 14 1
Instructions ................................................................................................................................... 4
1 Service Kits ........................................................................................................................... 18
2 Oil............................................................................................................................................24
3 Drive train............................................................................................................................... 26
3.1 Motor (GA 11+, GA 15+, GA 18+, GA 26+ - 400V), (GA 22+, GA 30 - 200-220V, 200V,
400V)..................................................................................................................................... 26
3.2 Motor GA 18+ - 230V, 460V..........................................................................................28
3.3 Motor (GA 11+, GA 15+, GA 26+ - 200-220V, 200V, 230V, 460V, 380V), (GA 18+ -
200-220V, 200V, 380V), (GA 22+, GA 30 - 230V, 460V, 380V)............................................30
3.4 Gears............................................................................................................................. 34
3.5 Element..........................................................................................................................38
4 Air system............................................................................................................................... 40
4.1 Air filter GA 11+, GA 15+..............................................................................................40
4.2 Air filter GA 18+, GA 22+, GA 26+, GA 30................................................................... 42

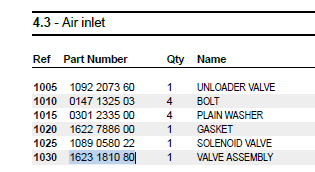

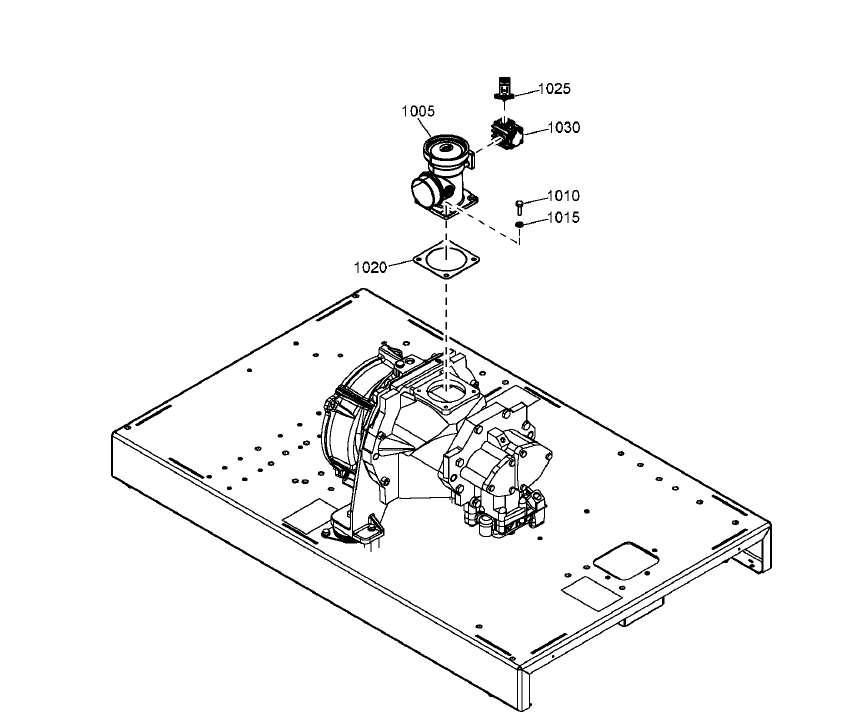

4.3 Air inlet...........................................................................................................................44
4.4 Vessel assembly............................................................................................................ 46
5 Liquid filtration.........................................................................................................................48
6 Fluid transport.........................................................................................................................50
7 Safety valve............................................................................................................................ 52
8 Cooling system....................................................................................................................... 54
8.1 Cooler............................................................................................................................ 54
8.2 Fan (200-220V, 230V, 380V, 400V, 460V) - Full-Feature, (200-220V, 400V) - Pack...... 56
8.3 Fan 200V....................................................................................................................... 58
9 Condensate drain Pack.......................................................................................................... 60
10 Condensate drain Full-Feature.............................................................................................62
11 Air outlet Pack...................................................................................................................... 64
12 Air outlet GA 11+ (7.4bar - 7.5bar - 8.5bar - 9.1bar - 10.5bar - 10.8bar - 12.5bar - 13bar) -
GA 15+ - (12.5bar - 13bar) - Full-Feature..................................................................................66
13 Air outlet GA 15+ - (7.4bar - 7.5bar - 8.5bar - 9.1bar), (GA 18+, GA 22+, GA 26+, GA 30) -
(7.4bar - 7.5bar - 8.5bar - 9.1bar - 10.5bar - 10.8bar - 12.5bar - 13bar) - Full-Feature.............. 68
14 Loose parts........................................................................................................................... 70
15 Air dryer................................................................................................................................ 72
15.1 Assembly ID 47........................................................................................................... 72
15.2 Assembly ID 73........................................................................................................... 74
15.3 Assembly ID 96........................................................................................................... 76
16 Regulation............................................................................................................................. 78
16.1 Cubicle assembly.........................................................................................................78
16.2 Cubicle components GA 11+ - 200V...........................................................................80
16.3 Cubicle components GA 15+ - 200V...........................................................................82
16.4 Cubicle components GA 18+ - 200V...........................................................................84
16.5 Cubicle components GA 22+ - 200V...........................................................................86
16.6 Cubicle components GA 26+ - 200V...........................................................................88
Table of Contents
2 9829 3527 14
16.7 Cubicle components GA 30 - 200V.............................................................................90
16.8 Cubicle components GA 11+ - 200V - 220V...............................................................92
16.9 Cubicle components GA 15+ - 200V - 220V...............................................................94
16.10 Cubicle components GA 18+ - 200V - 220V.............................................................96
16.11 Cubicle components GA 22+ - 200V - 220V.............................................................98
16.12 Cubicle components GA 26+ - 200V - 220V........................................................... 100
16.13 Cubicle components GA 30 - 200V - 220V............................................................. 102
16.14 Cubicle components GA 11+ - 230V.......................................................................104
16.15 Cubicle components GA 15+ - 230V.......................................................................106
16.16 Cubicle components GA 18+ - 230V.......................................................................108
16.17 Cubicle components GA 22+ - 230V.......................................................................110
16.18 Cubicle components GA 26+ - 230V.......................................................................112
16.19 Cubicle components GA 30 - 230V.........................................................................114
16.20 Cubicle components GA 11+ - 380V.......................................................................116
16.21 Cubicle components GA 15+ - 380V.......................................................................118
16.22 Cubicle components GA 18+ - 380V.......................................................................120
16.23 Cubicle components GA 22+ - 380V.......................................................................122
16.24 Cubicle components GA 26+ - 380V.......................................................................124
16.25 Cubicle components GA 30 - 380V.........................................................................126
16.26 Cubicle components GA 11+ - 400V.......................................................................128
16.27 Cubicle components GA 15+ - 400V.......................................................................130
16.28 Cubicle components GA 18+ - 400V.......................................................................132
16.29 Cubicle components GA 22+ - 400V.......................................................................134
16.30 Cubicle components GA 26+ - 400V.......................................................................136
16.31 Cubicle components GA 30 - 400V.........................................................................138
16.32 Cubicle components GA 11+ - 460V.......................................................................140
16.33 Cubicle components GA 15+ - 460V.......................................................................144
16.34 Cubicle components GA 18+ - 460V.......................................................................148
16.35 Cubicle components GA 22+ - 460V.......................................................................152
16.36 Cubicle components GA 26+ - 460V.......................................................................156
16.37 Cubicle components GA 30 - 460V.........................................................................160
16.38 Controller GA 11+, GA 15+, GA 22+, GA 26+........................................................ 164
16.39 Controller GA 30 .................................................................................................... 166
17 Bodywork GA 11+, GA 15+................................................................................................168
18 Bodywork GA 18+, GA 22+, GA 26+, GA 30.....................................................................170
19 Markings..............................................................................................................................172
20 Standard options.................................................................................................................174
20.1 Motor - IE4 GA 11+, GA 15+, GA 18+ - ( 400V )...................................................... 174
20.2 Motor - IE4 GA 11+, GA 15+, GA 18+ - ( 200-220V, 200V, 230V, 460V, 380V )........ 176
20.3 Upgrade to Touch Controller..................................................................................... 178
20.4 HAV - Gears.............................................................................................................. 180
Table of Contents
9829 3527 14 3
20.5 HAV - Dryer............................................................................................................... 184
20.6 HAV - Thermostat...................................................................................................... 186
20.7 Dryer bypass ID 47................................................................................................... 188
20.8 Dryer bypass ID 73, ID 96........................................................................................ 190
20.9 UD+ filter ID 40......................................................................................................... 192
20.10 UD+ filter ID 73, ID 96............................................................................................ 194
20.11 DD+ filter ID 40....................................................................................................... 196
20.12 DD+ filter ID 73, ID 96............................................................................................ 198
Instructions
4 9829 3527 14
EN - English
1 ORDERING PARTS
Always specify the part number, the name and quantity of the required items, as well as the type and serial number
of the machine.
2 COLUMN INFORMATION
Ref - Reference number: links a specific part from the list to the drawing. Only parts with a reference number are
shown in the drawing. Parts in the drawing without a reference number are simply there to illustrate the assembly.
Part number - Part number to be used when ordering spare parts.
When no part number is specified, the component is not available as a spare part.
Parts which are contained in a kit will have the kit number mentioned on the line below. For complete content of the
kit see chapter “1 - Service kits”.
A part number preceded by a black dot is comprised in the assembly right above.
Remarks: Additional information to the part number right above.
Substituted by: The part number right above has been replaced by another part number due to an update or revision.
Qty - Quantity: Indicates the number of parts in relation to the corresponding reference number. „AR“ means „As
required“: quantity or number to be determined.
Name - Part name: Translations of the English names can be found in document “Glossary of part names”.
Validity - Defines the timeframe and type/version of the machines the part is valid for. Clarification of the codes
used in the validity pattern can be found in the legend at the bottom of the page. A validity pattern mentioned in the
chapter title applies to the whole chapter. A plus sign in the pattern is to be interpreted as ‘and’, a comma as ‘or’.
Parentheses group the validity codes, similarly to mathematical parentheses, see following example:
‘PRESS:8BAR + (FREQ:50HZ+MOVOL:500V , FREQ:60HZ+MOVOL:575V)’ is valid for machines with 8 bar working
pressure and 50Hz frequency and 500V supply voltage, or 8 bar working pressure and 60Hz frequency and 575V
supply voltage.
EL – Reference to the drawing or the component inside the electric cubicle.
R. – Remarks: Extra information about the part. Explanation can be found at the bottom of the page.
BG - български
1 ПОРЪЧКА НА ЧАСТИ
Винаги цитирайте номера на частта, наименованието и количеството на необходимите изделия, както и типа и
серийния номер на машината.
2 ИНФОРМАЦИЯ В КОЛОНИТЕ
Ref - Референтен номер: свързва дадена част от списъка с чертежа. На чертежа са показани само части с
референтен номер.
Частите на чертежа без референтен номер са там, единствено за да се покаже възелът.
Part number - Номер на частта, който да се използва при поръчката на резервни части.
Ако не е посочен номер на частта, компонентът не се предлага като резервна част.
Частите, които се съдържат в даден комплект, ще включват номер на комплекта на долния ред. За пълното
съдържание на комплекта вижте глава „1 – Service kits“.
Номер на част, пред който има черна точка, се съдържа във възела непосредствено по-горе.
Remarks: Допълнителна информация за частта – непосредствено по-горе.
Substituted by: Номерът на частта непосредствено по-горе е заменен от друг номер на частта поради
актуализация или ревизия.
Qty - Количество: Посочва броя на частите във връзка със съответния референтен номер. „AR“ означава „Според
нуждата“: количеството или броят ще бъдат определени допълнително.
Name - Име на частта: превод на английските имена можете да откриете в документа „Glossary of part names“.
Validity - Определя периода и типа/версията на машините, за които частта е валидна. Обяснение на елементите
от кода, използвани в кода за валидността, можете да откриете в легендата в долната част на страницата.
Кодът за валидността, посочен в заглавието на главата, се отнася за цялата глава. Знакът плюс в кода се
приема за „и“, а запетаята – за „или“. Скобите групират елементите на кодовете за валидност подобно на
математическите скоби, вижте следния пример:
„PRESS:8BAR + (FREQ:50HZ+MOVOL:500V , FREQ:60HZ+MOVOL:575V)“ е валидно за машини с работно налягане
8 bar, честота 50 Hz и захранващо напрежение 500 V или работно налягане 8 bar, честота 60 Hz и захранващо
напрежение 575 V.
EL – Референция към чертежа или компонента в електрическата кутия.
R.. – Забележки: допълнителна информация относно частта. Обяснения можете да намерите в долната част на
страницата.
Instructions
9829 3527 14 5
BR - Brasileiro
1 ENCOMENDANDO PEÇAS
Sempre especifique o número da peça, o nome e a quantidade dos itens necessários, assim como o tipo e o número de
série da máquina.
Páginas marcadas com o símbolo Serviço - “ “ contêm peças do(s) Kit(s) de serviço. Para conhecer o conteúdo completo
do kit, consulte o capítulo “1 - Service kits” (1 - Kits de
serviço).
2 INFORMAÇÕES SOBRE AS COLUNAS
Ref. - Número de referência: indica onde está uma peça específica listada no desenho. Somente peças com número de
referência são mostradas no desenho. As peças no desenho que
não têm um número de referência destinam-se simplesmente a ilustrar o conjunto.
Part number - Número da peça: se nenhum número de peça estiver especificado, o componente não está disponível
como peça sobressalente. Uma linha mostrada em negrito é um
conjunto. Uma peça cujo número seja seguido por um ponto preto faz parte do conjunto impresso em negrito
imediatamente acima dela.
O símbolo “<<< >>>” direciona para outra lista com o mesmo título, como “Name” (Nome).
Quando o número de peça específico é colocado abaixo da linha “Ref.”/”Name” (Ref. / Nome), é preciso escolher o tipo/
versão da máquina.
Qty - Quantidade: indica o número de peças e os números de referência correspondentes. “AR” significa “As
required” (Conforme solicitado): a quantidade ou o número a ser
determinado.
Name - Nome da peça: as traduções dos nomes em inglês podem ser encontradas no documento “Glossary of part
names” (Glossário de nomes de peças).
Remarks - Observações - Informações extras sobre a peça.
Uma série de letras pode indicar que uma determinada peça é certificada pelo órgão autorizado específico, de acordo
com os códigos ou as regras da lista.
As medidas são fornecidas em milímetros.
CS - čeština
1 OBJEDNÁNÍ DÍLŮ
Vždy uveďte číslo dílu, název a množství požadovaných položek a také typ a sériové číslo stroje.
2 INFORMACE VE SLOUPCÍCH
Ref – Referenční číslo: Propojuje konkrétní díl ze seznamu s výkresem. Pouze díly s referenčním číslem jsou zobrazeny
na výkresu. Díly bez referenčního čísla, které jsou na výkresu uvedeny, slouží pouze jako ilustrace.
Part number – Číslo dílu se používá pro objednávání náhradních dílů.
Pokud není uvedeno žádné číslo dílu, komponenta není k dispozici jako náhradní díl.
Díly obsažené v sadě mají na následujícím řádku uvedeno číslo sady. Úplný obsah sady viz kapitolu „1 – Service kits“.
Díl s číslem, před kterým je černý puntík, je obsažen v sestavě přímo nad ním.
Remarks: Další informace k číslu dílu přímo nad ním.
Substituted by: Číslo dílu přímo nad ním bylo nahrazeno jiným číslem dílu v důsledku aktualizace nebo revize.
Qty – Množství: Indikuje počet dílů pro odpovídající referenční číslo. „AR“ znamená „As required“ (Podle potřeby):
množství nebo počet bude určen.
Name – Název dílu: Překlady anglických názvů naleznete v dokumentu „Glossary of part names“.
Validity – Definuje časový rámec a typ/verzi strojů, na které se daný díl vztahuje. Objasnění kódů použitých ve
vzorci platnosti naleznete v legendě na konci stránky. Vzorec platnosti uvedený v názvu kapitoly se vztahuje na celou
kapitolu. Znaménko plus ve vzorci se interpretuje jako „a“ a čárka jako „nebo“. Závorky seskupují kódy platnosti,
obdobně jako matematické závorky, viz následující příklad:
„PRESS:8BAR + (FREQ:50HZ+MOVOL:500V , FREQ:60HZ+MOVOL:575V)“ platí pro stroje s provozním tlakem 8 bar,
frekvencí 50 Hz a napájecím napětím 500 V nebo pro stroje s provozním tlakem 8 bar, frekvencí 60 Hz a napájecím
napětím 575 V.
EL – Reference na výkres nebo komponentě uvnitř elektrického rozvaděče.
R. – Poznámky: Doplňující informace o dílu. Vysvětlení naleznete na konci stránky.
Instructions
6 9829 3527 14
DA - Dansk
1 BESTILLING AF DELE
Angiv altid styknummeret, navnet på og antallet af de ønskede varer samt typen og serienummeret for maskinen.
2 OPLYSNINGER TIL KOLONNERNE
Ref - Referencenummer: Knytter en bestemt del fra listen til tegningen. Kun dele med et referencenummer vises på
tegningen. Dele på tegningen uden et referencenummer er blot medtaget for at vise samlingen.
Part number - Styknummer, der skal bruges ved bestilling af reservedele.
Hvis der ikke er angivet et styknummer, fås komponenten ikke som reservedel.
Dele, der er indeholdt i et sæt, har sætnummeret stående på linjen nedenfor. Se kapitel "1 – Service kits" for at få
vist hele indholdet af sættet.
Et styknummer med en sort prik foran indgår i samlingen lige ovenfor.
Remarks: Der findes yderligere oplysninger til styknummeret lige ovenfor.
Substituted by: Styknummeret lige ovenfor er blevet erstattet af et andet styknummer i forbindelse med en
opdatering eller en revidering.
Qty - Antal: Angiver antallet af dele, der hører til det tilsvarende referencenummer. "AR" står for "As required":
Antallet eller nummeret skal fastsættes.
Name - Navn på del: Oversættelser af de engelske navne kan findes i dokumentet "Glossary of part names".
Validity - Angiver tidshorisont og maskintype/-version, som delen gælder for. Forklaringer til koderne, der anvendes
i modellen for gyldigheden, kan findes i teksten nederst på siden. En model for gyldigheden, der er nævnt i kapitlets
titel, gælder for hele kapitlet. Et plustegn i modellen skal fortolkes som et "og", og et komma som et "eller".
Parenteser inddeler koderne, der beskriver gyldigheden, på samme måde som parenteser i matematik. Se følgende
eksempel:
„PRESS:8BAR + (FREQ:50HZ+MOVOL:500V , FREQ:60HZ+MOVOL:575V)“ gælder for maskiner med et arbejdstryk
på 8 bar, en frekvens på 50 Hz og en forsyningsspænding på 500 V eller for maskiner med et arbejdstryk på 8 bar, en
frekvens på 60 Hz og en forsyningsspænding på 575 V.
EL – Refererer til tegningen eller komponenten inde i elskabet.
R. - Bemærkninger: Yderligere oplysninger om delen. Forklaringer kan findes nederst på siden.
DE - Deutsch
1 TEILE BESTELLEN
Geben Sie immer genau die Teilenummer, den Namen und die Anzahl des gewünschten Artikels und den Typ und die
Seriennummer der Maschine an.
2 SPALTENINFORMATION
Ref - Referenznummer: Verknüpft ein spezifisches Teil der Liste mit der Zeichnung. Es werden nur Referenznummern
in der Zeichnung gezeigt. In der Zeichnung dargestellte Teile ohne Referenznummer sind einfach nur zu
Illustrationszwecken der Baugruppe abgebildet.
Part number - Die Teilenummer wird bei der Bestellung von Ersatzteilen angegeben.
Ist keine Teilenummer angegeben, ist die Komponente nicht als Ersatzteil verfügbar.
Bei Teilen, die zu einem Set gehören, wird die Setnummer unten auf der Linie angegeben. Zum kompletten Inhalt des
Sets siehe Kapitel „1 – Service kits“.
Eine mit einem schwarzen Punkt versehene Teilenummer ist in dem direkt darüber stehenden Set enthalten.
Remarks: Zusätzliche Informationen zur Teilenummer stehen direkt darüber.
Substituted by: Die direkt darüber stehende Teilenummer wurde aufgrund einer Aktualisierung oder Überarbeitung
durch eine andere Teilenummer ersetzt.
Qty - Anzahl: Gibt die Anzahl der Teile im Verhältnis zur entsprechenden Referenznummer an. „AR“ steht für „Nach
Bedarf“: Anzahl oder Nummer muss noch angegeben werden.
Name - Teilename: Übersetzungen der englischen Bezeichnungen finden Sie im Dokument „Glossary of part names“.
Validity - Gibt den Zeitrahmen und den Typ/die Version der Maschine vor, für die die Teile gültig sind. Eine
Erläuterung der Codes, die für das Gültigkeitsmuster angewandt werden, finden Sie am Fuß der Seite. Ein im
Kapiteltitel genanntes Gültigkeitsmuster bezieht sich auf das gesamte Kapitel. Ein Pluszeichen im Muster steht
für „und“, ein Komma für „oder“. Klammern fassen die Codes in Gruppen zusammen, ähnlich wie bei mathematischen
Klammern. Siehe dazu folgendes Beispiel:
„PRESS:8BAR + (FREQ:50HZ+MOVOL:500V , FREQ:60HZ+MOVOL:575V)“ ist für Maschinen gültig mit 8 bar-
Betriebsdruck, 50 Hz-Frequenz und 500 V-Versorgungsspannung oder 8 bar-Betriebsdruck, 60 Hz-Frequenz und
575 V-Versorgungsspannung.
EL – Referenz zu der Zeichnung oder dem Bauteil im Inneren des Schaltkastens.
R. – Anmerkungen: Zusatzinformationen zum Teil. Erklärungen finden Sie am Fuß der Seite.
Instructions
9829 3527 14 7
EL - ελληνικά
1 ΠΑΡΑΓΓΕΛΙΑ ΑΝΤΑΛΛΑΚΤΙΚΩΝ
Πρέπει πάντα να προσδιορίζετε τον κωδικό εξαρτήματος, την ονομασία και την ποσότητα των απαιτούμενων
ειδών, καθώς και τον τύπο και τον αριθμό σειράς του μηχανήματος.
2 ΠΛΗΡΟΦΟΡΙΕΣ ΓΙΑ ΤΙΣ ΣΤΗΛΕΣ
Ref - Κωδικός αναφοράς: συσχετίζει ένα συγκεκριμένο εξάρτημα από τη λίστα με το σχέδιο. Μόνο εξαρτήματα
που έχουν κωδικό αναφοράς εμφανίζονται στο σχέδιο. Τα εξαρτήματα στο σχέδιο που δεν έχουν κωδικό αναφοράς,
υπάρχουν απλώς για την εικονογράφηση του συγκροτήματος.
Part number - Κωδικός εξαρτήματος, ο οποίος χρησιμοποιείται κατά την παραγγελία ανταλλακτικών.
Όταν δεν αναφέρεται κάποιος κωδικός εξαρτήματος, το εξάρτημα δεν διατίθεται ως ανταλλακτικό.
Για τα εξαρτήματα που περιέχονται σε κιτ, ο αριθμός του κιτ θα αναφέρεται στην παρακάτω γραμμή. Για το
πλήρες περιεχόμενο του κιτ, βλ. κεφάλαιο "1 – Service kits".
Όταν μπροστά από τον κωδικό εξαρτήματος υπάρχει μια μαύρη κουκίδα, το εξάρτημα περιέχεται στο συγκρότημα
που βρίσκεται ακριβώς από πάνω.
Remarks (Παρατηρήσεις): Πρόσθετες πληροφορίες για τον κωδικό εξαρτήματος ακριβώς από πάνω.
Substituted by (Έχει αντικατασταθεί από): Ο πιο πάνω κωδικός εξαρτήματος έχει αντικατασταθεί από άλλο
κωδικό εξαρτήματος λόγω ενημέρωσης ή αναθεώρησης.
Qty - Ποσότητα: Δείχνει τον αριθμό των εξαρτημάτων σε σχέση με τον αντίστοιχο κωδικό αναφοράς. Το "AR"
σημαίνει "As required" (Αναλόγως των απαιτήσεων): η ποσότητα ή ο αριθμός θα πρέπει να προσδιοριστούν.
Name - Ονομασία εξαρτήματος: Μεταφράσεις των ονομασιών από τα αγγλικά μπορείτε να βρείτε στο έγγραφο
"Glossary of part names".
Validity - Καθορίζει το χρονικό πλαίσιο και τον τύπο/την έκδοση των μηχανημάτων στα οποία μπορεί να
χρησιμοποιηθεί το εξάρτημα. Στο υπόμνημα, στο κάτω μέρος της σελίδας, μπορείτε να βρείτε μια αποσαφήνιση
των κωδικών που χρησιμοποιούνται στο υπόδειγμα ισχύος παραγγελίας. Εάν αναφέρεται ένα υπόδειγμα ισχύος
παραγγελίας στον τίτλο του κεφαλαίου, αυτό ισχύει για ολόκληρο το κεφάλαιο. Ένα σύμβολο "συν" στο υπόδειγμα
θα πρέπει να ερμηνεύεται ως "και", ένα κόμμα ως "ή". Οι παρενθέσεις ομαδοποιούν τους κωδικούς ισχύος
παραγγελίας, όπως οι παρενθέσεις στους μαθηματικούς τύπους. Δείτε το ακόλουθο παράδειγμα:
Το ‘PRESS:8BAR + (FREQ:50HZ+MOVOL:500V , FREQ:60HZ+MOVOL:575V)’ ισχύει για μηχανήματα με πίεση
λειτουργίας 8 bar, συχνότητα 50 Hz και τάση τροφοδοσίας 500 V ή με πίεση λειτουργίας 8 bar, συχνότητα 60 Hz
και τάση τροφοδοσίας 575 V.
EL – Κωδ. αναφοράς για το σχέδιο ή το εξάρτημα στο εσωτερικό του ηλεκτρικού πίνακα.
R. – Παρατηρήσεις: Πρόσθετες πληροφορίες σχετικά με το εξάρτημα. Επεξήγηση παρέχεται στο κάτω μέρος της
σελίδας.
Instructions
8 9829 3527 14
ES - Español
1 PEDIDO DE PIEZAS
Especifique siempre el número de referencia, el nombre y la cantidad de los elementos que necesita, además del tipo y
número de serie de la máquina.
2 INFORMACIÓN DE LAS COLUMNAS
Ref - Número de referencia: enlaza una pieza concreta de la lista con el solo. Solo se muestran piezas con número
de referencia en el plano. Las piezas del plano que no tienen números de referencia solo se muestran para ilustrar el
conjunto.
Part number - Designación que se debe utilizar para pedir piezas de repuesto.
Si no se especifica una designación, esto quiere decir que el componente no está disponible como pieza de repuesto.
Las piezas que forman parte de un kit tendrán el número de kit en la línea inferior. Para consultar el contenido
completo del kit, consulte el capítulo "1 – Service kits".
Una designación precedida por un punto negro forma parte del conjunto inmediatamente superior.
Remarks: información adicional de la designación inmediatamente superior.
Substituted by: la designación inmediatamente superior se ha sustituido por otra debido a una actualización o
revisión.
Qty - Cantidad: indica el número de piezas en relación con el número de referencia correspondiente. "AR" significa
"Según necesidad": cantidad o número a determinar.
Name - Nombre de la pieza: las traducciones de los nombres en inglés pueden encontrarse en el documento “ Glossary
of part names”
Validity - Define el periodo y tipo/versión de las máquinas en las que se puede utilizar la pieza. Puede encontrar
una explicación de los códigos utilizados en el patrón de validez en la leyenda de la parte inferior de la página. Un
patrón de validez mencionado en el título del capítulo es aplicable a todo el capítulo. Un signo '+' en el patrón debe
interpretarse como una 'y' y una coma debe interpretarse como una 'o'. Los paréntesis agrupan los códigos de validez
de manera similar a su uso en matemáticas; véase el siguiente ejemplo:
'PRESS:8BAR + (FREQ:50HZ+MOVOL:500V , FREQ:60HZ+MOVOL:575V)' es válido para máquinas con una presión de
trabajo de 8 bar, una frecuencia de 50 Hz y un voltaje de alimentación de 500 V o de 8 bar, una frecuencia de 60 Hz y
un voltaje de alimentación de 575 V.
EL – Referencia al plano o el componente del interior del armario eléctrico.
R. – Notas: información adicional sobre la pieza; se puede encontrar la explicación en la parte inferior de la página.
ET - Eesti
1 OSADE TELLIMINE
Täpsustage alati osa number, soovitud ühikute nimi ja kogus, aga ka masina tüüp ja seerianumber.
2 TEABE TULP
Ref - Viitenumber: seostab loendis nimetatud konkreetse osa joonisega. Joonisel on näidatud ainult viitenumbriga
osad. Joonisel ilma viitenumbrita esitatud osadel on koostu kuvamisel illustreeriv tähendus.
Part number - Osa number, mida varuosade tellimisel kasutada.
Kui osa numbrit ei ole täpsustatud, ei ole vastav osa varuosana saadaval.
Komplekti kuuluvate osade puhul on alloleval real nimetatud komplekti number. Komplekti tervikliku kirjelduse leiate
peatükist „1- Service kits”.
Kui osa numbri ees on must punkt, sisaldub osa ülaltoodud koostus.
Remarks: osa numbri kohal kuvatav lisateave.
Substituted by: ülaltoodud osa number on uuenduse või kontrolli tulemusena asendatud teise osa numbriga.
Qty - Kogus: osutab asjaomase viitenumbriga seotud osade arvule. „AR” tähendab „vastavalt vajadusele”: kogus või
arv tuleb kindlaks määrata.
Name - Osa nimi: inglisekeelsete nimede tõlked leiate dokumendist „Glossary of part names”.
Validity - Määratleb ajavahemiku ja masina tüübi/versiooni, mille puhul osa kasutatakse. Kasutusmustris kasutatud
koodide selgituse leiate iga lehekülje allosas olevast legendist. Peatüki pealkirjas nimetatud kasutusmuster kohaldub
tervele peatükile. Mustris kasutatud plussmärki tuleb tõlgendada sõnana „ja”, komana või sõnana „või”. Sarnaselt
ümarsulgude matemaatikas kasutamisele rühmitavad ümarsulud kehtivuskoodide rühmad; vt järgmist näidet:
‘PRESS:8BAR + (FREQ:50HZ+MOVOL:500V , FREQ:60HZ+MOVOL:575V)’ kehtib masinate puhul, mille töörõhk
on 8 bar ja sagedus 50 Hz ja toitepinge 500 V, või siis masinate puhul, mille töörõhk on 8 bar ja sagedus 60 Hz ja
toitepinge 575V.
EL – Viide joonisele või elektrikapis olevale osale.
R. - Märkused: lisateave osa kohta. Selgituse leiate lehekülje allosast.
Instructions
9829 3527 14 9
FI - Suomalainen
1 OSIEN TILAAMINEN
Määritä aina osanumero, haluttujen tuotteiden nimi ja määrä sekä koneen tyyppi ja sarjanumero.
2 SARAKETIEDOT
Ref - Viitenumero: Yhdistää jonkin tietyn luettelossa mainitun osan piirrokseen. Piirroksessa näkyvät vain ne osat,
joilla on viitenumero. Ne osat, joilla ei ole viitenumeroa, ovat piirroksessa vain kokoonpanoa kuvaamassa.
Part number - Osanumero, jota on käytettävä varaosia tilattaessa.
Jos osanumeroa ei ole määritetty, komponentti ei ole saatavana varaosana.
Sarjan mukana tulevilla osilla on sarjanumero, joka on merkitty alla olevalle viivalle. Lue tiedot sarjan täydellisestä
sisällöstä luvusta 1 – Service kits.
Osanumero, jota edeltää musta piste, sisältyy edellä olevaan kokoonpanoon.
Remarks: lisätietoja edellä olevaan osanumeroon.
Substituted by: edellä oleva osanumero on korvattu toisella osanumerolla päivityksen tai korjauksen takia.
Qty - Määrä: Osoittaa viitenumeroon liittyvien osien määrän. AR (As required) tarkoittaa määritettävää määrää.
Name - Osan nimi: englanninkielisten nimien käännökset on kerrottu asiakirjassa ”Glossary of part names”.
Validity - Määrittää sen ajanjakson ja koneiden tyypin tai version, joita osa koskee. Määrityskaavassa käytetyt
koodit on selitetty sivun alalaidan kuvatekstissä. Luvun otsikossa mainittu määrityskaava koskee koko lukua.
Kaavassa oleva plusmerkki tarkoittaa ja-sanaa ja pilkku tai-sanaa. Sulkeet ryhmittävät määrityskoodit
matemaattisten sulkeiden tavalla, esimerkiksi näin:
PRESS:8BAR + (FREQ:50HZ+MOVOL:500V , FREQ:60HZ+MOVOL:575V) koskee koneita, joiden työskentelypaine on 8
baaria, taajuus 50 hertsiä ja verkkojännite 500 volttia tai joiden työskentelypaine on 8 baaria, taajuus 60 hertsiä ja
verkkojännite 575 volttia.
EL – Viittaus piirrokseen tai sähkökotelon sisällä olevaan komponenttiin.
R. – Huomautukset: Lisätietoja osasta. Selitys on sivun alalaidassa.
FR - Français
1 COMMANDER DES PIÈCES
Toujours spécifier le numéro de pièce, la désignation et la quantité des articles souhaités ainsi que le type et le
numéro de série de la machine.
2 COLONNE INFORMATIONS
Ref - Référence : associe une pièce donnée de la liste au schéma. Seules les pièces avec une référence sont illustrées
sur le schéma. Les pièces représentées sur le schéma sans référence servent uniquement à illustrer l'ensemble.
Part number - Numéros de pièce à utiliser lors de la commande de pièces de rechange.
Si aucun numéro de pièce n'est indiqué, le composant n'est pas disponible en tant que pièce de rechange.
Pour les pièces contenues dans un kit, le numéro de kit est mentionné à la ligne ci-dessous. Pour voir le contenu du kit
en détail, consulter le chapitre « 1 – Service Kits ».
Un numéro de pièce précédé d'un point noir est compris dans l'ensemble ci-dessus.
Remarks : informations supplémentaires sur le numéro de pièce ci-dessus.
Substituted by : le numéro de pièce ci-dessus a été remplacé par un autre numéro de pièce suite à une mise à jour ou
une révision.
Qty - Quantité : indique le nombre de pièces en fonction du numéro de pièce correspondant. « AR » signifie « As
required » (autant que nécessaire) : quantité ou nombre à définir.
Name - Désignation de la pièce : les traductions des désignations anglaises sont disponibles dans le document
« Glossary of part names ».
Validity - Définit le délai et le type/version de machines pour lesquels les pièces sont valides. Pour plus de détails
sur les codes utilisés dans le modèle de validité, voir la légende en bas de page. Un modèle de validité mentionné dans
le titre du chapitre s'applique à l'ensemble du chapitre. Le signe plus utilisé dans le modèle se comprend comme un
« et », une virgule comme un « ou». Les parenthèses regroupent les codes de validité, comme en mathématiques, voir
l'exemple suivant :
« PRESS:8BAR + (FREQ:50HZ+MOVOL:500V , FREQ:60HZ+MOVOL:575V) » est valide pour des machines avec une
pression de service de 8 bar et une fréquence de 50 Hz et une tension d'alimentation de 500 V ou une pression de
service de 8 bar et une fréquence de 60 Hz et une tension d'alimentation de 575 V.
EL – Référence sur le schéma ou le composant à l'intérieur de l'armoire électrique.
R. – Remarque : informations supplémentaires sur la pièce. Pour plus de détails, voir le bas de page.
Instructions
10 9829 3527 14
HU - Magyar
1 ALKATRÉSZRENDELÉS
Mindig adja meg a cikkszámot, a kért elemek nevét és mennyiségét, valamint a típust és a gyári számot.
2 A TÁBLÁZAT OSZLOPAI
Ref - Hivatkozási szám: a felsorolt alkatrészt a megfelelő ábrához társítja. A rajzon csak hivatkozási számmal
ellátott alkatrészek láthatók. Az ábrán a hivatkozási számmal nem rendelkező alkatrészek csak az összeszerelés
módját illusztrálják.
Part number - A pótalkatrészek rendelésénél használandó cikkszám.
Ha nincs megadva cikkszám, az adott alkatrész nem kapható pótalkatrészként.
Azokra az alkatrészekre, amelyek egy készlet részeként kaphatók, a készlet cikkszáma vonatkozik, amely az alsó
sorban szerepel. A készlet teljes tartalmát lásd: „1 – Service Kits” című fejezet.
Ha egy cikkszámot pont előz meg, az illető alkatrész a közvetlenül felette lévő sorban szereplő egység részét képezi.
Remarks: További információk a közvetlenül felette lévő sorban szereplő cikkszámra vonatkozóan.
Substituted by: A közvetlenül felette lévő sorban szereplő cikkszámot frissítés vagy új változat következtében új
cikkszám váltotta fel.
Qty - Mennyiség: az adott hivatkozási számhoz kapcsolódó alkatrészek számát jelöli. Az „AR” jelentése „As
required” (igény szerint): itt megadhatja a mennyiséget vagy a számot.
Name - Az alkatrész neve: az angol nyelvű elnevezések fordítása az „Glossary of part names” c. dokumentumban
található.
Validity - Azt az időkeretet, továbbá azokat a géptípusokat/-verziókat adja meg, amelyekhez az alkatrész
használható. Az érvényességi formulában használt kódok magyarázata a lap alján olvasható. A fejezetcímben szereplő
érvényességi formula az egész fejezetre érvényes. A formulában szereplő plusz (+) jel jelentése: „és”, a vessző (,)
jelentése: „vagy”. A zárójelek a matematikában használt zárójelekhez hasonlóan csoportosítják az érvényességi
kódokat; lásd a következő példát:
A „PRESS:8BAR + (FREQ:50HZ+MOVOL:500V , FREQ:60HZ+MOVOL:575V)” 8 bar üzemi nyomású, 50 Hz frekvenciájú
és 500 V tápfeszültségű, vagy 8 bar üzemi nyomású, 60 Hz frekvenciájú és 575 V tápfeszültségű berendezéseket
jelöl.
EL – Hivatkozás az elektromos szekrényen belüli ábrára vagy alkatrészre.
R. – Megjegyzések: Az alkatrésszel kapcsolatos további információk. A magyarázat a lap alján található.
IT - Italiano
1 ORDINE DEI RICAMBI
Specificare sempre il numero categorico, il nome e la quantità degli articoli richiesti, oltre al tipo e al numero di serie
della macchina.
2 COLONNA DELLE INFORMAZIONI
Ref - Numero di riferimento: associa un ricambio specifico dalla lista all'illustrazione. Nell'illustrazione sono mostrati
solo ricambi dotati di numero di riferimento. I ricambi presenti nell'illustrazione privi di numero di riferimento sono
riportati semplicemente per illustrare il montaggio.
Part number - Numero categorico da utilizzare per l'ordine di parti di ricambio.
Quando non è specificato alcun numero categorico, il componente non è disponibile come parte di ricambio.
I ricambi contenuti in un kit avranno il numero di kit riportato nella riga sottostante. Per il contenuto completo del
kit vedere il capitolo "1 – Service kits".
Un numero categorico preceduto da un punto nero fa parte del gruppo immediatamente precedente.
Remarks: le informazioni aggiuntive relative al numero categorico sono riportate in alto.
Substituted by: il numero categorico immediatamente precedente è stato sostituito da un altro numero categorico a
causa di un aggiornamento o di una revisione.
Qty - Quantità: indica il numero di ricambi corrispondenti al numero di riferimento. "AR" significa "As
required" (Secondo necessità): quantità o numero da definire.
Name - Nome parte: la traduzione dei termini dall'inglese è reperibile nel documento "Glossary of part names".
Validity - Definisce i tempi e il tipo/versione di macchine per le quali il ricambio è valido. La legenda in fondo alla
pagina riporta una spiegazione dei codici utilizzati nello schema di validità. Uno schema di validità menzionato nel
titolo del capitolo si applica all'intero capitolo. Un segno più nello schema deve essere interpretato come "e", una
virgola come "o". Tra le parentesi sono raggruppati i codici di validità, al pari delle parentesi matematiche, vedere il
seguente esempio:
"PRESS:8BAR + (FREQ:50HZ+MOVOL:500V , FREQ:60HZ+MOVOL:575V)" è valido per le macchine con pressione di
esercizio di 8 bar e 50Hz di frequenza e una tensione di alimentazione di 500 V, o con pressione di esercizio di 8 bar,
frequenza di 60Hz e tensione di alimentazione di 575 V.
EL – Riferimento all'illustrazione o al componente all'interno dell'armadio elettrico.
R. – Note: informazioni aggiuntive sulla spiegazione dei ricambi sono reperibili in fondo alla pagina.
Instructions
9829 3527 14 11
JA - 日本の
1 部品の注文
部品番号、注文するアイテムの名称および数量、機器のタイプおよびシリアル番号を必ず指定してください。
サービスマーク“ ”のついたページにはサービスキットの部品が記載されています。キットの内容物について
は、第1章「サービスキット」を参照してください。
2 各列の説明
Ref. - 参照番号：リストの部品が図のどこにあるかを示します。参照番号がある部品のみが図に示されていま
す。参照番号がない部品はアセンブリを表現するため便宜上表記されています。
Part number - 部品番号：部品番号が示されていない部品は、スペア部品としては提供されていません。太字の行
はアセンブリを示します。番号の後に黒い点が付いている部品は、すぐ上にある太字のアセンブリを構成してい
ます。
“<<< >>>”は、“Name”と同じタイトルの別のリストを示します。
“Ref.”または”Name”行の下に、特定の部品の部品番号が記載されている場合は、機器のタイプ/バージョンに
応じて部品を選択してください。
Qty - 数量：参照番号に対応する部品の数量を示します。 „AR“は「必要に応じて」を意味し、必要に応じて数
量または番号を指定します。
Name - 部品名：英語に対応する各言語の名称は「Glossary of part names」（部品名称対応表）に記載されてい
ます。
Remarks - 部品に関する追加情報です。
一連の文字列は特定の部品が指定認定団体によって承認されていることを示し、リストのコードまたは規定に準拠
しています。
測定値はミリメートル単位で示されています。
LT - Lietuvos
1 DALIŲ UŽSAKYMAS
Visada nurodykite pageidaujamos prekės dalies numerį, pavadinimą ir kiekį. Taip pat nurodykite įrenginio tipą ir
serijos numerį.
2 INFORMACIJA STULPELIUOSE
Ref - Nuorodos numeris: susieja konkrečią dalį iš sąrašo su brėžiniu. Brėžinyje rodomos tik nuorodos numerį turinčios
dalys. Brėžinyje parodytos dalys be nuorodos numerio yra tiesiog įrenginio iliustracija.
Part number - Dalies numeris, naudojamas užsakant atsargines dalis.
Jei dalies numeris nenurodytas, komponentas negalimas kaip atsarginė dalis.
Rinkinyje esančios dalys turi rinkinio numerį, minimą apatinėje eilutė. Visą rinkinio turinį gali pamatyti skyriuje „1 –
Service kits“.
Jei prieš dalies numerį yra juodas taškas, jis yra viršuje pateiktame įrenginyje.
Remarks: papildoma dalies numerio informacija pateikta dešinėje pusėje viršuje.
Substituted by: dešinėje viršuje nurodytas dalies numeris buvo pakeistas kitu dalies numerio, nes vyko atnaujinimas
arba revizija.
Qty - Kiekis: pateikiamas dalių, kurioms priskiriamas atitinkamas nuorodos numeris, skaičius. „AR“ reiškia
„Priklausomai nuo poreikio“: kiekis arba skaičius bus nustatytas to prireikus.
Name - Dalies pavadinimas: anglų kalba pateiktų pavadinimų vertimus rasite dokumente „Glossary of part names“.
Validity - Apibūdinamas laikotarpis ir įrenginio tipas / versija, kurioms dalis tinka. Tinkamumo šablone naudojami
kodai paaiškinti puslapio apačioje esančioje legendoje. Tinkamumo šablonas skyriaus pavadinimas taikomas visam
skyriui. Pliuso ženklas šablone reiškia „ir“, o kablelis – „arba“. Skliaustais grupuojami tinkamumo kodai (kaip ir
matematiniai veiksmai), žr. pavyzdį:
„PRESS:8BAR + (FREQ:50HZ+MOVOL:500V , FREQ:60HZ+MOVOL:575V)“ tinka įrenginiams, kurių darbinis slėgis yra
8 barai, dažnis yra 50 Hz, o maitinimo įtampa yra 500 V, arba darbinis slėgis yra 8 barai, dažnis yra 60 Hz, o maitinimo
įtampa yra 575 V.
EL – Nuoroda į brėžinį arba komponentą elektros modulio viduje.
R. – Pastabos: papildoma informacija apie dalį. Paaiškinimus galite rasti puslapio apačioje.
Instructions
12 9829 3527 14
LV - Latvijas
1. DETAĻU PASŪTĪŠANA
Vienmēr norādiet detaļas numuru, nosaukumu un vajadzīgo daudzumu, kā arī iekārtas tipu un sērijas numuru.
2. KOLONNAS INFORMĀCIJA
Ref – Atsauces numurs: saista konkrētu sarakstā esošo detaļu ar rasējumu. Rasējumā tiek parādītas tikai detaļas ar
atsauces numuru. Detaļas rasējumā bez atsauces numura paredzētas vienīgi tam, lai attēlotu attiecīgo mezglu.
Part number – Detaļas numurs, kas jāizmanto, pasūtot rezerves daļas.
Ja detaļas numurs nav norādīts, attiecīgais komponents nav pieejams kā rezerves daļa.
Komplektā iekļautām detaļām nākamajā rindā būs norādīts komplekta numurs. Komplekta pilnīgs saturs aprakstīts
nodaļā “1 – Service kits”.
Ja pirms detaļas numura ir melns punkts, tā ir iekļauta iepriekš attēlotajā mezglā.
Remarks: papildinformācija par iepriekšējo detaļas numuru.
Substituted by: iepriekšējais detaļas numurs ir aizstāts ar citu detaļas numuru atjaunināšanas vai pārskatīšanas dēļ.
Qty – Daudzums: apzīmē detaļu skaitu attiecīgajam atsauces numuram. “AR” nozīmē “pēc nepieciešamības”: jānosaka
daudzums vai numurs.
Name – Detaļas nosaukums: angļu valodas nosaukumu tulkojumi ir atrodami dokumentā “Glossary of part names”.
Validity – Nosaka iekārtu derīguma periodu un tipu/versiju. Derīguma norādē iekļauto kodu skaidrojums ir norādīts
eksplikācijā lappuses apakšdaļā. Nodaļas virsrakstā minētā derīguma norāde attiecas uz visu nodaļu. Pluszīme norādē
jāinterpretē kā “un”, bet komats kā “vai”. Iekavas grupē derīguma kodus līdzīgi kā iekavas matemātikā, piemēram:
“PRESS:8BAR + (FREQ:50HZ+MOVOL:500V , FREQ:60HZ+MOVOL:575V)” ir derīgs iekārtām ar 8 bāru darba
spiedienu, 50 Hz frekvenci un 500 V barošanas spriegumu vai iekārtām ar 8 bāru darba spiedienu, 60 Hz frekvenci un
575 V barošanas spriegumu.
EL – Atsauce uz rasējumu vai elektrosadales skapja komponentu.
R. – Piezīmes: papildinformācija par detaļu. Skaidrojums atrodams lappuses apakšdaļā.
NL - Nederlands
1 BESTELLEN VAN ONDERDELEN
Vermeld altijd het onderdeelnummer, de benaming en de hoeveelheid van de gewenste onderdelen, alsmede het type en
het serienummer van de machine.
2 KOLOMINFORMATIE
Ref. - Referentienummer: koppelt een specifiek onderdeel in de lijst aan de desbetreffende tekening. Alleen
onderdelen met een referentienummer zijn in de tekening afgebeeld. Onderdelen zonder referentienummer die op de
tekening voorkomen, worden slechts getoond om het geheel te illustreren.
Part number - Onderdeelnummer dat wordt gebruikt voor het bestellen van reserveonderdelen.
Indien geen onderdeelnummer is aangegeven, is de betreffende component niet als reserveonderdeel verkrijgbaar.
Van onderdelen uit een kit wordt het kitnummer op de regel eronder vermeld. Voor de volledige inhoud van de kit, zie
paragraaf "1 - Service kits".
Een onderdeel waarvan het nummer gevolgd wordt door een zwart rondje, maakt deel uit van het vet afgedrukte
samenstel direct erboven.
Remarks: aanvullende informatie voor het onderdeelnummer direct erboven.
Substituted by: het nummer direct erboven is vervangen door een ander onderdeelnummer als gevolg van een update
of herziening.
Qty - Hoeveelheid: geeft het aantal onderdelen aan met betrekking tot met het overeenkomstige referentienummer.
"AR" betekent "As required": de hoeveelheid of het aantal moet nader worden bepaald.
Name - Naam van het onderdeel: vertalingen van de Engelse benamingen zijn te vinden in het document "Glossary of
part names".
Validity - Bepaalt het tijdsframe en type/versie van de machines waarvoor het onderdeel geldig is. Verklaring van de
codes die in het geldigheidspatroon zijn gebruikt, vindt u in de legenda onder aan de pagina. Een geldigheidspatroon
vermeld in de titel van het hoofdstuk is van toepassing op het hele hoofdstuk. Een plusteken in het patroon staat
voor 'en' en een komma voor 'of'. Haakjes groeperen de geldigheidscodes, vergelijkbaar met die in de wiskunde, zie het
volgende voorbeeld:
"PRESS:8 BAR + (FREQ:50HZ+MOVOL:500V, FREQ:60HZ+MOVOL:575V)" is geldig voor machines met een werkdruk
van 8 bar, 50Hz-frequentie en 500V-voedingsspanning of een werkdruk van 8 bar, 60Hz-frequentie en 575Vvoedingsspanning.
EL – Referentie van de tekening of het onderdeel in de elektrische aansluitkast.
R. - Opmerkingen: extra informatie over het onderdeel. Uitleg vindt u onder aan de pagina.
Instructions
9829 3527 14 13
NO - Norsk
1 BESTILLE DELER
Spesifiser alltid delenummeret, navnet og antallet til den nødvendige artikkelen, samt typen og serienummeret til
maskinen.
2 KOLONNEINFORMASJON
Ref – Referansenummer: knytter en spesifikk del fra listen til tegningen. Kun delene med et referansenummer vises i
tegningen. Delene i tegningen som vises uten et referansenummer, er kun tatt med for å illustrere monteringen.
Part number – Delenummer skal brukes ved bestilling av reservedeler.
Når det er ikke er spesifisert et delenummer, er ikke komponenten tilgjengelig som en reservedel.
Deler som inngår i et sett, har settnummeret nevnt på linjen nedenfor. Du finner fullstendig oversikt over innholdet i
settet i kapittel 1 – Service kits.
Et delenummer med en svart prikk foran er en del av settet rett ovenfor.
Remarks: ytterligere informasjon om delenummeret rett ovenfor.
Substituted by: Delenummeret rett ovenfor har blitt erstattet av et annet delenummeret på grunn av en oppdatering
eller revisjon.
Qty – Antall: angir antall deler av det tilhørende referansenummeret. AR betyr Etter behov: Antallet er ikke
bestemt.
Name – Delenavn: Du finner oversettelser av de engelske navnene i dokumentet «Glossary of part names».
Validity – Definerer tidsrommet og maskintypen/-versjonen som delen er gyldig for. Du finner en oversikt over
kodene som brukes i gyldighetsmønsteret, i forklaringen nederst på siden. Et gyldighetsmønster som nevnes i
kapitteltittelen, gjelder for hele kapittelet. Et pluss-tegn i mønsteret skal tolkes som "og", mens et komma skal
tolkes som "eller". Parenteser deler inn gyldighetskodene, omtrent på samme måte som matematiske parenteser. Se
følgende eksempel:
"PRESS:8BAR + (FREQ:50HZ+MOVOL:500V , FREQ:60HZ+MOVOL:575V)" er gyldig for maskiner med arbeidstrykk
på 8 bar, frekvens på 50 Hz og forsyningsspenning på 500 V; eller arbeidstrykk på 8 bar, frekvens på 60 Hz og
forsyningsspenning på 575V.
EL – Referanse til tegningen eller komponentene inne i koplingsskapet.
R. – Kommentarer: Ekstra informasjon om delen. Du finner en forklaring nederst på siden.
PL - Polski
1 ZAMAWIANIE CZĘŚCI
Podczas zamawiania produktów należy zawsze podawać następujące informacje: numer części, nazwę i liczbę
produktów, a także typ i numer seryjny urządzenia.
2 OBJAŚNIENIE NAZW KOLUMN
Ref. — numer referencyjny: informuje, na którym rysunku można znaleźć konkretną część z listy. Na rysunku
zamieszczone są wyłącznie części opatrzone numerem referencyjnym. Części bez przypisanego numeru
referencyjnego zostały zamieszczone na rysunku wyłącznie w celu prawidłowego zilustrowania montażu.
Part number — numer części stosowany podczas zamawiania części zamiennych.
W przypadku braku numeru części danej pozycji nie można zamówić jako części zamiennej.
Jeśli dana część jest elementem zestawu, w kolejnym wierszu znajduje się numer zestawu. Informacje na temat pełnej
zawartości zestawu można znaleźć w rozdziale „1 – Service kits”.
Jeśli numer części poprzedza czarna kropka, dana część jest elementem zestawu opisanego powyżej.
Remarks: dodatkowe informacje na temat numeru części zamieszczonego powyżej.
Substituted by: numer części zamieszczony powyżej został zastąpiony innym numerem części na skutek modernizacji
lub aktualizacji.
Qty — ilość: oznacza liczbę części w odniesieniu do danego numeru referencyjnego. Symbol „AR” oznacza „zależnie od
wymagań”: liczba lub numer do ustalenia.
Name — nazwa części: tłumaczenia nazw angielskich znajdują się w dokumencie „Glossary of part names”.
Validity — wskazuje ramy czasowe oraz typ/wersję urządzenia, do którego przeznaczona jest część. Kody
wykorzystywane we wzorze przydatności zostały objaśnione w legendzie u dołu strony. Wzór przydatności
wspomniany w tytule rozdziału dotyczy całego rozdziału. Znak dodawania we wzorze należy interpretować jako
słowo „i”, natomiast przecinek — jako słowo „lub”. Nawiasy pełnią tu funkcję podobną do nawiasów w matematyce —
grupują kody przydatności — jak w poniższym przykładzie:
kod „PRESS:8BAR + (FREQ:50HZ+MOVOL:500V , FREQ:60HZ+MOVOL:575V)” dotyczy maszyn o ciśnieniu roboczym
8 bar, częstotliwości 50 Hz i napięciu zasilania 500 V lub o ciśnieniu roboczym 8 bar, częstotliwości 60 HZ i napięciu
zasilania 575 V.
EL — odnośnik do rysunku lub podzespołu wewnątrz szafki rozdzielczej.
R. — uwagi: dodatkowe informacje na temat części. Wyjaśnienie znajduje się u dołu strony.
Instructions
14 9829 3527 14
PT - Português
1 ENCOMENDA DE PEÇAS
Especifique sempre a referência da peça, o nome e a quantidade de itens pretendidos, bem como o tipo e o número de
série da máquina.
2 INFORMAÇÕES DAS COLUNAS
Ref - Número de referência: associa uma peça específica da lista ao desenho. Neste último, são apresentadas apenas
as peças com um número de referência. As peças apresentadas no desenho sem um número de referência destinam-se
simplesmente a ilustrar o processo de montagem.
Part number - Referência da peça a utilizar no caso de encomenda de peças sobresselentes.
Se não for especificada uma referência da peça, significa que o componente não se encontra disponível como uma peça
sobresselente.
As peças incluídas num kit terão o número do kit mencionado na linha abaixo. Para obter informações sobre o conteúdo
completo do kit, consulte o capítulo "1 – Service kits".
Uma referência da peça precedida de um ponto preto está incluída no processo de montagem imediatamente acima
mencionado.
Remarks: encontra informações adicionais sobre a referência da peça imediatamente acima.
Substituted by: a referência da peça imediatamente acima foi substituída por outra referência devido a uma
actualização ou revisão.
Qty - Quantidade: indica o número de peças em relação ao número de referência correspondente. "AR" (As required)
significa "Como exigido": quantidade ou número a determinar.
Name - Nome da peça: encontra as traduções dos nomes em inglês no documento "Glossary of part names".
Validity - Define o período de tempo e o tipo/versão de máquinas para que a peça é válida. Encontra a explicação sobre
os códigos utilizados no padrão de validade na legenda situada no final da página. Um padrão de validade mencionado
no título do capítulo aplica-se a todo o capítulo. Um sinal de adição no padrão deve ser interpretado como "e", ao
passo que uma vírgula deve ser interpretada como "ou". Os parênteses agrupam os códigos de validade, da mesma
forma que os parênteses utilizados em operações matemáticas; veja o seguinte exemplo:
"PRESS:8BAR + (FREQ:50HZ+MOVOL:500V , FREQ:60HZ+MOVOL:575V)" é válido para máquinas com uma pressão de
trabalho de 8 bar, uma frequência de 50 Hz e uma tensão de alimentação de 500 V ou uma pressão de trabalho de 8
bar, uma frequência de 60 Hz e uma tensão de alimentação de 575 V.
EL – Referência ao desenho ou ao componente dentro do compartimento eléctrico.
R. – Observações: informações adicionais sobre a peça. Encontra a explicação no final da página.
RO - român
1 COMANDAREA PIESELOR
Indicaţi întotdeauna numărul de catalog, numele şi cantitatea articolelor solicitate, precum şi tipul şi numărul de serie
al maşinii.
2 INFORMAŢIILE DIN COLOANE
Ref. - Numărul de referinţă: face legătura între o piesă din listă şi una din schemă. Numai piesele care au un număr
de referinţă apar în schemă. Piesele din schemă care nu au un număr de referinţă sunt incluse doar pentru a clarifica
modul de asamblare.
Part number - Numărul de catalog este utilizat pentru comandarea pieselor de schimb.
Atunci când nu este specificat un număr de catalog, componenta nu este disponibilă ca piesă de schimb.
Pentru piesele incluse în kituri, numărul kitului este menţionat pe rândul următor. Pentru conţinutul complet al
kitului, consultaţi capitolul „1 – Service kits”.
Un număr de catalog precedat de un punct negru este inclus în ansamblul aflat chiar deasupra acestuia.
Remarks: Informaţii suplimentare privind numărul de catalog de mai sus.
Substituted by: Numărul de catalog de mai sus a fost înlocuit de un alt număr de catalog din cauza unei actualizări sau
a unei revizuiri.
Qty - Cantitate: indică numărul de piese care au numărul de referinţă corespunzător. „AR” este abrevierea pentru „As
required”: cantitatea şi numărul vor fi determinate conform necesităţilor.
Name - Numele piesei: traducerile numelor din engleză se află în documentul „Glossary of part names”.
Validity - Defineşte perioada de valabilitate şi tipul/versiunea utilajelor cu care piesa este compatibilă. Clarificarea
codurilor utilizate în modelul de valabilitate poate fi găsită în legenda din partea de jos a paginii. Un model de
valabilitate menţionat în titlul unui capitol se aplică întregului capitol. Un semn plus care apare într-un model va fi
interpretat drept „şi”, virgulă ori „sau”. Codurile de valabilitate sunt grupate cu ajutorul unor paranteze având o
funcţie similară parantezelor matematice, a se vedea exemplul de mai jos:
„PRESS:8BAR + (FREQ:50HZ+MOVOL:500V , FREQ:60HZ+MOVOL:575V)” indică valabilitatea pentru utilajele cu
presiune de lucru de 8 bari, frecvenţă de 50 Hz şi tensiune de alimentare de 500 V sau presiune de lucru de 8 bari,
frecvenţă de 60 Hz şi tensiune de alimentare de 575 V.
EL – Referire la schemă sau la componenta din cofretul electric.
R. – Observaţii: informaţii suplimentare privind piesa. Explicaţiile pot fi găsite în partea de jos a paginii.
Instructions
9829 3527 14 15
RU - русский
1 ЗАКАЗ ДЕТАЛЕЙ
Всегда указывайте номер по каталогу, наименование и количество требуемых позиций, а также тип и серийный
номер машины.
2 ИНФОРМАЦИЯ
Ref - Ссылочный номер: соотносит деталь из списка со схемой. На схеме показаны только детали со ссылочным
номером. Детали без ссылочного номера приведены на схемах только для демонстрации всего узла в сборе.
Part number - Номер детали, указываемый при заказе запасных частей.
Если номер детали не указан, то компонент недоступен в качестве отдельной запасной части.
Для деталей, входящих в состав комплекта, будут приведены номера этих комплектов, упомянутых строчкой
ниже. Чтобы узнать полный состав комплекта см. раздел “1 – Service kits”.
Деталь, перед номером которой стоит черная точка, входит в состав изображенного выше узла.
Remarks: дополнительная информация о номере приведенной выше детали.
Substituted by: номер изображенной выше детали был заменен другим номером по причине обновления или
переработки.
Qty - Количество: указывает количество деталей относительно соответствующего ссылочного номера. „AR“
значит „As required“: количество или номер будут определены.
Name - Наименование детали: перевод англоязычных наименований можно найти в документе “Glossary of part
names”(Словарь наименований деталей).
Validity - Определяет временные рамки и тип/версию машины, в которой используется деталь. Пояснение
кодов, используемых в данной графе, можно найти в списке обозначений внизу страницы. Информация
о совместимости, упомянутая в данной главе, актуальна для всей главы. Знак плюса в примечании о
совместимости следует принимать за ‘и’, запятые — за ‘или’. Скобки группируют коды совместимости по
принципу, схожему с математическим. См. пример:
‘PRESS:8BAR + (FREQ:50HZ+MOVOL:500V , FREQ:60HZ+MOVOL:575V)’ применима в машинах с рабочим
давлением 8 бар, частотой 50 Гц и напряжением источника питания 500 В или рабочим давлением 8 бар,
частотой 60 Гц и напряжением источника питания 575 В.
EL – Ссылка на схему или компонент электрического шкафа.
R. – Примечания: дополнительная информация о детали. Пояснения приведены внизу страницы.
SK - slovenský
1 OBJEDNÁVANIE DIELOV
Vždy uveďte číslo dielu, názov a množstvo požadovaných položiek, ako aj typ a výrobné číslo zariadenia.
2 INFORMÁCIE V STĹPCOCH
Ref – Referenčné číslo: spája konkrétny diel v zozname s nákresom. Na nákrese sú zobrazené len diely s referenčným
číslom. Diely v nákrese bez referenčného čísla slúžia len na znázornenie zostavy.
Part number – Číslo dielu, ktoré treba použiť pri objednávaní náhradných dielov.
Ak nie je uvedené žiadne číslo dielu, daný komponent nie je k dispozícii ako náhradný diel.
Diely, ktoré sú súčasťou súpravy, majú v riadku nižšie uvedené číslo súpravy. Zoznam všetkých dielov v súprave
nájdete v kapitole „1 – Service kits“.
Číslo dielu, pred ktorým sa nachádza čierna bodka, je súčasťou zostavy uvedenej nad ním.
Remarks: Ďalšie informácie o čísle dielu vyššie.
Substituded by: Číslo dielu uvedené vyššie bolo nahradené iným dielom kvôli inovácii alebo revízii.
Qty – Množstvo: Indikuje počet dielov v súvislosti s príslušným referenčným číslom. „AR“ znamená „As required“:
množstvo alebo počet sa musí určiť.
Name – Názov dielu: Preklady anglických názvov nájdete v dokumente „Glossary of part names“(Slovník názvov
dielov).
Validity – Definuje časový rámec a typ/verziu zariadení, pre ktoré možno daný diel použiť. Informácie o význame
kódov použitých v reťazci označujúcom platnosť nájdete v legende v spodnej časti strany. Reťazec označujúci
platnosť uvedený v názve kapitoly sa vzťahuje na celú kapitolu. Znamienko plus v tomto reťazci znamená „a“ a čiarka
znamená „alebo“. Zátvorky slúžia na zoskupenie kódov označujúcich platnosť podobne ako v matematických vzorcoch.
Pozrite si nasledujúci príklad:
„PRESS:8BAR + (FREQ:50HZ+MOVOL:500V , FREQ:60HZ+MOVOL:575V)“ – platí pre zariadenia s pracovným
tlakom 8 barov, frekvenciou 50 Hz a napájacím napätím 500 V alebo pracovným tlakom 8 barov, frekvenciou 60 Hz
a napájacím napätím 575 V.
EL – Odkaz na nákres komponentu v elektrickej skrini.
R. – Poznámky: Ďalšie informácie o danom diele. Vysvetlenie nájdete v spodnej časti stránky.
Instructions
16 9829 3527 14
SL - slovenščina
1 NAROČANJE DELOV
Vedno navedite številko dela, ime in količino zahtevanih predmetov ter tip in serijsko številko stroja.
2 INFORMACIJE O STOLPCU
Ref - Referenčna številka: povezuje določen navedeni del z risbo. Na risbi so prikazani samo deli z referenčno številko.
Deli na risbi, ki nimajo referenčne številke, so namenjeni samo prikazu sklopa.
Part number - Številko dela uporabite pri naročanju nadomestnih delov.
- Če številka dela ni navedena, komponenta ni na voljo kot nadomestni del.
Za dele, ki so del kompleta, bo v spodnji vrstici navedena tudi številka kompleta. Celotno vsebino kompleta si oglejte v
poglavju "1 – Service kits".
Številka dela, pred katero je črna pika, spada v sklop tik zgoraj.
Remarks: dodatne informacije o številki dela tik zgoraj.
Substituted by: številka dela tik zgoraj je zamenjana z drugo številko dela, zaradi posodobitve ali revizije.
Qty Količina: določa število delov v povezavi z ustrezno referenčno številko. Kratica "AR" pomeni "As required" (kot je
zahtevano): količina ali število za določitev.
Name - Ime dela: prevodi angleških imen se nahajajo v dokumentu "Glossary of part names".
Validity - Določa časovni razpon in tip/različico stroja, ki veljata za del. Razlago kod, ki se uporabljajo v vzorcu
veljavnosti, najdete v legendi na dnu strani. Vzorec veljavnosti, ki je naveden v naslovu poglavja, velja za celotno
poglavje. Znak plus v vzorcu lahko pomeni besedo "in", vejico ali besedo "ali". Oklepaji združujejo kode veljavnosti,
podobno kot oklepaji pri matematiki; glejte spodnji primer:
"PRESS:8BAR + (FREQ:50HZ+MOVOL:500V , FREQ:60HZ+MOVOL:575V)" velja za stroje z delovnim tlakom 8 barov
in frekvenco 50 Hz ter napajalno napetostjo 500 V, ali z delovnim tlakom 8 barov, frekvenco 60 Hz in napajalno
napetostjo 575 V.
EL – Referenca za risbo ali komponenta znotraj električne omarice.
R. – Opombe: dodatne informacije o delu. Razlago lahko najdete na dnu strani.
SV - Svenska
1 BESTÄLLA DELAR
Ange alltid reservdelsnummer, namn och antal delar som önskas, samt typbeteckning och tillverkningsnummer på
maskinen.
2 SPALTINFORMATION
Ref. – Referensnummer: kopplar ihop en viss reservdel i förteckningen med ritningen. Endast reservdelar med
referensnummer visas i ritningen. Reservdelar som saknar referensnummer i ritningen finns med för att illustrera
själva monteringen.
Part number – Reservdelsnummer som används vid beställning av reservdelar.
Om reservdelsnummer saknas finns komponenten inte som reservdel.
Delar som tillhör en sats har satsnumret angivet på raden nedanför. Se kapitel ”1 – Service kits” för satsens
kompletta innehåll.
Ett reservdelsnummer som föregås av en svart punkt finns med i enheten direkt ovanför.
Remarks: Ytterligare information om reservdelsnumret direkt ovanför.
Substituted by: Reservdelsnumret direkt ovanför har ersatts med ett annat reservdelsnummer på grund av en
uppdatering eller revision.
Qty – Antal: Anger hur många delar som är kopplade till motsvarande referensnummer. "AR" betyder "As required" (som
erfordras): Antal eller nummer bestäms senare.
Name - Reservdelsbeteckningar: Översättningar av de engelska beteckningarna återfinns i dokumentet "Glossary of
part names" (Ordlista med reservdelsbeteckningar).
Validity – Definierar tidsramen och typ/version av maskin som reservdelen passar för. En förklaring av koderna som
används i giltighetsmönstret finns i symbolförklaringen längst ner på sidan. Ett giltighetsmönster som nämns i ett
kapitel gäller för hela kapitlet. Ett plustecken i mönstret ska tolkas som "och" och ett komma som "eller". Parenteser
grupperar giltighetskoderna i likhet med parenteser inom matematiken. Se följande exempel:
"PRESS:8BAR + (FREQ:50HZ+MOVOL:500V , FREQ:60HZ+MOVOL:575V)" gäller maskiner med 8 bar arbetstryck,
50 Hz frekvens och 500 V matningsspänning, eller 8 bar arbetstryck, 60 Hz frekvens och 575 V matningsspänning.
EL – Referens till ritningen eller komponenten inuti elskåpet.
R. – Anmärkningar: Extra information om reservdelen. En förklaring finns längst ner på sidan.
Instructions
9829 3527 14 17
TR - Türk
1 PARÇA SİPARİŞİ
Her zaman gereken parçaların parça numarası, adı ve miktarının yanı sıra makinenin tipini ve seri numarasını da
belirtin.
2 SÜTUN BİLGİLERİ
Ref - Referans numarası: Listenin belirli bir bölümünü çizime bağlar. Yalnızca referans numarası olan parçalar çizimde
gösterilir. Çizimde referans numarası olmayan parçalar yalnızca mekanizmanın tamamını göstermek için konulmuştur.
Part number - Yedek parça siparişi verirken kullanılacak parça numarası.
Parça numarası belirtilmediğinde, bu bileşen bir yedek parça olarak bulunmaz.
Bir kite dahil olan parçalar, alttaki satırda bulunan kit numarasına sahiptir. Kitin tüm içeriğini görmek için bkz. bölüm
"1 – Service kits".
Önünde siyah nokta olan parça numaraları, hemen yukarıdaki mekanizmada bulunur.
Remarks: Hemen yukarıdaki parça numarası ile ilgili ek bilgiler.
Substituted by: Bir güncelleme veya revizyon nedeniyle hemen yukarıdaki parça numarası yerine başka bir parça
numarası gelmiştir.
Qty - Miktar: İlgili referans numarasıyla ilgili parça sayısını gösterir. "AR" kısaltması "As required" (miktarı veya sayısı
belirlenecek) anlamına gelir.
Name - Parça adı: İngilizce adların tercümeleri "Glossary of part names”(Parça adları sözlüğü) adlı belgede bulunabilir.
Validity - Parçanın geçerli olduğu zaman aralığını ve makine tiplerini/modellerini belirler. Geçerlilik düzeninde
kullanılan kodların açıklamaları sayfanın alt kısmında bulunabilir. Bölüm başlığında bahsedilen bir geçerlilik düzeni,
tüm bölüm için geçerlidir. Düzende bir artı işareti olması "ve", virgül işareti olması "veya" olarak anlaşılabilir. Geçerlilik
kodları, matematikte kullanılan parantezlere benzer şekilde, parantezler ile gruplara ayrılır. Aşağıdaki örneğe
bakabilirsiniz:
"PRESS:8BAR + (FREQ:50HZ+MOVOL:500V , FREQ:60HZ+MOVOL:575V)" düzeni 8 bar çalışma basıncı olan, 50 Hz
frekanslı, 500 V besleme gerilimli makineler veya 8 bar çalışma basıncı, 60 Hz frekanslı ve 575 V besleme gerilimli
makineler için geçerlidir.
EL – Elektrik panosu içindeki çizim veya parçaya referans anlamına gelir.
R. – Notlar: Parça hakkında ek bilgiler. Açıklamalar sayfanın alt kısmında bulunabilir.
ZH - 中国的
1 ##零件
#必###明所需物件的零件号、名称和数量，以及机器的#型和序列号。
2 #信息
Ref - 参考#号：将列表中的具体零件与##相##。##中##示具有参考#号的零件。##中不#参考#号的零件只用于#明#成##。
Part number - ###件#需要使用零件号。
如果不###明零件号#，将无法以#件形式提供部件。
套件中包含的零件将具有下行所提的套件#号。有#套件的完整信息，#参#第 1 章 – Service kits 保#套件。
上方的#成中包含了零件号，零件号前加有#点符号。
Remarks (#注)：上方零件号的##信息。
Substituted by (取代)：上方的零件号因更新或版本原因更##其他零件号。
Qty - 数量：表示与##参考#号相#的零件数量。"AR" 表示“根据需要”：数量或数目待#定。
Name - 零件名称：“Glossary of names”(零件名称##)文#中提供了英文名称的##翻#。
Validity - 定##零件#用的##期限以及机器的#型/版本。本#底部的#例#有#性表#式中使用的代##行了#明。章###中提及的
有#性表#式#用于全部章#。表#式中的加号表示“和”，逗号表示“或”。#括号用于#合有#代#，#似于数学括号，参#以下示例：
‘PRESS:8BAR + (FREQ:50HZ+MOVOL:500V , FREQ:60HZ+MOVOL:575V)’ #用于以下机器：工作#力 8 bar，#率 50 Hz，
#源## 500 V；或工作#力 8 bar，#率 60 Hz，#源## 575 V。
EL –参考##或##内部#件。
R.– #注：有#零件的#充信息。本#底部提供相##明。
1 - Service Kits
continues on next page ...
18 9829 3527 14
3002 6021 90 - PREVENTIVE MAINTENANCE KIT - RS ULTRA
(MODEL:GA11P_18W , MODEL:GA15P_18W) + OILTYP:RSULTRA
Qty Name
 1 KIT OIL SEPERATOR 11-15KW
 1 NON RETURN VALVE KIT
 1 CUBICLE VENTILATION KIT
 1 MINIMUM PRESSURE &
 1 KIT FILTER AIR/OIL
 1 DRAIN
3002 6021 91 - PREVENTIVE MAINTENANCE KIT - RS ULTRA
(MODEL:GA18P_18W , MODEL:GA22P_18W , MODEL:GA26P_18W , MODEL:GA30_18W) + OILTYP:RSULTRA
Qty Name
 1 KIT OIL SEPERATOR 18-30KW
 1 NON RETURN VALVE KIT
 1 CUBICLE VENTILATION KIT
 1 MINIMUM PRESSURE &
 1 KIT FILTER AIR/OIL RIF
 1 DRAIN
3002 6021 92 - PREVENTIVE MAINTENANCE KIT - ROTO-XTEND DUTY/FOOD GRADE FLUID
(MODEL:GA11P_18W , MODEL:GA15P_18W) + OILTYP:RXD
Qty Name
 1 KIT OIL SEPERATOR 11-15KW
 1 NON RETURN VALVE KIT
 1 CUBICLE VENTILATION KIT
 1 MINIMUM PRESSURE &
 1 KIT FILTER AIR/OIL FOOD GRADE
 1 DRAIN
3002 6021 93 - PREVENTIVE MAINTENANCE KIT - ROTO-XTEND DUTY/FOOD GRADE FLUID
(MODEL:GA18P_18W , MODEL:GA22P_18W , MODEL:GA26P_18W , MODEL:GA30_18W) + OILTYP:RXD
Qty Name
 1 KIT OIL SEPERATOR 18-30KW
 1 NON RETURN VALVE KIT
 1 CUBICLE VENTILATION KIT
 1 MINIMUM PRESSURE &
 1 KIT FILTER AIR/OIL RXD/FG
 1 DRAIN
3002 6021 70 - AIR/OIL FILTER KIT - RS-ULTRA
(MODEL:GA11P_18W , MODEL:GA15P_18W) + OILTYP:RSULTRA
Qty Name
 1 OIL FILTER
 1 FILTER HOUSING
 1 O-RING
 1 PLUG G1/8 FKM SEALING
2901 9908 16 - AIR/OIL FILTER KIT - RS-ULTRA
(MODEL:GA18P_18W , MODEL:GA22P_18W , MODEL:GA26P_18W , MODEL:GA30_18W) + OILTYP:RSULTRA
Qty Name
 1 FILTER OIL
 1 AIR FILTER
 1 O-RING
 1 PLUG
1 - Service Kits
... continued from previous page
continues on next page ...
9829 3527 14 19
2901 9908 16 - AIR/OIL FILTER KIT - RS-ULTRA
(MODEL:GA18P_18W , MODEL:GA22P_18W , MODEL:GA26P_18W , MODEL:GA30_18W) + OILTYP:RSULTRA
Qty Name
 1 INSTR.
3002 6021 71 - AIR/OIL FILTER KIT - ROTO-XTEND DUTY/FOOD GRADE FLUID
(MODEL:GA11P_18W , MODEL:GA15P_18W) + OILTYP:RXD
Qty Name
 1 FILTER
 2 FILTER HOUSING
 1 O-RING
 1 PLUG G1/8 FKM SEALING
2901 9908 17 - AIR/OIL FILTER KIT - ROTO-XTEND DUTY/FOOD GRADE FLUID
(MODEL:GA18P_18W , MODEL:GA22P_18W , MODEL:GA26P_18W , MODEL:GA30_18W) + OILTYP:RXD
Qty Name
 1 FILTER
 1 AIR FILTER
 1 O-RING
 1 PLUG
 1 INSTR.
2901 9908 14 - OIL SEPARATOR KIT
MODEL:GA11P_18W , MODEL:GA15P_18W
Qty Name
 1 O-RING
 1 SEPARATOR OIL
 1 PLUG
 1 INSTR.
2901 9908 15 - OIL SEPARATOR KIT
MODEL:GA18P_18W , MODEL:GA22P_18W , MODEL:GA26P_18W , MODEL:GA30_18W
Qty Name
 1 O-RING
 1 OIL SEPARATOR
 1 PLUG
 1 INSTR.
2902 0161 00 - UNLOADER KIT
Qty Name
 1 INLET VALVE
 1 KIT VALVE UNLOADER
 1 BUSHING
 1 GUIDANCE TAPE C77 UNLOADER
 1 QUAD-RING C77 UNLOADER
 1 O-RING 80 X 3
 1 BUSHING VQB22
 1 HIGH TEMPERATURE SEALING VQB22
 1 SPRING VQB 22
 1 SPRING GUIDE VQB 22
 2 PLAIN WASHER
 2 CROSS SCREW M5X55X4.8
 1 O-RING 26X1.5
 1 O-RING
 2 HEX. SOCK M 6X35X10.9
1 - Service Kits
... continued from previous page
continues on next page ...
20 9829 3527 14
2902 0161 00 - UNLOADER KIT
Qty Name
 1 WASHER M16
 1 INSTR. ASSEMBLY
 1 GASKET
 1 TUBE GREASE
 2 O-RING 3.5X1.5
 1 INSTR. ASSEMBLY
2901 9908 18 - NON RETURN VALVE KIT
Qty Name
 1 O-RING
 1 VALVE NON RET.
 1 O-RING
 1 INSTR. ASSEMBLY
2901 2006 53 - MINIMUM PRESSURE & THERMOSTATIC VALVE KIT
Qty Name
 1 O-RING
 1 O-RING
 1 PISTON
 1 SPRING COMPRESSION
 1 O-RING
 1 TUBE GREASE
 1 KIT VALVE
 1 VALVE 71 DEGREE CELCIUS
 1 ASSEMBLY VALVE
 1 SPRING
 1 O-RING 35.1 X 1.6
2901 1959 00 - ELEMENT OVERHAUL KIT
Qty Name
 1 BEARING
 1 BEARING
 1 HEX SOCK. SCREW
 1 WASHER
 1 OIL NOZZLE
 1 CAP SCREW
 1 PLAIN WASHER(A) 8.4 X 16 X 1.6
 6 HEX. BOLT M10X35X8.8
 2 SCREW
 1 DOWELL PIN
 2 BALL BEARING
 1 BEARING
 1 BEARING
 1 HEX. BOLT M10X55X8.8
 1 LOCK NUT M30
 6 HEX. HEAD SCREW M8 X 30
 1 O-RING 188X3
 1 O-RING
 1 O-RING
 1 SPACER-OIS-H03-11/22-AIA-SPA
 1 O-RING 15.1X1.6
1 - Service Kits
9829 3527 14 21
2901 1959 00 - ELEMENT OVERHAUL KIT
Qty Name
2901 1957 00 - ELEMENT MOUNTING KIT
Qty Name
 1 O-RING 264X3
 1 GASKET
 1 O-RING 49.5X3
 1 O-RING
 2 O-RING 11.3X2.4
 1 O-RING 19.2X3
 1 O-RING 12.3X2.4
 1 O-RING 64.6X2.4
 1 ELEM MOUNTING INSTR.
3002 6021 80 - MOTOR OVERHAUL KIT
MODEL:GA11P_18W , MODEL:GA15P_18W , MODEL:GA18P_18W , MODEL:GA22P_18W
Qty Name
 1 INT.CIRCLIP
 1 BEARING ROLLER
 1 SEAL RING KIT
 1 BUSHING
 1 ASSEMBLY PLUG
 1 BEARING BALL DEEP GROOVE
 1 SEAL
 1 FAN
 1 CIRCLIP
 1 INSTR.
3002 6021 81 - MOTOR OVERHAUL KIT
MODEL:GA26P_18W , MODEL:GA30_18W
Qty Name
 1 INT.CIRCLIP
 1 BEARING ROLLER
 1 SEAL RING KIT
 1 BUSHING
 1 DRAIN NIPPLE
 1 BEARING BALL DEEP GROOVE
 1 FAN
 1 CIRCLIP
 1 SEAL
 1 INSTR.
1092 2073 23 - DRAIN KIT
Qty Name
2901 9908 19 - CUBICLE VENTILATION KIT
MODEL:GA11P_18W , MODEL:GA15P_18W
Qty Name
 1 FILTER
 1 CUBCILE FILTER OUTLET
 1 INSTR.
1 - Service Kits
22 9829 3527 14
2901 9908 29 - CUBICLE VENTILATION KIT
MODEL:GA18P_18W , MODEL:GA22P_18W , MODEL:GA26P_18W , MODEL:GA30_18W
Qty Name
 2 FILTER
 1 INSTR.
Legend:
MODEL:GA11P_18W - Model:GA 11+
MODEL:GA22P_18W - Model:GA 22+
OILTYP:RSULTRA - Oil type:Roto-Synthetic Fluid ULTRA
MODEL:GA15P_18W - Model:GA 15+
MODEL:GA26P_18W - Model:GA 26+
OILTYP:RXD - Oil type:Roto-Xtend Duty Fluid
MODEL:GA18P_18W - Model:GA 18+
MODEL:GA30_18W - Model:GA 30
1 - Service Kits
9829 3527 14 23
2 - Oil
24 9829 3527 14
2 - Oil
9829 3527 14 25
Ref Part Number Qty Name Validity
2901 1700 00 1 OIL RXD 5L
2901 1701 00 1 OIL RXD 20L
2901 1702 00 1 OIL RXD 209L
1630 0542 00 1 OIL ROTO-FOODGRADE 20L
1630 2041 05 1 OIL RS ULTRA 5L
1630 2041 20 1 OIL RS ULTRA 20L
1630 2041 29 1 OIL RS ULTRA 209L
3.1 - Motor (GA 11+, GA 15+, GA 18+, GA 26+ - 400V), (GA 22+, GA 30 - 200-220V,
200V, 400V)
(MODEL:GA11P_18W , MODEL:GA15P_18W , MODEL:GA18P_18W , MODEL:GA26P_18W) + MOVOL:400V , (MODEL:GA22P_18W ,
MODEL:GA30_18W) + (MOVOL:200-220V , MOVOL:200V , MOVOL:400V)
26 9829 3527 14
3.1 - Motor (GA 11+, GA 15+, GA 18+, GA 26+ - 400V), (GA 22+, GA 30 - 200-220V,
200V, 400V)
(MODEL:GA11P_18W , MODEL:GA15P_18W , MODEL:GA18P_18W , MODEL:GA26P_18W) + MOVOL:400V , (MODEL:GA22P_18W ,
MODEL:GA30_18W) + (MOVOL:200-220V , MOVOL:200V , MOVOL:400V)
9829 3527 14 27
Ref Part Number Qty Name Validity
1005 1092 9011 70 2 ANTI-VIBRATION PAD (26/11/2019 - ...)
1010 0101 2274 00 2 PIN (26/11/2019 - ...)
1015 0211 1368 00 1 SCREW (26/11/2019 - ...)
1020 1622 6995 00 1 WASHER (26/11/2019 - ...)
1025 1092 2023 75 1 SPACER (05/12/2019 - ...) (MOVOL:200-220V , MOVOL:200V , MOVOL:400V) +
MODEL:GA30_18W , MODEL:GA26P_18W + MOVOL:400V
1025 1622 6994 01 1 SPACER (26/11/2019 - 04/12/2019)
(05/12/2019 - ...) (MODEL:GA11P_18W , MODEL:GA15P_18W ,
MODEL:GA18P_18W , MODEL:GA22P_18W) + MOVOL:400V ,
(MOVOL:200-220V , MOVOL:200V) + MODEL:GA22P_18W
1035 0301 2344 00 2 PLAIN WASHER (26/11/2019 - ...)
1045 1092 9011 71 1 ANTI-VIBRATION PAD (26/11/2019 - ...)
1055 0147 1371 03 1 HEXAGON BOLT (26/11/2019 - ...) (MODEL:GA11P_18W , MODEL:GA15P_18W ,
MODEL:GA18P_18W , MODEL:GA22P_18W) + MOVOL:400V ,
(MODEL:GA22P_18W , MODEL:GA30_18W) + (MOVOL:200-220V ,
MOVOL:200V)
 Substituted by: 0147 1964 69 - SCREW (quantity: 1)
1055 1 HEXAGON BOLT (26/11/2019 - ...) (MODEL:GA26P_18W , MODEL:GA30_18W) +
MOVOL:400V
 Service kits: 2901 1959 00 - ELEMENT OVERHAUL KIT
1075 0147 1963 08 6 SCREW (26/11/2019 - ...)
1080 2 HEXAGON BOLT (26/11/2019 - ...)
 Service kits: 2901 1959 00 - ELEMENT OVERHAUL KIT
2040 1092 9077 54 1 MOTOR ASSEMBLY (26/11/2019 - ...) MODEL:GA18P_18W + MOVOL:400V
1092 9077 50 (26/11/2019 - ...) MODEL:GA11P_18W + MOVOL:400V
1092 9077 52 (26/11/2019 - ...) MODEL:GA15P_18W + MOVOL:400V
1092 9077 56 (26/11/2019 - ...) MODEL:GA22P_18W + MOVOL:400V
1092 9077 59 (26/11/2019 - ...) (MOVOL:200-220V , MOVOL:200V) +
MODEL:GA22P_18W
1092 9077 58 (26/11/2019 - ...) MODEL:GA30_18W + MOVOL:400V
1092 9077 57 (26/11/2019 - ...) MODEL:GA26P_18W + MOVOL:400V
1092 9077 84 (26/11/2019 - ...) (MOVOL:200-220V , MOVOL:200V) +
MODEL:GA30_18W
3005  1 CIRCLIP (26/11/2019 - ...)
 Service kits: 3002 6021 81 - MOTOR OVERHAUL KIT
3002 6021 80 - MOTOR OVERHAUL KIT
3010  1 BUSHING (26/11/2019 - ...)
 Service kits: 3002 6021 81 - MOTOR OVERHAUL KIT
3002 6021 80 - MOTOR OVERHAUL KIT
 0211 1326 03 4 SCREW (26/11/2019 - ...)
3020  1616 5742 00 1 LIP SEAL (26/11/2019 - ...)
 Substituted by: 1616 5742 80 - SEAL RING KIT (quantity: 1)
3025  1 BEARING ROLLER (26/11/2019 - ...)
 Service kits: 3002 6021 81 - MOTOR OVERHAUL KIT
3002 6021 80 - MOTOR OVERHAUL KIT
 1088 1001 01 1 WARNING MARK (26/11/2019 - ...)
3035  0337 0009 83 1 PARALLEL KEY (20/12/2019 - ...)
3040  1 PLUG ASSEMBLY (20/12/2019 - ...)
 Service kits: 3002 6021 80 - MOTOR OVERHAUL KIT
  1 O-RING
 Service kits: 3002 6021 80 - MOTOR OVERHAUL KIT
  1 PLUG
 Service kits: 3002 6021 80 - MOTOR OVERHAUL KIT
  1 MAGNET
 Service kits: 3002 6021 80 - MOTOR OVERHAUL KIT
3045  1622 6936 00 1 SPACER (20/12/2019 - ...) (MODEL:GA11P_18W , MODEL:GA15P_18W ,
MODEL:GA18P_18W , MODEL:GA22P_18W) + MOVOL:400V
3045  1622 6949 00 1 SPACER (26/11/2019 - ...) (MOVOL:200-220V , MOVOL:200V , MOVOL:400V) +
MODEL:GA30_18W , MODEL:GA26P_18W + MOVOL:400V
Legend:
MODEL:GA11P_18W - Model:GA 11+
MODEL:GA22P_18W - Model:GA 22+
MOVOL:200-220V - Supply voltage:200-220 V (3 ph)
MODEL:GA15P_18W - Model:GA 15+
MODEL:GA26P_18W - Model:GA 26+
MOVOL:200V - Supply voltage:200 V
MODEL:GA18P_18W - Model:GA 18+
MODEL:GA30_18W - Model:GA 30
MOVOL:400V - Supply voltage:400 V
3.2 - Motor GA 18+ - 230V, 460V
(MOVOL:230V , MOVOL:460V) + MODEL:GA18P_18W
28 9829 3527 14
3.2 - Motor GA 18+ - 230V, 460V
(MOVOL:230V , MOVOL:460V) + MODEL:GA18P_18W
9829 3527 14 29
Ref Part Number Qty Name Validity
1005 0101 2274 00 2 PIN (26/11/2019 - ...)
1010 0211 1368 00 1 SCREW (26/11/2019 - ...)
1015 1622 6995 00 1 WASHER (26/11/2019 - ...)
1020 1622 6994 01 1 SPACER (26/11/2019 - ...)
1030 0301 2344 00 2 PLAIN WASHER (26/11/2019 - ...)
1040 1092 9011 71 1 ANTI-VIBRATION PAD (26/11/2019 - ...)
1050 0147 1371 03 1 HEXAGON BOLT (26/11/2019 - ...)
 Substituted by: 0147 1964 69 - SCREW (quantity: 1)
1070 0147 1963 08 6 SCREW (26/11/2019 - ...)
1075 0147 1365 03 2 HEXAGON BOLT (26/11/2019 - ...)
1100 1092 9011 70 2 ANTI-VIBRATION PAD (21/01/2020 - ...)
2035 1092 2023 51 1 MOTOR ASSEMBLY (26/11/2019 - ...)
3005  0337 0009 83 1 PARALLEL KEY (20/12/2019 - ...)
3010  1 PLUG ASSEMBLY (20/12/2019 - ...)
 Service kits: 3002 6021 80 - MOTOR OVERHAUL KIT
  1 O-RING
 Service kits: 3002 6021 80 - MOTOR OVERHAUL KIT
  1 PLUG
 Service kits: 3002 6021 80 - MOTOR OVERHAUL KIT
  1 MAGNET
 Service kits: 3002 6021 80 - MOTOR OVERHAUL KIT
3015  1622 6936 00 1 SPACER (20/12/2019 - ...)
Legend:
MODEL:GA18P_18W - Model:GA 18+ MOVOL:230V - Supply voltage:230 V MOVOL:460V - Supply voltage:460 V
3.3 - Motor (GA 11+, GA 15+, GA 26+ - 200-220V, 200V, 230V, 460V, 380V), (GA 18+
- 200-220V, 200V, 380V), (GA 22+, GA 30 - 230V, 460V, 380V)
(MODEL:GA11P_18W , MODEL:GA15P_18W , MODEL:GA26P_18W) + (MOVOL:200-220V , MOVOL:200V , MOVOL:230V , MOVOL:380V ,
MOVOL:460V) , (MODEL:GA22P_18W , MODEL:GA30_18W) + (MOVOL:230V , MOVOL:380V , MOVOL:460V) , (MOVOL:200-220V , MOVOL:200V ,
MOVOL:380V) + MODEL:GA18P_18W
30 9829 3527 14
3.3 - Motor (GA 11+, GA 15+, GA 26+ - 200-220V, 200V, 230V, 460V, 380V), (GA 18+
- 200-220V, 200V, 380V), (GA 22+, GA 30 - 230V, 460V, 380V)
(MODEL:GA11P_18W , MODEL:GA15P_18W , MODEL:GA26P_18W) + (MOVOL:200-220V , MOVOL:200V , MOVOL:230V , MOVOL:380V ,
MOVOL:460V) , (MODEL:GA22P_18W , MODEL:GA30_18W) + (MOVOL:230V , MOVOL:380V , MOVOL:460V) , (MOVOL:200-220V , MOVOL:200V ,
MOVOL:380V) + MODEL:GA18P_18W
9829 3527 14 31
Ref Part Number Qty Name Validity
1005 1092 9011 70 2 ANTI-VIBRATION PAD (26/11/2019 - ...)
1010 0101 2274 00 2 PIN (26/11/2019 - ...)
1015 0211 1368 00 1 SCREW (26/11/2019 - ...)
1020 1622 6995 00 1 WASHER (26/11/2019 - ...)
1025 1622 6994 01 1 SPACER (26/11/2019 - 04/12/2019)
(05/12/2019 - ...) (MODEL:GA11P_18W , MODEL:GA15P_18W) +
(MOVOL:200-220V , MOVOL:200V , MOVOL:230V , MOVOL:380V ,
MOVOL:460V) , (MOVOL:200-220V , MOVOL:200V , MOVOL:380V) +
MODEL:GA18P_18W , MODEL:GA22P_18W + MOVOL:380V
1025 1092 2023 75 1 SPACER (05/12/2019 - ...) (MODEL:GA26P_18W , MODEL:GA30_18W) +
(MOVOL:230V , MOVOL:380V , MOVOL:460V) , (MOVOL:200-220V ,
MOVOL:200V) + MODEL:GA26P_18W , (MOVOL:230V , MOVOL:460V)
+ MODEL:GA22P_18W
1035 0301 2344 00 2 PLAIN WASHER (26/11/2019 - ...)
1045 1092 9011 71 1 ANTI-VIBRATION PAD (26/11/2019 - ...)
1055 0147 1371 03 1 HEXAGON BOLT (26/11/2019 - ...) (MODEL:GA11P_18W , MODEL:GA15P_18W) +
(MOVOL:200-220V , MOVOL:200V , MOVOL:230V , MOVOL:380V ,
MOVOL:460V) , (MOVOL:200-220V , MOVOL:200V , MOVOL:380V) +
MODEL:GA18P_18W , (MOVOL:230V , MOVOL:380V , MOVOL:460V) +
MODEL:GA22P_18W
 Substituted by: 0147 1964 69 - SCREW (quantity: 1)
1055 1 BALL VALVE (26/11/2019 - ...) (MODEL:GA26P_18W , MODEL:GA30_18W) +
(MOVOL:230V , MOVOL:380V , MOVOL:460V) , (MOVOL:200-220V ,
MOVOL:200V) + MODEL:GA26P_18W
 Service kits: 2901 1959 00 - ELEMENT OVERHAUL KIT
1075 0147 1963 08 6 SCREW (26/11/2019 - ...)
1080 2 HEXAGON BOLT (26/11/2019 - ...)
 Service kits: 2901 1959 00 - ELEMENT OVERHAUL KIT
2040 1092 2023 56 1 MOTOR ASSEMBLY (26/11/2019 - ...) MODEL:GA15P_18W + MOVOL:380V
1092 2023 45 (26/11/2019 - ...) (MOVOL:200-220V , MOVOL:200V) +
MODEL:GA11P_18W
1092 2023 46 (26/11/2019 - ...) (MOVOL:200-220V , MOVOL:200V) +
MODEL:GA15P_18W
1092 2023 47 (26/11/2019 - ...) (MOVOL:200-220V , MOVOL:200V) +
MODEL:GA18P_18W
1092 2023 48 (26/11/2019 - ...) (MOVOL:200-220V , MOVOL:200V) +
MODEL:GA26P_18W
1092 2023 49 (26/11/2019 - ...) (MOVOL:230V , MOVOL:460V) +
MODEL:GA11P_18W
1092 2023 50 (26/11/2019 - ...) (MOVOL:230V , MOVOL:460V) +
MODEL:GA15P_18W
1092 2023 52 (26/11/2019 - ...) (MOVOL:230V , MOVOL:460V) +
MODEL:GA22P_18W
1092 2023 53 (26/11/2019 - ...) (MOVOL:230V , MOVOL:460V) +
MODEL:GA26P_18W
1092 2023 54 (26/11/2019 - ...) (MOVOL:230V , MOVOL:460V) + MODEL:GA30_18W
1092 2023 55 (26/11/2019 - ...) MODEL:GA11P_18W + MOVOL:380V
1092 2023 57 (26/11/2019 - ...) MODEL:GA18P_18W + MOVOL:380V
1092 2023 58 (26/11/2019 - ...) MODEL:GA22P_18W + MOVOL:380V
1092 2023 59 (26/11/2019 - ...) MODEL:GA26P_18W + MOVOL:380V
1092 2023 62 (26/11/2019 - ...) MODEL:GA30_18W + MOVOL:380V
3005  0337 0009 83 1 PARALLEL KEY (20/12/2019 - ...)
3010  1 PLUG ASSEMBLY (20/12/2019 - ...)
 Service kits: 3002 6021 80 - MOTOR OVERHAUL KIT
  1 O-RING
 Service kits: 3002 6021 80 - MOTOR OVERHAUL KIT
  1 PLUG
 Service kits: 3002 6021 80 - MOTOR OVERHAUL KIT
  1 MAGNET
Legend:
MODEL:GA11P_18W - Model:GA 11+
MODEL:GA22P_18W - Model:GA 22+
MOVOL:200-220V - Supply voltage:200-220 V (3 ph)
MOVOL:380V - Supply voltage:380 V
MODEL:GA15P_18W - Model:GA 15+
MODEL:GA26P_18W - Model:GA 26+
MOVOL:200V - Supply voltage:200 V
MOVOL:460V - Supply voltage:460 V
MODEL:GA18P_18W - Model:GA 18+
MODEL:GA30_18W - Model:GA 30
MOVOL:230V - Supply voltage:230 V
3.3 - Motor (GA 11+, GA 15+, GA 26+ - 200-220V, 200V, 230V, 460V, 380V), (GA 18+
- 200-220V, 200V, 380V), (GA 22+, GA 30 - 230V, 460V, 380V)
(MODEL:GA11P_18W , MODEL:GA15P_18W , MODEL:GA26P_18W) + (MOVOL:200-220V , MOVOL:200V , MOVOL:230V , MOVOL:380V ,
MOVOL:460V) , (MODEL:GA22P_18W , MODEL:GA30_18W) + (MOVOL:230V , MOVOL:380V , MOVOL:460V) , (MOVOL:200-220V , MOVOL:200V ,
MOVOL:380V) + MODEL:GA18P_18W
32 9829 3527 14
3.3 - Motor (GA 11+, GA 15+, GA 26+ - 200-220V, 200V, 230V, 460V, 380V), (GA 18+
- 200-220V, 200V, 380V), (GA 22+, GA 30 - 230V, 460V, 380V)
(MODEL:GA11P_18W , MODEL:GA15P_18W , MODEL:GA26P_18W) + (MOVOL:200-220V , MOVOL:200V , MOVOL:230V , MOVOL:380V ,
MOVOL:460V) , (MODEL:GA22P_18W , MODEL:GA30_18W) + (MOVOL:230V , MOVOL:380V , MOVOL:460V) , (MOVOL:200-220V , MOVOL:200V ,
MOVOL:380V) + MODEL:GA18P_18W
9829 3527 14 33
Ref Part Number Qty Name Validity
 Service kits: 3002 6021 80 - MOTOR OVERHAUL KIT
3015  1622 6936 00 1 SPACER (20/12/2019 - ...) (MODEL:GA11P_18W , MODEL:GA15P_18W) +
(MOVOL:200-220V , MOVOL:200V , MOVOL:230V , MOVOL:380V ,
MOVOL:460V) , (MOVOL:200-220V , MOVOL:200V , MOVOL:380V) +
MODEL:GA18P_18W , (MOVOL:230V , MOVOL:380V , MOVOL:460V) +
MODEL:GA22P_18W
3015  1622 6949 00 1 SPACER (26/11/2019 - ...) (MODEL:GA26P_18W , MODEL:GA30_18W) +
(MOVOL:230V , MOVOL:380V , MOVOL:460V) , (MOVOL:200-220V ,
MOVOL:200V) + MODEL:GA26P_18W
Legend:
MODEL:GA11P_18W - Model:GA 11+
MODEL:GA22P_18W - Model:GA 22+
MOVOL:200-220V - Supply voltage:200-220 V (3 ph)
MOVOL:380V - Supply voltage:380 V
MODEL:GA15P_18W - Model:GA 15+
MODEL:GA26P_18W - Model:GA 26+
MOVOL:200V - Supply voltage:200 V
MOVOL:460V - Supply voltage:460 V
MODEL:GA18P_18W - Model:GA 18+
MODEL:GA30_18W - Model:GA 30
MOVOL:230V - Supply voltage:230 V
3.4 - Gears
34 9829 3527 14
3.4 - Gears
9829 3527 14 35
Ref Part Number Qty Name Validity
1005 1622 6988 94 1 GEAR SET (26/11/2019 - 20/01/2020) MODEL:GA11P_18W + PRESS:10.5BAR
(21/01/2020 - ...) FREQ:50HZ + MODEL:GA11P_18W +
PRESS:10.5BAR
1005 1092 0026 70 1 GEAR SET (26/11/2019 - 20/01/2020) MODEL:GA11P_18W + PRESS:13BAR
(21/01/2020 - ...) FREQ:50HZ + MODEL:GA11P_18W + PRESS:13BAR
1005 1092 0026 84 1 GEAR SET (26/11/2019 - 20/01/2020) FREQ:60HZ + MODEL:GA11P_18W +
PRESS:7.4BAR
(21/01/2020 - ...) ((PRESS:7.4BAR , PRESS:7.5BAR) +
MODEL:GA11P_18W , MODEL:GA15P_18W + PRESS:13BAR) +
FREQ:60HZ
1005 1622 6988 95 1 GEAR SET (26/11/2019 - ...) FREQ:60HZ + MODEL:GA11P_18W +
PRESS:9.1BAR
1005 1092 0026 88 1 GEAR SET (26/11/2019 - 20/01/2020) FREQ:60HZ + MODEL:GA11P_18W +
PRESS:10.8BAR
(21/01/2020 - ...) (PRESS:10.8BAR , PRESS:13BAR) + FREQ:60HZ +
MODEL:GA11P_18W
1005 1092 0026 90 1 GEAR SET (26/11/2019 - ...) FREQ:60HZ + MODEL:GA11P_18W +
PRESS:12.5BAR
1005 1622 6988 96 1 GEAR SET (26/11/2019 - 20/01/2020) MODEL:GA15P_18W + PRESS:7.5BAR
(21/01/2020 - ...) FREQ:50HZ + MODEL:GA15P_18W +
PRESS:7.5BAR
1005 1622 6988 97 1 GEAR SET (26/11/2019 - ...) FREQ:50HZ + MODEL:GA15P_18W +
PRESS:8.5BAR , FREQ:60HZ + MODEL:GA22P_18W +
PRESS:12.5BAR
1005 1622 6988 98 1 GEAR SET (26/11/2019 - 20/01/2020) MODEL:GA15P_18W + PRESS:10.5BAR
(21/01/2020 - ...) FREQ:50HZ + MODEL:GA15P_18W +
PRESS:10.5BAR
1005 1092 0026 72 1 GEAR SET (26/11/2019 - 20/01/2020) MODEL:GA15P_18W + PRESS:13BAR
(21/01/2020 - ...) (FREQ:50HZ + MODEL:GA15P_18W , FREQ:60HZ +
MODEL:GA18P_18W) + PRESS:13BAR
1005 1092 0026 75 1 GEAR SET (26/11/2019 - 20/01/2020) FREQ:50HZ + MODEL:GA11P_18W +
PRESS:8.5BAR
(21/01/2020 - ...) FREQ:50HZ + MODEL:GA11P_18W +
PRESS:8.5BAR , FREQ:60HZ + MODEL:GA15P_18W +
PRESS:10.5BAR
1005 1092 0026 74 1 GEAR SET (26/11/2019 - 20/01/2020) (MODEL:GA15P_18W + PRESS:9.1BAR ,
MODEL:GA18P_18W + PRESS:12.5BAR) + FREQ:60HZ ,
MODEL:GA11P_18W + PRESS:7.5BAR
(21/01/2020 - ...) (MODEL:GA15P_18W + PRESS:9.1BAR ,
MODEL:GA18P_18W + PRESS:12.5BAR) + FREQ:60HZ , FREQ:50HZ
+ MODEL:GA11P_18W + PRESS:7.5BAR
1005 1092 0026 85 1 GEAR SET (26/11/2019 - 20/01/2020) (MODEL:GA15P_18W + PRESS:7.4BAR ,
MODEL:GA18P_18W + PRESS:10.8BAR) + FREQ:60HZ
(21/01/2020 - ...) ((PRESS:7.4BAR , PRESS:7.5BAR) +
MODEL:GA15P_18W , MODEL:GA18P_18W + PRESS:10.8BAR) +
FREQ:60HZ
1005 1092 0026 77 1 GEAR SET (26/11/2019 - ...) FREQ:60HZ + MODEL:GA15P_18W +
PRESS:10.8BAR
1005 1092 0026 76 1 GEAR SET (26/11/2019 - ...) FREQ:60HZ + MODEL:GA15P_18W +
PRESS:12.5BAR
1005 1622 6988 99 1 GEAR SET (26/11/2019 - 20/01/2020) MODEL:GA18P_18W + PRESS:7.5BAR ,
MODEL:GA22P_18W + PRESS:10.5BAR
(21/01/2020 - ...) (MODEL:GA18P_18W + PRESS:7.5BAR ,
MODEL:GA22P_18W + PRESS:10.5BAR) + FREQ:50HZ
1005 1092 0026 82 1 GEAR SET (26/11/2019 - ...) FREQ:50HZ + MODEL:GA18P_18W +
PRESS:8.5BAR
1005 1625 2201 37 1 GEAR SET (26/11/2019 - 20/01/2020) MODEL:GA18P_18W + PRESS:10.5BAR
(21/01/2020 - ...) FREQ:50HZ + MODEL:GA18P_18W +
PRESS:10.5BAR
1005 1092 0026 73 1 GEAR SET (26/11/2019 - 20/01/2020) (FREQ:60HZ + PRESS:9.1BAR ,
PRESS:13BAR) + MODEL:GA18P_18W
(21/01/2020 - ...) (FREQ:50HZ + PRESS:13BAR , FREQ:60HZ +
PRESS:9.1BAR) + MODEL:GA18P_18W
1005 1092 0026 86 1 GEAR SET (26/11/2019 - ...) FREQ:60HZ + MODEL:GA18P_18W +
PRESS:7.4BAR
1005 1092 0026 69 1 GEAR SET (26/11/2019 - 20/01/2020) MODEL:GA22P_18W + PRESS:7.5BAR
(21/01/2020 - ...) FREQ:50HZ + MODEL:GA22P_18W +
PRESS:7.5BAR
Remarks:
7.4bar - 107psig, 9.1bar - 132psig, 10.8bar - 157psig, 12.5bar - 181psig
Legend:
FREQ:50HZ - Frequency:50 Hz
MODEL:GA15P_18W - Model:GA 15+
MODEL:GA26P_18W - Model:GA 26+
PRESS:10.8BAR - Working pressure:10.8 bar
PRESS:7.4BAR - Working pressure:7.4 bar
PRESS:9.1BAR - Working pressure:9.1 bar
FREQ:60HZ - Frequency:60 Hz
MODEL:GA18P_18W - Model:GA 18+
MODEL:GA30_18W - Model:GA 30
PRESS:12.5BAR - Working pressure:12.5 bar
PRESS:7.5BAR - Working pressure:7.5 bar
MODEL:GA11P_18W - Model:GA 11+
MODEL:GA22P_18W - Model:GA 22+
PRESS:10.5BAR - Working pressure:10.5 bar
PRESS:13BAR - Working pressure:13 bar
PRESS:8.5BAR - Working pressure:8.5 bar
3.4 - Gears
36 9829 3527 14
3.4 - Gears
9829 3527 14 37
Ref Part Number Qty Name Validity
1005 1092 0026 83 1 GEAR SET (26/11/2019 - 20/01/2020) FREQ:50HZ + MODEL:GA22P_18W +
PRESS:8.5BAR
(21/01/2020 - ...) FREQ:50HZ + MODEL:GA22P_18W +
PRESS:8.5BAR , FREQ:60HZ + MODEL:GA18P_18W + PRESS:7.5BAR
1005 1092 0026 71 1 GEAR SET (26/11/2019 - 20/01/2020) MODEL:GA22P_18W + PRESS:13BAR
(21/01/2020 - ...) FREQ:50HZ + MODEL:GA22P_18W + PRESS:13BAR
1005 1092 0026 68 1 GEAR SET (26/11/2019 - 20/01/2020) FREQ:60HZ + MODEL:GA22P_18W +
PRESS:7.4BAR
(21/01/2020 - ...) (PRESS:7.4BAR , PRESS:7.5BAR) + FREQ:60HZ +
MODEL:GA22P_18W
1005 1625 2201 59 1 GEAR SET (26/11/2019 - ...) FREQ:60HZ + MODEL:GA22P_18W +
PRESS:9.1BAR
1005 1092 0026 78 1 GEAR SET (26/11/2019 - 20/01/2020) FREQ:60HZ + MODEL:GA22P_18W +
PRESS:10.8BAR
(21/01/2020 - ...) (PRESS:10.5BAR , PRESS:10.8BAR) + FREQ:60HZ
+ MODEL:GA22P_18W
1005 1092 2047 69 1 GEAR SET (26/11/2019 - 20/01/2020) MODEL:GA26P_18W + PRESS:7.5BAR ,
MODEL:GA30_18W + PRESS:10.5BAR
(21/01/2020 - ...) (MODEL:GA26P_18W + PRESS:7.5BAR ,
MODEL:GA30_18W + PRESS:10.5BAR) + FREQ:50HZ
1005 1092 2047 70 1 GEAR SET (26/11/2019 - ...) FREQ:50HZ + MODEL:GA26P_18W +
PRESS:8.5BAR
1005 1092 2047 84 1 GEAR SET (26/11/2019 - 20/01/2020) (FREQ:60HZ + PRESS:7.4BAR ,
PRESS:13BAR) + MODEL:GA30_18W , MODEL:GA26P_18W +
PRESS:10.5BAR
(21/01/2020 - ...) ((PRESS:7.4BAR , PRESS:7.5BAR) + FREQ:60HZ ,
FREQ:50HZ + PRESS:13BAR) + MODEL:GA30_18W , FREQ:50HZ +
MODEL:GA26P_18W + PRESS:10.5BAR
1005 1092 2047 85 1 GEAR SET (26/11/2019 - 20/01/2020) (FREQ:60HZ + PRESS:9.1BAR ,
PRESS:13BAR) + MODEL:GA26P_18W
(21/01/2020 - ...) ((PRESS:10.5BAR , PRESS:9.1BAR) + FREQ:60HZ ,
FREQ:50HZ + PRESS:13BAR) + MODEL:GA26P_18W , FREQ:60HZ +
MODEL:GA30_18W + PRESS:13BAR
1005 1092 2047 73 1 GEAR SET (26/11/2019 - 20/01/2020) FREQ:60HZ + MODEL:GA26P_18W +
PRESS:7.4BAR
(21/01/2020 - ...) ((PRESS:7.4BAR , PRESS:7.5BAR) +
MODEL:GA26P_18W , MODEL:GA30_18W + PRESS:10.5BAR) +
FREQ:60HZ
1005 1092 2047 75 1 GEAR SET (26/11/2019 - ...) FREQ:60HZ + MODEL:GA26P_18W +
PRESS:10.8BAR
1005 1092 2047 77 1 GEAR SET (26/11/2019 - 20/01/2020) FREQ:60HZ + MODEL:GA26P_18W +
PRESS:12.5BAR
(21/01/2020 - ...) (PRESS:12.5BAR , PRESS:13BAR) + FREQ:60HZ +
MODEL:GA26P_18W
1005 1092 2047 81 1 GEAR SET (26/11/2019 - 20/01/2020) MODEL:GA30_18W + PRESS:7.5BAR
(21/01/2020 - ...) FREQ:50HZ + MODEL:GA30_18W + PRESS:7.5BAR
1005 1092 2047 71 1 GEAR SET (26/11/2019 - ...) FREQ:50HZ + MODEL:GA30_18W + PRESS:8.5BAR
1005 1092 2047 68 1 GEAR SET (26/11/2019 - ...) FREQ:60HZ + MODEL:GA30_18W + PRESS:9.1BAR
1005 1092 2047 76 1 GEAR SET (26/11/2019 - ...) FREQ:60HZ + MODEL:GA30_18W +
PRESS:10.8BAR
1005 1092 2047 78 1 GEAR SET (26/11/2019 - ...) FREQ:60HZ + MODEL:GA30_18W +
PRESS:12.5BAR
1005 1092 0026 91 1 GEAR SET (21/01/2020 - ...) FREQ:60HZ + MODEL:GA11P_18W +
PRESS:10.5BAR
1005 1092 0026 87 1 GEAR SET (21/01/2020 - ...) (MODEL:GA18P_18W + PRESS:10.5BAR ,
MODEL:GA22P_18W + PRESS:13BAR) + FREQ:60HZ
Remarks:
7.4bar - 107psig, 9.1bar - 132psig, 10.8bar - 157psig, 12.5bar - 181psig
Legend:
FREQ:50HZ - Frequency:50 Hz
MODEL:GA15P_18W - Model:GA 15+
MODEL:GA26P_18W - Model:GA 26+
PRESS:10.8BAR - Working pressure:10.8 bar
PRESS:7.4BAR - Working pressure:7.4 bar
PRESS:9.1BAR - Working pressure:9.1 bar
FREQ:60HZ - Frequency:60 Hz
MODEL:GA18P_18W - Model:GA 18+
MODEL:GA30_18W - Model:GA 30
PRESS:12.5BAR - Working pressure:12.5 bar
PRESS:7.5BAR - Working pressure:7.5 bar
MODEL:GA11P_18W - Model:GA 11+
MODEL:GA22P_18W - Model:GA 22+
PRESS:10.5BAR - Working pressure:10.5 bar
PRESS:13BAR - Working pressure:13 bar
PRESS:8.5BAR - Working pressure:8.5 bar
3.5 - Element
((CAPPRM:AS1210 , CAPPRM:CHN , CAPPRM:ML , CAPPRM:MOM) + MOVOL:400V , (MOVOL:200-220V , MOVOL:200V) + CAPPRM:MHLW) +
(PRESS:10.5BAR , PRESS:13BAR , PRESS:7.5BAR) , ((CAPPRM:AS1210 , CAPPRM:CHN , CAPPRM:ML , CAPPRM:MOM) + PRESS:8.5BAR ,
CAPPRM:MHLW + PRESS:7.5BAR) + MOVOL:400V , ((CAPPRM:ASME , CAPPRM:ML) + (MOVOL:230V , MOVOL:460V) , CAPPRM:ASME +
MOVOL:380V) + (PRESS:10.8BAR , PRESS:12.5BAR , PRESS:7.4BAR , PRESS:9.1BAR) , (IDRY:Y + MODEL:GA11P_18W + PRESS:10.5BAR ,
PRESS:7.5BAR) + CAPPRM:MHLW + MOVOL:460V
38 9829 3527 14
3.5 - Element
((CAPPRM:AS1210 , CAPPRM:CHN , CAPPRM:ML , CAPPRM:MOM) + MOVOL:400V , (MOVOL:200-220V , MOVOL:200V) + CAPPRM:MHLW) +
(PRESS:10.5BAR , PRESS:13BAR , PRESS:7.5BAR) , ((CAPPRM:AS1210 , CAPPRM:CHN , CAPPRM:ML , CAPPRM:MOM) + PRESS:8.5BAR ,
CAPPRM:MHLW + PRESS:7.5BAR) + MOVOL:400V , ((CAPPRM:ASME , CAPPRM:ML) + (MOVOL:230V , MOVOL:460V) , CAPPRM:ASME +
MOVOL:380V) + (PRESS:10.8BAR , PRESS:12.5BAR , PRESS:7.4BAR , PRESS:9.1BAR) , (IDRY:Y + MODEL:GA11P_18W + PRESS:10.5BAR ,
PRESS:7.5BAR) + CAPPRM:MHLW + MOVOL:460V
9829 3527 14 39
Ref Part Number Qty Name Validity R.
1005 1616 7382 80 1 ELEMENT (26/11/2019 - ...) C80
 Substituted by: 1616 7382 90 - SERVICE AIREND C80 I01 (quantity: 1)
1010 1622 2727 20 1 OUTLET HOUSING (26/11/2019 - ...)
1015 0101 1951 40 2 PARALLEL PIN (26/11/2019 - ...)
1020 0337 0009 45 1 PARALLEL KEY (26/11/2019 - ...)
1025 1092 2023 74 1 SPACER (26/11/2019 - ...) MODEL:GA26P_18W ,
MODEL:GA30_18W
1025 1622 3400 00 1 SPACER (26/11/2019 - ...) MODEL:GA11P_18W ,
MODEL:GA15P_18W , MODEL:GA18P_18W ,
MODEL:GA22P_18W
1030 1622 3401 00 1 WASHER (26/11/2019 - ...)
1035 1 O-RING (26/11/2019 - ...)
 Service kits: 2901 1957 00 - ELEMENT MOUNTING KIT
1040 0211 1366 03 6 SCREW (26/11/2019 - ...)
1045 0211 1368 00 1 SCREW (26/11/2019 - ...)
1050 0211 1363 03 2 SCREW (26/11/2019 - ...)
1055 1 O-RING (26/11/2019 - ...)
 Service kits: 2901 1957 00 - ELEMENT MOUNTING KIT
1060 2 O-RING (26/11/2019 - ...)
 Service kits: 2901 1957 00 - ELEMENT MOUNTING KIT
1065 0147 1329 03 4 HEXAGON BOLT (26/11/2019 - ...)
1070 1631 0835 00 1 PLUG (26/11/2019 - ...)
1075 1619 6032 00 2 NIPPLE (26/11/2019 - ...)
1080 1625 8359 00 1 SPACER (26/11/2019 - ...)
Legend:
CAPPRM:AS1210 - Component approval mechanical:AS1210
CAPPRM:MHLW - Component approval mechanical:MHLW
IDRY:Y - Integrated dryer:Yes
MODEL:GA18P_18W - Model:GA 18+
MODEL:GA30_18W - Model:GA 30
MOVOL:230V - Supply voltage:230 V
MOVOL:460V - Supply voltage:460 V
PRESS:12.5BAR - Working pressure:12.5 bar
PRESS:7.5BAR - Working pressure:7.5 bar
CAPPRM:ASME - Component approval mechanical:ASME
CAPPRM:ML - Component approval mechanical:ML
MODEL:GA11P_18W - Model:GA 11+
MODEL:GA22P_18W - Model:GA 22+
MOVOL:200-220V - Supply voltage:200-220 V (3 ph)
MOVOL:380V - Supply voltage:380 V
PRESS:10.5BAR - Working pressure:10.5 bar
PRESS:13BAR - Working pressure:13 bar
PRESS:8.5BAR - Working pressure:8.5 bar
CAPPRM:CHN - Component approval mechanical:CHN (China)
CAPPRM:MOM - Component approval mechanical:MOM
MODEL:GA15P_18W - Model:GA 15+
MODEL:GA26P_18W - Model:GA 26+
MOVOL:200V - Supply voltage:200 V
MOVOL:400V - Supply voltage:400 V
PRESS:10.8BAR - Working pressure:10.8 bar
PRESS:7.4BAR - Working pressure:7.4 bar
PRESS:9.1BAR - Working pressure:9.1 bar
4.1 - Air filter GA 11+, GA 15+
MODEL:GA11P_18W , MODEL:GA15P_18W
40 9829 3527 14
4.1 - Air filter GA 11+, GA 15+
MODEL:GA11P_18W , MODEL:GA15P_18W
9829 3527 14 41
Ref Part Number Qty Name Validity
1005 1092 2023 66 1 PLATE (26/11/2019 - ...)
1010 1622 4741 00 1 BEND ELBOW (26/11/2019 - ...)
1015 1613 8719 00 1 FILTER HOUSING (26/11/2019 - ...)
 1 FILTER ELEMENT
 Service kits: 3002 6021 70 - AIR/OIL FILTER KIT - RS-ULTRA
3002 6021 71 - AIR/OIL FILTER KIT - ROTO-XTEND DUTY/FOOD GRADE FLUID
3002 6021 90 - PREVENTIVE MAINTENANCE KIT - RS ULTRA
3002 6021 92 - PREVENTIVE MAINTENANCE KIT - ROTO-XTEND DUTY/FOOD GRADE FLUID
1020 0347 6100 04 3 CLAMP (20/12/2019 - ...)
 Substituted by: 0347 6116 00 - HOSE CLIP (quantity: 1)
1025 0147 1963 08 3 SCREW (26/11/2019 - ...)
1035 1622 4780 00 1 TUBE (05/12/2019 - ...)
1040 1092 2023 88 1 FILTER PIPE (05/12/2019 - ...)
1045 0347 6113 00 2 HOSE CLIP (20/12/2019 - ...)
Legend:
MODEL:GA11P_18W - Model:GA 11+ MODEL:GA15P_18W - Model:GA 15+
4.2 - Air filter GA 18+, GA 22+, GA 26+, GA 30
MODEL:GA18P_18W , MODEL:GA22P_18W , MODEL:GA26P_18W , MODEL:GA30_18W
42 9829 3527 14
4.2 - Air filter GA 18+, GA 22+, GA 26+, GA 30
MODEL:GA18P_18W , MODEL:GA22P_18W , MODEL:GA26P_18W , MODEL:GA30_18W
9829 3527 14 43
Ref Part Number Qty Name Validity
1005 1625 2201 21 1 PLATE (26/11/2019 - ...)
1010 1092 2023 69 1 BEND ELBOW (26/11/2019 - ...)
1015 1625 2201 35 1 AIR FILTER (26/11/2019 - ...)
 1625 2201 36 1 FILTER ELEMENT
 Substituted by: 1630 2201 36 - AIR FILTER (quantity: 1)
1020 0347 6100 04 2 CLAMP (26/11/2019 - ...)
 Substituted by: 0347 6116 00 - HOSE CLIP (quantity: 1)
1025 0147 1963 08 3 SCREW (26/11/2019 - ...)
1030 0211 1328 03 2 SCREW (26/11/2019 - ...)
Legend:
MODEL:GA18P_18W - Model:GA 18+
MODEL:GA30_18W - Model:GA 30
MODEL:GA22P_18W - Model:GA 22+ MODEL:GA26P_18W - Model:GA 26+
4.3 - Air inlet
44 9829 3527 14
4.3 - Air inlet
9829 3527 14 45
Ref Part Number Qty Name Validity
1005 1092 2073 60 1 UNLOADER VALVE (26/11/2019 - ...)
1010 0147 1325 03 4 BOLT (26/11/2019 - ...)
1015 0301 2335 00 4 PLAIN WASHER (26/11/2019 - ...)
1020 1622 7886 00 1 GASKET (26/11/2019 - ...)
1025 1089 0580 22 1 SOLENOID VALVE (26/11/2019 - ...)
1030 1623 1810 80 1 VALVE ASSEMBLY (26/11/2019 - ...)
4.4 - Vessel assembly
(CAPPRM:AS1210 , CAPPRM:CHN , CAPPRM:ML , CAPPRM:MOM) + (PRESS:10.5BAR , PRESS:13BAR , PRESS:7.5BAR , PRESS:8.5BAR) ,
(CAPPRM:ASME , CAPPRM:ML) + (PRESS:10.8BAR , PRESS:12.5BAR , PRESS:7.4BAR , PRESS:9.1BAR) , (PRESS:10.5BAR , PRESS:13BAR ,
PRESS:7.5BAR) + CAPPRM:MHLW
46 9829 3527 14
4.4 - Vessel assembly
(CAPPRM:AS1210 , CAPPRM:CHN , CAPPRM:ML , CAPPRM:MOM) + (PRESS:10.5BAR , PRESS:13BAR , PRESS:7.5BAR , PRESS:8.5BAR) ,
(CAPPRM:ASME , CAPPRM:ML) + (PRESS:10.8BAR , PRESS:12.5BAR , PRESS:7.4BAR , PRESS:9.1BAR) , (PRESS:10.5BAR , PRESS:13BAR ,
PRESS:7.5BAR) + CAPPRM:MHLW
9829 3527 14 47
Ref Part Number Qty Name Validity
1005 1092 9002 91 1 VESSEL ASSEMBLY (26/11/2019 - ...) (PRESS:10.5BAR , PRESS:13BAR , PRESS:7.5BAR ,
PRESS:8.5BAR) + CAPPRM:CHN
1005 1092 9002 88 1 VESSEL ASSEMBLY (26/11/2019 - ...) (CAPPRM:AS1210 , CAPPRM:MOM) +
(PRESS:10.5BAR , PRESS:13BAR , PRESS:7.5BAR , PRESS:8.5BAR) ,
(PRESS:10.8BAR , PRESS:12.5BAR , PRESS:7.4BAR ,
PRESS:9.1BAR) + CAPPRM:ASME
1005 1092 9002 90 1 VESSEL ASSEMBLY (26/11/2019 - ...) (PRESS:10.5BAR , PRESS:10.8BAR ,
PRESS:12.5BAR , PRESS:13BAR , PRESS:7.4BAR , PRESS:7.5BAR ,
PRESS:8.5BAR , PRESS:9.1BAR) + CAPPRM:ML , (PRESS:10.5BAR ,
PRESS:13BAR , PRESS:7.5BAR) + CAPPRM:MHLW
1010 0603 4102 03 1 NIPPLE (26/11/2019 - ...)
1015 1092 9011 68 1 ELBOW COUPLING (26/11/2019 - ...)
1020 0852 0010 36 1 BALL VALVE (26/11/2019 - ...)
1025 0583 8120 22 1 COUPLING (26/11/2019 - ...)
 Substituted by: 2200 7505 77 - QUICK COUPLING (quantity: 1)
1030 1092 0014 36 1 PLUG (26/11/2019 - ...)
1035 1 O-RING (26/11/2019 - ...)
 Service kits: 3002 6021 90 - PREVENTIVE MAINTENANCE KIT - RS ULTRA
3002 6021 92 - PREVENTIVE MAINTENANCE KIT - ROTO-XTEND DUTY/FOOD GRADE FLUID
1040 2200 7599 10 1 PLUG (26/11/2019 - ...)
1045 0661 1000 43 1 SEAL WASHER (26/11/2019 - ...)
1050 0147 1963 08 4 SCREW (26/11/2019 - ...)
1055 1625 4817 80 1 PIPE (26/11/2019 - ...)
1060 1 O-RING (26/11/2019 - ...)
 Service kits: 2901 9908 14 - OIL SEPARATOR KIT
2901 9908 15 - OIL SEPARATOR KIT
1065 1 COMPRESSION SPRING (26/11/2019 - ...)
 Service kits: 2901 2006 53 - MINIMUM PRESSURE & THERMOSTATIC VALVE KIT
1070 1622 0525 01 1 SPRING (26/11/2019 - ...)
1075 1 O-RING (26/11/2019 - ...)
 Service kits: 2901 2006 53 - MINIMUM PRESSURE & THERMOSTATIC VALVE KIT
1080 1 O-RING (26/11/2019 - ...)
 Service kits: 2901 2006 53 - MINIMUM PRESSURE & THERMOSTATIC VALVE KIT
1085 1 VALVE ASSEMBLY (26/11/2019 - ...)
 Service kits: 2901 2006 53 - MINIMUM PRESSURE & THERMOSTATIC VALVE KIT
1090 1 PISTON (26/11/2019 - ...)
 Service kits: 2901 2006 53 - MINIMUM PRESSURE & THERMOSTATIC VALVE KIT
1095 1622 6576 01 1 HOUSING VALVE (26/11/2019 - ...)
1100 1613 8967 12 1 GROUNDING OF VESSEL (26/11/2019 - ...)
1105 1088 0019 01 2 CONTACT WASHER (26/11/2019 - ...)
1110 0070 6002 15 AR PLASTIC TUBE (26/11/2019 - ...)
Legend:
CAPPRM:AS1210 - Component approval mechanical:AS1210
CAPPRM:MHLW - Component approval mechanical:MHLW
PRESS:10.5BAR - Working pressure:10.5 bar
PRESS:13BAR - Working pressure:13 bar
PRESS:8.5BAR - Working pressure:8.5 bar
CAPPRM:ASME - Component approval mechanical:ASME
CAPPRM:ML - Component approval mechanical:ML
PRESS:10.8BAR - Working pressure:10.8 bar
PRESS:7.4BAR - Working pressure:7.4 bar
PRESS:9.1BAR - Working pressure:9.1 bar
CAPPRM:CHN - Component approval mechanical:CHN (China)
CAPPRM:MOM - Component approval mechanical:MOM
PRESS:12.5BAR - Working pressure:12.5 bar
PRESS:7.5BAR - Working pressure:7.5 bar
5 - Liquid filtration
OILTYP:RSULTRA + PRESS:8.5BAR , PRESS:10.5BAR , PRESS:10.8BAR , PRESS:12.5BAR , PRESS:13BAR , PRESS:7.4BAR , PRESS:7.5BAR ,
PRESS:9.1BAR
48 9829 3527 14
5 - Liquid filtration
OILTYP:RSULTRA + PRESS:8.5BAR , PRESS:10.5BAR , PRESS:10.8BAR , PRESS:12.5BAR , PRESS:13BAR , PRESS:7.4BAR , PRESS:7.5BAR ,
PRESS:9.1BAR
9829 3527 14 49
Ref Part Number Qty Name Validity R.
1005 1625 4735 02 1 INSTRUMENT BLOCK (26/11/2019 - ...)
1010 0663 2116 84 2 O-RING (26/11/2019 - ...)
1015 0663 2116 85 1 O-RING (26/11/2019 - ...)
1020 0663 2116 86 1 O-RING (26/11/2019 - ...)
1025 0211 1371 03 4 SCREW (26/11/2019 - ...)
1030 1 O-RING (26/11/2019 - ...)
 Service kits: 2901 2006 53 - MINIMUM PRESSURE & THERMOSTATIC VALVE KIT
1035 1625 4602 10 1 BUSHING (26/11/2019 - ...)
1040 0147 1246 03 2 HEXAGON BOLT (26/11/2019 - ...)
1045 0686 3718 15 1 PLUG (26/11/2019 - ...)
1050 1625 4260 00 1 NIPPLE (21/01/2020 - ...)
1055 1 OIL FILTER (26/11/2019 - ...) (PRESS:10.5BAR , PRESS:10.8BAR ,
PRESS:12.5BAR , PRESS:13BAR , PRESS:7.4BAR ,
PRESS:7.5BAR , PRESS:9.1BAR) + OILTYP:RXD
8000H
 Substituted by: 2903 7526 00 - FILTER (quantity: 1)
 Service kits: 3002 6021 71 - AIR/OIL FILTER KIT - ROTO-XTEND DUTY/FOOD GRADE FLUID
3002 6021 92 - PREVENTIVE MAINTENANCE KIT - ROTO-XTEND DUTY/FOOD GRADE FLUID
1055 1625 4800 00 1 OIL FILTER (21/01/2020 - ...) (PRESS:10.5BAR , PRESS:10.8BAR ,
PRESS:12.5BAR , PRESS:13BAR , PRESS:7.4BAR ,
PRESS:7.5BAR , PRESS:8.5BAR , PRESS:9.1BAR) +
OILTYP:RSULTRA
4000H
 Substituted by: 1625 4800 50 - OIL FILTER (quantity: 1)
1060 1629 0336 00 1 LABEL (26/11/2019 - ...) (PRESS:10.5BAR , PRESS:10.8BAR ,
PRESS:12.5BAR , PRESS:13BAR , PRESS:7.4BAR ,
PRESS:7.5BAR , PRESS:8.5BAR , PRESS:9.1BAR) +
OILTYP:RSULTRA
1065 0301 2321 00 2 PLAIN WASHER (26/11/2019 - ...)
2005 1 THERMOSTATIC VALVE (26/11/2019 - 04/12/2019) OILTYP:RSULTRA +
PRESS:8.5BAR , PRESS:10.5BAR , PRESS:10.8BAR ,
PRESS:7.4BAR , PRESS:7.5BAR , PRESS:9.1BAR
(05/12/2019 - ...)
 Service kits: 2901 2006 53 - MINIMUM PRESSURE & THERMOSTATIC VALVE KIT
2010 1079 9932 38 1 DECAL UNIT (26/11/2019 - 04/12/2019) OILTYP:RSULTRA +
PRESS:8.5BAR , PRESS:10.5BAR , PRESS:10.8BAR ,
PRESS:7.4BAR , PRESS:7.5BAR , PRESS:9.1BAR
(05/12/2019 - ...)
Legend:
OILTYP:RSULTRA - Oil type:Roto-Synthetic Fluid ULTRA
PRESS:10.8BAR - Working pressure:10.8 bar
PRESS:7.4BAR - Working pressure:7.4 bar
PRESS:9.1BAR - Working pressure:9.1 bar
OILTYP:RXD - Oil type:Roto-Xtend Duty Fluid
PRESS:12.5BAR - Working pressure:12.5 bar
PRESS:7.5BAR - Working pressure:7.5 bar
PRESS:10.5BAR - Working pressure:10.5 bar
PRESS:13BAR - Working pressure:13 bar
PRESS:8.5BAR - Working pressure:8.5 bar
6 - Fluid transport
50 9829 3527 14
6 - Fluid transport
9829 3527 14 51
Ref Part Number Qty Name Validity
1005 0580 0017 37 1 PIPE FITTING (26/11/2019 - ...)
1010 1625 2202 51 1 HOSE (26/11/2019 - ...)
2005 0580 0017 36 1 PIPE FITTING (26/11/2019 - ...)
2010 1092 2023 82 1 HOSE ASSEMBLY (26/11/2019 - ...)
2015 1092 2023 19 1 HOSE ASSEMBLY (26/11/2019 - ...)
2020 0580 0017 36 1 PIPE FITTING (26/11/2019 - ...)
3005 0663 7134 00 1 O-RING (26/11/2019 - ...)
3010 1092 2023 20 1 HOSE ASSEMBLY (26/11/2019 - ...)
3015 0211 1957 59 2 SCREW CAP (26/11/2019 - ...)
3020 0663 7134 00 1 O-RING (26/11/2019 - ...)
3025 0211 1957 59 2 SCREW CAP (26/11/2019 - ...)
4005 0583 8121 00 1 THREADED ELBOW (26/11/2019 - ...)
 Substituted by: 0583 8121 58 - ELBOW G1/4 X 6 (quantity: 1)
4010 0070 6002 68 16 TUBE (20/12/2019 - ...)
 Substituted by: 0070 7250 04 - HOSE TUBO RILSAN 6X4 NERO (quantity: 1)
4015 0583 8121 57 1 ELBOW COUPLING (26/11/2019 - ...)
4020 1 NON RETURN VALVE (26/11/2019 - ...)
 Service kits: 2901 9908 18 - NON RETURN VALVE KIT
4025 1 O-RING (26/11/2019 - ...)
 Service kits: 2901 9908 18 - NON RETURN VALVE KIT
4030 1625 2203 43 1 NIPPLE (26/11/2019 - ...)
4035 1 O-RING (26/11/2019 - ...)
 Service kits: 2901 9908 18 - NON RETURN VALVE KIT
5005 0580 0017 36 1 PIPE FITTING (26/11/2019 - ...)
5010 1625 2202 57 1 HOSE (26/11/2019 - ...)
5015 0580 0018 55 1 PIPE FITTING (26/11/2019 - ...)
6005 0583 8121 31 1 PIPE FITTING (26/11/2019 - ...)
6010 0070 6002 74 10 TUBE (05/12/2019 - ...)
6015 0583 8100 68 1 PIPE FITTING (26/11/2019 - ...)
7 - Safety valve
(CAPPRM:AS1210 , CAPPRM:CHN , CAPPRM:ML , CAPPRM:MOM) + (PRESS:10.5BAR , PRESS:13BAR , PRESS:7.5BAR , PRESS:8.5BAR) ,
(CAPPRM:ASME , CAPPRM:ML) + (PRESS:10.8BAR , PRESS:12.5BAR , PRESS:7.4BAR , PRESS:9.1BAR) , (PRESS:10.5BAR , PRESS:13BAR ,
PRESS:7.5BAR) + CAPPRM:MHLW
52 9829 3527 14
7 - Safety valve
(CAPPRM:AS1210 , CAPPRM:CHN , CAPPRM:ML , CAPPRM:MOM) + (PRESS:10.5BAR , PRESS:13BAR , PRESS:7.5BAR , PRESS:8.5BAR) ,
(CAPPRM:ASME , CAPPRM:ML) + (PRESS:10.8BAR , PRESS:12.5BAR , PRESS:7.4BAR , PRESS:9.1BAR) , (PRESS:10.5BAR , PRESS:13BAR ,
PRESS:7.5BAR) + CAPPRM:MHLW
9829 3527 14 53
Ref Part Number Qty Name Validity
1005 0830 1009 89 1 SAFETY VALVE (05/12/2019 - ...) (CAPPRM:AS1210 , CAPPRM:MOM) +
PRESS:7.5BAR , (CAPPRM:ASME , CAPPRM:ML) + PRESS:7.4BAR
1005 0830 1009 96 1 SAFETY VALVE (05/12/2019 - ...) (CAPPRM:AS1210 , CAPPRM:MOM) +
(PRESS:10.5BAR , PRESS:8.5BAR) , (CAPPRM:ASME , CAPPRM:ML)
+ PRESS:9.1BAR
1005 0830 1009 98 1 SAFETY VALVE (05/12/2019 - ...) (CAPPRM:AS1210 , CAPPRM:MOM) +
PRESS:13BAR , (CAPPRM:ASME , CAPPRM:ML) + (PRESS:10.8BAR ,
PRESS:12.5BAR)
1005 1092 0019 18 1 SAFETY VALVE (05/12/2019 - ...) CAPPRM:CHN + PRESS:7.5BAR
1005 1092 0019 19 1 SAFETY VALVE (05/12/2019 - ...) (PRESS:10.5BAR , PRESS:8.5BAR) + CAPPRM:CHN
1005 1092 0019 20 1 SAFETY VALVE (05/12/2019 - ...) CAPPRM:CHN + PRESS:13BAR
1005 1092 0019 25 1 SAFETY VALVE (05/12/2019 - ...) (CAPPRM:MHLW , CAPPRM:ML) + PRESS:7.5BAR
1005 1092 0019 26 1 SAFETY VALVE (05/12/2019 - ...) (CAPPRM:MHLW , CAPPRM:ML) + PRESS:10.5BAR ,
CAPPRM:ML + PRESS:8.5BAR
1005 1092 0019 27 1 SAFETY VALVE (05/12/2019 - ...) (CAPPRM:MHLW , CAPPRM:ML) + PRESS:13BAR
1010 1503 2565 04 1 ELBOW (05/12/2019 - ...)
Remarks:
7.4bar - 107psig, 9.1bar - 132psig, 10.8bar - 157psig, 12.5bar - 181psig
Legend:
CAPPRM:AS1210 - Component approval mechanical:AS1210
CAPPRM:MHLW - Component approval mechanical:MHLW
PRESS:10.5BAR - Working pressure:10.5 bar
PRESS:13BAR - Working pressure:13 bar
PRESS:8.5BAR - Working pressure:8.5 bar
CAPPRM:ASME - Component approval mechanical:ASME
CAPPRM:ML - Component approval mechanical:ML
PRESS:10.8BAR - Working pressure:10.8 bar
PRESS:7.4BAR - Working pressure:7.4 bar
PRESS:9.1BAR - Working pressure:9.1 bar
CAPPRM:CHN - Component approval mechanical:CHN (China)
CAPPRM:MOM - Component approval mechanical:MOM
PRESS:12.5BAR - Working pressure:12.5 bar
PRESS:7.5BAR - Working pressure:7.5 bar
8.1 - Cooler
54 9829 3527 14
8.1 - Cooler
9829 3527 14 55
Ref Part Number Qty Name Validity
1005 1625 4737 53 1 COOLER ASSEMBLY (26/11/2019 - ...) MODEL:GA26P_18W
1625 4737 51 (26/11/2019 - ...) MODEL:GA11P_18W , MODEL:GA15P_18W ,
MODEL:GA18P_18W
1625 4737 52 (26/11/2019 - ...) MODEL:GA22P_18W
1625 4737 54 (26/11/2019 - ...) MODEL:GA30_18W
1010 0215 0010 16 1 SCREW (26/11/2019 - ...)
1015 1625 4767 83 1 PLATE (26/11/2019 - ...) MODEL:GA11P_18W , MODEL:GA15P_18W ,
MODEL:GA18P_18W
1015 1625 4767 82 1 PLATE (26/11/2019 - ...) MODEL:GA22P_18W
1015 1625 4767 81 1 PLATE (26/11/2019 - ...) MODEL:GA26P_18W
Legend:
MODEL:GA11P_18W - Model:GA 11+
MODEL:GA22P_18W - Model:GA 22+
MODEL:GA15P_18W - Model:GA 15+
MODEL:GA26P_18W - Model:GA 26+
MODEL:GA18P_18W - Model:GA 18+
MODEL:GA30_18W - Model:GA 30
8.2 - Fan (200-220V, 230V, 380V, 400V, 460V) - Full-Feature, (200-220V, 400V) -
Pack
(MOVOL:200-220V , MOVOL:230V , MOVOL:380V , MOVOL:400V , MOVOL:460V) + IDRY:Y , (MOVOL:200-220V , MOVOL:400V) + IDRY:N
56 9829 3527 14
8.2 - Fan (200-220V, 230V, 380V, 400V, 460V) - Full-Feature, (200-220V, 400V) -
Pack
(MOVOL:200-220V , MOVOL:230V , MOVOL:380V , MOVOL:400V , MOVOL:460V) + IDRY:Y , (MOVOL:200-220V , MOVOL:400V) + IDRY:N
9829 3527 14 57
Ref Part Number Qty Name Validity
1005 1092 2008 57 1 FAN AXIAL (26/11/2019 - ...) (MODEL:GA18P_18W , MODEL:GA22P_18W) +
MOVOL:400V
1005 1092 2008 58 1 FAN AXIAL (26/11/2019 - ...) (MODEL:GA26P_18W , MODEL:GA30_18W) +
MOVOL:400V
1005 1092 9077 90 1 FAN AXIAL (26/11/2019 - ...) ((MOVOL:200-220V , MOVOL:230V , MOVOL:380V ,
MOVOL:460V) + IDRY:Y , IDRY:N + MOVOL:200-220V) +
(MODEL:GA11P_18W , MODEL:GA15P_18W)
1005 1092 9077 91 1 FAN AXIAL (26/11/2019 - ...) ((MOVOL:200-220V , MOVOL:230V , MOVOL:380V ,
MOVOL:460V) + IDRY:Y , IDRY:N + MOVOL:200-220V) +
(MODEL:GA18P_18W , MODEL:GA22P_18W)
1005 1092 2345 18 1 FAN AXIAL (26/11/2019 - ...) (MODEL:GA11P_18W , MODEL:GA15P_18W) +
MOVOL:400V
1005 1092 9077 92 1 FAN AXIAL (26/11/2019 - ...) ((MOVOL:200-220V , MOVOL:230V , MOVOL:380V ,
MOVOL:460V) + IDRY:Y , IDRY:N + MOVOL:200-220V) +
(MODEL:GA26P_18W , MODEL:GA30_18W)
1010 0215 0010 16 4 SCREW SET (26/11/2019 - ...)
1015 0301 2335 00 2 PLAIN WASHER (26/11/2019 - ...)
1020 0291 1110 00 2 LOCKNUT (26/11/2019 - ...)
1025 0147 1963 08 2 SCREW (26/11/2019 - ...)
1030 1625 4794 82 1 DUCT (26/11/2019 - ...) MODEL:GA18P_18W , MODEL:GA22P_18W
1030 1625 4752 81 1 DUCT (26/11/2019 - ...) MODEL:GA26P_18W , MODEL:GA30_18W
 1619 3843 00 AR SEAL
 Substituted by: 1619 3843 01 - SEAL FD560/1600 (quantity: 1)
 1619 3843 00 AR SEAL
 Substituted by: 1619 3843 01 - SEAL FD560/1600 (quantity: 1)
 1619 5562 00 AR SEAL
 1619 3843 00 AR SEAL
 Substituted by: 1619 3843 01 - SEAL FD560/1600 (quantity: 1)
1030 1625 2200 00 1 DUCT (26/11/2019 - ...) MODEL:GA11P_18W , MODEL:GA15P_18W
1035 1625 4264 82 1 FAN PROTECTION (26/11/2019 - ...)
 1079 9901 18 1 WARNING LABEL
Legend:
IDRY:N - Integrated dryer:No
MODEL:GA15P_18W - Model:GA 15+
MODEL:GA26P_18W - Model:GA 26+
MOVOL:230V - Supply voltage:230 V
MOVOL:460V - Supply voltage:460 V
IDRY:Y - Integrated dryer:Yes
MODEL:GA18P_18W - Model:GA 18+
MODEL:GA30_18W - Model:GA 30
MOVOL:380V - Supply voltage:380 V
MODEL:GA11P_18W - Model:GA 11+
MODEL:GA22P_18W - Model:GA 22+
MOVOL:200-220V - Supply voltage:200-220 V (3 ph)
MOVOL:400V - Supply voltage:400 V
8.3 - Fan 200V
MOVOL:200V
58 9829 3527 14
8.3 - Fan 200V
MOVOL:200V
9829 3527 14 59
Ref Part Number Qty Name Validity
1010 1092 2023 71 1 FAN AXIAL (26/11/2019 - 04/12/2019) IDRY:N + MODEL:GA15P_18W ,
MODEL:GA18P_18W , MODEL:GA22P_18W
(05/12/2019 - ...) MODEL:GA18P_18W , MODEL:GA22P_18W
1010 1092 2023 72 1 FAN AXIAL (26/11/2019 - ...) MODEL:GA26P_18W , MODEL:GA30_18W
1010 1092 2023 70 1 FAN AXIAL (26/11/2019 - 04/12/2019) IDRY:Y + MODEL:GA15P_18W ,
MODEL:GA11P_18W
(05/12/2019 - ...) MODEL:GA11P_18W , MODEL:GA15P_18W
1020 0215 0010 16 4 SCREW SET (26/11/2019 - ...)
1030 0301 2335 00 2 PLAIN WASHER (26/11/2019 - ...)
1040 0291 1110 00 2 LOCKNUT (26/11/2019 - ...)
1050 0147 1963 08 2 SCREW (26/11/2019 - ...)
1060 1625 4794 82 1 DUCT (26/11/2019 - 04/12/2019) IDRY:N + MODEL:GA15P_18W ,
MODEL:GA18P_18W , MODEL:GA22P_18W
(05/12/2019 - ...) MODEL:GA18P_18W , MODEL:GA22P_18W
1060 1625 4752 81 1 DUCT (26/11/2019 - ...) MODEL:GA26P_18W , MODEL:GA30_18W
 1619 3843 00 AR SEAL
 Substituted by: 1619 3843 01 - SEAL FD560/1600 (quantity: 1)
 1619 3843 00 AR SEAL
 Substituted by: 1619 3843 01 - SEAL FD560/1600 (quantity: 1)
 1619 5562 00 AR SEAL
 1619 3843 00 AR SEAL
 Substituted by: 1619 3843 01 - SEAL FD560/1600 (quantity: 1)
1060 1625 2200 00 1 DUCT (26/11/2019 - 04/12/2019) IDRY:Y + MODEL:GA15P_18W ,
MODEL:GA11P_18W
(05/12/2019 - ...) MODEL:GA11P_18W , MODEL:GA15P_18W
1070 1625 4264 82 1 FAN PROTECTION (26/11/2019 - ...)
 1079 9901 18 1 WARNING LABEL
Legend:
IDRY:N - Integrated dryer:No
MODEL:GA15P_18W - Model:GA 15+
MODEL:GA26P_18W - Model:GA 26+
IDRY:Y - Integrated dryer:Yes
MODEL:GA18P_18W - Model:GA 18+
MODEL:GA30_18W - Model:GA 30
MODEL:GA11P_18W - Model:GA 11+
MODEL:GA22P_18W - Model:GA 22+
MOVOL:200V - Supply voltage:200 V
9 - Condensate drain Pack
(PRESS:10.5BAR , PRESS:10.8BAR , PRESS:12.5BAR , PRESS:13BAR , PRESS:7.4BAR , PRESS:7.5BAR , PRESS:8.5BAR , PRESS:9.1BAR) + IDRY:N
60 9829 3527 14
9 - Condensate drain Pack
(PRESS:10.5BAR , PRESS:10.8BAR , PRESS:12.5BAR , PRESS:13BAR , PRESS:7.4BAR , PRESS:7.5BAR , PRESS:8.5BAR , PRESS:9.1BAR) + IDRY:N
9829 3527 14 61
Ref Part Number Qty Name Validity
1005 1092 2073 20 1 WSD 15 (26/11/2019 - ...)
1010 1092 2039 60 1 PLATE (26/11/2019 - ...)
1015 0605 8700 90 1 BUSHING (26/11/2019 - ...)
1020 0581 1200 29 1 PIPE COUPLING (26/11/2019 - ...)
1025 0583 8121 40 1 ELBOW COUPLING (26/11/2019 - ...)
1030 0581 0000 43 2 COUPLING (26/11/2019 - ...)
1035 0583 8100 76 3 COUPLING (26/11/2019 - ...)
1040 0070 6002 03 AR PLASTIC TUBE (20/12/2019 - ...)
1045 0070 6002 03 AR PLASTIC TUBE (20/12/2019 - ...)
1050 0147 1963 08 2 SCREW (26/11/2019 - ...)
1060 0697 9810 25 2 PLUG (26/11/2019 - ...)
1065 0697 9809 20 2 LOCKNUT (26/11/2019 - ...)
Legend:
IDRY:N - Integrated dryer:No
PRESS:12.5BAR - Working pressure:12.5 bar
PRESS:7.5BAR - Working pressure:7.5 bar
PRESS:10.5BAR - Working pressure:10.5 bar
PRESS:13BAR - Working pressure:13 bar
PRESS:8.5BAR - Working pressure:8.5 bar
PRESS:10.8BAR - Working pressure:10.8 bar
PRESS:7.4BAR - Working pressure:7.4 bar
PRESS:9.1BAR - Working pressure:9.1 bar
10 - Condensate drain Full-Feature
(PRESS:10.5BAR , PRESS:10.8BAR , PRESS:12.5BAR , PRESS:13BAR , PRESS:7.4BAR , PRESS:7.5BAR , PRESS:8.5BAR , PRESS:9.1BAR) + IDRY:Y
62 9829 3527 14
10 - Condensate drain Full-Feature
(PRESS:10.5BAR , PRESS:10.8BAR , PRESS:12.5BAR , PRESS:13BAR , PRESS:7.4BAR , PRESS:7.5BAR , PRESS:8.5BAR , PRESS:9.1BAR) + IDRY:Y
9829 3527 14 63
Ref Part Number Qty Name Validity
1005 1092 2073 20 1 WSD (26/11/2019 - ...) (MODEL:GA18P_18W , MODEL:GA22P_18W ,
MODEL:GA26P_18W , MODEL:GA30_18W) + (PRESS:10.5BAR ,
PRESS:10.8BAR , PRESS:12.5BAR , PRESS:13BAR ,
PRESS:7.4BAR , PRESS:7.5BAR , PRESS:8.5BAR , PRESS:9.1BAR) ,
(PRESS:10.5BAR , PRESS:10.8BAR , PRESS:7.4BAR ,
PRESS:7.5BAR , PRESS:8.5BAR , PRESS:9.1BAR) +
MODEL:GA15P_18W
1010 1092 2039 60 1 PLATE (26/11/2019 - ...) (MODEL:GA18P_18W , MODEL:GA22P_18W ,
MODEL:GA26P_18W , MODEL:GA30_18W) + (PRESS:10.5BAR ,
PRESS:10.8BAR , PRESS:12.5BAR , PRESS:13BAR ,
PRESS:7.4BAR , PRESS:7.5BAR , PRESS:8.5BAR , PRESS:9.1BAR) ,
(PRESS:10.5BAR , PRESS:10.8BAR , PRESS:7.4BAR ,
PRESS:7.5BAR , PRESS:8.5BAR , PRESS:9.1BAR) +
MODEL:GA15P_18W
1015 0605 8700 90 1 BUSHING (26/11/2019 - ...) (MODEL:GA18P_18W , MODEL:GA22P_18W ,
MODEL:GA26P_18W , MODEL:GA30_18W) + (PRESS:10.5BAR ,
PRESS:10.8BAR , PRESS:12.5BAR , PRESS:13BAR ,
PRESS:7.4BAR , PRESS:7.5BAR , PRESS:8.5BAR , PRESS:9.1BAR) ,
(PRESS:10.5BAR , PRESS:10.8BAR , PRESS:7.4BAR ,
PRESS:7.5BAR , PRESS:8.5BAR , PRESS:9.1BAR) +
MODEL:GA15P_18W
1020 0581 1200 29 1 PIPE COUPLING (26/11/2019 - ...) (MODEL:GA18P_18W , MODEL:GA22P_18W ,
MODEL:GA26P_18W , MODEL:GA30_18W) + (PRESS:10.5BAR ,
PRESS:10.8BAR , PRESS:12.5BAR , PRESS:13BAR ,
PRESS:7.4BAR , PRESS:7.5BAR , PRESS:8.5BAR , PRESS:9.1BAR) ,
(PRESS:10.5BAR , PRESS:10.8BAR , PRESS:7.4BAR ,
PRESS:7.5BAR , PRESS:8.5BAR , PRESS:9.1BAR) +
MODEL:GA15P_18W
1025 0583 8121 40 1 ELBOW COUPLING (26/11/2019 - ...)
1030 0581 0000 43 4 COUPLING (26/11/2019 - ...) (MODEL:GA11P_18W , MODEL:GA30_18W)
+ (PRESS:10.5BAR , PRESS:10.8BAR , PRESS:12.5BAR ,
PRESS:13BAR , PRESS:7.4BAR , PRESS:7.5BAR , PRESS:8.5BAR ,
PRESS:9.1BAR) , (PRESS:12.5BAR , PRESS:13BAR) +
MODEL:GA15P_18W , (PRESS:7.4BAR , PRESS:7.5BAR ,
PRESS:8.5BAR , PRESS:9.1BAR) + MODEL:GA26P_18W
1035 0583 8100 76 5 STRAIGHT COUPLING (26/11/2019 - 19/12/2019) (MODEL:GA15P_18W ,
MODEL:GA18P_18W , MODEL:GA22P_18W) + (PRESS:10.5BAR ,
PRESS:10.8BAR , PRESS:7.4BAR , PRESS:7.5BAR , PRESS:8.5BAR ,
PRESS:9.1BAR) , (MODEL:GA18P_18W , MODEL:GA22P_18W ,
MODEL:GA26P_18W) + (PRESS:12.5BAR , PRESS:13BAR) ,
(PRESS:10.5BAR , PRESS:10.8BAR) + MODEL:GA26P_18W
(20/12/2019 - ...) (MODEL:GA11P_18W , MODEL:GA15P_18W ,
MODEL:GA18P_18W , MODEL:GA22P_18W) + (PRESS:10.5BAR ,
PRESS:10.8BAR , PRESS:12.5BAR , PRESS:13BAR ,
PRESS:7.4BAR , PRESS:7.5BAR , PRESS:8.5BAR , PRESS:9.1BAR) ,
(PRESS:10.5BAR , PRESS:10.8BAR , PRESS:12.5BAR ,
PRESS:13BAR) + MODEL:GA26P_18W
1040 0070 6002 03 AR PLASTIC TUBE (26/11/2019 - ...)
1045 0070 6002 03 AR PLASTIC TUBE (26/11/2019 - ...)
1050 0147 1963 08 2 SCREW (26/11/2019 - ...) (MODEL:GA18P_18W , MODEL:GA22P_18W ,
MODEL:GA26P_18W , MODEL:GA30_18W) + (PRESS:10.5BAR ,
PRESS:10.8BAR , PRESS:12.5BAR , PRESS:13BAR ,
PRESS:7.4BAR , PRESS:7.5BAR , PRESS:8.5BAR , PRESS:9.1BAR) ,
(PRESS:10.5BAR , PRESS:10.8BAR , PRESS:7.4BAR ,
PRESS:7.5BAR , PRESS:8.5BAR , PRESS:9.1BAR) +
MODEL:GA15P_18W
1055 0852 0010 55 2 BALL VALVE (26/11/2019 - ...)
1060 0583 8100 66 1 STAIGHT COUPLING (20/12/2019 - ...)
Legend:
IDRY:Y - Integrated dryer:Yes
MODEL:GA18P_18W - Model:GA 18+
MODEL:GA30_18W - Model:GA 30
PRESS:12.5BAR - Working pressure:12.5 bar
PRESS:7.5BAR - Working pressure:7.5 bar
MODEL:GA11P_18W - Model:GA 11+
MODEL:GA22P_18W - Model:GA 22+
PRESS:10.5BAR - Working pressure:10.5 bar
PRESS:13BAR - Working pressure:13 bar
PRESS:8.5BAR - Working pressure:8.5 bar
MODEL:GA15P_18W - Model:GA 15+
MODEL:GA26P_18W - Model:GA 26+
PRESS:10.8BAR - Working pressure:10.8 bar
PRESS:7.4BAR - Working pressure:7.4 bar
PRESS:9.1BAR - Working pressure:9.1 bar
11 - Air outlet Pack
(PRESS:10.5BAR , PRESS:10.8BAR , PRESS:12.5BAR , PRESS:13BAR , PRESS:7.4BAR , PRESS:7.5BAR , PRESS:8.5BAR , PRESS:9.1BAR) + IDRY:N
64 9829 3527 14
11 - Air outlet Pack
(PRESS:10.5BAR , PRESS:10.8BAR , PRESS:12.5BAR , PRESS:13BAR , PRESS:7.4BAR , PRESS:7.5BAR , PRESS:8.5BAR , PRESS:9.1BAR) + IDRY:N
9829 3527 14 65
Ref Part Number Qty Name Validity
1005 0580 0017 37 1 PIPE FITTING (26/11/2019 - ...)
1010 1625 4821 00 1 PIPE OUTLET (26/11/2019 - ...)
1015 0580 0017 37 1 PIPE FITTING (26/11/2019 - ...)
1020 1625 4820 00 1 BUSHING (26/11/2019 - ...)
1025 0697 9809 05 1 LOCKNUT (26/11/2019 - ...)
1030 0583 8160 58 1 COUPLING (26/11/2019 - ...)
1035 0070 6002 68 AR TUBE (20/12/2019 - ...)
 Substituted by: 0070 7250 04 - HOSE TUBO RILSAN 6X4 NERO (quantity: 1)
1040 0070 6002 68 AR TUBE (20/12/2019 - ...)
 Substituted by: 0070 7250 04 - HOSE TUBO RILSAN 6X4 NERO (quantity: 1)
1045 0583 8100 71 1 PIPE FITTING (26/11/2019 - ...)
1050 0070 6002 06 AR PLASTIC TUBE (26/11/2019 - ...)
Legend:
IDRY:N - Integrated dryer:No
PRESS:12.5BAR - Working pressure:12.5 bar
PRESS:7.5BAR - Working pressure:7.5 bar
PRESS:10.5BAR - Working pressure:10.5 bar
PRESS:13BAR - Working pressure:13 bar
PRESS:8.5BAR - Working pressure:8.5 bar
PRESS:10.8BAR - Working pressure:10.8 bar
PRESS:7.4BAR - Working pressure:7.4 bar
PRESS:9.1BAR - Working pressure:9.1 bar
12 - Air outlet GA 11+ (7.4bar - 7.5bar - 8.5bar - 9.1bar - 10.5bar - 10.8bar - 12.5bar -
13bar) - GA 15+ - (12.5bar - 13bar) - Full-Feature
((PRESS:10.5BAR , PRESS:10.8BAR , PRESS:12.5BAR , PRESS:13BAR , PRESS:7.4BAR , PRESS:7.5BAR , PRESS:8.5BAR , PRESS:9.1BAR) +
MODEL:GA11P_18W , (PRESS:12.5BAR , PRESS:13BAR) + MODEL:GA15P_18W) + IDRY:Y
66 9829 3527 14
12 - Air outlet GA 11+ (7.4bar - 7.5bar - 8.5bar - 9.1bar - 10.5bar - 10.8bar - 12.5bar -
13bar) - GA 15+ - (12.5bar - 13bar) - Full-Feature
((PRESS:10.5BAR , PRESS:10.8BAR , PRESS:12.5BAR , PRESS:13BAR , PRESS:7.4BAR , PRESS:7.5BAR , PRESS:8.5BAR , PRESS:9.1BAR) +
MODEL:GA11P_18W , (PRESS:12.5BAR , PRESS:13BAR) + MODEL:GA15P_18W) + IDRY:Y
9829 3527 14 67
Ref Part Number Qty Name Validity
1005 0580 0018 33 1 NIPPLE (26/11/2019 - ...)
1010 1625 2202 55 1 HOSE (26/11/2019 - ...)
1015 0580 0018 33 1 NIPPLE (26/11/2019 - ...)
1020 0583 8100 71 1 FITTING PIPE (26/11/2019 - ...)
1025 0070 6002 06 AR PLASTIC TUBE (26/11/2019 - ...)
1030 0583 8120 73 1 ELBOW COUPLING (26/11/2019 - ...)
1035 0070 6002 68 AR TUBE (20/12/2019 - ...)
 Substituted by: 0070 7250 04 - HOSE TUBO RILSAN 6X4 NERO (quantity: 1)
2005 1625 4288 00 1 NIPPLE (26/11/2019 - ...)
2010 1625 8614 08 1 OUTLET PIPE (26/11/2019 - ...)
2015 0583 8120 73 1 ELBOW COUPLING (26/11/2019 - ...)
2020 0070 6002 68 AR TUBE (26/11/2019 - ...)
 Substituted by: 0070 7250 04 - HOSE TUBO RILSAN 6X4 NERO (quantity: 1)
2025 0663 3130 00 1 O-RING (21/01/2020 - ...)
2026 1088 0803 07 1 GROMMET
Legend:
IDRY:Y - Integrated dryer:Yes
PRESS:10.5BAR - Working pressure:10.5 bar
PRESS:13BAR - Working pressure:13 bar
PRESS:8.5BAR - Working pressure:8.5 bar
MODEL:GA11P_18W - Model:GA 11+
PRESS:10.8BAR - Working pressure:10.8 bar
PRESS:7.4BAR - Working pressure:7.4 bar
PRESS:9.1BAR - Working pressure:9.1 bar
MODEL:GA15P_18W - Model:GA 15+
PRESS:12.5BAR - Working pressure:12.5 bar
PRESS:7.5BAR - Working pressure:7.5 bar
13 - Air outlet GA 15+ - (7.4bar - 7.5bar - 8.5bar - 9.1bar), (GA 18+, GA 22+, GA 26+,
GA 30) - (7.4bar - 7.5bar - 8.5bar - 9.1bar - 10.5bar - 10.8bar - 12.5bar - 13bar) - Full-
Feature
((MODEL:GA18P_18W , MODEL:GA22P_18W , MODEL:GA26P_18W , MODEL:GA30_18W) + (PRESS:10.5BAR , PRESS:10.8BAR , PRESS:12.5BAR ,
PRESS:13BAR , PRESS:7.4BAR , PRESS:7.5BAR , PRESS:8.5BAR , PRESS:9.1BAR) , (PRESS:10.5BAR , PRESS:10.8BAR , PRESS:7.4BAR ,
PRESS:7.5BAR , PRESS:8.5BAR , PRESS:9.1BAR) + MODEL:GA15P_18W) + IDRY:Y
68 9829 3527 14
13 - Air outlet GA 15+ - (7.4bar - 7.5bar - 8.5bar - 9.1bar), (GA 18+, GA 22+, GA 26+,
GA 30) - (7.4bar - 7.5bar - 8.5bar - 9.1bar - 10.5bar - 10.8bar - 12.5bar - 13bar) - Full-
Feature
((MODEL:GA18P_18W , MODEL:GA22P_18W , MODEL:GA26P_18W , MODEL:GA30_18W) + (PRESS:10.5BAR , PRESS:10.8BAR , PRESS:12.5BAR ,
PRESS:13BAR , PRESS:7.4BAR , PRESS:7.5BAR , PRESS:8.5BAR , PRESS:9.1BAR) , (PRESS:10.5BAR , PRESS:10.8BAR , PRESS:7.4BAR ,
PRESS:7.5BAR, PRESS:8.5BAR,PRESS:9.1BAR)+MODEL:GA15P_18W) + IDRY:Y
9829 3527 14 69
Validity
1005 0580 0017 37 1 FITTING PIPE (26/11/2019 - ...)
1010 1625 2202 52 1 HOSE (26/11/2019 - ...)
1015 0580 0017 37 1 FITTING PIPE (26/11/2019 - ...)
1020 0583 8100 71 1 FITTING PIPE (26/11/2019 - ...)
1025 0070 6002 06 AR PLASTIC TUBE (26/11/2019 - ...)
1030 0583 8120 73 1 ELBOW COUPLING (26/11/2019 - ...)
2005 0663 3130 00 1 O-RING (26/11/2019 - ...)
2010 1625 4819 00 1 BUSHING FOR OUTLET DRYER (26/11/2019 - ...)
2015 0070 6002 68 AR TUBE (26/11/2019 - ...)
 Substituted by: 0070 7250 04 - HOSE TUBO RILSAN 6X4 NERO (quantity: 1)
Legend:
IDRY:Y - Integrated dryer:Yes
MODEL:GA22P_18W - Model:GA 22+
PRESS:10.5BAR - Working pressure:10.5 bar
PRESS:13BAR - Working pressure:13 bar
PRESS:8.5BAR - Working pressure:8.5 bar
MODEL:GA15P_18W - Model:GA 15+
MODEL:GA26P_18W - Model:GA 26+
PRESS:10.8BAR - Working pressure:10.8 bar
PRESS:7.4BAR - Working pressure:7.4 bar
PRESS:9.1BAR - Working pressure:9.1 bar
MODEL:GA18P_18W - Model:GA 18+
MODEL:GA30_18W - Model:GA 30
PRESS:12.5BAR - Working pressure:12.5 bar
PRESS:7.5BAR - Working pressure:7.5 bar
Ref Part Number Qty Name
14 - Loose parts
PRESS:10.5BAR , PRESS:10.8BAR , PRESS:12.5BAR , PRESS:13BAR , PRESS:7.4BAR , PRESS:7.5BAR , PRESS:8.5BAR , PRESS:9.1BAR
70 9829 3527 14
14 - Loose parts
PRESS:10.5BAR , PRESS:10.8BAR , PRESS:12.5BAR , PRESS:13BAR , PRESS:7.4BAR , PRESS:7.5BAR , PRESS:8.5BAR , PRESS:9.1BAR
9829 3527 14 71
Ref Part Number Qty Name Validity
1005 0852 0011 02 1 BALL VALVE (26/11/2019 - ...) ((MODEL:GA11P_18W , MODEL:GA15P_18W)
+ IDRY:N , MODEL:GA18P_18W , MODEL:GA22P_18W ,
MODEL:GA26P_18W , MODEL:GA30_18W) + (PRESS:10.5BAR ,
PRESS:10.8BAR , PRESS:12.5BAR , PRESS:13BAR ,
PRESS:7.4BAR , PRESS:7.5BAR , PRESS:8.5BAR , PRESS:9.1BAR) ,
(PRESS:10.5BAR , PRESS:10.8BAR , PRESS:7.4BAR ,
PRESS:7.5BAR , PRESS:8.5BAR , PRESS:9.1BAR) + IDRY:Y +
MODEL:GA15P_18W
1005 1619 6153 06 1 BALL VALVE (26/11/2019 - ...) ((PRESS:10.5BAR , PRESS:10.8BAR ,
PRESS:12.5BAR , PRESS:13BAR , PRESS:7.4BAR , PRESS:7.5BAR ,
PRESS:8.5BAR , PRESS:9.1BAR) + MODEL:GA11P_18W ,
(PRESS:12.5BAR , PRESS:13BAR) + MODEL:GA15P_18W) + IDRY:Y
1010 0852 0010 55 1 BALL VALVE (26/11/2019 - 19/12/2019)
(20/12/2019 - ...) IDRY:N
1010 0852 0010 55 2 BALL VALVE (20/12/2019 - ...) IDRY:Y
1015 1625 2201 19 1 PLATE COVER (26/11/2019 - ...)
1020 0211 1246 03 4 SCREW (26/11/2019 - ...)
1030 0698 5140 76 1 CABLE GLAND (26/11/2019 - ...)
1040 1089 9154 02 1 KEY (26/11/2019 - ...)
1045 1089 9068 01 1 KEY (26/11/2019 - ...)
Remarks:
7.4bar - 107psig, 9.1bar - 132psig, 10.8bar - 157psig, 12.5bar - 181psig
Legend:
IDRY:N - Integrated dryer:No
MODEL:GA15P_18W - Model:GA 15+
MODEL:GA26P_18W - Model:GA 26+
PRESS:10.8BAR - Working pressure:10.8 bar
PRESS:7.4BAR - Working pressure:7.4 bar
PRESS:9.1BAR - Working pressure:9.1 bar
IDRY:Y - Integrated dryer:Yes
MODEL:GA18P_18W - Model:GA 18+
MODEL:GA30_18W - Model:GA 30
PRESS:12.5BAR - Working pressure:12.5 bar
PRESS:7.5BAR - Working pressure:7.5 bar
MODEL:GA11P_18W - Model:GA 11+
MODEL:GA22P_18W - Model:GA 22+
PRESS:10.5BAR - Working pressure:10.5 bar
PRESS:13BAR - Working pressure:13 bar
PRESS:8.5BAR - Working pressure:8.5 bar
15.1 - Assembly ID 47
(((PRESS:10.5BAR , PRESS:13BAR , PRESS:7.5BAR) + MODEL:GA11P_18W , MODEL:GA15P_18W + PRESS:13BAR) + (MOVOL:200-220V ,
MOVOL:200V , MOVOL:400V) , ((PRESS:10.5BAR , PRESS:7.5BAR) + MOVOL:460V , MOVOL:400V + PRESS:8.5BAR) + MODEL:GA11P_18W ,
((PRESS:10.8BAR , PRESS:12.5BAR , PRESS:7.4BAR , PRESS:9.1BAR) + MODEL:GA11P_18W , MODEL:GA15P_18W + PRESS:12.5BAR) +
(MOVOL:230V , MOVOL:380V , MOVOL:460V)) + IDRY:Y
72 9829 3527 14
15.1 - Assembly ID 47
(((PRESS:10.5BAR , PRESS:13BAR , PRESS:7.5BAR) + MODEL:GA11P_18W , MODEL:GA15P_18W + PRESS:13BAR) + (MOVOL:200-220V ,
MOVOL:200V , MOVOL:400V) , ((PRESS:10.5BAR , PRESS:7.5BAR) + MOVOL:460V , MOVOL:400V + PRESS:8.5BAR) + MODEL:GA11P_18W ,
((PRESS:10.8BAR , PRESS:12.5BAR , PRESS:7.4BAR , PRESS:9.1BAR) + MODEL:GA11P_18W , MODEL:GA15P_18W + PRESS:12.5BAR) +
(MOVOL:230V , MOVOL:380V , MOVOL:460V)) + IDRY:Y
9829 3527 14 73
Ref Part Number Qty Name Validity
1005 8102 1382 89 1 AIR DRYER (26/11/2019 - ...)
1010 0147 1963 08 4 SCREW (26/11/2019 - ...)
1015 1625 2201 25 1 TRAFO COVER (26/11/2019 - ...) ((PRESS:10.5BAR , PRESS:13BAR , PRESS:7.5BAR)
+ MODEL:GA11P_18W , MODEL:GA15P_18W + PRESS:13BAR)
+ (MOVOL:200-220V , MOVOL:400V) , ((PRESS:10.5BAR ,
PRESS:7.5BAR) + MOVOL:460V , MOVOL:400V + PRESS:8.5BAR)
+ MODEL:GA11P_18W , ((PRESS:10.8BAR , PRESS:12.5BAR ,
PRESS:7.4BAR , PRESS:9.1BAR) + MODEL:GA11P_18W ,
MODEL:GA15P_18W + PRESS:12.5BAR) + (MOVOL:380V ,
MOVOL:460V)
1020 0211 1246 03 2 SCREW (26/11/2019 - ...) ((PRESS:10.5BAR , PRESS:13BAR , PRESS:7.5BAR)
+ MODEL:GA11P_18W , MODEL:GA15P_18W + PRESS:13BAR)
+ (MOVOL:200-220V , MOVOL:400V) , ((PRESS:10.5BAR ,
PRESS:7.5BAR) + MOVOL:460V , MOVOL:400V + PRESS:8.5BAR)
+ MODEL:GA11P_18W , ((PRESS:10.8BAR , PRESS:12.5BAR ,
PRESS:7.4BAR , PRESS:9.1BAR) + MODEL:GA11P_18W ,
MODEL:GA15P_18W + PRESS:12.5BAR) + (MOVOL:380V ,
MOVOL:460V)
1025 1089 9610 31 1 TRANSFORMER (26/11/2019 - ...) ((MOVOL:400V , MOVOL:460V) + (PRESS:10.5BAR ,
PRESS:7.5BAR) , (PRESS:13BAR , PRESS:8.5BAR) + MOVOL:400V)
+ MODEL:GA11P_18W , ((PRESS:10.8BAR , PRESS:12.5BAR ,
PRESS:7.4BAR , PRESS:9.1BAR) + MODEL:GA11P_18W ,
MODEL:GA15P_18W + PRESS:12.5BAR) + (MOVOL:380V ,
MOVOL:460V) , MODEL:GA15P_18W + MOVOL:400V + PRESS:13BAR
1025 1089 9610 43 1 TRANSFORMER (26/11/2019 - ...) ((PRESS:10.5BAR , PRESS:13BAR , PRESS:7.5BAR)
+ MODEL:GA11P_18W , MODEL:GA15P_18W + PRESS:13BAR) +
MOVOL:200-220V
Legend:
IDRY:Y - Integrated dryer:Yes
MOVOL:200-220V - Supply voltage:200-220 V (3 ph)
MOVOL:380V - Supply voltage:380 V
PRESS:10.5BAR - Working pressure:10.5 bar
PRESS:13BAR - Working pressure:13 bar
PRESS:8.5BAR - Working pressure:8.5 bar
MODEL:GA11P_18W - Model:GA 11+
MOVOL:200V - Supply voltage:200 V
MOVOL:400V - Supply voltage:400 V
PRESS:10.8BAR - Working pressure:10.8 bar
PRESS:7.4BAR - Working pressure:7.4 bar
PRESS:9.1BAR - Working pressure:9.1 bar
MODEL:GA15P_18W - Model:GA 15+
MOVOL:230V - Supply voltage:230 V
MOVOL:460V - Supply voltage:460 V
PRESS:12.5BAR - Working pressure:12.5 bar
PRESS:7.5BAR - Working pressure:7.5 bar
15.2 - Assembly ID 73
(((MOVOL:200-220V , MOVOL:200V) + (PRESS:10.5BAR , PRESS:7.5BAR) , (PRESS:10.8BAR , PRESS:7.4BAR , PRESS:9.1BAR) + MOVOL:230V)
+ (MODEL:GA15P_18W , MODEL:GA18P_18W , MODEL:GA22P_18W) , ((MOVOL:200-220V , MOVOL:200V) + PRESS:10.5BAR , MOVOL:230V
+ PRESS:10.8BAR) + MODEL:GA26P_18W , ((MOVOL:200-220V , MOVOL:200V) + PRESS:13BAR , MOVOL:230V + PRESS:12.5BAR) +
(MODEL:GA18P_18W , MODEL:GA22P_18W , MODEL:GA26P_18W)) + IDRY:Y
74 9829 3527 14
15.2 - Assembly ID 73
(((MOVOL:200-220V , MOVOL:200V) + (PRESS:10.5BAR , PRESS:7.5BAR) , (PRESS:10.8BAR , PRESS:7.4BAR , PRESS:9.1BAR) + MOVOL:230V)
+ (MODEL:GA15P_18W , MODEL:GA18P_18W , MODEL:GA22P_18W) , ((MOVOL:200-220V , MOVOL:200V) + PRESS:10.5BAR , MOVOL:230V
+ PRESS:10.8BAR) + MODEL:GA26P_18W , ((MOVOL:200-220V , MOVOL:200V) + PRESS:13BAR , MOVOL:230V + PRESS:12.5BAR) +
(MODEL:GA18P_18W , MODEL:GA22P_18W , MODEL:GA26P_18W)) + IDRY:Y
9829 3527 14 75
Ref Part Number Qty Name Validity
1005 - 1 AIR DRYER (26/11/2019 - ...)
1010 0147 1963 08 4 SCREW (26/11/2019 - ...) ((MOVOL:200-220V , MOVOL:200V , MOVOL:400V)
+ (PRESS:10.5BAR , PRESS:7.5BAR) , (MOVOL:230V ,
MOVOL:380V , MOVOL:460V) + (PRESS:10.8BAR , PRESS:7.4BAR ,
PRESS:9.1BAR) , MOVOL:400V + PRESS:8.5BAR , MOVOL:460V
+ PRESS:7.5BAR) + (MODEL:GA15P_18W , MODEL:GA18P_18W ,
MODEL:GA22P_18W) , ((MOVOL:200-220V , MOVOL:200V ,
MOVOL:400V) + PRESS:10.5BAR , (MOVOL:230V , MOVOL:380V ,
MOVOL:460V) + PRESS:10.8BAR) + MODEL:GA26P_18W ,
((MOVOL:200-220V , MOVOL:200V , MOVOL:400V) + PRESS:13BAR ,
(MOVOL:230V , MOVOL:380V , MOVOL:460V) + PRESS:12.5BAR) +
(MODEL:GA18P_18W , MODEL:GA22P_18W , MODEL:GA26P_18W)
1015 1625 2201 25 1 TRAFO COVER (26/11/2019 - ...)
1020 0211 1246 03 2 SCREW (26/11/2019 - ...)
1025 1092 2023 68 1 TRANSFORMER (26/11/2019 - ...) ((PRESS:10.5BAR , PRESS:7.5BAR) +
MOVOL:200-220V , (PRESS:10.8BAR , PRESS:7.4BAR ,
PRESS:9.1BAR) + MOVOL:230V) + (MODEL:GA15P_18W ,
MODEL:GA18P_18W , MODEL:GA22P_18W) , (MODEL:GA18P_18W ,
MODEL:GA22P_18W , MODEL:GA26P_18W) + (MOVOL:200-220V +
PRESS:13BAR , MOVOL:230V + PRESS:12.5BAR) , (MOVOL:200-220V
+ PRESS:10.5BAR , MOVOL:230V + PRESS:10.8BAR) +
MODEL:GA26P_18W
1025 1089 9610 42 1 TRANSFORMER (26/11/2019 - ...) ((MODEL:GA15P_18W , MODEL:GA26P_18W)
+ PRESS:10.5BAR , (MODEL:GA18P_18W , MODEL:GA22P_18W)
+ (PRESS:10.5BAR , PRESS:13BAR , PRESS:7.5BAR) ,
MODEL:GA15P_18W + PRESS:7.5BAR , MODEL:GA26P_18W +
PRESS:13BAR) + MOVOL:200V
Legend:
IDRY:Y - Integrated dryer:Yes
MODEL:GA22P_18W - Model:GA 22+
MOVOL:200V - Supply voltage:200 V
MOVOL:400V - Supply voltage:400 V
PRESS:10.8BAR - Working pressure:10.8 bar
PRESS:7.4BAR - Working pressure:7.4 bar
PRESS:9.1BAR - Working pressure:9.1 bar
MODEL:GA15P_18W - Model:GA 15+
MODEL:GA26P_18W - Model:GA 26+
MOVOL:230V - Supply voltage:230 V
MOVOL:460V - Supply voltage:460 V
PRESS:12.5BAR - Working pressure:12.5 bar
PRESS:7.5BAR - Working pressure:7.5 bar
MODEL:GA18P_18W - Model:GA 18+
MOVOL:200-220V - Supply voltage:200-220 V (3 ph)
MOVOL:380V - Supply voltage:380 V
PRESS:10.5BAR - Working pressure:10.5 bar
PRESS:13BAR - Working pressure:13 bar
PRESS:8.5BAR - Working pressure:8.5 bar
15.3 - Assembly ID 96
(((MOVOL:200-220V , MOVOL:200V , MOVOL:400V) + (PRESS:10.5BAR , PRESS:13BAR) , (MOVOL:230V , MOVOL:380V , MOVOL:460V) +
(PRESS:10.8BAR , PRESS:12.5BAR)) + MODEL:GA30_18W , ((MOVOL:200-220V , MOVOL:200V , MOVOL:400V , MOVOL:460V) + PRESS:7.5BAR ,
(MOVOL:230V , MOVOL:380V , MOVOL:460V) + (PRESS:7.4BAR , PRESS:9.1BAR) , MOVOL:400V + PRESS:8.5BAR) + (MODEL:GA26P_18W ,
MODEL:GA30_18W)) + IDRY:Y
76 9829 3527 14
15.3 - Assembly ID 96
(((MOVOL:200-220V , MOVOL:200V , MOVOL:400V) + (PRESS:10.5BAR , PRESS:13BAR) , (MOVOL:230V , MOVOL:380V , MOVOL:460V) +
(PRESS:10.8BAR , PRESS:12.5BAR)) + MODEL:GA30_18W , ((MOVOL:200-220V , MOVOL:200V , MOVOL:400V , MOVOL:460V) + PRESS:7.5BAR ,
(MOVOL:230V , MOVOL:380V , MOVOL:460V) + (PRESS:7.4BAR , PRESS:9.1BAR) , MOVOL:400V + PRESS:8.5BAR) + (MODEL:GA26P_18W ,
MODEL:GA30_18W)) + IDRY:Y
9829 3527 14 77
Ref Part Number Qty Name Validity
1005 - 1 AIR DRYER (26/11/2019 - ...)
1010 0147 1963 08 4 SCREW (26/11/2019 - ...)
1015 1625 2201 25 1 TRAFO COVER (26/11/2019 - ...) ((MODEL:GA26P_18W , MODEL:GA30_18W)
+ (PRESS:7.4BAR , PRESS:9.1BAR) , (PRESS:10.8BAR ,
PRESS:12.5BAR) + MODEL:GA30_18W) + MOVOL:230V ,
((PRESS:10.5BAR , PRESS:13BAR , PRESS:7.5BAR) +
MODEL:GA30_18W , MODEL:GA26P_18W + PRESS:7.5BAR) +
(MOVOL:200-220V , MOVOL:200V)
1020 0211 1246 03 2 SCREW (26/11/2019 - ...) ((MODEL:GA26P_18W , MODEL:GA30_18W)
+ (PRESS:7.4BAR , PRESS:9.1BAR) , (PRESS:10.8BAR ,
PRESS:12.5BAR) + MODEL:GA30_18W) + MOVOL:230V ,
((PRESS:10.5BAR , PRESS:13BAR , PRESS:7.5BAR) +
MODEL:GA30_18W , MODEL:GA26P_18W + PRESS:7.5BAR) +
(MOVOL:200-220V , MOVOL:200V)
1025 1092 2023 68 1 TRANSFORMER (26/11/2019 - ...) ((PRESS:10.5BAR , PRESS:13BAR) +
MOVOL:200-220V , (PRESS:10.8BAR , PRESS:12.5BAR)
+ MOVOL:230V) + MODEL:GA30_18W , ((PRESS:7.4BAR ,
PRESS:9.1BAR) + MOVOL:230V , MOVOL:200-220V + PRESS:7.5BAR)
+ (MODEL:GA26P_18W , MODEL:GA30_18W)
1025 1089 9610 42 1 TRANSFORMER (26/11/2019 - ...) ((PRESS:10.5BAR , PRESS:13BAR , PRESS:7.5BAR)
+ MODEL:GA30_18W , MODEL:GA26P_18W + PRESS:7.5BAR) +
MOVOL:200V
Legend:
IDRY:Y - Integrated dryer:Yes
MOVOL:200-220V - Supply voltage:200-220 V (3 ph)
MOVOL:380V - Supply voltage:380 V
PRESS:10.5BAR - Working pressure:10.5 bar
PRESS:13BAR - Working pressure:13 bar
PRESS:8.5BAR - Working pressure:8.5 bar
MODEL:GA26P_18W - Model:GA 26+
MOVOL:200V - Supply voltage:200 V
MOVOL:400V - Supply voltage:400 V
PRESS:10.8BAR - Working pressure:10.8 bar
PRESS:7.4BAR - Working pressure:7.4 bar
PRESS:9.1BAR - Working pressure:9.1 bar
MODEL:GA30_18W - Model:GA 30
MOVOL:230V - Supply voltage:230 V
MOVOL:460V - Supply voltage:460 V
PRESS:12.5BAR - Working pressure:12.5 bar
PRESS:7.5BAR - Working pressure:7.5 bar
16.1 - Cubicle assembly
78 9829 3527 14
16.1 - Cubicle assembly
9829 3527 14 79
Ref Part Number Qty Name Validity
1005 - 1 CUBICLE (26/11/2019 - ...)
1010 0147 1963 08 4 SCREW (26/11/2019 - ...)
1015 1092 2032 26 1 PRESSURE SENSOR (26/11/2019 - ...)
1020 1089 0574 70 1 TEMPERATURE SENSOR (26/11/2019 - ...)
1025 1089 0637 16 1 TEMPERATURE SWITCH (26/11/2019 - ...)
1030 0661 1000 39 1 SEAL WASHER (26/11/2019 - ...)
1035 1089 0574 87 1 SENSOR (26/11/2019 - ...)
1040 1092 2032 27 1 NIPPLE (26/11/2019 - ...)
16.2 - Cubicle components GA 11+ - 200V
MODEL:GA11P_18W + MOVOL:200V
80 9829 3527 14
16.2 - Cubicle components GA 11+ - 200V
MODEL:GA11P_18W + MOVOL:200V
9829 3527 14 81
Ref Part Number Qty Name Validity EL
1092 2023 26 1 CUBICLE (20/12/2019 - ...)
1092 2023 16 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
9829 3526 93 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 94 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 92 1 SERVICE DIAGRAM (20/12/2019 - ...) -
9829 3526 71 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
1089 9601 80 1 CONTACT (20/12/2019 - ...) K22
1089 9601 81 2 CONTACTOR (20/12/2019 - ...) K21,23
1091 6364 48 4 END BRACKET (20/12/2019 - ...) 2X31
1088 0037 81 1 CONNECTOR (20/12/2019 - ...) 2X27
1088 0037 80 1 CONNECTOR (20/12/2019 - ...) 2X28
1088 0031 32 1 CONNECTOR (20/12/2019 - ...) 2X30
1088 0031 26 1 CONNECTOR (20/12/2019 - ...) 2X31
1625 1205 01 3 FUSEHOLDER (20/12/2019 - ...) F1-3
0698 5143 74 1 CABLE GLAND (20/12/2019 - ...) WH
1089 9204 86 1 TRANSFORMER (20/12/2019 - ...) T1
0697 9811 43 1 PLUG (20/12/2019 - ...) M1 cable 2
1089 9575 16 1 RELAY (20/12/2019 - ...) K25
1089 9421 07 1 CONTACTOR (20/12/2019 - ...) K5
1089 9333 06 2 FUSE HOLDER (20/12/2019 - ...) F1-2
1088 0037 30 1 CONNECTOR (20/12/2019 - ...)
Electrical legend: 1X5
1089 9427 85 1 CONNECTOR (20/12/2019 - ...) 1X4
1089 9224 43 2 CONTACTORS (20/12/2019 - ...) K21,23
0698 5143 75 2 CABLE GLAND (20/12/2019 - ...) PT20,FAN
1089 0577 47 10 TERMINAL (20/12/2019 - ...) 1X4,1X6
1089 0577 84 2 PLATE (20/12/2019 - ...) 1X4,1X6
0698 5143 76 1 CABLE GLAND (20/12/2019 - ...) TT01
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1089 9333 06 1 FUSE HOLDER (20/12/2019 - ...) F3
1089 9427 49 5 TERMINAL (20/12/2019 - ...) 1X1,1X2
1089 9427 48 2 PLATE END (20/12/2019 - ...) 1X1,1X2
1089 0577 34 1 TERMINAL (20/12/2019 - ...) 1X2
1088 0032 84 1 TERMINAL (20/12/2019 - ...) 1X0
1089 9309 91 1 CIRCUIT BREAKER (20/12/2019 - ...) Q15
1089 9287 41 1 EMERGENCY STOP BUTTON (20/12/2019 - ...) S3
1089 9486 57 2 FILTER (20/12/2019 - ...)
Electrical legend: FILTER
1089 9366 37 1 PLUG-IN BRIDGE (20/12/2019 - ...) 1X4
1089 0571 67 1 FAN (20/12/2019 - ...)
Electrical legend: M5+FILTER
1622 0000 20 2 DECAL SYMBOLS (20/12/2019 - ...) -
1079 9931 46 1 LABEL (20/12/2019 - ...) -
1637 0000 72 1 DECAL BP (20/12/2019 - ...) -
1625 1406 59 1 CONTACTOR (20/12/2019 - ...) K22
1089 9424 61 1 RELAY OVERLOAD (20/12/2019 - ...) F21
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1088 0027 53 6 TERMINAL BLOCK (20/12/2019 - ...) 1X1
1088 0027 54 1 END COVER (20/12/2019 - ...) 1X1
0698 5143 78 1 CABLE GLAND (21/01/2020 - ...) A1
0697 9811 44 1 PLUG (21/01/2020 - ...) A1
Legend:
MODEL:GA11P_18W - Model:GA 11+ MOVOL:200V - Supply voltage:200 V
16.3 - Cubicle components GA 15+ - 200V
MODEL:GA15P_18W + MOVOL:200V
82 9829 3527 14
16.3 - Cubicle components GA 15+ - 200V
MODEL:GA15P_18W + MOVOL:200V
9829 3527 14 83
Ref Part Number Qty Name Validity EL
1092 2023 29 1 CUBICLE (20/12/2019 - ...)
1092 2023 16 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
9829 3526 93 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 94 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 92 1 SERVICE DIAGRAM (20/12/2019 - ...) -
9829 3526 71 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
1089 9601 80 1 CONTACT (20/12/2019 - ...) K22
1089 9601 81 2 CONTACTOR (20/12/2019 - ...) K21,23
1091 6364 48 4 END BRACKET (20/12/2019 - ...) 2X31
1088 0037 81 1 CONNECTOR (20/12/2019 - ...) 2X27
1088 0037 80 1 CONNECTOR (20/12/2019 - ...) 2X28
1088 0031 32 1 CONNECTOR (20/12/2019 - ...) 2X30
1088 0031 26 1 CONNECTOR (20/12/2019 - ...) 2X31
1625 1205 01 3 FUSEHOLDER (20/12/2019 - ...) F1-3
0698 5143 74 1 CABLE GLAND (20/12/2019 - ...) WH
1089 9204 86 1 TRANSFORMER (20/12/2019 - ...) T1
0697 9811 43 1 PLUG (20/12/2019 - ...) M1 cable 2
1089 9575 16 1 RELAY (20/12/2019 - ...) K25
1089 9421 07 1 CONTACTOR (20/12/2019 - ...) K5
1089 9333 06 2 FUSE HOLDER (20/12/2019 - ...) F1-2
1088 0037 30 1 CONNECTOR (20/12/2019 - ...)
Electrical legend: 1X5
1089 9427 85 1 CONNECTOR (20/12/2019 - ...) 1X4
1089 9421 33 2 CONTACTOR (20/12/2019 - ...) K21,23
0698 5143 75 2 CABLE GLAND (20/12/2019 - ...) PT20,FAN
1089 0577 47 10 TERMINAL (20/12/2019 - ...) 1X4,1X6
1089 0577 84 2 PLATE (20/12/2019 - ...) 1X4,1X6
0698 5143 76 1 CABLE GLAND (20/12/2019 - ...) TT01
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1089 9333 06 1 FUSE HOLDER (20/12/2019 - ...) F3
1089 9427 49 5 TERMINAL (20/12/2019 - ...) 1X1,1X2
1089 9427 48 2 PLATE END (20/12/2019 - ...) 1X1,1X2
1089 0577 34 1 TERMINAL (20/12/2019 - ...) 1X2
1088 0032 84 1 TERMINAL (20/12/2019 - ...) 1X0
1089 9309 91 1 CIRCUIT BREAKER (20/12/2019 - ...) Q15
1089 9287 41 1 EMERGENCY STOP BUTTON (20/12/2019 - ...) S3
1089 9486 57 2 FILTER (20/12/2019 - ...)
Electrical legend: FILTER
1089 9366 37 1 PLUG-IN BRIDGE (20/12/2019 - ...) 1X4
1089 0571 67 1 FAN (20/12/2019 - ...)
Electrical legend: M5+FILTER
1622 0000 20 2 DECAL SYMBOLS (20/12/2019 - ...) -
1079 9931 46 1 LABEL (20/12/2019 - ...) -
1637 0000 72 1 DECAL BP (20/12/2019 - ...) -
1089 9321 38 1 CONTACTOR (20/12/2019 - ...) K22
1089 9268 23 1 OVERLOAD RELAY (20/12/2019 - ...) F21
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1088 0027 53 6 TERMINAL BLOCK (20/12/2019 - ...) 1X1
1088 0027 54 1 END COVER (20/12/2019 - ...) 1X1
0698 5143 78 1 CABLE GLAND (21/01/2020 - ...) A1
0697 9811 44 1 PLUG (21/01/2020 - ...) A1
Legend:
MODEL:GA15P_18W - Model:GA 15+ MOVOL:200V - Supply voltage:200 V
16.4 - Cubicle components GA 18+ - 200V
MODEL:GA18P_18W + MOVOL:200V
84 9829 3527 14
16.4 - Cubicle components GA 18+ - 200V
MODEL:GA18P_18W + MOVOL:200V
9829 3527 14 85
Ref Part Number Qty Name Validity EL
1092 2023 34 1 CUBICLE (20/12/2019 - ...)
1092 2023 16 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
9829 3526 93 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 94 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 92 1 SERVICE DIAGRAM (20/12/2019 - ...) -
9829 3526 71 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
1089 9601 80 1 CONTACT (20/12/2019 - ...) K22
1089 9601 81 2 CONTACTOR (20/12/2019 - ...) K21,23
1091 6364 48 4 END BRACKET (20/12/2019 - ...) 2X31
1088 0037 81 1 CONNECTOR (20/12/2019 - ...) 2X27
1088 0037 80 1 CONNECTOR (20/12/2019 - ...) 2X28
1088 0031 32 1 CONNECTOR (20/12/2019 - ...) 2X30
1088 0031 26 1 CONNECTOR (20/12/2019 - ...) 2X31
1625 1205 01 3 FUSEHOLDER (20/12/2019 - ...) F1-3
0698 5143 74 1 CABLE GLAND (20/12/2019 - ...) WH
1089 9204 86 1 TRANSFORMER (20/12/2019 - ...) T1
0697 9811 43 1 PLUG (20/12/2019 - ...) M1 cable 2
1089 9575 16 1 RELAY (20/12/2019 - ...) K25
1089 9421 07 1 CONTACTOR (20/12/2019 - ...) K5
1089 9333 06 2 FUSE HOLDER (20/12/2019 - ...) F1-2
1088 0037 30 1 CONNECTOR (20/12/2019 - ...)
Electrical legend: 1X5
1089 9427 85 1 CONNECTOR (20/12/2019 - ...) 1X4
1089 9224 48 2 CONTACTOR (20/12/2019 - ...) K21,23
0698 5143 75 2 CABLE GLAND (20/12/2019 - ...) PT20,FAN
1089 0577 47 10 TERMINAL (20/12/2019 - ...) 1X4,1X6
1089 0577 84 2 PLATE (20/12/2019 - ...) 1X4,1X6
0698 5143 76 1 CABLE GLAND (20/12/2019 - ...) TT01
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1089 9333 06 1 FUSE HOLDER (20/12/2019 - ...) F3
1089 9427 49 5 TERMINAL (20/12/2019 - ...) 1X1,1X2
1089 9427 48 2 PLATE END (20/12/2019 - ...) 1X1,1X2
1089 0577 34 1 TERMINAL (20/12/2019 - ...) 1X2
1088 0032 84 1 TERMINAL (20/12/2019 - ...) 1X0
1089 9203 26 1 CIRCUIT BREAKER (20/12/2019 - ...) Q15
1089 9287 41 1 EMERGENCY STOP BUTTON (20/12/2019 - ...) S3
1089 9486 57 2 FILTER (20/12/2019 - ...)
Electrical legend: FILTER
1089 9366 37 1 PLUG-IN BRIDGE (20/12/2019 - ...) 1X4
1089 0571 67 1 FAN (20/12/2019 - ...)
Electrical legend: M5+FILTER
1622 0000 20 2 DECAL SYMBOLS (20/12/2019 - ...) -
1079 9931 46 1 LABEL (20/12/2019 - ...) -
1637 0000 72 1 DECAL BP (20/12/2019 - ...) -
1089 9224 43 1 CONTACTORS (20/12/2019 - ...) K22
1089 9424 63 1 RELAY OVERLOAD (20/12/2019 - ...) F21
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1088 0027 53 6 TERMINAL BLOCK (20/12/2019 - ...) 1X1
1088 0027 54 1 END COVER (20/12/2019 - ...) 1X1
0698 5143 78 1 CABLE GLAND (21/01/2020 - ...) A1
0697 9811 44 1 PLUG (21/01/2020 - ...) A1
Legend:
MODEL:GA18P_18W - Model:GA 18+ MOVOL:200V - Supply voltage:200 V
16.5 - Cubicle components GA 22+ - 200V
MODEL:GA22P_18W + MOVOL:200V
86 9829 3527 14
16.5 - Cubicle components GA 22+ - 200V
MODEL:GA22P_18W + MOVOL:200V
9829 3527 14 87
Ref Part Number Qty Name Validity EL
1092 2023 37 1 CUBICLE (20/12/2019 - ...)
1092 2023 16 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
9829 3526 93 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 94 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 92 1 SERVICE DIAGRAM (20/12/2019 - ...) -
9829 3526 71 0 CUBICLE ASSEMBLY (20/12/2019 - ...) -
1089 9601 80 1 CONTACT (20/12/2019 - ...) K22
1089 9601 81 2 CONTACTOR (20/12/2019 - ...) K21,23
1091 6364 48 4 END BRACKET (20/12/2019 - ...) 2X31
1088 0037 81 1 CONNECTOR (20/12/2019 - ...) 2X27
1088 0037 80 1 CONNECTOR (20/12/2019 - ...) 2X28
1088 0031 32 1 CONNECTOR (20/12/2019 - ...) 2X30
1088 0031 26 1 CONNECTOR (20/12/2019 - ...) 2X31
1625 1205 01 3 FUSEHOLDER (20/12/2019 - ...) F1-3
0698 5143 74 1 CABLE GLAND (20/12/2019 - ...) WH
1089 9204 86 1 TRANSFORMER (20/12/2019 - ...) T1
0697 9811 43 1 PLUG (20/12/2019 - ...) M1 cable 2
1089 9575 16 1 RELAY (20/12/2019 - ...) K25
1089 9421 07 1 CONTACTOR (20/12/2019 - ...) K5
1089 9333 06 2 FUSE HOLDER (20/12/2019 - ...) F1-2
1088 0037 30 1 CONNECTOR (20/12/2019 - ...)
Electrical legend: 1X5
1089 9427 85 1 CONNECTOR (20/12/2019 - ...) 1X4
1089 9224 48 2 CONTACTOR (20/12/2019 - ...) K21,23
0698 5143 75 2 CABLE GLAND (20/12/2019 - ...) PT20,FAN
1089 0577 47 10 TERMINAL (20/12/2019 - ...) 1X4,1X6
1089 0577 84 2 PLATE (20/12/2019 - ...) 1X4,1X6
0698 5143 76 1 CABLE GLAND (20/12/2019 - ...) TT01
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1089 9333 06 1 FUSE HOLDER (20/12/2019 - ...) F3
1089 9427 49 5 TERMINAL (20/12/2019 - ...) 1X1,1X2
1089 9427 48 2 PLATE END (20/12/2019 - ...) 1X1,1X2
1089 0577 34 1 TERMINAL (20/12/2019 - ...) 1X2
1088 0032 84 1 TERMINAL (20/12/2019 - ...) 1X0
1089 9203 26 1 CIRCUIT BREAKER (20/12/2019 - ...) Q15
1089 9287 41 1 EMERGENCY STOP BUTTON (20/12/2019 - ...) S3
1089 9486 57 2 FILTER (20/12/2019 - ...)
Electrical legend: FILTER
1089 9366 37 1 PLUG-IN BRIDGE (20/12/2019 - ...) 1X4
1089 0571 67 1 FAN (20/12/2019 - ...)
Electrical legend: M5+FILTER
1622 0000 20 2 DECAL SYMBOLS (20/12/2019 - ...) -
1079 9931 46 1 LABEL (20/12/2019 - ...) -
1637 0000 72 1 DECAL BP (20/12/2019 - ...) -
1089 9224 43 1 CONTACTORS (20/12/2019 - ...) K22
1089 9424 63 1 RELAY OVERLOAD (20/12/2019 - ...) F21
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1088 0027 53 6 TERMINAL BLOCK (20/12/2019 - ...) 1X1
1088 0027 54 1 END COVER (20/12/2019 - ...) 1X1
0698 5143 78 1 CABLE GLAND (21/01/2020 - ...) A1
0697 9811 44 1 PLUG (21/01/2020 - ...) A1
Legend:
MODEL:GA22P_18W - Model:GA 22+ MOVOL:200V - Supply voltage:200 V
16.6 - Cubicle components GA 26+ - 200V
MODEL:GA26P_18W + MOVOL:200V
88 9829 3527 14
16.6 - Cubicle components GA 26+ - 200V
MODEL:GA26P_18W + MOVOL:200V
9829 3527 14 89
Ref Part Number Qty Name Validity EL
1092 2023 41 1 CUBICLE (20/12/2019 - ...)
1092 2023 16 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
9829 3526 93 0 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 94 0 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 92 0 SERVICE DIAGRAM (20/12/2019 - ...) -
9829 3526 71 0 CUBICLE ASSEMBLY (20/12/2019 - ...) -
1089 9601 80 1 CONTACT (20/12/2019 - ...) K22
1089 9601 81 2 CONTACTOR (20/12/2019 - ...) K21,23
1091 6364 48 4 END BRACKET (20/12/2019 - ...) 2X31
1088 0037 81 1 CONNECTOR (20/12/2019 - ...) 2X27
1088 0037 80 1 CONNECTOR (20/12/2019 - ...) 2X28
1088 0031 32 1 CONNECTOR (20/12/2019 - ...) 2X30
1088 0031 26 1 CONNECTOR (20/12/2019 - ...) 2X31
1625 1205 01 3 FUSEHOLDER (20/12/2019 - ...) F1-3
0698 5143 74 1 CABLE GLAND (20/12/2019 - ...) WH
1089 9204 86 1 TRANSFORMER (20/12/2019 - ...) T1
0697 9811 43 1 PLUG (20/12/2019 - ...) M1 cable 2
1089 9575 16 1 RELAY (20/12/2019 - ...) K25
1089 9421 07 1 CONTACTOR (20/12/2019 - ...) K5
1089 9333 06 2 FUSE HOLDER (20/12/2019 - ...) F1-2
1088 0037 30 1 CONNECTOR (20/12/2019 - ...)
Electrical legend: 1X5
1089 9427 85 1 CONNECTOR (20/12/2019 - ...) 1X4
1089 9224 54 2 CONTACTOR (20/12/2019 - ...) K21,23
0698 5143 75 2 CABLE GLAND (20/12/2019 - ...) PT20,FAN
1089 0577 47 10 TERMINAL (20/12/2019 - ...) 1X4,1X6
1089 0577 84 2 PLATE (20/12/2019 - ...) 1X4,1X6
0698 5143 76 1 CABLE GLAND (20/12/2019 - ...) TT01
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1089 9333 06 1 FUSE HOLDER (20/12/2019 - ...) F3
1089 9427 49 5 TERMINAL (20/12/2019 - ...) 1X1,1X2
1089 9427 48 2 PLATE END (20/12/2019 - ...) 1X1,1X2
1089 0577 34 1 TERMINAL (20/12/2019 - ...) 1X2
1088 0032 84 1 TERMINAL (20/12/2019 - ...) 1X0
1089 9203 27 1 CIRCUIT BREAKER (21/01/2020 - ...) Q15
1089 9287 41 1 EMERGENCY STOP BUTTON (20/12/2019 - ...) S3
1089 9486 57 2 FILTER (20/12/2019 - ...)
Electrical legend: FILTER
1089 9366 37 1 PLUG-IN BRIDGE (20/12/2019 - ...) 1X4
1089 0571 67 1 FAN (20/12/2019 - ...)
Electrical legend: M5+FILTER
1622 0000 20 2 DECAL SYMBOLS (20/12/2019 - ...) -
1079 9931 46 1 LABEL (20/12/2019 - ...) -
1637 0000 72 1 DECAL BP (20/12/2019 - ...) -
1089 9421 33 1 CONTACTOR (20/12/2019 - ...) K22
1089 9424 51 1 RELAY OVERLOAD (21/01/2020 - ...) F21
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1088 0027 53 6 TERMINAL BLOCK (20/12/2019 - ...) 1X1
1088 0027 54 1 END COVER (20/12/2019 - ...) 1X1
0698 5143 78 1 CABLE GLAND (21/01/2020 - ...) A1
0697 9811 44 1 PLUG (21/01/2020 - ...) A1
Legend:
MODEL:GA26P_18W - Model:GA 26+ MOVOL:200V - Supply voltage:200 V
16.7 - Cubicle components GA 30 - 200V
MODEL:GA30_18W + MOVOL:200V
90 9829 3527 14
16.7 - Cubicle components GA 30 - 200V
MODEL:GA30_18W + MOVOL:200V
9829 3527 14 91
Ref Part Number Qty Name Validity EL
1092 9077 68 1 CUBICLE (20/12/2019 - ...)
1092 2023 16 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
9829 3526 93 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 94 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 92 1 SERVICE DIAGRAM (20/12/2019 - ...) -
9829 3526 71 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
1089 9601 80 1 CONTACT (20/12/2019 - ...) K22
1089 9601 81 2 CONTACTOR (20/12/2019 - ...) K21,23
1091 6364 48 4 END BRACKET (20/12/2019 - ...) 2X31
1088 0037 81 1 CONNECTOR (20/12/2019 - ...) 2X27
1088 0037 80 1 CONNECTOR (20/12/2019 - ...) 2X28
1088 0031 32 1 CONNECTOR (20/12/2019 - ...) 2X30
1088 0031 26 1 CONNECTOR (20/12/2019 - ...) 2X31
1625 1205 01 3 FUSEHOLDER (20/12/2019 - ...) F1-3
0698 5143 74 1 CABLE GLAND (20/12/2019 - ...) WH
1089 9204 86 1 TRANSFORMER (20/12/2019 - ...) T1
0697 9811 43 1 PLUG (20/12/2019 - ...) M1 cable 2
1089 9575 16 1 RELAY (20/12/2019 - ...) K25
1089 9421 07 1 CONTACTOR (20/12/2019 - ...) K5
1089 9333 06 2 FUSE HOLDER (20/12/2019 - ...) F1-2
1088 0037 30 1 CONNECTOR (20/12/2019 - ...)
Electrical legend: 1X5
1089 9427 85 1 CONNECTOR (20/12/2019 - ...) 1X4
1089 9224 54 2 CONTACTOR (20/12/2019 - ...) K21,23
0698 5143 75 2 CABLE GLAND (20/12/2019 - ...) PT20,FAN
1089 0577 47 10 TERMINAL (20/12/2019 - ...) 1X4,1X6
1089 0577 84 2 PLATE (20/12/2019 - ...) 1X4,1X6
0698 5143 76 1 CABLE GLAND (20/12/2019 - ...) TT01
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1089 9333 06 1 FUSE HOLDER (20/12/2019 - ...) F3
1089 9427 49 5 TERMINAL (20/12/2019 - ...) 1X1,1X2
1089 9427 48 2 PLATE END (20/12/2019 - ...) 1X1,1X2
1089 0577 34 1 TERMINAL (20/12/2019 - ...) 1X2
1088 0032 84 1 TERMINAL (20/12/2019 - ...) 1X0
1089 9203 27 1 CIRCUIT BREAKER (21/01/2020 - ...) Q15
1089 9287 41 1 EMERGENCY STOP BUTTON (20/12/2019 - ...) S3
1089 9486 57 2 FILTER (20/12/2019 - ...)
Electrical legend: FILTER
1089 9366 37 1 PLUG-IN BRIDGE (20/12/2019 - ...) 1X4
1089 0571 67 1 FAN (20/12/2019 - ...)
Electrical legend: M5+FILTER
1622 0000 20 2 DECAL SYMBOLS (20/12/2019 - ...) -
1079 9931 46 1 LABEL (20/12/2019 - ...) -
1637 0000 72 1 DECAL BP (20/12/2019 - ...) -
1089 9421 33 1 CONTACTOR (20/12/2019 - ...) K22
1089 9424 51 1 RELAY OVERLOAD (21/01/2020 - ...) F21
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1088 0027 53 6 TERMINAL BLOCK (20/12/2019 - ...) 1X1
1088 0027 54 1 END COVER (20/12/2019 - ...) 1X1
0698 5143 78 1 CABLE GLAND (21/01/2020 - ...) A1
0697 9811 44 1 PLUG (21/01/2020 - ...) A1
Legend:
MODEL:GA30_18W - Model:GA 30 MOVOL:200V - Supply voltage:200 V
16.8 - Cubicle components GA 11+ - 200V - 220V
MODEL:GA11P_18W + MOVOL:200-220V
92 9829 3527 14
16.8 - Cubicle components GA 11+ - 200V - 220V
MODEL:GA11P_18W + MOVOL:200-220V
9829 3527 14 93
Ref Part Number Qty Name Validity EL
1092 2023 27 1 CUBICLE (20/12/2019 - ...)
1092 2023 16 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
9829 3526 93 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 94 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 92 1 SERVICE DIAGRAM (20/12/2019 - ...) -
9829 3526 71 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
1089 9601 80 1 CONTACT (20/12/2019 - ...) K22
1089 9601 81 2 CONTACTOR (20/12/2019 - ...) K21,23
1091 6364 48 4 END BRACKET (20/12/2019 - ...) 2X31
1088 0037 81 1 CONNECTOR (20/12/2019 - ...) 2X27
1088 0037 80 1 CONNECTOR (20/12/2019 - ...) 2X28
1088 0031 32 1 CONNECTOR (20/12/2019 - ...) 2X30
1088 0031 26 1 CONNECTOR (20/12/2019 - ...) 2X31
1625 1205 01 3 FUSEHOLDER (20/12/2019 - ...) F1-3
0698 5143 74 1 CABLE GLAND (20/12/2019 - ...) WH
1089 9204 86 1 TRANSFORMER (20/12/2019 - ...) T1
0697 9811 43 1 PLUG (20/12/2019 - ...) M1 cable 2
1089 9575 16 1 RELAY (20/12/2019 - ...) K25
1089 9421 07 1 CONTACTOR (20/12/2019 - ...) K5
1089 9333 06 2 FUSE HOLDER (20/12/2019 - ...) F1-2
1088 0037 30 1 CONNECTOR (20/12/2019 - ...)
Electrical legend: 1X5
1089 9427 85 1 CONNECTOR (20/12/2019 - ...) 1X4
1089 9224 43 2 CONTACTORS (20/12/2019 - ...) K21,23
0698 5143 75 2 CABLE GLAND (20/12/2019 - ...) PT20,FAN
1089 0577 47 10 TERMINAL (20/12/2019 - ...) 1X4,1X6
1089 0577 84 2 PLATE (20/12/2019 - ...) 1X4,1X6
0698 5143 76 1 CABLE GLAND (20/12/2019 - ...) TT01
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1089 9333 06 1 FUSE HOLDER (20/12/2019 - ...) F3
1089 9427 49 5 TERMINAL (20/12/2019 - ...) 1X1,1X2
1089 9427 48 2 PLATE END (20/12/2019 - ...) 1X1,1X2
1089 0577 34 1 TERMINAL USLKG5 (20/12/2019 - ...) 1X2
1088 0032 84 1 TERMINAL (20/12/2019 - ...) 1X0
1089 9309 91 1 CIRCUIT BREAKER (20/12/2019 - ...) Q15
1089 9287 41 1 EME STOP BUTTON (20/12/2019 - ...) S3
1089 9486 57 2 FILTER (20/12/2019 - ...)
Electrical legend: FILTER
1089 9366 37 1 PLUG-IN BRIDGE (20/12/2019 - ...) 1X4
1089 0571 67 1 FAN (20/12/2019 - ...)
Electrical legend: M5+FILTER
1622 0000 20 2 DECAL SYMBOLS (20/12/2019 - ...) -
1079 9931 46 1 LABEL (20/12/2019 - ...) -
1637 0000 72 1 DECAL BP (20/12/2019 - ...) -
1625 1406 59 1 CONTACTOR (20/12/2019 - ...) K22
1089 9424 61 1 RELAY OVERLOAD (20/12/2019 - ...) F21
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1088 0027 53 6 TERMINAL BLOCK (20/12/2019 - ...) 1X1
1088 0027 54 1 END COVER (20/12/2019 - ...) 1X1
0698 5143 78 1 CABLE GLAND (21/01/2020 - ...) A1
0697 9811 44 1 PLUG (21/01/2020 - ...) A1
Legend:
MODEL:GA11P_18W - Model:GA 11+ MOVOL:200-220V - Supply voltage:200-220 V (3 ph)
16.9 - Cubicle components GA 15+ - 200V - 220V
MODEL:GA15P_18W + MOVOL:200-220V
94 9829 3527 14
16.9 - Cubicle components GA 15+ - 200V - 220V
MODEL:GA15P_18W + MOVOL:200-220V
9829 3527 14 95
Ref Part Number Qty Name Validity EL
1092 2023 30 1 CUBICLE (20/12/2019 - ...)
1092 2023 16 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
9829 3526 93 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 94 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 92 1 SERVICE DIAGRAM (20/12/2019 - ...) -
9829 3526 71 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
1089 9601 80 1 CONTACT (20/12/2019 - ...) K22
1089 9601 81 2 CONTACTOR (20/12/2019 - ...) K21,23
1091 6364 48 4 END BRACKET (20/12/2019 - ...) 2X31
1088 0037 81 1 CONNECTOR (20/12/2019 - ...) 2X27
1088 0037 80 1 CONNECTOR (20/12/2019 - ...) 2X28
1088 0031 32 1 CONNECTOR (20/12/2019 - ...) 2X30
1088 0031 26 1 CONNECTOR (20/12/2019 - ...) 2X31
1625 1205 01 3 FUSEHOLDER (20/12/2019 - ...) F1-3
0698 5143 74 1 CABLE GLAND (20/12/2019 - ...) WH
1089 9204 86 1 TRANSFORMER (20/12/2019 - ...) T1
0697 9811 43 1 PLUG (20/12/2019 - ...) M1 cable 2
1089 9575 16 1 RELAY (20/12/2019 - ...) K25
1089 9421 07 1 CONTACTOR (20/12/2019 - ...) K5
1089 9333 06 2 FUSE HOLDER (20/12/2019 - ...) F1-2
1088 0037 30 1 CONNECTOR (20/12/2019 - ...)
Electrical legend: 1X5
1089 9427 85 1 CONNECTOR (20/12/2019 - ...) 1X4
1089 9421 33 2 CONTACTOR (20/12/2019 - ...) K21,23
0698 5143 75 2 CABLE GLAND (20/12/2019 - ...) PT20,FAN
1089 0577 47 10 TERMINAL (20/12/2019 - ...) 1X4,1X6
1089 0577 84 2 PLATE (20/12/2019 - ...) 1X4,1X6
0698 5143 76 1 CABLE GLAND (20/12/2019 - ...) TT01
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1089 9333 06 1 FUSE HOLDER (20/12/2019 - ...) F3
1089 9427 49 5 TERMINAL (20/12/2019 - ...) 1X1,1X2
1089 9427 48 2 PLATE END (20/12/2019 - ...) 1X1,1X2
1089 0577 34 1 TERMINAL USLKG5 (20/12/2019 - ...) 1X2
1088 0032 84 1 TERMINAL (20/12/2019 - ...) 1X0
1089 9309 91 1 CIRCUIT BREAKER (20/12/2019 - ...) Q15
1089 9287 41 1 EME STOP BUTTON (20/12/2019 - ...) S3
1089 9486 57 2 FILTER (20/12/2019 - ...)
Electrical legend: FILTER
1089 9366 37 1 PLUG-IN BRIDGE (20/12/2019 - ...) 1X4
1089 0571 67 1 FAN (20/12/2019 - ...)
Electrical legend: M5+FILTER
1622 0000 20 2 DECAL SYMBOLS (20/12/2019 - ...) -
1079 9931 46 1 LABEL (20/12/2019 - ...) -
1637 0000 72 1 DECAL BP (20/12/2019 - ...) -
1089 9321 38 1 CONTACTOR (20/12/2019 - ...) K22
1089 9268 23 1 OVERLOAD RELAY (20/12/2019 - ...) F21
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1088 0027 53 6 TERMINAL BLOCK (20/12/2019 - ...) 1X1
1088 0027 54 1 END COVER (20/12/2019 - ...) 1X1
0698 5143 78 1 CABLE GLAND (21/01/2020 - ...) A1
0697 9811 44 1 PLUG (21/01/2020 - ...) A1
Legend:
MODEL:GA15P_18W - Model:GA 15+ MOVOL:200-220V - Supply voltage:200-220 V (3 ph)
16.10 - Cubicle components GA 18+ - 200V - 220V
MODEL:GA18P_18W + MOVOL:200-220V
96 9829 3527 14
16.10 - Cubicle components GA 18+ - 200V - 220V
MODEL:GA18P_18W + MOVOL:200-220V
9829 3527 14 97
Ref Part Number Qty Name Validity EL
1092 2023 35 1 CUBICLE (20/12/2019 - ...)
1092 2023 16 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
9829 3526 93 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 94 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 92 1 SERVICE DIAGRAM (20/12/2019 - ...) -
9829 3526 71 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
1089 9601 80 1 CONTACT (20/12/2019 - ...) K22
1089 9601 81 2 CONTACTOR (20/12/2019 - ...) K21,23
1091 6364 48 4 END BRACKET (20/12/2019 - ...) 2X31
1088 0037 81 1 CONNECTOR (20/12/2019 - ...) 2X27
1088 0037 80 1 CONNECTOR (20/12/2019 - ...) 2X28
1088 0031 32 1 CONNECTOR (20/12/2019 - ...) 2X30
1088 0031 26 1 CONNECTOR (20/12/2019 - ...) 2X31
1625 1205 01 3 FUSEHOLDER (20/12/2019 - ...) F1-3
0698 5143 74 1 CABLE GLAND (20/12/2019 - ...) WH
1089 9204 86 1 TRANSFORMER (20/12/2019 - ...) T1
0697 9811 43 1 PLUG (20/12/2019 - ...) M1 cable 2
1089 9575 16 1 RELAY (20/12/2019 - ...) K25
1089 9421 07 1 CONTACTOR (20/12/2019 - ...) K5
1089 9333 06 2 FUSE HOLDER (20/12/2019 - ...) F1-2
1088 0037 30 1 CONNECTOR (20/12/2019 - ...)
Electrical legend: 1X5
1089 9427 85 1 CONNECTOR (20/12/2019 - ...) 1X4
1089 9224 48 2 CONTACTOR (20/12/2019 - ...) K21,23
0698 5143 75 2 CABLE GLAND (20/12/2019 - ...) PT20,FAN
1089 0577 47 10 TERMINAL (20/12/2019 - ...) 1X4,1X6
1089 0577 84 2 PLATE (20/12/2019 - ...) 1X4,1X6
0698 5143 76 1 CABLE GLAND (20/12/2019 - ...) TT01
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1089 9333 06 1 FUSE HOLDER (20/12/2019 - ...) F3
1089 9427 49 5 TERMINAL (20/12/2019 - ...) 1X1,1X2
1089 9427 48 2 PLATE END (20/12/2019 - ...) 1X1,1X2
1089 0577 34 1 TERMINAL USLKG5 (20/12/2019 - ...) 1X2
1088 0032 84 1 TERMINAL (20/12/2019 - ...) 1X0
1089 9203 26 1 CIRCUIT BREAKER (20/12/2019 - ...) Q15
1089 9287 41 1 EME STOP BUTTON (20/12/2019 - ...) S3
1089 9486 57 2 FILTER (20/12/2019 - ...)
Electrical legend: FILTER
1089 9366 37 1 PLUG-IN BRIDGE (20/12/2019 - ...) 1X4
1089 0571 67 1 FAN (20/12/2019 - ...)
Electrical legend: M5+FILTER
1622 0000 20 2 DECAL SYMBOLS (20/12/2019 - ...) -
1079 9931 46 1 LABEL (20/12/2019 - ...) -
1637 0000 72 1 DECAL BP (20/12/2019 - ...) -
1089 9224 43 1 CONTACTORS (20/12/2019 - ...) K22
1089 9424 63 1 RELAY OVERLOAD (20/12/2019 - ...) F21
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1088 0027 53 6 TERMINAL BLOCK (20/12/2019 - ...) 1X1
1088 0027 54 1 END COVER (20/12/2019 - ...) 1X1
0698 5143 78 1 CABLE GLAND (21/01/2020 - ...) A1
0697 9811 44 1 PLUG (21/01/2020 - ...) A1
Legend:
MODEL:GA18P_18W - Model:GA 18+ MOVOL:200-220V - Supply voltage:200-220 V (3 ph)
16.11 - Cubicle components GA 22+ - 200V - 220V
MODEL:GA22P_18W + MOVOL:200-220V
98 9829 3527 14
16.11 - Cubicle components GA 22+ - 200V - 220V
MODEL:GA22P_18W + MOVOL:200-220V
9829 3527 14 99
Ref Part Number Qty Name Validity EL
1092 9077 85 1 CUBICLE (20/12/2019 - ...)
1092 2023 16 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
9829 3526 93 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 94 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 92 1 SERVICE DIAGRAM (20/12/2019 - ...) -
9829 3526 71 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
1089 9601 80 1 CONTACT (20/12/2019 - ...) K22
1089 9601 81 2 CONTACTOR (20/12/2019 - ...) K21,23
1091 6364 48 4 END BRACKET (20/12/2019 - ...) 2X31
1088 0037 81 1 CONNECTOR (20/12/2019 - ...) 2X27
1088 0037 80 1 CONNECTOR (20/12/2019 - ...) 2X28
1088 0031 32 1 CONNECTOR (20/12/2019 - ...) 2X30
1088 0031 26 1 CONNECTOR (20/12/2019 - ...) 2X31
1625 1205 01 3 FUSEHOLDER (20/12/2019 - ...) F1-3
0698 5143 74 1 CABLE GLAND (20/12/2019 - ...) WH
1089 9204 86 1 TRANSFORMER (20/12/2019 - ...) T1
0697 9811 43 1 PLUG (20/12/2019 - ...) M1 cable 2
1089 9575 16 1 RELAY (20/12/2019 - ...) K25
1089 9421 07 1 CONTACTOR (20/12/2019 - ...) K5
1089 9333 06 2 FUSE HOLDER (20/12/2019 - ...) F1-2
1088 0037 30 1 CONNECTOR (20/12/2019 - ...)
Electrical legend: 1X5
1089 9427 85 1 CONNECTOR (20/12/2019 - ...) 1X4
1089 9224 48 2 CONTACTOR (20/12/2019 - ...) K21,23
0698 5143 75 2 CABLE GLAND (20/12/2019 - ...) PT20,FAN
1089 0577 47 10 TERMINAL (20/12/2019 - ...) 1X4,1X6
1089 0577 84 2 PLATE (20/12/2019 - ...) 1X4,1X6
0698 5143 76 1 CABLE GLAND (20/12/2019 - ...) TT01
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1089 9333 06 1 FUSE HOLDER (20/12/2019 - ...) F3
1089 9427 49 5 TERMINAL (20/12/2019 - ...) 1X1,1X2
1089 9427 48 2 PLATE END (20/12/2019 - ...) 1X1,1X2
1089 0577 34 1 TERMINAL USLKG5 (20/12/2019 - ...) 1X2
1088 0032 84 1 TERMINAL (20/12/2019 - ...) 1X0
1089 9203 26 1 CIRCUIT BREAKER (20/12/2019 - ...) Q15
1089 9287 41 1 EME STOP BUTTON (20/12/2019 - ...) S3
1089 9486 57 2 FILTER (20/12/2019 - ...)
Electrical legend: FILTER
1089 9366 37 1 PLUG-IN BRIDGE (20/12/2019 - ...) 1X4
1089 0571 67 1 FAN (20/12/2019 - ...)
Electrical legend: M5+FILTER
1622 0000 20 2 DECAL SYMBOLS (20/12/2019 - ...) -
1079 9931 46 1 LABEL (20/12/2019 - ...) -
1637 0000 72 1 DECAL BP (20/12/2019 - ...) -
1089 9224 43 1 CONTACTORS (20/12/2019 - ...) K22
1089 9424 63 1 RELAY OVERLOAD (20/12/2019 - ...) F21
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1088 0027 53 6 TERMINAL BLOCK (20/12/2019 - ...) 1X1
1088 0027 54 1 END COVER (20/12/2019 - ...) 1X1
0698 5143 78 1 CABLE GLAND (21/01/2020 - ...) A1
0697 9811 44 1 PLUG (21/01/2020 - ...) A1
Legend:
MODEL:GA22P_18W - Model:GA 22+ MOVOL:200-220V - Supply voltage:200-220 V (3 ph)
16.12 - Cubicle components GA 26+ - 200V - 220V
MODEL:GA26P_18W + MOVOL:200-220V
100 9829 3527 14
16.12 - Cubicle components GA 26+ - 200V - 220V
MODEL:GA26P_18W + MOVOL:200-220V
9829 3527 14 101
Ref Part Number Qty Name Validity EL
1092 2023 42 1 CUBICLE (20/12/2019 - ...)
1092 2023 16 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
9829 3526 93 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 94 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 92 1 SERVICE DIAGRAM (20/12/2019 - ...) -
9829 3526 71 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
1089 9601 80 1 CONTACT (20/12/2019 - ...) K22
1089 9601 81 2 CONTACTOR (20/12/2019 - ...) K21,23
1091 6364 48 4 END BRACKET (20/12/2019 - ...) 2X31
1088 0037 81 1 CONNECTOR (20/12/2019 - ...) 2X27
1088 0037 80 1 CONNECTOR (20/12/2019 - ...) 2X28
1088 0031 32 1 CONNECTOR (20/12/2019 - ...) 2X30
1088 0031 26 1 CONNECTOR (20/12/2019 - ...) 2X31
1625 1205 01 3 FUSEHOLDER (20/12/2019 - ...) F1-3
0698 5143 74 1 CABLE GLAND (20/12/2019 - ...) WH
1089 9204 86 1 TRANSFORMER (20/12/2019 - ...) T1
0697 9811 43 1 PLUG (20/12/2019 - ...) M1 cable 2
1089 9575 16 1 RELAY (20/12/2019 - ...) K25
1089 9421 07 1 CONTACTOR (20/12/2019 - ...) K5
1089 9333 06 2 FUSE HOLDER (20/12/2019 - ...) F1-2
1088 0037 30 1 CONNECTOR (20/12/2019 - ...)
Electrical legend: 1X5
1089 9427 85 1 CONNECTOR (20/12/2019 - ...) 1X4
1089 9224 54 2 CONTACTOR (20/12/2019 - ...) K21,23
0698 5143 75 2 CABLE GLAND (20/12/2019 - ...) PT20,FAN
1089 0577 47 10 TERMINAL (20/12/2019 - ...) 1X4,1X6
1089 0577 84 2 PLATE (20/12/2019 - ...) 1X4,1X6
0698 5143 76 1 CABLE GLAND (20/12/2019 - ...) TT01
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1089 9333 06 1 FUSE HOLDER (20/12/2019 - ...) F3
1089 9427 49 5 TERMINAL (20/12/2019 - ...) 1X1,1X2
1089 9427 48 2 PLATE END (20/12/2019 - ...) 1X1,1X2
1089 0577 34 1 TERMINAL USLKG5 (20/12/2019 - ...) 1X2
1088 0032 84 1 TERMINAL (20/12/2019 - ...) 1X0
1089 9203 27 1 CIRCUIT BREAKER (21/01/2020 - ...) Q15
1089 9287 41 1 EME STOP BUTTON (20/12/2019 - ...) S3
1089 9486 57 2 FILTER (20/12/2019 - ...)
Electrical legend: FILTER
1089 9366 37 1 PLUG-IN BRIDGE (20/12/2019 - ...) 1X4
1089 0571 67 1 FAN (20/12/2019 - ...)
Electrical legend: M5+FILTER
1622 0000 20 2 DECAL SYMBOLS (20/12/2019 - ...) -
1079 9931 46 1 LABEL (20/12/2019 - ...) -
1637 0000 72 1 DECAL BP (20/12/2019 - ...) -
1089 9421 33 1 CONTACTOR (20/12/2019 - ...) K22
1089 9424 51 1 RELAY OVERLOAD (21/01/2020 - ...) F21
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1088 0027 53 6 TERMINAL BLOCK (20/12/2019 - ...) 1X1
1088 0027 54 1 END COVER (20/12/2019 - ...) 1X1
0698 5143 78 1 CABLE GLAND (21/01/2020 - ...) A1
0697 9811 44 1 PLUG (21/01/2020 - ...) A1
Legend:
MODEL:GA26P_18W - Model:GA 26+ MOVOL:200-220V - Supply voltage:200-220 V (3 ph)
16.13 - Cubicle components GA 30 - 200V - 220V
MODEL:GA30_18W + MOVOL:200-220V
102 9829 3527 14
16.13 - Cubicle components GA 30 - 200V - 220V
MODEL:GA30_18W + MOVOL:200-220V
9829 3527 14 103
Ref Part Number Qty Name Validity EL
1092 9077 63 1 CUBICLE GA30 200-220 60 (20/12/2019 - ...)
1092 2023 16 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
9829 3526 93 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 94 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 92 1 SERVICE DIAGRAM (20/12/2019 - ...) -
9829 3526 71 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
1089 9601 80 1 CONTACT (20/12/2019 - ...) K22
1089 9601 81 2 CONTACTOR (20/12/2019 - ...) K21,23
1091 6364 48 4 END BRACKET (20/12/2019 - ...) 2X31
1088 0037 81 1 CONNECTOR (20/12/2019 - ...) 2X27
1088 0037 80 1 CONNECTOR (20/12/2019 - ...) 2X28
1088 0031 32 1 CONNECTOR (20/12/2019 - ...) 2X30
1088 0031 26 1 CONNECTOR (20/12/2019 - ...) 2X31
1625 1205 01 3 FUSEHOLDER (20/12/2019 - ...) F1-3
0698 5143 74 1 CABLE GLAND (20/12/2019 - ...) WH
1089 9204 86 1 TRANSFORMER (20/12/2019 - ...) T1
0697 9811 43 1 PLUG (20/12/2019 - ...) M1 cable 2
1089 9575 16 1 RELAY (20/12/2019 - ...) K25
1089 9421 07 1 CONTACTOR (20/12/2019 - ...) K5
1089 9333 06 2 FUSE HOLDER (20/12/2019 - ...) F1-2
1088 0037 30 1 CONNECTOR (20/12/2019 - ...)
Electrical legend: 1X5
1089 9427 85 1 CONNECTOR (20/12/2019 - ...) 1X4
1089 9224 54 2 CONTACTOR (20/12/2019 - ...) K21,23
0698 5143 75 2 CABLE GLAND (20/12/2019 - ...) PT20,FAN
1089 0577 47 10 TERMINAL (20/12/2019 - ...) 1X4,1X6
1089 0577 84 2 PLATE (20/12/2019 - ...) 1X4,1X6
0698 5143 76 1 CABLE GLAND (20/12/2019 - ...) TT01
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1089 9333 06 1 FUSE HOLDER (20/12/2019 - ...) F3
1089 9427 49 5 TERMINAL (20/12/2019 - ...) 1X1,1X2
1089 9427 48 2 PLATE END (20/12/2019 - ...) 1X1,1X2
1089 0577 34 1 TERMINAL USLKG5 (20/12/2019 - ...) 1X2
1088 0032 84 1 TERMINAL (20/12/2019 - ...) 1X0
1089 9203 27 1 CIRCUIT BREAKER (21/01/2020 - ...) Q15
1089 9287 41 1 EME STOP BUTTON (20/12/2019 - ...) S3
1089 9486 57 2 FILTER (20/12/2019 - ...)
Electrical legend: FILTER
1089 9366 37 1 PLUG-IN BRIDGE (20/12/2019 - ...) 1X4
1089 0571 67 1 FAN (20/12/2019 - ...)
Electrical legend: M5+FILTER
1622 0000 20 2 DECAL SYMBOLS (20/12/2019 - ...) -
1079 9931 46 1 LABEL (20/12/2019 - ...) -
1637 0000 72 1 DECAL BP (20/12/2019 - ...) -
1089 9421 33 1 CONTACTOR (20/12/2019 - ...) K22
1089 9424 51 1 RELAY OVERLOAD (21/01/2020 - ...) F21
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1088 0027 53 6 TERMINAL BLOCK (20/12/2019 - ...) 1X1
1088 0027 54 1 END COVER (20/12/2019 - ...) 1X1
0698 5143 78 1 CABLE GLAND (21/01/2020 - ...) A1
0697 9811 44 1 PLUG (21/01/2020 - ...) A1
Legend:
MODEL:GA30_18W - Model:GA 30 MOVOL:200-220V - Supply voltage:200-220 V (3 ph)
16.14 - Cubicle components GA 11+ - 230V
MODEL:GA11P_18W + MOVOL:230V
104 9829 3527 14
16.14 - Cubicle components GA 11+ - 230V
MODEL:GA11P_18W + MOVOL:230V
9829 3527 14 105
Ref Part Number Qty Name Validity EL
1092 2023 23 1 CUBICLE (20/12/2019 - ...)
1092 2023 16 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
9829 3526 93 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 94 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 92 1 SERVICE DIAGRAM (20/12/2019 - ...) -
9829 3526 71 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
1089 9601 80 1 CONTACT (20/12/2019 - ...) K22
1089 9601 81 2 CONTACTOR (20/12/2019 - ...) K21,23
1091 6364 48 4 END BRACKET (20/12/2019 - ...) 2X31
1088 0037 81 1 CONNECTOR (20/12/2019 - ...) 2X27
1088 0037 80 1 CONNECTOR (20/12/2019 - ...) 2X28
1088 0031 32 1 CONNECTOR (20/12/2019 - ...) 2X30
1088 0031 26 1 CONNECTOR (20/12/2019 - ...) 2X31
1625 1205 01 3 FUSEHOLDER (20/12/2019 - ...) F1-3
0698 5143 74 1 CABLE GLAND (20/12/2019 - ...) WH
1089 9204 86 1 TRANSFORMER (20/12/2019 - ...) T1
0697 9811 43 1 PLUG (20/12/2019 - ...) M1 cable 2
1089 9575 16 1 RELAY (20/12/2019 - ...) K25
1089 9421 07 1 CONTACTOR (20/12/2019 - ...) K5
1089 9333 06 2 FUSE HOLDER (20/12/2019 - ...) F1-2
1088 0037 30 1 CONNECTOR (20/12/2019 - ...)
Electrical legend: 1X5
1089 9427 85 1 CONNECTOR (20/12/2019 - ...) 1X4
1089 9224 43 2 CONTACTORS (20/12/2019 - ...) K21,23
0698 5143 75 2 CABLE GLAND (20/12/2019 - ...) PT20,FAN
1089 0577 47 10 TERMINAL (20/12/2019 - ...) 1X4,1X6
1089 0577 84 2 PLATE (20/12/2019 - ...) 1X4,1X6
0698 5143 76 1 CABLE GLAND (20/12/2019 - ...) TT01
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1089 9333 06 1 FUSE HOLDER (20/12/2019 - ...) F3
1089 9427 49 5 TERMINAL (20/12/2019 - ...) 1X1,1X2
1089 9427 48 2 PLATE END (20/12/2019 - ...) 1X1,1X2
1089 0577 34 1 TERMINAL USLKG5 (20/12/2019 - ...) 1X2
1088 0032 84 1 TERMINAL (20/12/2019 - ...) 1X0
1089 9309 91 1 CIRCUIT BREAKER (20/12/2019 - ...) Q15
1089 9287 41 1 EME STOP BUTTON (20/12/2019 - ...) S3
1089 9486 57 2 FILTER (20/12/2019 - ...)
Electrical legend: FILTER
1089 9366 37 1 PLUG-IN BRIDGE (20/12/2019 - ...) 1X4
1089 0571 67 1 FAN (20/12/2019 - ...)
Electrical legend: M5+FILTER
1622 0000 20 2 DECAL SYMBOLS (20/12/2019 - ...) -
1079 9931 46 1 LABEL (20/12/2019 - ...) -
1637 0000 72 1 DECAL BP (20/12/2019 - ...) -
1625 1406 59 1 CONTACTOR (20/12/2019 - ...) K22
1089 9424 61 1 RELAY OVERLOAD (20/12/2019 - ...) F21
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1088 0027 53 6 TERMINAL BLOCK (20/12/2019 - ...) 1X1
1088 0027 54 1 END COVER (20/12/2019 - ...) 1X1
0698 5143 78 1 CABLE GLAND (21/01/2020 - ...) A1
0697 9811 44 1 PLUG (21/01/2020 - ...) A1
Legend:
MODEL:GA11P_18W - Model:GA 11+ MOVOL:230V - Supply voltage:230 V
16.15 - Cubicle components GA 15+ - 230V
MODEL:GA15P_18W + MOVOL:230V
106 9829 3527 14
16.15 - Cubicle components GA 15+ - 230V
MODEL:GA15P_18W + MOVOL:230V
9829 3527 14 107
Ref Part Number Qty Name Validity EL
1092 9077 81 1 CUBICLE (20/12/2019 - ...)
1092 2023 16 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
9829 3526 93 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 94 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 92 1 SERVICE DIAGRAM (20/12/2019 - ...) -
9829 3526 71 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
1089 9601 80 1 CONTACT (20/12/2019 - ...) K22
1089 9601 81 2 CONTACTOR (20/12/2019 - ...) K21,23
1091 6364 48 4 END BRACKET (20/12/2019 - ...) 2X31
1088 0037 81 1 CONNECTOR (20/12/2019 - ...) 2X27
1088 0037 80 1 CONNECTOR (20/12/2019 - ...) 2X28
1088 0031 32 1 CONNECTOR (20/12/2019 - ...) 2X30
1088 0031 26 1 CONNECTOR (20/12/2019 - ...) 2X31
1625 1205 01 3 FUSEHOLDER (20/12/2019 - ...) F1-3
0698 5143 74 1 CABLE GLAND (20/12/2019 - ...) WH
1089 9204 86 1 TRANSFORMER (20/12/2019 - ...) T1
0697 9811 43 1 PLUG (20/12/2019 - ...) M1 cable 2
1089 9575 16 1 RELAY (20/12/2019 - ...) K25
1089 9421 07 1 CONTACTOR (20/12/2019 - ...) K5
1089 9333 06 2 FUSE HOLDER (20/12/2019 - ...) F1-2
1088 0037 30 1 CONNECTOR (20/12/2019 - ...)
Electrical legend: 1X5
1089 9427 85 1 CONNECTOR (20/12/2019 - ...) 1X4
1089 9421 33 2 CONTACTOR (20/12/2019 - ...) K21,23
0698 5143 75 2 CABLE GLAND (20/12/2019 - ...) PT20,FAN
1089 0577 47 10 TERMINAL (20/12/2019 - ...) 1X4,1X6
1089 0577 84 2 PLATE (20/12/2019 - ...) 1X4,1X6
0698 5143 76 1 CABLE GLAND (20/12/2019 - ...) TT01
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1089 9333 06 1 FUSE HOLDER (20/12/2019 - ...) F3
1089 9427 49 5 TERMINAL (20/12/2019 - ...) 1X1,1X2
1089 9427 48 2 PLATE END (20/12/2019 - ...) 1X1,1X2
1089 0577 34 1 TERMINAL USLKG5 (20/12/2019 - ...) 1X2
1088 0032 84 1 TERMINAL (20/12/2019 - ...) 1X0
1089 9309 91 1 CIRCUIT BREAKER (20/12/2019 - ...) Q15
1089 9287 41 1 EME STOP BUTTON (20/12/2019 - ...) S3
1089 9486 57 2 FILTER (20/12/2019 - ...)
Electrical legend: FILTER
1089 9366 37 1 PLUG-IN BRIDGE (20/12/2019 - ...) 1X4
1089 0571 67 1 FAN (20/12/2019 - ...)
Electrical legend: M5+FILTER
1622 0000 20 2 DECAL SYMBOLS (20/12/2019 - ...) -
1079 9931 46 1 LABEL (20/12/2019 - ...) -
1637 0000 72 1 DECAL BP (20/12/2019 - ...) -
1089 9321 38 1 CONTACTOR (20/12/2019 - ...) K22
1089 9268 23 1 OVERLOAD RELAY (20/12/2019 - ...) F21
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1088 0027 53 6 TERMINAL BLOCK (20/12/2019 - ...) 1X1
1088 0027 54 1 END COVER (20/12/2019 - ...) 1X1
0698 5143 78 1 CABLE GLAND (21/01/2020 - ...) A1
0697 9811 44 1 PLUG (21/01/2020 - ...) A1
Legend:
MODEL:GA15P_18W - Model:GA 15+ MOVOL:230V - Supply voltage:230 V
16.16 - Cubicle components GA 18+ - 230V
MODEL:GA18P_18W + MOVOL:230V
108 9829 3527 14
16.16 - Cubicle components GA 18+ - 230V
MODEL:GA18P_18W + MOVOL:230V
9829 3527 14 109
Ref Part Number Qty Name Validity EL
1092 2023 31 1 CUBICLE (20/12/2019 - ...)
1092 2023 16 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
9829 3526 93 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 94 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 92 1 SERVICE DIAGRAM (20/12/2019 - ...) -
9829 3526 71 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
1089 9601 80 1 CONTACT (20/12/2019 - ...) K22
1089 9601 81 2 CONTACTOR (20/12/2019 - ...) K21,23
1091 6364 48 4 END BRACKET (20/12/2019 - ...) 2X31
1088 0037 81 1 CONNECTOR (20/12/2019 - ...) 2X27
1088 0037 80 1 CONNECTOR (20/12/2019 - ...) 2X28
1088 0031 32 1 CONNECTOR (20/12/2019 - ...) 2X30
1088 0031 26 1 CONNECTOR (20/12/2019 - ...) 2X31
1625 1205 01 3 FUSEHOLDER (20/12/2019 - ...) F1-3
0698 5143 74 1 CABLE GLAND (20/12/2019 - ...) WH
1089 9204 86 1 TRANSFORMER (20/12/2019 - ...) T1
0697 9811 43 1 PLUG (20/12/2019 - ...) M1 cable 2
1089 9575 16 1 RELAY (20/12/2019 - ...) K25
1089 9421 07 1 CONTACTOR (20/12/2019 - ...) K5
1089 9333 06 2 FUSE HOLDER (20/12/2019 - ...) F1-2
1088 0037 30 1 CONNECTOR (20/12/2019 - ...)
Electrical legend: 1X5
1089 9427 85 1 CONNECTOR (20/12/2019 - ...) 1X4
1089 9224 48 2 CONTACTOR (20/12/2019 - ...) K21,23
0698 5143 75 2 CABLE GLAND (20/12/2019 - ...) PT20,FAN
1089 0577 47 10 TERMINAL (20/12/2019 - ...) 1X4,1X6
1089 0577 84 2 PLATE (20/12/2019 - ...) 1X4,1X6
0698 5143 76 1 CABLE GLAND (20/12/2019 - ...) TT01
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1089 9333 06 1 FUSE HOLDER (20/12/2019 - ...) F3
1089 9427 49 5 TERMINAL (20/12/2019 - ...) 1X1,1X2
1089 9427 48 2 PLATE END (20/12/2019 - ...) 1X1,1X2
1089 0577 34 1 TERMINAL USLKG5 (20/12/2019 - ...) 1X2
1088 0032 84 1 TERMINAL (20/12/2019 - ...) 1X0
1089 9203 26 1 CIRCUIT BREAKER (20/12/2019 - ...) Q15
1089 9287 41 1 EME STOP BUTTON (20/12/2019 - ...) S3
1089 9486 57 2 FILTER (20/12/2019 - ...)
Electrical legend: FILTER
1089 9366 37 1 PLUG-IN BRIDGE (20/12/2019 - ...) 1X4
1089 0571 67 1 FAN (20/12/2019 - ...)
Electrical legend: M5+FILTER
1622 0000 20 2 DECAL SYMBOLS (20/12/2019 - ...) -
1079 9931 46 1 LABEL (20/12/2019 - ...) -
1637 0000 72 1 DECAL BP (20/12/2019 - ...) -
1089 9224 43 1 CONTACTORS (20/12/2019 - ...) K22
1089 9424 63 1 RELAY OVERLOAD (20/12/2019 - ...) F21
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1088 0027 53 6 TERMINAL BLOCK (20/12/2019 - ...) 1X1
1088 0027 54 1 END COVER (20/12/2019 - ...) 1X1
0698 5143 78 1 CABLE GLAND (21/01/2020 - ...) A1
0697 9811 44 1 PLUG (21/01/2020 - ...) A1
Legend:
MODEL:GA18P_18W - Model:GA 18+ MOVOL:230V - Supply voltage:230 V
16.17 - Cubicle components GA 22+ - 230V
MODEL:GA22P_18W + MOVOL:230V
110 9829 3527 14
16.17 - Cubicle components GA 22+ - 230V
MODEL:GA22P_18W + MOVOL:230V
9829 3527 14 111
Ref Part Number Qty Name Validity EL
1092 9077 76 1 CUBICLE (20/12/2019 - ...)
1092 2023 16 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
9829 3526 93 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 94 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 92 1 SERVICE DIAGRAM (20/12/2019 - ...) -
9829 3526 71 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
1089 9601 80 1 CONTACT (20/12/2019 - ...) K22
1089 9601 81 2 CONTACTOR (20/12/2019 - ...) K21,23
1091 6364 48 4 END BRACKET (20/12/2019 - ...) 2X31
1088 0037 81 1 CONNECTOR (20/12/2019 - ...) 2X27
1088 0037 80 1 CONNECTOR (20/12/2019 - ...) 2X28
1088 0031 32 1 CONNECTOR (20/12/2019 - ...) 2X30
1088 0031 26 1 CONNECTOR (20/12/2019 - ...) 2X31
1625 1205 01 3 FUSEHOLDER (20/12/2019 - ...) F1-3
0698 5143 74 1 CABLE GLAND (20/12/2019 - ...) WH
1089 9204 86 1 TRANSFORMER (20/12/2019 - ...) T1
0697 9811 43 1 PLUG (20/12/2019 - ...) M1 cable 2
1089 9575 16 1 RELAY (20/12/2019 - ...) K25
1089 9421 07 1 CONTACTOR (20/12/2019 - ...) K5
1089 9333 06 2 FUSE HOLDER (20/12/2019 - ...) F1-2
1088 0037 30 1 CONNECTOR (20/12/2019 - ...)
Electrical legend: 1X5
1089 9427 85 1 CONNECTOR (20/12/2019 - ...) 1X4
1089 9224 48 2 CONTACTOR (20/12/2019 - ...) K21,23
0698 5143 75 2 CABLE GLAND (20/12/2019 - ...) PT20,FAN
1089 0577 47 10 TERMINAL (20/12/2019 - ...) 1X4,1X6
1089 0577 84 2 PLATE (20/12/2019 - ...) 1X4,1X6
0698 5143 76 1 CABLE GLAND (20/12/2019 - ...) TT01
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1089 9333 06 1 FUSE HOLDER (20/12/2019 - ...) F3
1089 9427 49 5 TERMINAL (20/12/2019 - ...) 1X1,1X2
1089 9427 48 2 PLATE END (20/12/2019 - ...) 1X1,1X2
1089 0577 34 1 TERMINAL USLKG5 (20/12/2019 - ...) 1X2
1088 0032 84 1 TERMINAL (20/12/2019 - ...) 1X0
1089 9203 26 1 CIRCUIT BREAKER (20/12/2019 - ...) Q15
1089 9287 41 1 EME STOP BUTTON (20/12/2019 - ...) S3
1089 9486 57 2 FILTER (20/12/2019 - ...)
Electrical legend: FILTER
1089 9366 37 1 PLUG-IN BRIDGE (20/12/2019 - ...) 1X4
1089 0571 67 1 FAN (20/12/2019 - ...)
Electrical legend: M5+FILTER
1622 0000 20 2 DECAL SYMBOLS (20/12/2019 - ...) -
1079 9931 46 1 LABEL (20/12/2019 - ...) -
1637 0000 72 1 DECAL BP (20/12/2019 - ...) -
1089 9224 43 1 CONTACTORS (20/12/2019 - ...) K22
1089 9424 63 1 RELAY OVERLOAD (20/12/2019 - ...) F21
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1088 0027 53 6 TERMINAL BLOCK (20/12/2019 - ...) 1X1
1088 0027 54 1 END COVER (20/12/2019 - ...) 1X1
0698 5143 78 1 CABLE GLAND (21/01/2020 - ...) A1
0697 9811 44 1 PLUG (21/01/2020 - ...) A1
Legend:
MODEL:GA22P_18W - Model:GA 22+ MOVOL:230V - Supply voltage:230 V
16.18 - Cubicle components GA 26+ - 230V
MODEL:GA26P_18W + MOVOL:230V
112 9829 3527 14
16.18 - Cubicle components GA 26+ - 230V
MODEL:GA26P_18W + MOVOL:230V
9829 3527 14 113
Ref Part Number Qty Name Validity EL
1092 2023 38 1 CUBICLE (20/12/2019 - ...)
1092 2023 16 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
9829 3526 93 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 94 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 92 1 SERVICE DIAGRAM (20/12/2019 - ...) -
9829 3526 71 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
1089 9601 80 1 CONTACT (20/12/2019 - ...) K22
1089 9601 81 2 CONTACTOR (20/12/2019 - ...) K21,23
1091 6364 48 4 END BRACKET (20/12/2019 - ...) 2X31
1088 0037 81 1 CONNECTOR (20/12/2019 - ...) 2X27
1088 0037 80 1 CONNECTOR (20/12/2019 - ...) 2X28
1088 0031 32 1 CONNECTOR (20/12/2019 - ...) 2X30
1088 0031 26 1 CONNECTOR (20/12/2019 - ...) 2X31
1625 1205 01 3 FUSEHOLDER (20/12/2019 - ...) F1-3
0698 5143 74 1 CABLE GLAND (20/12/2019 - ...) WH
1089 9204 86 1 TRANSFORMER (20/12/2019 - ...) T1
0697 9811 43 1 PLUG (20/12/2019 - ...) M1 cable 2
1089 9575 16 1 RELAY (20/12/2019 - ...) K25
1089 9421 07 1 CONTACTOR (20/12/2019 - ...) K5
1089 9333 06 2 FUSE HOLDER (20/12/2019 - ...) F1-2
1088 0037 30 1 CONNECTOR (20/12/2019 - ...)
Electrical legend: 1X5
1089 9427 85 1 CONNECTOR (20/12/2019 - ...) 1X4
1089 9224 54 2 CONTACTOR (20/12/2019 - ...) K21,23
0698 5143 75 2 CABLE GLAND (20/12/2019 - ...) PT20,FAN
1089 0577 47 10 TERMINAL (20/12/2019 - ...) 1X4,1X6
1089 0577 84 2 PLATE (20/12/2019 - ...) 1X4,1X6
0698 5143 76 1 CABLE GLAND (20/12/2019 - ...) TT01
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1089 9333 06 1 FUSE HOLDER (20/12/2019 - ...) F3
1089 9427 49 5 TERMINAL (20/12/2019 - ...) 1X1,1X2
1089 9427 48 2 PLATE END (20/12/2019 - ...) 1X1,1X2
1089 0577 34 1 TERMINAL USLKG5 (20/12/2019 - ...) 1X2
1088 0032 84 1 TERMINAL (20/12/2019 - ...) 1X0
1089 9203 27 1 CIRCUIT BREAKER (21/01/2020 - ...) Q15
1089 9287 41 1 EME STOP BUTTON (20/12/2019 - ...) S3
1089 9486 57 2 FILTER (20/12/2019 - ...)
Electrical legend: FILTER
1089 9366 37 1 PLUG-IN BRIDGE (20/12/2019 - ...) 1X4
1089 0571 67 1 FAN (20/12/2019 - ...)
Electrical legend: M5+FILTER
1622 0000 20 2 DECAL SYMBOLS (20/12/2019 - ...) -
1079 9931 46 1 LABEL (20/12/2019 - ...) -
1637 0000 72 1 DECAL BP (20/12/2019 - ...) -
1089 9421 33 1 CONTACTOR (20/12/2019 - ...) K22
1089 9424 64 1 RELAY OVERLOAD (20/12/2019 - ...) F21
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1088 0027 53 6 TERMINAL BLOCK (20/12/2019 - ...) 1X1
1088 0027 54 1 END COVER (20/12/2019 - ...) 1X1
0698 5143 78 1 CABLE GLAND (21/01/2020 - ...) A1
0697 9811 44 1 PLUG (21/01/2020 - ...) A1
Legend:
MODEL:GA26P_18W - Model:GA 26+ MOVOL:230V - Supply voltage:230 V
16.19 - Cubicle components GA 30 - 230V
MODEL:GA30_18W + MOVOL:230V
114 9829 3527 14
16.19 - Cubicle components GA 30 - 230V
MODEL:GA30_18W + MOVOL:230V
9829 3527 14 115
Ref Part Number Qty Name Validity EL
1092 9077 71 1 CUBICLE (20/12/2019 - ...)
1092 2023 16 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
9829 3526 93 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 94 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 92 1 SERVICE DIAGRAM (20/12/2019 - ...) -
9829 3526 71 0 CUBICLE ASSEMBLY (20/12/2019 - ...) -
1089 9601 80 1 CONTACT (20/12/2019 - ...) K22
1089 9601 81 2 CONTACTOR (20/12/2019 - ...) K21,23
1091 6364 48 4 END BRACKET (20/12/2019 - ...) 2X31
1088 0037 81 1 CONNECTOR (20/12/2019 - ...) 2X27
1088 0037 80 1 CONNECTOR (20/12/2019 - ...) 2X28
1088 0031 32 1 CONNECTOR (20/12/2019 - ...) 2X30
1088 0031 26 1 CONNECTOR (20/12/2019 - ...) 2X31
1625 1205 01 3 FUSEHOLDER (20/12/2019 - ...) F1-3
0698 5143 74 1 CABLE GLAND (20/12/2019 - ...) WH
1089 9204 86 1 TRANSFORMER (20/12/2019 - ...) T1
0697 9811 43 1 PLUG (20/12/2019 - ...) M1 cable 2
1089 9575 16 1 RELAY (20/12/2019 - ...) K25
1089 9421 07 1 CONTACTOR (20/12/2019 - ...) K5
1089 9333 06 2 FUSE HOLDER (20/12/2019 - ...) F1-2
1088 0037 30 1 CONNECTOR (20/12/2019 - ...)
Electrical legend: 1X5
1089 9427 85 1 CONNECTOR (20/12/2019 - ...) 1X4
1089 9224 54 2 CONTACTOR (20/12/2019 - ...) K21,23
0698 5143 75 2 CABLE GLAND (20/12/2019 - ...) PT20,FAN
1089 0577 47 10 TERMINAL (20/12/2019 - ...) 1X4,1X6
1089 0577 84 2 PLATE (20/12/2019 - ...) 1X4,1X6
0698 5143 76 1 CABLE GLAND (20/12/2019 - ...) TT01
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1089 9333 06 1 FUSE HOLDER (20/12/2019 - ...) F3
1089 9427 49 5 TERMINAL (20/12/2019 - ...) 1X1,1X2
1089 9427 48 2 PLATE END (20/12/2019 - ...) 1X1,1X2
1089 0577 34 1 TERMINAL USLKG5 (20/12/2019 - ...) 1X2
1088 0032 84 1 TERMINAL (20/12/2019 - ...) 1X0
1089 9203 27 1 CIRCUIT BREAKER (21/01/2020 - ...) Q15
1089 9287 41 1 EME STOP BUTTON (20/12/2019 - ...) S3
1089 9486 57 2 FILTER (20/12/2019 - ...)
Electrical legend: FILTER
1089 9366 37 1 PLUG-IN BRIDGE (20/12/2019 - ...) 1X4
1089 0571 67 1 FAN (20/12/2019 - ...)
Electrical legend: M5+FILTER
1622 0000 20 2 DECAL SYMBOLS (20/12/2019 - ...) -
1079 9931 46 1 LABEL (20/12/2019 - ...) -
1637 0000 72 1 DECAL BP (20/12/2019 - ...) -
1089 9421 33 1 CONTACTOR (20/12/2019 - ...) K22
1089 9424 51 1 RELAY OVERLOAD (21/01/2020 - ...) F21
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1088 0027 53 6 TERMINAL BLOCK (20/12/2019 - ...) 1X1
1088 0027 54 1 END COVER (20/12/2019 - ...) 1X1
0698 5143 78 1 CABLE GLAND (21/01/2020 - ...) A1
0697 9811 44 1 PLUG (21/01/2020 - ...) A1
Legend:
MODEL:GA30_18W - Model:GA 30 MOVOL:230V - Supply voltage:230 V
16.20 - Cubicle components GA 11+ - 380V
MODEL:GA11P_18W + MOVOL:380V
116 9829 3527 14
16.20 - Cubicle components GA 11+ - 380V
MODEL:GA11P_18W + MOVOL:380V
9829 3527 14 117
Ref Part Number Qty Name Validity EL
1092 2023 24 1 CUBICLE (20/12/2019 - ...)
1092 2023 16 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
9829 3526 93 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 94 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 92 1 SERVICE DIAGRAM (20/12/2019 - ...) -
9829 3526 71 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
1089 9245 85 3 CONTACTOR (20/12/2019 - ...) K21,22,23
1091 6364 48 2 END BRACKET (20/12/2019 - ...) 2X31
1088 0037 81 1 CONNECTOR (20/12/2019 - ...) 2X27
1088 0037 80 1 CONNECTOR (20/12/2019 - ...) 2X28
1088 0031 32 1 CONNECTOR (20/12/2019 - ...) 2X30
1088 0031 26 1 CONNECTOR (20/12/2019 - ...) 2X31
1625 1205 01 3 FUSEHOLDER (20/12/2019 - ...) F1-3
0698 5143 74 1 CABLE GLAND (20/12/2019 - ...) WH
1089 9204 85 1 TRANSFORMER (20/12/2019 - ...) T1
0697 9811 43 1 PLUG (20/12/2019 - ...) M1 cable 2
1089 9575 16 1 RELAY (20/12/2019 - ...) K25
1089 9421 07 1 CONTACTOR (20/12/2019 - ...) K5
1089 9333 06 2 FUSE HOLDER (20/12/2019 - ...) F1-2
1088 0037 30 1 CONNECTOR (20/12/2019 - ...)
Electrical legend: 1X5
1089 9427 85 1 CONNECTOR (20/12/2019 - ...) 1X4
1625 1406 59 2 CONTACTOR (20/12/2019 - ...) K21,23
0698 5143 75 2 CABLE GLAND (20/12/2019 - ...) PT20,FAN
1089 0577 47 10 TERMINAL (20/12/2019 - ...) 1X4,1X6
1089 0577 84 2 PLATE (20/12/2019 - ...) 1X4,1X6
0698 5143 76 1 CABLE GLAND (20/12/2019 - ...) TT01
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1089 9333 06 1 FUSE HOLDER (20/12/2019 - ...) F3
1089 9427 49 5 TERMINAL (20/12/2019 - ...) 1X1,1X2
1089 9427 48 2 PLATE END (20/12/2019 - ...) 1X1,1X2
1089 0577 34 1 TERMINAL USLKG5 (20/12/2019 - ...) 1X2
1088 0032 47 1 TERMINAL (20/12/2019 - ...) 1X0
1089 9309 92 1 CIRCUIT BREAKER (20/12/2019 - ...) Q15
1089 9287 41 1 EME STOP BUTTON (20/12/2019 - ...) S3
1089 9486 57 2 FILTER (20/12/2019 - ...)
Electrical legend: FILTER
1089 9366 37 1 PLUG-IN BRIDGE (20/12/2019 - ...) 1X4
1089 0571 67 1 FAN (20/12/2019 - ...)
Electrical legend: M5+FILTER
1622 0000 20 2 DECAL SYMBOLS (20/12/2019 - ...) -
1079 9931 46 1 LABEL (20/12/2019 - ...) -
1637 0000 72 1 DECAL BP (20/12/2019 - ...) -
1625 1406 58 1 CONTACTOR (20/12/2019 - ...) K22
1089 9224 64 1 OVERLOAD RELAY (20/12/2019 - ...) F21
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
0698 5143 78 1 CABLE GLAND (21/01/2020 - ...) A1
0697 9811 44 1 PLUG (21/01/2020 - ...) A1
Legend:
MODEL:GA11P_18W - Model:GA 11+ MOVOL:380V - Supply voltage:380 V
16.21 - Cubicle components GA 15+ - 380V
MODEL:GA15P_18W + MOVOL:380V
118 9829 3527 14
16.21 - Cubicle components GA 15+ - 380V
MODEL:GA15P_18W + MOVOL:380V
9829 3527 14 119
Ref Part Number Qty Name Validity EL
1092 2023 28 1 CUBICLE (20/12/2019 - ...)
1092 2023 16 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
9829 3526 93 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 94 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 92 1 SERVICE DIAGRAM (20/12/2019 - ...) -
9829 3526 71 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
1089 9245 85 3 CONTACTOR (20/12/2019 - ...) K21,22,23
1091 6364 48 2 END BRACKET (20/12/2019 - ...) 2X31
1088 0037 81 1 CONNECTOR (20/12/2019 - ...) 2X27
1088 0037 80 1 CONNECTOR (20/12/2019 - ...) 2X28
1088 0031 32 1 CONNECTOR (20/12/2019 - ...) 2X30
1088 0031 26 1 CONNECTOR (20/12/2019 - ...) 2X31
1625 1205 01 3 FUSEHOLDER (20/12/2019 - ...) F1-3
0698 5143 74 1 CABLE GLAND (20/12/2019 - ...) WH
1089 9204 85 1 TRANSFORMER (20/12/2019 - ...) T1
0697 9811 43 1 PLUG (20/12/2019 - ...) M1 cable 2
1089 9575 16 1 RELAY (20/12/2019 - ...) K25
1089 9421 07 1 CONTACTOR (20/12/2019 - ...) K5
1089 9333 06 2 FUSE HOLDER (20/12/2019 - ...) F1-2
1088 0037 30 1 CONNECTOR (20/12/2019 - ...)
Electrical legend: 1X5
1089 9427 85 1 CONNECTOR (20/12/2019 - ...) 1X4
1089 9224 32 2 CONTACTOR (20/12/2019 - ...) K21,23
0698 5143 75 2 CABLE GLAND (20/12/2019 - ...) PT20,FAN
1089 0577 47 10 TERMINAL (20/12/2019 - ...) 1X4,1X6
1089 0577 84 2 PLATE (20/12/2019 - ...) 1X4,1X6
0698 5143 76 1 CABLE GLAND (20/12/2019 - ...) TT01
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1089 9333 06 1 FUSE HOLDER (20/12/2019 - ...) F3
1089 9427 49 5 TERMINAL (20/12/2019 - ...) 1X1,1X2
1089 9427 48 2 PLATE END (20/12/2019 - ...) 1X1,1X2
1089 0577 34 1 TERMINAL USLKG5 (20/12/2019 - ...) 1X2
1088 0032 47 1 TERMINAL (20/12/2019 - ...) 1X0
1089 9309 92 1 CIRCUIT BREAKER (20/12/2019 - ...) Q15
1089 9287 41 1 EME STOP BUTTON (20/12/2019 - ...) S3
1089 9486 57 2 FILTER (20/12/2019 - ...)
Electrical legend: FILTER
1089 9366 37 1 PLUG-IN BRIDGE (20/12/2019 - ...) 1X4
1089 0571 67 1 FAN (20/12/2019 - ...)
Electrical legend: M5+FILTER
1622 0000 20 2 DECAL SYMBOLS (20/12/2019 - ...) -
1079 9931 46 1 LABEL (20/12/2019 - ...) -
1637 0000 72 1 DECAL BP (20/12/2019 - ...) -
1089 9321 41 1 CONTACTOR (20/12/2019 - ...) K22
1089 9224 62 1 OVERLOAD RELAY (20/12/2019 - ...) F21
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
0698 5143 78 1 CABLE GLAND (21/01/2020 - ...) A1
0697 9811 44 1 PLUG (21/01/2020 - ...) A1
Legend:
MODEL:GA15P_18W - Model:GA 15+ MOVOL:380V - Supply voltage:380 V
16.22 - Cubicle components GA 18+ - 380V
MODEL:GA18P_18W + MOVOL:380V
120 9829 3527 14
16.22 - Cubicle components GA 18+ - 380V
MODEL:GA18P_18W + MOVOL:380V
9829 3527 14 121
Ref Part Number Qty Name Validity EL
1092 2023 32 1 CUBICLE (20/12/2019 - ...)
1092 2023 16 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
9829 3526 93 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 94 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 92 1 SERVICE DIAGRAM (20/12/2019 - ...) -
9829 3526 71 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
1089 9245 85 1 CONTACTOR (20/12/2019 - ...) K22
1089 9601 80 2 CONTACT (20/12/2019 - ...) K21,23
1091 6364 48 2 END BRACKET (20/12/2019 - ...) 2X31
1088 0037 81 1 CONNECTOR (20/12/2019 - ...) 2X27
1088 0037 80 1 CONNECTOR (20/12/2019 - ...) 2X28
1088 0031 32 1 CONNECTOR (20/12/2019 - ...) 2X30
1088 0031 26 1 CONNECTOR (20/12/2019 - ...) 2X31
1625 1205 01 3 FUSEHOLDER (20/12/2019 - ...) F1-3
0698 5143 74 1 CABLE GLAND (20/12/2019 - ...) WH
1089 9204 85 1 TRANSFORMER (20/12/2019 - ...) T1
0697 9811 43 1 PLUG (20/12/2019 - ...) M1 cable 2
1089 9575 16 1 RELAY (20/12/2019 - ...) K25
1089 9421 07 1 CONTACTOR (20/12/2019 - ...) K5
1089 9333 06 2 FUSE HOLDER (20/12/2019 - ...) F1-2
1088 0037 30 1 CONNECTOR (20/12/2019 - ...)
Electrical legend: 1X5
1089 9427 85 1 CONNECTOR (20/12/2019 - ...) 1X4
1089 9224 43 2 CONTACTORS (20/12/2019 - ...) K21,23
0698 5143 75 2 CABLE GLAND (20/12/2019 - ...) PT20,FAN
1089 0577 47 10 TERMINAL (20/12/2019 - ...) 1X4,1X6
1089 0577 84 2 PLATE (20/12/2019 - ...) 1X4,1X6
0698 5143 76 1 CABLE GLAND (20/12/2019 - ...) TT01
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1089 9333 06 1 FUSE HOLDER (20/12/2019 - ...) F3
1089 9427 49 5 TERMINAL (20/12/2019 - ...) 1X1,1X2
1089 9427 48 2 PLATE END (20/12/2019 - ...) 1X1,1X2
1089 0577 34 1 TERMINAL USLKG5 (20/12/2019 - ...) 1X2
1088 0032 47 1 TERMINAL (20/12/2019 - ...) 1X0
1089 9309 90 1 CIRCUIT BREAKER (20/12/2019 - ...) Q15
1089 9287 41 1 EME STOP BUTTON (20/12/2019 - ...) S3
1089 9486 57 2 FILTER (20/12/2019 - ...)
Electrical legend: FILTER
1089 9366 37 1 PLUG-IN BRIDGE (20/12/2019 - ...) 1X4
1089 0571 67 1 FAN (20/12/2019 - ...)
Electrical legend: M5+FILTER
1622 0000 20 2 DECAL SYMBOLS (20/12/2019 - ...) -
1079 9931 46 1 LABEL (20/12/2019 - ...) -
1637 0000 72 1 DECAL BP (20/12/2019 - ...) -
1625 1406 59 1 CONTACTOR (20/12/2019 - ...) K22
1089 9268 58 1 OVERLOAD RELAY (20/12/2019 - ...) F21
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
0698 5143 78 1 CABLE GLAND (21/01/2020 - ...) A1
0697 9811 44 1 PLUG (21/01/2020 - ...) A1
Legend:
MODEL:GA18P_18W - Model:GA 18+ MOVOL:380V - Supply voltage:380 V
16.23 - Cubicle components GA 22+ - 380V
MODEL:GA22P_18W + MOVOL:380V
122 9829 3527 14
16.23 - Cubicle components GA 22+ - 380V
MODEL:GA22P_18W + MOVOL:380V
9829 3527 14 123
Ref Part Number Qty Name Validity EL
1092 2023 36 1 CUBICLE (20/12/2019 - ...)
1092 2023 16 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
9829 3526 93 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 94 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 92 1 SERVICE DIAGRAM (20/12/2019 - ...) -
9829 3526 71 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
1089 9245 85 1 CONTACTOR (20/12/2019 - ...) K22
1089 9601 80 2 CONTACT (20/12/2019 - ...) K21,23
1091 6364 48 2 END BRACKET (20/12/2019 - ...) 2X31
1088 0037 81 1 CONNECTOR (20/12/2019 - ...) 2X27
1088 0037 80 1 CONNECTOR (20/12/2019 - ...) 2X28
1088 0031 32 1 CONNECTOR (20/12/2019 - ...) 2X30
1088 0031 26 1 CONNECTOR (20/12/2019 - ...) 2X31
1625 1205 01 3 FUSEHOLDER (20/12/2019 - ...) F1-3
0698 5143 74 1 CABLE GLAND (20/12/2019 - ...) WH
1089 9204 85 1 TRANSFORMER (20/12/2019 - ...) T1
0697 9811 43 1 PLUG (20/12/2019 - ...) M1 cable 2
1089 9575 16 1 RELAY (20/12/2019 - ...) K25
1089 9421 07 1 CONTACTOR (20/12/2019 - ...) K5
1089 9333 06 2 FUSE HOLDER (20/12/2019 - ...) F1-2
1088 0037 30 1 CONNECTOR (20/12/2019 - ...)
Electrical legend: 1X5
1089 9427 85 1 CONNECTOR (20/12/2019 - ...) 1X4
1089 9224 43 2 CONTACTORS (20/12/2019 - ...) K21,23
0698 5143 75 2 CABLE GLAND (20/12/2019 - ...) PT20,FAN
1089 0577 47 10 TERMINAL (20/12/2019 - ...) 1X4,1X6
1089 0577 84 2 PLATE (20/12/2019 - ...) 1X4,1X6
0698 5143 76 1 CABLE GLAND (20/12/2019 - ...) TT01
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1089 9333 06 1 FUSE HOLDER (20/12/2019 - ...) F3
1089 9427 49 5 TERMINAL (20/12/2019 - ...) 1X1,1X2
1089 9427 48 2 PLATE END (20/12/2019 - ...) 1X1,1X2
1089 0577 34 1 TERMINAL USLKG5 (20/12/2019 - ...) 1X2
1088 0032 47 1 TERMINAL (20/12/2019 - ...) 1X0
1089 9309 90 1 CIRCUIT BREAKER (20/12/2019 - ...) Q15
1089 9287 41 1 EME STOP BUTTON (20/12/2019 - ...) S3
1089 9486 57 2 FILTER (20/12/2019 - ...)
Electrical legend: FILTER
1089 9366 37 1 PLUG-IN BRIDGE (20/12/2019 - ...) 1X4
1089 0571 67 1 FAN (20/12/2019 - ...)
Electrical legend: M5+FILTER
1622 0000 20 2 DECAL SYMBOLS (20/12/2019 - ...) -
1079 9931 46 1 LABEL (20/12/2019 - ...) -
1637 0000 72 1 DECAL BP (20/12/2019 - ...) -
1625 1406 59 1 CONTACTOR (20/12/2019 - ...) K22
1089 9424 61 1 RELAY OVERLOAD (20/12/2019 - ...) F21
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
0698 5143 78 1 CABLE GLAND (21/01/2020 - ...) A1
0697 9811 44 1 PLUG (21/01/2020 - ...) A1
Legend:
MODEL:GA22P_18W - Model:GA 22+ MOVOL:380V - Supply voltage:380 V
16.24 - Cubicle components GA 26+ - 380V
MODEL:GA26P_18W + MOVOL:380V
124 9829 3527 14
16.24 - Cubicle components GA 26+ - 380V
MODEL:GA26P_18W + MOVOL:380V
9829 3527 14 125
Ref Part Number Qty Name Validity EL
1092 2023 39 1 CUBICLE (20/12/2019 - ...)
1092 2023 16 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
9829 3526 93 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 94 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 92 1 SERVICE DIAGRAM (20/12/2019 - ...) -
9829 3526 71 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
1089 9245 85 1 CONTACTOR (20/12/2019 - ...) -
1089 9601 80 2 CONTACT (20/12/2019 - ...) K21,23
1091 6364 48 2 END BRACKET (20/12/2019 - ...) 2X31
1088 0037 81 1 CONNECTOR (20/12/2019 - ...) 2X27
1088 0037 80 1 CONNECTOR (20/12/2019 - ...) 2X28
1088 0031 32 1 CONNECTOR (20/12/2019 - ...) 2X30
1088 0031 26 1 CONNECTOR (20/12/2019 - ...) 2X31
1625 1205 01 3 FUSEHOLDER (20/12/2019 - ...) F1-3
0698 5143 74 1 CABLE GLAND (20/12/2019 - ...) WH
1089 9204 85 1 TRANSFORMER (20/12/2019 - ...) T1
0697 9811 43 1 PLUG (20/12/2019 - ...) M1 cable 2
1089 9575 16 1 RELAY (20/12/2019 - ...) K25
1089 9421 07 1 CONTACTOR (20/12/2019 - ...) K5
1089 9333 06 2 FUSE HOLDER (20/12/2019 - ...) F1-2
1088 0037 30 1 CONNECTOR (20/12/2019 - ...)
Electrical legend: 1X5
1089 9427 85 1 CONNECTOR (20/12/2019 - ...) 1X4
1089 9421 33 2 CONTACTOR (20/12/2019 - ...) K21,23
0698 5143 75 2 CABLE GLAND (20/12/2019 - ...) PT20,FAN
1089 0577 47 10 TERMINAL (20/12/2019 - ...) 1X4,1X6
1089 0577 84 2 PLATE (20/12/2019 - ...) 1X4,1X6
0698 5143 76 1 CABLE GLAND (20/12/2019 - ...) TT01
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1089 9333 06 1 FUSE HOLDER (20/12/2019 - ...) F3
1089 9427 49 5 TERMINAL (20/12/2019 - ...) 1X1,1X2
1089 9427 48 2 PLATE END (20/12/2019 - ...) 1X1,1X2
1089 0577 34 1 TERMINAL USLKG5 (20/12/2019 - ...) 1X2
1088 0032 47 1 TERMINAL (20/12/2019 - ...) 1X0
1089 9289 09 1 CIRCUIT BREAKER (21/01/2020 - ...) Q15
1089 9287 41 1 EME STOP BUTTON (20/12/2019 - ...) S3
1089 9486 57 2 FILTER (20/12/2019 - ...)
Electrical legend: FILTER
1089 9366 37 1 PLUG-IN BRIDGE (20/12/2019 - ...) 1X4
1089 0571 67 1 FAN (20/12/2019 - ...)
Electrical legend: M5+FILTER
1622 0000 20 2 DECAL SYMBOLS (20/12/2019 - ...) -
1079 9931 46 1 LABEL (20/12/2019 - ...) -
1637 0000 72 1 DECAL BP (20/12/2019 - ...) -
1089 9224 32 1 CONTACTOR (20/12/2019 - ...) K22
1089 9424 62 1 RELAY OVERLOAD (20/12/2019 - ...) F21
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
0698 5143 78 1 CABLE GLAND (21/01/2020 - ...) A1
0697 9811 44 1 PLUG (21/01/2020 - ...) A1
Legend:
MODEL:GA26P_18W - Model:GA 26+ MOVOL:380V - Supply voltage:380 V
16.25 - Cubicle components GA 30 - 380V
MODEL:GA30_18W + MOVOL:380V
126 9829 3527 14
16.25 - Cubicle components GA 30 - 380V
MODEL:GA30_18W + MOVOL:380V
9829 3527 14 127
Ref Part Number Qty Name Validity EL
1092 2023 43 1 CUBICLE (20/12/2019 - ...)
1092 2023 16 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
9829 3526 93 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 94 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 92 1 SERVICE DIAGRAM (20/12/2019 - ...) -
9829 3526 71 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
1089 9245 85 1 CONTACTOR (20/12/2019 - ...) -
1089 9601 80 2 CONTACT (20/12/2019 - ...) K21,23
1091 6364 48 2 END BRACKET (20/12/2019 - ...) 2X31
1088 0037 81 1 CONNECTOR (20/12/2019 - ...) 2X27
1088 0037 80 1 CONNECTOR (20/12/2019 - ...) 2X28
1088 0031 32 1 CONNECTOR (20/12/2019 - ...) 2X30
1088 0031 26 1 CONNECTOR (20/12/2019 - ...) 2X31
1625 1205 01 3 FUSEHOLDER (20/12/2019 - ...) F1-3
0698 5143 74 1 CABLE GLAND (20/12/2019 - ...) WH
1089 9204 85 1 TRANSFORMER (20/12/2019 - ...) T1
0697 9811 43 1 PLUG (20/12/2019 - ...) M1 cable 2
1089 9575 16 1 RELAY (20/12/2019 - ...) K25
1089 9421 07 1 CONTACTOR (20/12/2019 - ...) K5
1089 9333 06 2 FUSE HOLDER (20/12/2019 - ...) F1-2
1088 0037 30 1 CONNECTOR (20/12/2019 - ...)
Electrical legend: 1X5
1089 9427 85 1 CONNECTOR (20/12/2019 - ...) 1X4
1089 9421 33 2 CONTACTOR (20/12/2019 - ...) K21,23
0698 5143 75 2 CABLE GLAND (20/12/2019 - ...) PT20,FAN
1089 0577 47 10 TERMINAL (20/12/2019 - ...) 1X4,1X6
1089 0577 84 2 PLATE (20/12/2019 - ...) 1X4,1X6
0698 5143 76 1 CABLE GLAND (20/12/2019 - ...) TT01
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1089 9333 06 1 FUSE HOLDER (20/12/2019 - ...) F3
1089 9427 49 5 TERMINAL (20/12/2019 - ...) 1X1,1X2
1089 9427 48 2 PLATE END (20/12/2019 - ...) 1X1,1X2
1089 0577 34 1 TERMINAL USLKG5 (20/12/2019 - ...) 1X2
1088 0032 47 1 TERMINAL (20/12/2019 - ...) 1X0
1089 9289 09 1 CIRCUIT BREAKER (21/01/2020 - ...) Q15
1089 9287 41 1 EME STOP BUTTON (20/12/2019 - ...) S3
1089 9486 57 2 FILTER (20/12/2019 - ...)
Electrical legend: FILTER
1089 9366 37 1 PLUG-IN BRIDGE (20/12/2019 - ...) 1X4
1089 0571 67 1 FAN (20/12/2019 - ...)
Electrical legend: M5+FILTER
1622 0000 20 2 DECAL SYMBOLS (20/12/2019 - ...) -
1079 9931 46 1 LABEL (20/12/2019 - ...) -
1637 0000 72 1 DECAL BP (20/12/2019 - ...) -
1089 9224 32 1 CONTACTOR (20/12/2019 - ...) K22
1089 9424 62 1 RELAY OVERLOAD (20/12/2019 - ...) F21
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
0698 5143 78 1 CABLE GLAND (21/01/2020 - ...) A1
0697 9811 44 1 PLUG (21/01/2020 - ...) A1
Legend:
MODEL:GA30_18W - Model:GA 30 MOVOL:380V - Supply voltage:380 V
16.26 - Cubicle components GA 11+ - 400V
MODEL:GA11P_18W + MOVOL:400V
128 9829 3527 14
16.26 - Cubicle components GA 11+ - 400V
MODEL:GA11P_18W + MOVOL:400V
9829 3527 14 129
Ref Part Number Qty Name Validity EL
1092 9077 82 1 CUBICLE (20/12/2019 - ...)
1092 2023 16 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
9829 3526 93 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 94 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 92 1 SERVICE DIAGRAM (20/12/2019 - ...) -
9829 3526 71 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
1089 9245 85 3 CONTACTOR (20/12/2019 - ...) K21,22,23
1091 6364 48 2 END BRACKET (20/12/2019 - ...) 2X31
1088 0037 81 1 CONNECTOR (20/12/2019 - ...) 2X27
1088 0037 80 1 CONNECTOR (20/12/2019 - ...) 2X28
1088 0031 32 1 CONNECTOR (20/12/2019 - ...) 2X30
1088 0031 26 1 CONNECTOR (20/12/2019 - ...) 2X31
1625 1205 01 3 FUSEHOLDER (20/12/2019 - ...) F1-3
0698 5143 74 1 CABLE GLAND (20/12/2019 - ...) WH
1089 9204 85 1 TRANSFORMER (20/12/2019 - ...) T1
0697 9811 43 1 PLUG (20/12/2019 - ...) M1 cable 2
1089 9575 16 1 RELAY (20/12/2019 - ...) K25
1089 9421 07 1 CONTACTOR (20/12/2019 - ...) K5
1089 9333 06 2 FUSE HOLDER (20/12/2019 - ...) F1-2
1088 0037 30 1 CONNECTOR (20/12/2019 - ...)
Electrical legend: 1X5
1089 9427 85 1 CONNECTOR (20/12/2019 - ...) 1X4
1625 1406 59 2 CONTACTOR (20/12/2019 - ...) K21,23
0698 5143 75 2 CABLE GLAND (20/12/2019 - ...) PT20,FAN
1089 0577 47 10 TERMINAL (20/12/2019 - ...) 1X4,1X6
1089 0577 84 2 PLATE (20/12/2019 - ...) 1X4,1X6
0698 5143 76 1 CABLE GLAND (20/12/2019 - ...) TT01
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1089 9333 06 1 FUSE HOLDER (20/12/2019 - ...) F3
1089 9427 49 5 TERMINAL (20/12/2019 - ...) 1X1,1X2
1089 9427 48 2 PLATE END (20/12/2019 - ...) 1X1,1X2
1089 0577 34 1 TERMINAL USLKG5 (20/12/2019 - ...) 1X2
1088 0032 47 1 TERMINAL (20/12/2019 - ...) 1X0
1089 9309 92 1 CIRCUIT BREAKER (21/01/2020 - ...) Q15
1089 9287 41 1 EME STOP BUTTON (20/12/2019 - ...) S3
1089 9486 57 2 FILTER (20/12/2019 - ...)
Electrical legend: FILTER
1089 9366 37 1 PLUG-IN BRIDGE (20/12/2019 - ...) 1X4
1089 0571 67 1 FAN (20/12/2019 - ...)
Electrical legend: M5+FILTER
1622 0000 20 2 DECAL SYMBOLS (20/12/2019 - ...) -
1079 9931 46 1 LABEL (20/12/2019 - ...) -
1637 0000 72 1 DECAL BP (20/12/2019 - ...) -
1625 1406 58 1 CONTACTOR (20/12/2019 - ...) K22
1089 9224 64 1 OVERLOAD RELAY (20/12/2019 - ...) F21
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1088 1001 02 1 WARNING MARK (21/01/2020 - ...) -
1079 9901 68 1 LABEL (21/01/2020 - ...) -
0698 5143 78 1 CABLE GLAND (21/01/2020 - ...) A1
0697 9811 44 1 PLUG (21/01/2020 - ...) A1
Legend:
MODEL:GA11P_18W - Model:GA 11+ MOVOL:400V - Supply voltage:400 V
16.27 - Cubicle components GA 15+ - 400V
MODEL:GA15P_18W + MOVOL:400V
130 9829 3527 14
16.27 - Cubicle components GA 15+ - 400V
MODEL:GA15P_18W + MOVOL:400V
9829 3527 14 131
Ref Part Number Qty Name Validity EL
1092 2023 63 1 CUBICLE (20/12/2019 - ...)
1092 2023 16 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
9829 3526 93 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 94 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 92 1 SERVICE DIAGRAM (20/12/2019 - ...) -
9829 3526 71 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
1089 9245 85 3 CONTACTOR (20/12/2019 - ...) K21,22,23
1091 6364 48 2 END BRACKET (20/12/2019 - ...) 2X31
1088 0037 81 1 CONNECTOR (20/12/2019 - ...) 2X27
1088 0037 80 1 CONNECTOR (20/12/2019 - ...) 2X28
1088 0031 32 1 CONNECTOR (20/12/2019 - ...) 2X30
1088 0031 26 1 CONNECTOR (20/12/2019 - ...) 2X31
1625 1205 01 3 FUSEHOLDER (20/12/2019 - ...) F1-3
0698 5143 74 1 CABLE GLAND (20/12/2019 - ...) WH
1089 9204 85 1 TRANSFORMER (20/12/2019 - ...) T1
0697 9811 43 1 PLUG (20/12/2019 - ...) M1 cable 2
1089 9575 16 1 RELAY (20/12/2019 - ...) K25
1089 9421 07 1 CONTACTOR (20/12/2019 - ...) K5
1089 9333 06 2 FUSE HOLDER (20/12/2019 - ...) F1-2
1088 0037 30 1 CONNECTOR (20/12/2019 - ...)
Electrical legend: 1X5
1089 9427 85 1 CONNECTOR (20/12/2019 - ...) 1X4
1089 9224 32 2 CONTACTOR (20/12/2019 - ...) K21,23
0698 5143 75 2 CABLE GLAND (20/12/2019 - ...) PT20,FAN
1089 0577 47 10 TERMINAL (20/12/2019 - ...) 1X4,1X6
1089 0577 84 2 PLATE (20/12/2019 - ...) 1X4,1X6
0698 5143 76 1 CABLE GLAND (20/12/2019 - ...) TT01
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1089 9333 06 1 FUSE HOLDER (20/12/2019 - ...) F3
1089 9427 49 5 TERMINAL (20/12/2019 - ...) 1X1,1X2
1089 9427 48 2 PLATE END (20/12/2019 - ...) 1X1,1X2
1089 0577 34 1 TERMINAL USLKG5 (20/12/2019 - ...) 1X2
1088 0032 47 1 TERMINAL (20/12/2019 - ...) 1X0
1089 9309 92 1 CIRCUIT BREAKER (21/01/2020 - ...) Q15
1089 9287 41 1 EME STOP BUTTON (20/12/2019 - ...) S3
1089 9486 57 2 FILTER (20/12/2019 - ...)
Electrical legend: FILTER
1089 9366 37 1 PLUG-IN BRIDGE (20/12/2019 - ...) 1X4
1089 0571 67 1 FAN (20/12/2019 - ...)
Electrical legend: M5+FILTER
1622 0000 20 2 DECAL SYMBOLS (20/12/2019 - ...) -
1079 9931 46 1 LABEL (20/12/2019 - ...) -
1637 0000 72 1 DECAL BP (20/12/2019 - ...) -
1089 9321 41 1 CONTACTOR (20/12/2019 - ...) K22
1089 9224 62 1 OVERLOAD RELAY (20/12/2019 - ...) F21
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1088 1001 02 1 WARNING MARK (21/01/2020 - ...) -
1079 9901 68 1 LABEL (21/01/2020 - ...) -
0698 5143 78 1 CABLE GLAND (21/01/2020 - ...) A1
0697 9811 44 1 PLUG (21/01/2020 - ...) A1
Legend:
MODEL:GA15P_18W - Model:GA 15+ MOVOL:400V - Supply voltage:400 V
16.28 - Cubicle components GA 18+ - 400V
MODEL:GA18P_18W + MOVOL:400V
132 9829 3527 14
16.28 - Cubicle components GA 18+ - 400V
MODEL:GA18P_18W + MOVOL:400V
9829 3527 14 133
Ref Part Number Qty Name Validity EL
1092 9077 77 1 CUBICLE (20/12/2019 - ...)
1092 2023 16 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
9829 3526 93 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 94 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 92 1 SERVICE DIAGRAM (20/12/2019 - ...) -
9829 3526 71 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
1089 9245 85 1 CONTACTOR (20/12/2019 - ...) K21,22,23
1089 9601 80 2 CONTACT (20/12/2019 - ...) K21,23
1091 6364 48 2 END BRACKET (20/12/2019 - ...) 2X31
1088 0037 81 1 CONNECTOR (20/12/2019 - ...) 2X27
1088 0037 80 1 CONNECTOR (20/12/2019 - ...) 2X28
1088 0031 32 1 CONNECTOR (20/12/2019 - ...) 2X30
1088 0031 26 1 CONNECTOR (20/12/2019 - ...) 2X31
1625 1205 01 3 FUSEHOLDER (20/12/2019 - ...) F1-3
0698 5143 74 1 CABLE GLAND (20/12/2019 - ...) WH
1089 9204 85 1 TRANSFORMER (20/12/2019 - ...) T1
0697 9811 43 1 PLUG (20/12/2019 - ...) M1 cable 2
1089 9575 16 1 RELAY (20/12/2019 - ...) K25
1089 9421 07 1 CONTACTOR (20/12/2019 - ...) K5
1089 9333 06 2 FUSE HOLDER (20/12/2019 - ...) F1-2
1088 0037 30 1 CONNECTOR (20/12/2019 - ...)
Electrical legend: 1X5
1089 9427 85 1 CONNECTOR (20/12/2019 - ...) 1X4
1089 9224 43 2 CONTACTORS (20/12/2019 - ...) K21,23
0698 5143 75 2 CABLE GLAND (20/12/2019 - ...) PT20,FAN
1089 0577 47 10 TERMINAL (20/12/2019 - ...) 1X4,1X6
1089 0577 84 2 PLATE (20/12/2019 - ...) 1X4,1X6
0698 5143 76 1 CABLE GLAND (20/12/2019 - ...) TT01
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1089 9333 06 1 FUSE HOLDER (20/12/2019 - ...) F3
1089 9427 49 5 TERMINAL (20/12/2019 - ...) 1X1,1X2
1089 9427 48 2 PLATE END (20/12/2019 - ...) 1X1,1X2
1089 0577 34 1 TERMINAL USLKG5 (20/12/2019 - ...) 1X2
1088 0032 47 1 TERMINAL (20/12/2019 - ...) 1X0
1089 9309 90 1 CIRCUIT BREAKER (20/12/2019 - ...) Q15
1089 9287 41 1 EME STOP BUTTON (20/12/2019 - ...) S3
1089 9486 57 2 FILTER (20/12/2019 - ...)
Electrical legend: FILTER
1089 9366 37 1 PLUG-IN BRIDGE (20/12/2019 - ...) 1X4
1089 0571 67 1 FAN (20/12/2019 - ...)
Electrical legend: M5+FILTER
1622 0000 20 2 DECAL SYMBOLS (20/12/2019 - ...) -
1079 9931 46 1 LABEL (20/12/2019 - ...) -
1637 0000 72 1 DECAL BP (20/12/2019 - ...) -
1625 1406 59 1 CONTACTOR (20/12/2019 - ...) K22
1089 9268 58 1 OVERLOAD RELAY (20/12/2019 - ...) F21
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1088 1001 02 1 WARNING MARK (21/01/2020 - ...) -
1079 9901 68 1 LABEL (21/01/2020 - ...) -
0698 5143 78 1 CABLE GLAND (21/01/2020 - ...) A1
0697 9811 44 1 PLUG (21/01/2020 - ...) A1
Legend:
MODEL:GA18P_18W - Model:GA 18+ MOVOL:400V - Supply voltage:400 V
16.29 - Cubicle components GA 22+ - 400V
MODEL:GA22P_18W + MOVOL:400V
134 9829 3527 14
16.29 - Cubicle components GA 22+ - 400V
MODEL:GA22P_18W + MOVOL:400V
9829 3527 14 135
Ref Part Number Qty Name Validity EL
1092 9077 75 1 CUBICLE (20/12/2019 - ...)
1092 2023 16 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
9829 3526 93 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 94 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 92 1 SERVICE DIAGRAM (20/12/2019 - ...) -
9829 3526 71 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
1089 9245 85 1 CONTACTOR (20/12/2019 - ...) K22
1089 9601 80 2 CONTACT (20/12/2019 - ...) K21,23
1091 6364 48 2 END BRACKET (20/12/2019 - ...) 2X31
1088 0037 81 1 CONNECTOR (20/12/2019 - ...) 2X27
1088 0037 80 1 CONNECTOR (20/12/2019 - ...) 2X28
1088 0031 32 1 CONNECTOR (20/12/2019 - ...) 2X30
1088 0031 26 1 CONNECTOR (20/12/2019 - ...) 2X31
1625 1205 01 3 FUSEHOLDER (20/12/2019 - ...) F1-3
0698 5143 74 1 CABLE GLAND (20/12/2019 - ...) WH
1089 9204 85 1 TRANSFORMER (20/12/2019 - ...) T1
0697 9811 43 1 PLUG (20/12/2019 - ...) M1 cable 2
1089 9575 16 1 RELAY (20/12/2019 - ...) K25
1089 9421 07 1 CONTACTOR (20/12/2019 - ...) K5
1089 9333 06 2 FUSE HOLDER (20/12/2019 - ...) F1-2
1088 0037 30 1 CONNECTOR (20/12/2019 - ...)
Electrical legend: 1X5
1089 9427 85 1 CONNECTOR (20/12/2019 - ...) 1X4
1089 9224 43 2 CONTACTORS (20/12/2019 - ...) K21,23
0698 5143 75 2 CABLE GLAND (20/12/2019 - ...) PT20,FAN
1089 0577 47 10 TERMINAL (20/12/2019 - ...) 1X4,1X6
1089 0577 84 2 PLATE (20/12/2019 - ...) 1X4,1X6
0698 5143 76 1 CABLE GLAND (20/12/2019 - ...) TT01
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1089 9333 06 1 FUSE HOLDER (20/12/2019 - ...) F3
1089 9427 49 5 TERMINAL (20/12/2019 - ...) 1X1,1X2
1089 9427 48 2 PLATE END (20/12/2019 - ...) 1X1,1X2
1089 0577 34 1 TERMINAL USLKG5 (20/12/2019 - ...) 1X2
1088 0032 47 1 TERMINAL (20/12/2019 - ...) 1X0
1089 9309 90 1 CIRCUIT BREAKER (20/12/2019 - ...) Q15
1089 9287 41 1 EME STOP BUTTON (20/12/2019 - ...) S3
1089 9486 57 2 FILTER (20/12/2019 - ...)
Electrical legend: FILTER
1089 9366 37 1 PLUG-IN BRIDGE (20/12/2019 - ...) 1X4
1089 0571 67 1 FAN (20/12/2019 - ...)
Electrical legend: M5+FILTER
1622 0000 20 2 DECAL SYMBOLS (20/12/2019 - ...) -
1079 9931 46 1 LABEL (20/12/2019 - ...) -
1637 0000 72 1 DECAL BP (20/12/2019 - ...) -
1625 1406 59 1 CONTACTOR (20/12/2019 - ...) K22
1089 9424 61 1 RELAY OVERLOAD (20/12/2019 - ...) F21
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1088 1001 02 1 WARNING MARK (21/01/2020 - ...) -
1079 9901 68 1 LABEL (21/01/2020 - ...) -
0698 5143 78 1 CABLE GLAND (21/01/2020 - ...) A1
0697 9811 44 1 PLUG (21/01/2020 - ...) A1
Legend:
MODEL:GA22P_18W - Model:GA 22+ MOVOL:400V - Supply voltage:400 V
16.30 - Cubicle components GA 26+ - 400V
MODEL:GA26P_18W + MOVOL:400V
136 9829 3527 14
16.30 - Cubicle components GA 26+ - 400V
MODEL:GA26P_18W + MOVOL:400V
9829 3527 14 137
Ref Part Number Qty Name Validity EL
1092 9077 72 1 CUBICLE (20/12/2019 - ...)
1092 2023 16 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
9829 3526 93 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 94 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 92 1 SERVICE DIAGRAM (20/12/2019 - ...) -
9829 3526 71 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
1089 9245 85 1 CONTACTOR (20/12/2019 - ...) K22
1089 9601 80 2 CONTACT (20/12/2019 - ...) K21,23
1091 6364 48 2 END BRACKET (20/12/2019 - ...) 2X31
1088 0037 81 1 CONNECTOR (20/12/2019 - ...) 2X27
1088 0037 80 1 CONNECTOR (20/12/2019 - ...) 2X28
1088 0031 32 1 CONNECTOR (20/12/2019 - ...) 2X30
1088 0031 26 1 CONNECTOR (20/12/2019 - ...) 2X31
1625 1205 01 3 FUSEHOLDER (20/12/2019 - ...) F1-3
0698 5143 74 1 CABLE GLAND (20/12/2019 - ...) WH
1089 9204 85 1 TRANSFORMER (20/12/2019 - ...) T1
0697 9811 43 1 PLUG (20/12/2019 - ...) M1 cable 2
1089 9575 16 1 RELAY (20/12/2019 - ...) K25
1089 9421 07 1 CONTACTOR (20/12/2019 - ...) K5
1089 9333 06 2 FUSE HOLDER (20/12/2019 - ...) F1-2
1088 0037 30 1 CONNECTOR (20/12/2019 - ...)
Electrical legend: 1X5
1089 9427 85 1 CONNECTOR (20/12/2019 - ...) 1X4
1089 9421 33 2 CONTACTOR (20/12/2019 - ...) K21,23
0698 5143 75 2 CABLE GLAND (20/12/2019 - ...) PT20,FAN
1089 0577 47 10 TERMINAL (20/12/2019 - ...) 1X4,1X6
1089 0577 84 2 PLATE (20/12/2019 - ...) 1X4,1X6
0698 5143 76 1 CABLE GLAND (20/12/2019 - ...) TT01
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1089 9333 06 1 FUSE HOLDER (20/12/2019 - ...) F3
1089 9427 49 5 TERMINAL (20/12/2019 - ...) 1X1,1X2
1089 9427 48 2 PLATE END (20/12/2019 - ...) 1X1,1X2
1089 0577 34 1 TERMINAL USLKG5 (20/12/2019 - ...) 1X2
1088 0032 47 1 TERMINAL (20/12/2019 - ...) 1X0
1089 0419 05 1 CIRCUIT BREAKER (21/01/2020 - ...) Q15
1089 9287 41 1 EME STOP BUTTON (20/12/2019 - ...) S3
1089 9486 57 2 FILTER (20/12/2019 - ...)
Electrical legend: FILTER
1089 9366 37 1 PLUG-IN BRIDGE (20/12/2019 - ...) 1X4
1089 0571 67 1 FAN (20/12/2019 - ...)
Electrical legend: M5+FILTER
1622 0000 20 2 DECAL SYMBOLS (20/12/2019 - ...) -
1079 9931 46 1 LABEL (20/12/2019 - ...) -
1637 0000 72 1 DECAL BP (20/12/2019 - ...) -
1089 9224 32 1 CONTACTOR (20/12/2019 - ...) K22
1089 9424 62 1 RELAY OVERLOAD (20/12/2019 - ...) F21
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1088 1001 02 1 WARNING MARK (21/01/2020 - ...) -
0698 5143 78 1 CABLE GLAND (21/01/2020 - ...) A1
0697 9811 44 1 PLUG (21/01/2020 - ...) A1
Legend:
MODEL:GA26P_18W - Model:GA 26+ MOVOL:400V - Supply voltage:400 V
16.31 - Cubicle components GA 30 - 400V
MODEL:GA30_18W + MOVOL:400V
138 9829 3527 14
16.31 - Cubicle components GA 30 - 400V
MODEL:GA30_18W + MOVOL:400V
9829 3527 14 139
Ref Part Number Qty Name Validity EL
1092 9077 70 1 CUBICLE (20/12/2019 - ...)
1092 2023 16 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
9829 3526 93 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 94 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 92 1 SERVICE DIAGRAM (20/12/2019 - ...) -
9829 3526 71 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
1089 9245 85 1 CONTACTOR (20/12/2019 - ...) K22
1089 9601 80 2 CONTACT (20/12/2019 - ...) K21,23
1091 6364 48 2 END BRACKET (20/12/2019 - ...) 2X31
1088 0037 81 1 CONNECTOR (20/12/2019 - ...) 2X27
1088 0037 80 1 CONNECTOR (20/12/2019 - ...) 2X28
1088 0031 32 1 CONNECTOR (20/12/2019 - ...) 2X30
1088 0031 26 1 CONNECTOR (20/12/2019 - ...) 2X31
1625 1205 01 3 FUSEHOLDER (20/12/2019 - ...) F1-3
0698 5143 74 1 CABLE GLAND (20/12/2019 - ...) WH
1089 9204 85 1 TRANSFORMER (20/12/2019 - ...) T1
0697 9811 43 1 PLUG (20/12/2019 - ...) M1 cable 2
1089 9575 16 1 RELAY (20/12/2019 - ...) K25
1089 9421 07 1 CONTACTOR (20/12/2019 - ...) K5
1089 9333 06 2 FUSE HOLDER (20/12/2019 - ...) F1-2
1088 0037 30 1 CONNECTOR (20/12/2019 - ...)
Electrical legend: 1X5
1089 9427 85 1 CONNECTOR (20/12/2019 - ...) 1X4
1089 9421 33 2 CONTACTOR (20/12/2019 - ...) K21,23
0698 5143 75 2 CABLE GLAND (20/12/2019 - ...) PT20,FAN
1089 0577 47 10 TERMINAL (20/12/2019 - ...) 1X4,1X6
1089 0577 84 2 PLATE (20/12/2019 - ...) 1X4,1X6
0698 5143 76 1 CABLE GLAND (20/12/2019 - ...) TT01
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1089 9333 06 1 FUSE HOLDER (20/12/2019 - ...) F3
1089 9427 49 5 TERMINAL (20/12/2019 - ...) 1X1,1X2
1089 9427 48 2 PLATE END (20/12/2019 - ...) 1X1,1X2
1089 0577 34 1 TERMINAL USLKG5 (20/12/2019 - ...) 1X2
1088 0032 47 1 TERMINAL (20/12/2019 - ...) 1X0
1089 0419 05 1 CIRCUIT BREAKER (21/01/2020 - ...) Q15
1089 9287 41 1 EME STOP BUTTON (20/12/2019 - ...) S3
1089 9486 57 2 FILTER (20/12/2019 - ...)
Electrical legend: FILTER
1089 9366 37 1 PLUG-IN BRIDGE (20/12/2019 - ...) 1X4
1089 0571 67 1 FAN (20/12/2019 - ...)
Electrical legend: M5+FILTER
1622 0000 20 2 DECAL SYMBOLS (20/12/2019 - ...) -
1079 9931 46 1 LABEL (20/12/2019 - ...) -
1637 0000 72 1 DECAL BP (20/12/2019 - ...) -
1089 9224 32 1 CONTACTOR (20/12/2019 - ...) K22
1089 9424 62 1 RELAY OVERLOAD (20/12/2019 - ...) F21
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1088 1001 02 1 WARNING MARK (21/01/2020 - ...) -
0698 5143 78 1 CABLE GLAND (21/01/2020 - ...) A1
0697 9811 44 1 PLUG (21/01/2020 - ...) A1
Legend:
MODEL:GA30_18W - Model:GA 30 MOVOL:400V - Supply voltage:400 V
16.32 - Cubicle components GA 11+ - 460V
MODEL:GA11P_18W + MOVOL:460V
140 9829 3527 14
16.32 - Cubicle components GA 11+ - 460V
MODEL:GA11P_18W + MOVOL:460V
9829 3527 14 141
Ref Part Number Qty Name Validity EL
1092 2023 25 1 CUBICLE (20/12/2019 - ...)
1092 2023 16 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
9829 3526 93 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 94 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 92 1 SERVICE DIAGRAM (20/12/2019 - ...) -
9829 3526 71 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
1089 9245 85 1 CONTACTOR (20/12/2019 - ...) K22
1089 9245 85 2 CONTACTOR (20/12/2019 - ...) K21,23
1091 6364 48 4 END BRACKET (20/12/2019 - ...) 2X31
1088 0037 81 1 CONNECTOR (20/12/2019 - ...) 2X27
1088 0037 80 1 CONNECTOR (20/12/2019 - ...) 2X28
1088 0031 32 1 CONNECTOR (20/12/2019 - ...) 2X30
1088 0031 26 1 CONNECTOR (20/12/2019 - ...) 2X31
1625 1205 01 3 FUSEHOLDER (20/12/2019 - ...) F1-3
0698 5143 74 1 CABLE GLAND (20/12/2019 - ...) WH
1089 9204 86 1 TRANSFORMER (20/12/2019 - ...) T1
0697 9811 43 1 PLUG (20/12/2019 - ...) M1 cable 2
1089 9575 16 1 RELAY (20/12/2019 - ...) K25
1089 9421 07 1 CONTACTOR (20/12/2019 - ...) K5
1089 9333 06 2 FUSE HOLDER (20/12/2019 - ...) F1-2
1088 0037 30 1 CONNECTOR (20/12/2019 - ...)
Electrical legend: 1X5
1089 9427 85 1 CONNECTOR (20/12/2019 - ...) 1X4
1089 9321 41 2 CONTACTOR (20/12/2019 - ...) K21,23
0698 5143 75 2 CABLE GLAND (20/12/2019 - ...) PT20,FAN
1089 0577 47 10 TERMINAL (20/12/2019 - ...) 1X4,1X6
1089 0577 84 2 PLATE (20/12/2019 - ...) 1X4,1X6
0698 5143 76 1 CABLE GLAND (20/12/2019 - ...) TT01
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1089 9333 06 1 FUSE HOLDER (20/12/2019 - ...) F3
1089 9427 49 6 TERMINAL (20/12/2019 - ...) 1X1,1X2
1089 9427 48 3 PLATE END (20/12/2019 - ...) 1X1,1X2
1089 0577 34 1 TERMINAL USLKG5 (20/12/2019 - ...) 1X2
1088 0032 84 1 TERMINAL (20/12/2019 - ...) 1X0
1089 9268 37 1 OVERLOAD RELAY (21/01/2020 - ...) F15
1625 1205 01 3 FUSEHOLDER (20/12/2019 - ...) F10-12
1089 9287 41 1 EME STOP BUTTON (20/12/2019 - ...) S3
1089 9486 57 2 FILTER (20/12/2019 - ...)
Electrical legend: FILTER
1089 9366 37 1 PLUG-IN BRIDGE (20/12/2019 - ...) 1X4
1089 0571 67 1 FAN (20/12/2019 - ...)
Electrical legend: M5+FILTER
1622 0000 20 2 DECAL SYMBOLS (20/12/2019 - ...) -
1079 9931 46 1 LABEL (20/12/2019 - ...) -
1637 0000 72 1 DECAL BP (20/12/2019 - ...) -
1625 1406 58 1 CONTACTOR (20/12/2019 - ...) K22
1089 9224 61 1 OVERLOAD RELAY (20/12/2019 - ...) F21
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1088 0027 53 6 TERMINAL BLOCK (20/12/2019 - ...) 1X1
1088 0027 54 1 END COVER (20/12/2019 - ...) 1X1
1089 9333 06 3 FUSE HOLDER (20/12/2019 - ...) F10-12
1089 9427 26 3 TERMINAL (20/12/2019 - ...) 1X1
Legend:
MODEL:GA11P_18W - Model:GA 11+ MOVOL:460V - Supply voltage:460 V
16.32 - Cubicle components GA 11+ - 460V
MODEL:GA11P_18W + MOVOL:460V
142 9829 3527 14
16.32 - Cubicle components GA 11+ - 460V
MODEL:GA11P_18W + MOVOL:460V
9829 3527 14 143
Ref Part Number Qty Name Validity EL
1089 9366 17 1 COVER PROTECT (20/12/2019 - ...) 1X1
0698 5143 78 1 CABLE GLAND (21/01/2020 - ...) A1
0697 9811 44 1 PLUG (21/01/2020 - ...) A1
Legend:
MODEL:GA11P_18W - Model:GA 11+ MOVOL:460V - Supply voltage:460 V
16.33 - Cubicle components GA 15+ - 460V
MODEL:GA15P_18W + MOVOL:460V
144 9829 3527 14
16.33 - Cubicle components GA 15+ - 460V
MODEL:GA15P_18W + MOVOL:460V
9829 3527 14 145
Ref Part Number Qty Name Validity EL
1092 9077 78 1 CUBICLE (20/12/2019 - ...)
1092 2023 16 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
9829 3526 93 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 94 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 92 1 SERVICE DIAGRAM (20/12/2019 - ...) -
9829 3526 71 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
1089 9245 85 1 CONTACTOR (20/12/2019 - ...) K22
1091 6364 48 4 END BRACKET (20/12/2019 - ...) 2X31
1088 0037 81 1 CONNECTOR (20/12/2019 - ...) 2X27
1088 0037 80 1 CONNECTOR (20/12/2019 - ...) 2X28
1088 0031 32 1 CONNECTOR (20/12/2019 - ...) 2X30
1088 0031 26 1 CONNECTOR (20/12/2019 - ...) 2X31
1625 1205 01 3 FUSEHOLDER (20/12/2019 - ...) F1-3
0698 5143 74 1 CABLE GLAND (20/12/2019 - ...) WH
1089 9204 86 1 TRANSFORMER (20/12/2019 - ...) T1
0697 9811 43 1 PLUG (20/12/2019 - ...) M1 cable 2
1089 9575 16 1 RELAY (20/12/2019 - ...) K25
1089 9421 07 1 CONTACTOR (20/12/2019 - ...) K5
1089 9333 06 2 FUSE HOLDER (20/12/2019 - ...) F1-2
1088 0037 30 1 CONNECTOR (20/12/2019 - ...)
Electrical legend: 1X5
1089 9427 85 1 CONNECTOR (20/12/2019 - ...) 1X4
1625 1406 59 2 CONTACTOR (20/12/2019 - ...) K21,23
0698 5143 75 2 CABLE GLAND (20/12/2019 - ...) PT20,FAN
1089 0577 47 10 TERMINAL (20/12/2019 - ...) 1X4,1X6
1089 0577 84 2 PLATE (20/12/2019 - ...) 1X4,1X6
0698 5143 76 1 CABLE GLAND (20/12/2019 - ...) TT01
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1089 9333 06 1 FUSE HOLDER (20/12/2019 - ...) F3
1089 9427 49 6 TERMINAL (20/12/2019 - ...) 1X1,1X2
1089 9427 48 3 PLATE END (20/12/2019 - ...) 1X1,1X2
1089 0577 34 1 TERMINAL USLKG5 (20/12/2019 - ...) 1X2
1088 0032 84 1 TERMINAL (20/12/2019 - ...) 1X0
1089 9268 37 1 OVERLOAD RELAY (21/01/2020 - ...) F15
1625 1205 01 3 FUSEHOLDER (20/12/2019 - ...) F10-12
1089 9287 41 1 EME STOP BUTTON (20/12/2019 - ...) S3
1089 9486 57 2 FILTER (20/12/2019 - ...)
Electrical legend: FILTER
1089 9366 37 1 PLUG-IN BRIDGE (20/12/2019 - ...) 1X4
1089 0571 67 1 FAN (20/12/2019 - ...)
Electrical legend: M5+FILTER
1622 0000 20 2 DECAL SYMBOLS (20/12/2019 - ...) -
1079 9931 46 1 LABEL (20/12/2019 - ...) -
1637 0000 72 1 DECAL BP (20/12/2019 - ...) -
1625 1407 32 1 CONTACTOR (20/12/2019 - ...) K22
1089 9224 64 1 OVERLOAD RELAY (20/12/2019 - ...) F21
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1088 0027 53 6 TERMINAL BLOCK (20/12/2019 - ...) 1X1
1088 0027 54 1 END COVER (20/12/2019 - ...) 1X1
1089 9333 06 3 FUSE HOLDER (20/12/2019 - ...) F10-12
1089 9427 26 3 TERMINAL (20/12/2019 - ...) 1X1
1089 9366 17 1 COVER PROTECT (20/12/2019 - ...) 1X1
Legend:
MODEL:GA15P_18W - Model:GA 15+ MOVOL:460V - Supply voltage:460 V
16.33 - Cubicle components GA 15+ - 460V
MODEL:GA15P_18W + MOVOL:460V
146 9829 3527 14
16.33 - Cubicle components GA 15+ - 460V
MODEL:GA15P_18W + MOVOL:460V
9829 3527 14 147
Ref Part Number Qty Name Validity EL
0698 5143 78 1 CABLE GLAND (21/01/2020 - ...) A1
0697 9811 44 1 PLUG (21/01/2020 - ...) A1
Legend:
MODEL:GA15P_18W - Model:GA 15+ MOVOL:460V - Supply voltage:460 V
16.34 - Cubicle components GA 18+ - 460V
MODEL:GA18P_18W + MOVOL:460V
148 9829 3527 14
16.34 - Cubicle components GA 18+ - 460V
MODEL:GA18P_18W + MOVOL:460V
9829 3527 14 149
Ref Part Number Qty Name Validity EL
1092 2023 33 1 CUBICLE (20/12/2019 - ...)
1092 2023 16 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
9829 3526 93 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 94 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 92 1 SERVICE DIAGRAM (20/12/2019 - ...) -
9829 3526 71 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
1089 9245 85 1 CONTACTOR (20/12/2019 - ...) K22
1089 9245 85 2 CONTACTOR (20/12/2019 - ...) K21,23
1091 6364 48 4 END BRACKET (20/12/2019 - ...) 2X31
1088 0037 81 1 CONNECTOR (20/12/2019 - ...) 2X27
1088 0037 80 1 CONNECTOR (20/12/2019 - ...) 2X28
1088 0031 32 1 CONNECTOR (20/12/2019 - ...) 2X30
1088 0031 26 1 CONNECTOR (20/12/2019 - ...) 2X31
1625 1205 01 3 FUSEHOLDER (20/12/2019 - ...) F1-3
0698 5143 74 1 CABLE GLAND (20/12/2019 - ...) WH
1089 9204 86 1 TRANSFORMER (20/12/2019 - ...) T1
0697 9811 43 1 PLUG (20/12/2019 - ...) M1 cable 2
1089 9575 16 1 RELAY (20/12/2019 - ...) K25
1089 9421 07 1 CONTACTOR (20/12/2019 - ...) K5
1089 9333 06 2 FUSE HOLDER (20/12/2019 - ...) F1-2
1088 0037 30 1 CONNECTOR (20/12/2019 - ...)
Electrical legend: 1X5
1089 9427 85 1 CONNECTOR (20/12/2019 - ...) 1X4
1089 9224 32 2 CONTACTOR (20/12/2019 - ...) K21,23
0698 5143 75 2 CABLE GLAND (20/12/2019 - ...) PT20,FAN
1089 0577 47 10 TERMINAL (20/12/2019 - ...) 1X4,1X6
1089 0577 84 2 PLATE (20/12/2019 - ...) 1X4,1X6
0698 5143 76 1 CABLE GLAND (20/12/2019 - ...) TT01
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1089 9333 06 1 FUSE HOLDER (20/12/2019 - ...) F3
1089 9427 49 6 TERMINAL (20/12/2019 - ...) 1X1,1X2
1089 9427 48 3 PLATE END (20/12/2019 - ...) 1X1,1X2
1089 0577 34 1 TERMINAL USLKG5 (20/12/2019 - ...) 1X2
1088 0032 84 1 TERMINAL (20/12/2019 - ...) 1X0
1089 9268 27 1 OVERLOAD RELAY (20/12/2019 - ...) F15
1625 1205 01 3 FUSEHOLDER (20/12/2019 - ...) F10-12
1089 9287 41 1 EME STOP BUTTON (20/12/2019 - ...) S3
1089 9486 57 2 FILTER (20/12/2019 - ...)
Electrical legend: FILTER
1089 9366 37 1 PLUG-IN BRIDGE (20/12/2019 - ...) 1X4
1089 0571 67 1 FAN (20/12/2019 - ...)
Electrical legend: M5+FILTER
1622 0000 20 2 DECAL SYMBOLS (20/12/2019 - ...) -
1079 9931 46 1 LABEL (20/12/2019 - ...) -
1637 0000 72 1 DECAL BP (20/12/2019 - ...) -
1089 9321 41 1 CONTACTOR (20/12/2019 - ...) K22
1089 9224 62 1 OVERLOAD RELAY (20/12/2019 - ...) F21
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1088 0027 53 6 TERMINAL BLOCK (20/12/2019 - ...) 1X1
1088 0027 54 1 END COVER (20/12/2019 - ...) 1X1
1089 9333 06 3 FUSE HOLDER (20/12/2019 - ...) F10-12
1089 9427 26 3 TERMINAL (20/12/2019 - ...) 1X1
Legend:
MODEL:GA18P_18W - Model:GA 18+ MOVOL:460V - Supply voltage:460 V
16.34 - Cubicle components GA 18+ - 460V
MODEL:GA18P_18W + MOVOL:460V
150 9829 3527 14
16.34 - Cubicle components GA 18+ - 460V
MODEL:GA18P_18W + MOVOL:460V
9829 3527 14 151
Ref Part Number Qty Name Validity EL
1089 9366 17 1 COVER PROTECT (20/12/2019 - ...) 1X1
0698 5143 78 1 CABLE GLAND (21/01/2020 - ...) A1
0697 9811 44 1 PLUG (21/01/2020 - ...) A1
Legend:
MODEL:GA18P_18W - Model:GA 18+ MOVOL:460V - Supply voltage:460 V
16.35 - Cubicle components GA 22+ - 460V
MODEL:GA22P_18W + MOVOL:460V
152 9829 3527 14
16.35 - Cubicle components GA 22+ - 460V
MODEL:GA22P_18W + MOVOL:460V
9829 3527 14 153
Ref Part Number Qty Name Validity EL
1092 9077 73 1 CUBICLE (20/12/2019 - ...)
1092 2023 16 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
9829 3526 93 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 94 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 92 1 SERVICE DIAGRAM (20/12/2019 - ...) -
9829 3526 71 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
1089 9245 85 1 CONTACTOR (20/12/2019 - ...) K22
1089 9245 85 2 CONTACTOR (20/12/2019 - ...) K21,23
1091 6364 48 4 END BRACKET (20/12/2019 - ...) 2X31
1088 0037 81 1 CONNECTOR (20/12/2019 - ...) 2X27
1088 0037 80 1 CONNECTOR (20/12/2019 - ...) 2X28
1088 0031 32 1 CONNECTOR (20/12/2019 - ...) 2X30
1088 0031 26 1 CONNECTOR (20/12/2019 - ...) 2X31
1625 1205 01 3 FUSEHOLDER (20/12/2019 - ...) F1-3
0698 5143 74 1 CABLE GLAND (20/12/2019 - ...) WH
1089 9204 86 1 TRANSFORMER (20/12/2019 - ...) T1
0697 9811 43 1 PLUG (20/12/2019 - ...) M1 cable 2
1089 9575 16 1 RELAY (20/12/2019 - ...) K25
1089 9421 07 1 CONTACTOR (20/12/2019 - ...) K5
1089 9333 06 2 FUSE HOLDER (20/12/2019 - ...) F1-2
1088 0037 30 1 CONNECTOR (20/12/2019 - ...)
Electrical legend: 1X5
1089 9427 85 1 CONNECTOR (20/12/2019 - ...) 1X4
1089 9224 32 2 CONTACTOR (20/12/2019 - ...) K21,23
0698 5143 75 2 CABLE GLAND (20/12/2019 - ...) PT20,FAN
1089 0577 47 10 TERMINAL (20/12/2019 - ...) 1X4,1X6
1089 0577 84 2 PLATE (20/12/2019 - ...) 1X4,1X6
0698 5143 76 1 CABLE GLAND (20/12/2019 - ...) TT01
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1089 9333 06 1 FUSE HOLDER (20/12/2019 - ...) F3
1089 9427 49 6 TERMINAL (20/12/2019 - ...) 1X1,1X2
1089 9427 48 3 PLATE END (20/12/2019 - ...) 1X1,1X2
1089 0577 34 1 TERMINAL USLKG5 (20/12/2019 - ...) 1X2
1088 0032 84 1 TERMINAL (20/12/2019 - ...) 1X0
1089 9268 27 1 OVERLOAD RELAY (20/12/2019 - ...) F15
1625 1205 01 3 FUSEHOLDER (20/12/2019 - ...) F10-12
1089 9287 41 1 EME STOP BUTTON (20/12/2019 - ...) S3
1089 9486 57 2 FILTER (20/12/2019 - ...)
Electrical legend: FILTER
1089 9366 37 1 PLUG-IN BRIDGE (20/12/2019 - ...) 1X4
1089 0571 67 1 FAN (20/12/2019 - ...)
Electrical legend: M5+FILTER
1622 0000 20 2 DECAL SYMBOLS (20/12/2019 - ...) -
1079 9931 46 1 LABEL (20/12/2019 - ...) -
1637 0000 72 1 DECAL BP (20/12/2019 - ...) -
1089 9321 41 1 CONTACTOR (20/12/2019 - ...) K22
1089 9224 63 1 3RU6126-4EB0 (21/01/2020 - ...) F21
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1088 0027 53 6 TERMINAL BLOCK (20/12/2019 - ...) 1X1
1088 0027 54 1 END COVER (20/12/2019 - ...) 1X1
1089 9333 06 3 FUSE HOLDER (20/12/2019 - ...) F10-12
1089 9427 26 3 TERMINAL (20/12/2019 - ...) 1X1
Legend:
MODEL:GA22P_18W - Model:GA 22+ MOVOL:460V - Supply voltage:460 V
16.35 - Cubicle components GA 22+ - 460V
MODEL:GA22P_18W + MOVOL:460V
154 9829 3527 14
16.35 - Cubicle components GA 22+ - 460V
MODEL:GA22P_18W + MOVOL:460V
9829 3527 14 155
Ref Part Number Qty Name Validity EL
1089 9366 17 1 COVER PROTECT (20/12/2019 - ...) 1X1
0698 5143 78 1 CABLE GLAND (21/01/2020 - ...) A1
0697 9811 44 1 PLUG (21/01/2020 - ...) A1
Legend:
MODEL:GA22P_18W - Model:GA 22+ MOVOL:460V - Supply voltage:460 V
16.36 - Cubicle components GA 26+ - 460V
MODEL:GA26P_18W + MOVOL:460V
156 9829 3527 14
16.36 - Cubicle components GA 26+ - 460V
MODEL:GA26P_18W + MOVOL:460V
9829 3527 14 157
Ref Part Number Qty Name Validity EL
1092 2023 40 1 CUBICLE (20/12/2019 - ...)
1092 2023 16 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
9829 3526 93 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 94 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 92 1 SERVICE DIAGRAM (20/12/2019 - ...) -
9829 3526 71 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
1089 9245 85 1 CONTACTOR (20/12/2019 - ...) K22
1089 9601 80 2 CONTACT (20/12/2019 - ...) K21,23
1091 6364 48 4 END BRACKET (20/12/2019 - ...) 2X31
1088 0037 81 1 CONNECTOR (20/12/2019 - ...) 2X27
1088 0037 80 1 CONNECTOR (20/12/2019 - ...) 2X28
1088 0031 32 1 CONNECTOR (20/12/2019 - ...) 2X30
1088 0031 26 1 CONNECTOR (20/12/2019 - ...) 2X31
1625 1205 01 3 FUSEHOLDER (20/12/2019 - ...) F1-3
0698 5143 74 1 CABLE GLAND (20/12/2019 - ...) WH
1089 9204 86 1 TRANSFORMER (20/12/2019 - ...) T1
0697 9811 43 1 PLUG (20/12/2019 - ...) M1 cable 2
1089 9575 16 1 RELAY (20/12/2019 - ...) K25
1089 9421 07 1 CONTACTOR (20/12/2019 - ...) K5
1089 9333 06 2 FUSE HOLDER (20/12/2019 - ...) F1-2
1088 0037 30 1 CONNECTOR (20/12/2019 - ...)
Electrical legend: 1X5
1089 9427 85 1 CONNECTOR (20/12/2019 - ...) 1X4
1089 9224 43 2 CONTACTORS (20/12/2019 - ...) K21,23
0698 5143 75 2 CABLE GLAND (20/12/2019 - ...) PT20,FAN
1089 0577 47 10 TERMINAL (20/12/2019 - ...) 1X4,1X6
1089 0577 84 2 PLATE (20/12/2019 - ...) 1X4,1X6
0698 5143 76 1 CABLE GLAND (20/12/2019 - ...) TT01
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1089 9333 06 1 FUSE HOLDER (20/12/2019 - ...) F3
1089 9427 49 6 TERMINAL (20/12/2019 - ...) 1X1,1X2
1089 9427 48 3 PLATE END (20/12/2019 - ...) 1X1,1X2
1089 0577 34 1 TERMINAL USLKG5 (20/12/2019 - ...) 1X2
1088 0032 84 1 TERMINAL (20/12/2019 - ...) 1X0
1089 9268 27 1 OVERLOAD RELAY (20/12/2019 - 20/01/2020) F15
1089 9268 30 1 OVERLOAD RELAY (21/01/2020 - ...) F15
1625 1205 01 3 FUSEHOLDER (20/12/2019 - ...) F10-12
1089 9287 41 1 EME STOP BUTTON (20/12/2019 - ...) S3
1089 9486 57 2 FILTER (20/12/2019 - ...)
Electrical legend: FILTER
1089 9366 37 1 PLUG-IN BRIDGE (20/12/2019 - ...) 1X4
1089 0571 67 1 FAN (20/12/2019 - ...)
Electrical legend: M5+FILTER
1622 0000 20 2 DECAL SYMBOLS (20/12/2019 - ...) -
1079 9931 46 1 LABEL (20/12/2019 - ...) -
1637 0000 72 1 DECAL BP (20/12/2019 - ...) -
1625 1406 59 1 CONTACTOR (20/12/2019 - ...) K22
1089 9424 61 1 RELAY OVERLOAD (20/12/2019 - ...) F21
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1088 0027 53 6 TERMINAL BLOCK (20/12/2019 - ...) 1X1
1088 0027 54 1 END COVER (20/12/2019 - ...) 1X1
1089 9333 06 3 FUSE HOLDER (20/12/2019 - ...) F10-12
Legend:
MODEL:GA26P_18W - Model:GA 26+ MOVOL:460V - Supply voltage:460 V
16.36 - Cubicle components GA 26+ - 460V
MODEL:GA26P_18W + MOVOL:460V
158 9829 3527 14
16.36 - Cubicle components GA 26+ - 460V
MODEL:GA26P_18W + MOVOL:460V
9829 3527 14 159
Ref Part Number Qty Name Validity EL
1089 9427 26 3 TERMINAL (20/12/2019 - ...) 1X1
1089 9366 17 1 COVER PROTECT (20/12/2019 - ...) 1X1
0698 5143 78 1 CABLE GLAND (21/01/2020 - ...) A1
0697 9811 44 1 PLUG (21/01/2020 - ...) A1
Legend:
MODEL:GA26P_18W - Model:GA 26+ MOVOL:460V - Supply voltage:460 V
16.37 - Cubicle components GA 30 - 460V
MODEL:GA30_18W + MOVOL:460V
160 9829 3527 14
16.37 - Cubicle components GA 30 - 460V
MODEL:GA30_18W + MOVOL:460V
9829 3527 14 161
Ref Part Number Qty Name Validity EL
1092 9077 67 1 CUBICLE (20/12/2019 - ...)
1092 2023 16 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
9829 3526 93 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 94 1 WIRE HARNESS (20/12/2019 - ...) -
9829 3526 92 1 SERVICE DIAGRAM (20/12/2019 - ...) -
9829 3526 71 1 CUBICLE ASSEMBLY (20/12/2019 - ...) -
1089 9245 85 1 CONTACTOR (20/12/2019 - ...) K22
1089 9601 80 2 CONTACT (20/12/2019 - ...) K21,23
1091 6364 48 4 END BRACKET (20/12/2019 - ...) 2X31
1088 0037 81 1 CONNECTOR (20/12/2019 - ...) 2X27
1088 0037 80 1 CONNECTOR (20/12/2019 - ...) 2X28
1088 0031 32 1 CONNECTOR (20/12/2019 - ...) 2X30
1088 0031 26 1 CONNECTOR (20/12/2019 - ...) 2X31
1625 1205 01 3 FUSEHOLDER (20/12/2019 - ...) F1-3
0698 5143 74 1 CABLE GLAND (20/12/2019 - ...) WH
1089 9204 86 1 TRANSFORMER (20/12/2019 - ...) T1
0697 9811 43 1 PLUG (20/12/2019 - ...) M1 cable 2
1089 9575 16 1 RELAY (20/12/2019 - ...) K25
1089 9421 07 1 CONTACTOR (20/12/2019 - ...) K5
1089 9333 06 2 FUSE HOLDER (20/12/2019 - ...) F1-2
1088 0037 30 1 CONNECTOR (20/12/2019 - ...)
Electrical legend: 1X5
1089 9427 85 1 CONNECTOR (20/12/2019 - ...) 1X4
1089 9421 33 2 CONTACTOR (20/12/2019 - ...) K21,23
0698 5143 75 2 CABLE GLAND (20/12/2019 - ...) PT20,FAN
1089 0577 47 10 TERMINAL (20/12/2019 - ...) 1X4,1X6
1089 0577 84 2 PLATE (20/12/2019 - ...) 1X4,1X6
0698 5143 76 1 CABLE GLAND (20/12/2019 - ...) TT01
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1089 9333 06 1 FUSE HOLDER (20/12/2019 - ...) F3
1089 9427 49 6 TERMINAL (20/12/2019 - ...) 1X1,1X2
1089 9427 48 3 PLATE END (20/12/2019 - ...) 1X1,1X2
1089 0577 34 1 TERMINAL USLKG5 (20/12/2019 - ...) 1X2
1088 0032 84 1 TERMINAL (20/12/2019 - ...) 1X0
1089 9268 27 1 OVERLOAD RELAY (20/12/2019 - 20/01/2020) F15
1089 9268 30 1 OVERLOAD RELAY (21/01/2020 - ...) F15
1625 1205 01 3 FUSEHOLDER (20/12/2019 - ...) F10-12
1089 9287 41 1 EME STOP BUTTON (20/12/2019 - ...) S3
1089 9486 57 2 FILTER (20/12/2019 - ...)
Electrical legend: FILTER
1089 9366 37 1 PLUG-IN BRIDGE (20/12/2019 - ...) 1X4
1089 0571 67 1 FAN (20/12/2019 - ...)
Electrical legend: M5+FILTER
1622 0000 20 2 DECAL SYMBOLS (20/12/2019 - ...) -
1079 9931 46 1 LABEL (20/12/2019 - ...) -
1637 0000 72 1 DECAL BP (20/12/2019 - ...) -
1625 1406 59 1 CONTACTOR (20/12/2019 - ...) K22
1089 9424 61 1 RELAY OVERLOAD (20/12/2019 - ...) F21
0697 9811 42 1 PLUG (20/12/2019 - ...) TT90
1088 0027 53 6 TERMINAL BLOCK (20/12/2019 - ...) 1X1
1088 0027 54 1 END COVER (20/12/2019 - ...) 1X1
1089 9333 06 3 FUSE HOLDER (20/12/2019 - ...) F10-12
Legend:
MODEL:GA30_18W - Model:GA 30 MOVOL:460V - Supply voltage:460 V
16.37 - Cubicle components GA 30 - 460V
MODEL:GA30_18W + MOVOL:460V
162 9829 3527 14
16.37 - Cubicle components GA 30 - 460V
MODEL:GA30_18W + MOVOL:460V
9829 3527 14 163
Ref Part Number Qty Name Validity EL
1089 9427 26 3 TERMINAL (20/12/2019 - ...) 1X1
1089 9366 17 1 COVER PROTECT (20/12/2019 - ...) 1X1
0698 5143 78 1 CABLE GLAND (21/01/2020 - ...) A1
0697 9811 44 1 PLUG (21/01/2020 - ...) A1
Legend:
MODEL:GA30_18W - Model:GA 30 MOVOL:460V - Supply voltage:460 V
16.38 - Controller GA 11+, GA 15+, GA 22+, GA 26+
MODEL:GA11P_18W , MODEL:GA15P_18W , MODEL:GA18P_18W , MODEL:GA22P_18W , MODEL:GA26P_18W
164 9829 3527 14
16.38 - Controller GA 11+, GA 15+, GA 22+, GA 26+
MODEL:GA11P_18W , MODEL:GA15P_18W , MODEL:GA18P_18W , MODEL:GA22P_18W , MODEL:GA26P_18W
9829 3527 14 165
Ref Part Number Qty Name Validity
1005 0147 1169 03 4 SCREW (26/11/2019 - ...)
1010 1900 5204 00 1 ELEKTRONIKON™ TOUCH CONTROLLER (26/11/2019 - ...)
1015 0301 2315 00 4 PLAIN WASHER (26/11/2019 - ...)
Legend:
MODEL:GA11P_18W - Model:GA 11+
MODEL:GA22P_18W - Model:GA 22+
MODEL:GA15P_18W - Model:GA 15+
MODEL:GA26P_18W - Model:GA 26+
MODEL:GA18P_18W - Model:GA 18+
16.39 - Controller GA 30
MODEL:GA30_18W
166 9829 3527 14
16.39 - Controller GA 30
MODEL:GA30_18W
9829 3527 14 167
Ref Part Number Qty Name Validity
1005 0147 1169 03 4 SCREW (26/11/2019 - ...)
1010 1900 5202 00 1 ELEKTRONIKON™ SWIPE CONTROLLER (26/11/2019 - ...)
1015 0301 2315 00 4 PLAIN WASHER (26/11/2019 - ...)
Legend:
MODEL:GA30_18W - Model:GA 30
17 - Bodywork GA 11+, GA 15+
MODEL:GA11P_18W , MODEL:GA15P_18W
168 9829 3527 14
17 - Bodywork GA 11+, GA 15+
MODEL:GA11P_18W , MODEL:GA15P_18W
9829 3527 14 169
Ref Part Number Qty Name Validity
1005 1092 2023 44 1 FRAME ASSEMBLY (26/11/2019 - ...)
 1622 0000 20 3 DECAL SYMBOLS
2005 0147 1963 08 9 SCREW (05/12/2019 - ...)
2010 0215 0010 13 7 SCREW (05/12/2019 - ...)
2015 0291 1110 00 2 LOCKNUT (05/12/2019 - ...)
2020 1092 2023 08 1 MIDDLE PANEL ASSEMBLY (05/12/2019 - ...)
2025 1092 2023 98 1 SEPARATION PLATE (21/01/2020 - ...)
2030 0215 0010 16 5 SCREW SET (05/12/2019 - ...)
2035 1092 2023 03 1 DRYER SUPPORT PLATE (05/12/2019 - ...)
2040 1092 2023 05 1 BACK PANEL (05/12/2019 - ...)
2045 1092 2023 12 1 ROOF ASSEMBLY (05/12/2019 - ...)
2050 1092 2023 77 1 DRYER PANEL ASSEMBLY (05/12/2019 - ...) IDRY:N
2050 1092 2023 79 1 DRYER PLATE ASSEMBLY (05/12/2019 - ...) IDRY:Y
2060 1625 2201 34 1 FRONT PANEL ASSEMBLY (05/12/2019 - ...)
 1622 7673 00 1 LOCK
 0690 1101 51 1 HOUSE MARK
2065 1092 2023 10 1 PANEL (05/12/2019 - ...)
2070 1092 2023 14 1 PANEL ASSEMBLY (05/12/2019 - ...)
2080 1092 2023 81 1 REINFORCE PLATE (05/12/2019 - ...)
2081 0147 1963 08 2 SCREW (21/01/2020 - ...)
Legend:
IDRY:N - Integrated dryer:No
MODEL:GA15P_18W - Model:GA 15+
IDRY:Y - Integrated dryer:Yes MODEL:GA11P_18W - Model:GA 11+
18 - Bodywork GA 18+, GA 22+, GA 26+, GA 30
MODEL:GA18P_18W , MODEL:GA22P_18W , MODEL:GA26P_18W , MODEL:GA30_18W
170 9829 3527 14
18 - Bodywork GA 18+, GA 22+, GA 26+, GA 30
MODEL:GA18P_18W , MODEL:GA22P_18W , MODEL:GA26P_18W , MODEL:GA30_18W
9829 3527 14 171
Ref Part Number Qty Name Validity
1005 1092 2023 44 1 FRAME ASSEMBLY (26/11/2019 - ...)
 1622 0000 20 3 DECAL SYMBOLS
2005 0147 1963 08 9 SCREW (26/11/2019 - ...)
2010 0215 0010 13 7 SCREW (26/11/2019 - ...)
2015 0291 1110 00 2 LOCKNUT (26/11/2019 - ...)
2020 1092 2023 08 1 MIDDLE PANEL ASSEMBLY (26/11/2019 - ...)
2025 1625 2201 13 1 SEPARATION PLATE ASSEMBLY (26/11/2019 - ...)
2030 0215 0010 16 2 SCREW SET (26/11/2019 - ...)
2035 1092 2023 03 1 DRYER SUPPORT PLATE (26/11/2019 - ...)
2045 1092 2023 05 1 BACK PANEL ASSEMBLY (26/11/2019 - ...)
 1079 9915 89 1 LABEL - AUTOMATIC DRAIN
 1079 9915 98 1 LABEL - MANUAL DRAIN
2050 1092 2023 12 1 ROOF ASSEMBLY (26/11/2019 - ...)
 1079 9931 44 1 DECAL
2055 1092 2023 77 1 DRYER PANEL ASSEMBLY (26/11/2019 - ...) IDRY:N
2055 1092 2023 79 1 DRYER PLATE ASSEMBLY (26/11/2019 - ...) IDRY:Y
2060 1625 2201 34 1 FRONT PANEL ASSEMBLY (26/11/2019 - ...)
 1622 7673 00 1 LOCK
 0690 1101 51 1 HOUSE MARK
2065 1092 2023 10 1 PANEL (26/11/2019 - ...)
2070 1092 2023 14 1 PANEL ASSEMBLY (26/11/2019 - ...)
2080 1092 9002 95 1 PANEL INLET LEFT ASSEMBLY (26/11/2019 - ...)
 1079 9902 55 1 LABEL
2085 1092 2023 81 1 REINFORCE PLATE (05/12/2019 - ...)
2090 0147 1963 08 2 SCREW (21/01/2020 - ...)
Legend:
IDRY:N - Integrated dryer:No
MODEL:GA22P_18W - Model:GA 22+
IDRY:Y - Integrated dryer:Yes
MODEL:GA26P_18W - Model:GA 26+
MODEL:GA18P_18W - Model:GA 18+
MODEL:GA30_18W - Model:GA 30
19 - Markings
172 9829 3527 14
19 - Markings
9829 3527 14 173
Ref Part Number Qty Name Validity
1005 1625 2201 84 1 DECAL UNIT GA22+FF (26/11/2019 - ...) IDRY:Y + MODEL:GA22P_18W
1005 1625 2201 86 1 DECAL UNIT GA26+FF (26/11/2019 - ...) IDRY:Y + MODEL:GA26P_18W
1005 1625 2201 94 1 DECAL UNIT GA30FF (26/11/2019 - ...) IDRY:Y + MODEL:GA30_18W
1005 1625 2201 93 1 DECAL UNIT GA30 (26/11/2019 - ...) IDRY:N + MODEL:GA30_18W
1005 1625 2201 85 1 DECAL UNIT GA26+ (26/11/2019 - ...) IDRY:N + MODEL:GA26P_18W
1005 1625 2201 83 1 DECAL UNIT GA22+ (26/11/2019 - ...) IDRY:N + MODEL:GA22P_18W
1005 1625 2201 81 1 DECAL UNIT GA18+ (26/11/2019 - ...) IDRY:N + MODEL:GA18P_18W
1005 1625 2201 79 1 DECAL UNIT GA15+ (26/11/2019 - ...) IDRY:N + MODEL:GA15P_18W
1005 1625 2201 82 1 DECAL UNIT GA18+FF (26/11/2019 - ...) IDRY:Y + MODEL:GA18P_18W
1005 1625 2201 80 1 DECAL UNIT GA15+FF (26/11/2019 - ...) IDRY:Y + MODEL:GA15P_18W
1005 1625 2201 78 1 DECAL UNIT GA11+FF (26/11/2019 - ...) IDRY:Y + MODEL:GA11P_18W
1005 1625 2201 77 1 DECAL UNIT GA11+ (26/11/2019 - ...) IDRY:N + MODEL:GA11P_18W
1010 1079 9904 99 1 DECAL (26/11/2019 - ...)
1015 1079 9923 72 2 LABEL (26/11/2019 - ...)
1020 1622 3274 02 1 QUICK START GUIDE (26/11/2019 - ...)
1025 1625 2201 44 1 DECAL (26/11/2019 - ...)
1030 1 BLANK BOARD (05/12/2019 - ...)
1035 1088 1001 01 2 WARNING MARK (20/12/2019 - ...)
1040 1092 9002 75 1 DECAL INSTRUCT (26/11/2019 - ...)
1045 1092 2031 29 1 QR LABEL (05/12/2019 - 19/12/2019) (MODEL:GA11P_18W ,
MODEL:GA15P_18W , MODEL:GA18P_18W , MODEL:GA22P_18W ,
MODEL:GA26P_18W) + IDRY:N
(20/12/2019 - ...)
1050 1094 8250 00 1 GCCA CERTIFICATE LABEL (20/12/2019 - ...)
Legend:
IDRY:N - Integrated dryer:No
MODEL:GA15P_18W - Model:GA 15+
MODEL:GA26P_18W - Model:GA 26+
IDRY:Y - Integrated dryer:Yes
MODEL:GA18P_18W - Model:GA 18+
MODEL:GA30_18W - Model:GA 30
MODEL:GA11P_18W - Model:GA 11+
MODEL:GA22P_18W - Model:GA 22+
20.1 - Motor - IE4 GA 11+, GA 15+, GA 18+ - ( 400V )
(MODEL:GA11P_18W , MODEL:GA15P_18W , MODEL:GA18P_18W) + MOVOL:400V
174 9829 3527 14
20.1 - Motor - IE4 GA 11+, GA 15+, GA 18+ - ( 400V )
(MODEL:GA11P_18W , MODEL:GA15P_18W , MODEL:GA18P_18W) + MOVOL:400V
9829 3527 14 175
Ref Part Number Qty Name Validity
1005 1092 9011 70 2 ANTI-VIBRATION PAD (21/01/2020 - ...)
1010 0101 2274 00 2 PIN (21/01/2020 - ...)
1015 0211 1368 00 1 SCREW (21/01/2020 - ...)
1020 1622 6995 00 1 WASHER GEAR MOTOR (21/01/2020 - ...)
1025 1622 6994 01 1 SPACER GEAR MOTOR (21/01/2020 - ...)
1035 0301 2344 00 2 PLAIN WASHER (21/01/2020 - ...)
1045 1092 9011 71 1 ANTI-VIBRATION PAD (21/01/2020 - ...)
1055 0147 1371 03 1 HEXAGON BOLT (21/01/2020 - ...)
 Substituted by: 0147 1964 69 - SCREW (quantity: 1)
1075 0147 1963 08 6 SCREW (21/01/2020 - ...)
1080 0147 1365 03 2 HEXAGON BOLT (21/01/2020 - ...)
2040 1092 9077 55 1 MOTOR ASSEMBLY (21/01/2020 - ...) MODEL:GA18P_18W
1092 9077 53 (21/01/2020 - ...) MODEL:GA15P_18W
1092 9077 51 (21/01/2020 - ...) MODEL:GA11P_18W
3005  0335 2160 00 1 CIRCLIP (21/01/2020 - ...)
3010  1622 6991 00 1 BUSHING (21/01/2020 - ...)
 0211 1326 03 4 SCREW (21/01/2020 - ...)
3020  1616 5742 00 1 LIP SEAL (21/01/2020 - ...)
 Substituted by: 1616 5742 80 - SEAL RING KIT (quantity: 1)
3025  0508 1100 78 1 BEARING ROLLER (21/01/2020 - ...)
 1088 1001 01 1 WARNING MARK (21/01/2020 - ...)
Legend:
MODEL:GA11P_18W - Model:GA 11+
MOVOL:400V - Supply voltage:400 V
MODEL:GA15P_18W - Model:GA 15+ MODEL:GA18P_18W - Model:GA 18+
20.2 - Motor - IE4 GA 11+, GA 15+, GA 18+ - ( 200-220V, 200V, 230V, 460V, 380V )
(MODEL:GA11P_18W , MODEL:GA15P_18W , MODEL:GA18P_18W) + (MOVOL:200-220V , MOVOL:200V , MOVOL:230V , MOVOL:380V , MOVOL:460V)
176 9829 3527 14
20.2 - Motor - IE4 GA 11+, GA 15+, GA 18+ - ( 200-220V, 200V, 230V, 460V, 380V )
(MODEL:GA11P_18W , MODEL:GA15P_18W , MODEL:GA18P_18W) + (MOVOL:200-220V , MOVOL:200V , MOVOL:230V , MOVOL:380V , MOVOL:460V)
9829 3527 14 177
Ref Part Number Qty Name Validity
1005 1092 9011 70 2 ANTI-VIBRATION PAD (21/01/2020 - ...)
1010 0101 2274 00 2 PIN (21/01/2020 - ...)
1015 0211 1368 00 1 SCREW (21/01/2020 - ...)
1020 1622 6995 00 1 WASHER (21/01/2020 - ...)
1025 1622 6994 01 1 SPACER (21/01/2020 - ...)
1030 0337 0009 83 1 KEY PARALLEL (21/01/2020 - ...)
1035 0301 2344 00 2 PLAIN WASHER (21/01/2020 - ...)
1040 1092 2023 91 1 MOTOR ASSEMBLY (21/01/2020 - ...) MODEL:GA11P_18W + MOVOL:380V
1040 1092 2023 92 1 MOTOR ASSEMBLY (21/01/2020 - ...) (MOVOL:200-220V , MOVOL:200V) +
MODEL:GA15P_18W
1040 1092 2023 95 1 MOTOR ASSEMBLY (21/01/2020 - ...) (MOVOL:200-220V , MOVOL:200V) +
MODEL:GA18P_18W
1040 1092 2023 96 1 MOTOR ASSEMBLY (21/01/2020 - ...) (MOVOL:230V , MOVOL:460V) +
MODEL:GA18P_18W
1040 1092 2023 90 1 MOTOR ASSEMBLY (21/01/2020 - ...) (MOVOL:230V , MOVOL:460V) +
MODEL:GA11P_18W
1040 1092 2023 94 1 MOTOR ASSEMBLY (21/01/2020 - ...) MODEL:GA15P_18W + MOVOL:380V
1040 1092 2023 93 1 MOTOR ASSEMBLY (21/01/2020 - ...) (MOVOL:230V , MOVOL:460V) +
MODEL:GA15P_18W
1040 1092 2023 97 1 MOTOR ASSEMBLY (21/01/2020 - ...) MODEL:GA18P_18W + MOVOL:380V
1040 1092 2023 89 1 MOTOR ASSEMBLY (21/01/2020 - ...) (MOVOL:200-220V , MOVOL:200V) +
MODEL:GA11P_18W
1045 1092 9011 71 1 ANTI-VIBRATION PAD (21/01/2020 - ...)
1050 1622 6936 00 1 SPACER (21/01/2020 - ...)
1055 0147 1371 03 1 HEXAGON BOLT (21/01/2020 - ...)
 Substituted by: 0147 1964 69 - SCREW (quantity: 1)
1070 1622 3698 80 1 PLUG ASSEMBLY (21/01/2020 - ...)
1075 0147 1963 08 6 SCREW (21/01/2020 - ...)
1080 0147 1365 03 2 HEXAGON BOLT (21/01/2020 - ...)
Legend:
MODEL:GA11P_18W - Model:GA 11+
MOVOL:200-220V - Supply voltage:200-220 V (3 ph)
MOVOL:380V - Supply voltage:380 V
MODEL:GA15P_18W - Model:GA 15+
MOVOL:200V - Supply voltage:200 V
MOVOL:460V - Supply voltage:460 V
MODEL:GA18P_18W - Model:GA 18+
MOVOL:230V - Supply voltage:230 V
20.3 - Upgrade to Touch Controller
MODEL:GA30_18W
178 9829 3527 14
20.3 - Upgrade to Touch Controller
MODEL:GA30_18W
9829 3527 14 179
Ref Part Number Qty Name Validity
1005 0147 1169 03 4 SCREW (21/01/2020 - ...)
1010 1900 5204 00 1 ELEKTRONIKON™ TOUCH CONTROLLER (21/01/2020 - ...)
1015 0301 2315 00 4 PLAIN WASHER (21/01/2020 - ...)
Legend:
MODEL:GA30_18W - Model:GA 30
20.4 - HAV - Gears
180 9829 3527 14
20.4 - HAV - Gears
9829 3527 14 181
Ref Part Number Qty Name Validity
1005 1092 0026 82 1 GEAR SET (21/01/2020 - ...) (((MODEL:GA18P_18W , MODEL:GA22P_18W)
+ OILTYP:RXD + PRESS:7.5BAR , MODEL:GA22P_18W
+ OILTYP:RSULTRA + PRESS:8.5BAR) + MOVOL:400V ,
((PRESS:10.5BAR , PRESS:7.5BAR) + MODEL:GA22P_18W ,
MODEL:GA18P_18W + PRESS:7.5BAR) + (MOVOL:200V +
OILTYP:RXD , MOVOL:400V + OILTYP:RSULTRA)) + FREQ:50HZ
1005 1092 0026 86 1 GEAR SET (21/01/2020 - ...) FREQ:50HZ + MODEL:GA18P_18W + MOVOL:400V
+ OILTYP:RSULTRA + PRESS:8.5BAR
1005 1622 6988 97 1 GEAR SET (21/01/2020 - ...) (MOVOL:200V + OILTYP:RXD , MOVOL:400V
+ OILTYP:RSULTRA) + FREQ:50HZ + MODEL:GA18P_18W +
PRESS:10.5BAR
1005 1092 0026 73 1 GEAR SET (21/01/2020 - ...) (MOVOL:200V + OILTYP:RXD , MOVOL:400V
+ OILTYP:RSULTRA) + FREQ:50HZ + MODEL:GA22P_18W +
PRESS:13BAR , (MOVOL:380V + OILTYP:RXD , MOVOL:230V ,
MOVOL:460V) + FREQ:60HZ + MODEL:GA18P_18W + PRESS:7.4BAR
1005 1092 2047 84 1 GEAR SET (21/01/2020 - ...) (MOVOL:200V + OILTYP:RXD , MOVOL:400V) +
FREQ:50HZ + MODEL:GA26P_18W + PRESS:7.5BAR
1005 1092 2047 73 1 GEAR SET (21/01/2020 - ...) FREQ:50HZ + MODEL:GA26P_18W + MOVOL:400V
+ OILTYP:RSULTRA + PRESS:8.5BAR
1005 1092 2047 85 1 GEAR SET (21/01/2020 - ...) ((IDRY:N + MOVOL:400V + OILTYP:RSULTRA ,
MOVOL:200V + OILTYP:RXD) + (MODEL:GA26P_18W +
PRESS:10.5BAR , MODEL:GA30_18W + PRESS:13BAR) , IDRY:Y
+ MODEL:GA30_18W + MOVOL:400V + OILTYP:RSULTRA +
PRESS:13BAR) + FREQ:50HZ
1005 1092 2047 77 1 GEAR SET (21/01/2020 - ...) (MODEL:GA26P_18W + PRESS:10.8BAR ,
MODEL:GA30_18W + PRESS:12.5BAR) + (MOVOL:380V +
OILTYP:RXD , MOVOL:230V , MOVOL:460V) + FREQ:60HZ ,
(MOVOL:200V + OILTYP:RXD , MOVOL:400V + OILTYP:RSULTRA) +
FREQ:50HZ + MODEL:GA26P_18W + PRESS:13BAR
1005 1092 2047 69 1 GEAR SET (21/01/2020 - ...) (MOVOL:200V + OILTYP:RXD , MOVOL:400V) +
FREQ:50HZ + MODEL:GA30_18W + PRESS:7.5BAR
1005 1092 2047 70 1 GEAR SET (21/01/2020 - ...) FREQ:50HZ + MODEL:GA30_18W + MOVOL:400V +
OILTYP:RSULTRA + PRESS:8.5BAR
1005 1092 2047 68 1 GEAR SET (21/01/2020 - ...) (MOVOL:200V + OILTYP:RXD , MOVOL:400V
+ OILTYP:RSULTRA) + FREQ:50HZ + MODEL:GA30_18W +
PRESS:10.5BAR
1005 1092 0026 77 1 GEAR SET (21/01/2020 - ...) (MOVOL:200V + OILTYP:RXD , MOVOL:400V
+ OILTYP:RSULTRA) + FREQ:50HZ + MODEL:GA15P_18W +
PRESS:13BAR
1005 1092 0026 74 1 GEAR SET (21/01/2020 - ...) (MODEL:GA15P_18W + PRESS:10.5BAR ,
MODEL:GA18P_18W + PRESS:13BAR) + (MOVOL:200V +
OILTYP:RXD , MOVOL:400V + OILTYP:RSULTRA) + FREQ:50HZ
1005 1092 0026 81 1 GEAR SET (21/01/2020 - ...) ((IDRY:N + MOVOL:460V , MOVOL:230V) +
OILTYP:RSULTRA , (MOVOL:230V , MOVOL:380V , MOVOL:460V)
+ OILTYP:RXD) + (MODEL:GA18P_18W + PRESS:9.1BAR ,
MODEL:GA22P_18W + PRESS:12.5BAR) + FREQ:60HZ , (FREQ:50HZ
+ MODEL:GA15P_18W + MOVOL:400V + PRESS:8.5BAR , FREQ:60HZ
+ IDRY:Y + MODEL:GA18P_18W + MOVOL:460V + PRESS:9.1BAR) +
OILTYP:RSULTRA
1005 1092 0026 76 1 GEAR SET (21/01/2020 - ...) (MOVOL:380V + OILTYP:RXD , MOVOL:230V ,
MOVOL:460V) + FREQ:60HZ + MODEL:GA15P_18W +
PRESS:10.8BAR
1005 1092 0026 87 1 GEAR SET (21/01/2020 - ...) (MOVOL:200V + OILTYP:RXD , MOVOL:400V) +
FREQ:50HZ + MODEL:GA15P_18W + PRESS:7.5BAR , (MOVOL:380V
+ OILTYP:RXD , MOVOL:230V , MOVOL:460V) + FREQ:60HZ +
MODEL:GA22P_18W + PRESS:10.8BAR
1005 1092 0026 88 1 GEAR SET (21/01/2020 - ...) ((MOVOL:200V + OILTYP:RXD , MOVOL:400V +
OILTYP:RSULTRA) + FREQ:50HZ + PRESS:13BAR , (MOVOL:380V
+ OILTYP:RXD , MOVOL:230V , MOVOL:460V) + FREQ:60HZ +
PRESS:9.1BAR) + MODEL:GA11P_18W
1005 1092 0026 67 1 GEAR SET (21/01/2020 - ...) (MOVOL:380V + OILTYP:RXD , MOVOL:230V ,
MOVOL:460V) + FREQ:60HZ + MODEL:GA22P_18W + PRESS:9.1BAR
1005 1092 2047 74 1 GEAR SET (21/01/2020 - ...) (MODEL:GA26P_18W + PRESS:7.4BAR ,
MODEL:GA30_18W + PRESS:9.1BAR) + (MOVOL:380V +
OILTYP:RXD , MOVOL:230V , MOVOL:460V) + FREQ:60HZ
Legend:
FREQ:50HZ - Frequency:50 Hz
IDRY:Y - Integrated dryer:Yes
MODEL:GA18P_18W - Model:GA 18+
MODEL:GA30_18W - Model:GA 30
MOVOL:380V - Supply voltage:380 V
OILTYP:RSULTRA - Oil type:Roto-Synthetic Fluid ULTRA
PRESS:10.8BAR - Working pressure:10.8 bar
PRESS:7.4BAR - Working pressure:7.4 bar
PRESS:9.1BAR - Working pressure:9.1 bar
FREQ:60HZ - Frequency:60 Hz
MODEL:GA11P_18W - Model:GA 11+
MODEL:GA22P_18W - Model:GA 22+
MOVOL:200V - Supply voltage:200 V
MOVOL:400V - Supply voltage:400 V
OILTYP:RXD - Oil type:Roto-Xtend Duty Fluid
PRESS:12.5BAR - Working pressure:12.5 bar
PRESS:7.5BAR - Working pressure:7.5 bar
IDRY:N - Integrated dryer:No
MODEL:GA15P_18W - Model:GA 15+
MODEL:GA26P_18W - Model:GA 26+
MOVOL:230V - Supply voltage:230 V
MOVOL:460V - Supply voltage:460 V
PRESS:10.5BAR - Working pressure:10.5 bar
PRESS:13BAR - Working pressure:13 bar
PRESS:8.5BAR - Working pressure:8.5 bar
20.4 - HAV - Gears
182 9829 3527 14
20.4 - HAV - Gears
9829 3527 14 183
Ref Part Number Qty Name Validity
1005 1092 2047 75 1 GEAR SET (21/01/2020 - ...) ((IDRY:N + MODEL:GA26P_18W + PRESS:9.1BAR ,
MODEL:GA30_18W + PRESS:10.8BAR) + (MOVOL:380V +
OILTYP:RXD , MOVOL:230V , MOVOL:460V) , (MOVOL:230V ,
MOVOL:380V , MOVOL:460V) + IDRY:Y + MODEL:GA26P_18W +
OILTYP:RXD + PRESS:9.1BAR) + FREQ:60HZ
1005 1622 6988 95 1 GEAR SET (21/01/2020 - ...) (MOVOL:200V + OILTYP:RXD , MOVOL:400V
+ OILTYP:RSULTRA) + FREQ:50HZ + MODEL:GA11P_18W +
PRESS:10.5BAR
1005 1092 0026 84 1 GEAR SET (21/01/2020 - ...) (MODEL:GA15P_18W + PRESS:9.1BAR ,
MODEL:GA18P_18W + PRESS:12.5BAR) + (MOVOL:380V +
OILTYP:RXD , MOVOL:230V , MOVOL:460V) + FREQ:60HZ ,
FREQ:50HZ + MODEL:GA11P_18W + MOVOL:400V +
OILTYP:RSULTRA + PRESS:8.5BAR
1005 1092 0026 80 1 GEAR SET (21/01/2020 - ...) (MOVOL:200V + OILTYP:RXD , MOVOL:400V) +
FREQ:50HZ + MODEL:GA11P_18W + PRESS:7.5BAR
1005 1092 0026 70 1 GEAR SET (21/01/2020 - ...) (MOVOL:380V + OILTYP:RXD , MOVOL:230V ,
MOVOL:460V) + FREQ:60HZ + MODEL:GA11P_18W + PRESS:7.4BAR
1005 1092 0026 89 1 GEAR SET (21/01/2020 - ...) ((IDRY:N + MOVOL:230V , MOVOL:460V) +
OILTYP:RSULTRA , (MOVOL:230V , MOVOL:380V , MOVOL:460V) +
OILTYP:RXD) + FREQ:60HZ + MODEL:GA11P_18W + PRESS:10.8BAR
1005 1092 0026 72 1 GEAR SET (21/01/2020 - ...) (MODEL:GA15P_18W + PRESS:7.4BAR ,
MODEL:GA18P_18W + PRESS:10.8BAR) + (MOVOL:380V +
OILTYP:RXD , MOVOL:230V , MOVOL:460V) + FREQ:60HZ
1005 1092 0026 79 1 GEAR SET (21/01/2020 - ...) ((IDRY:N + OILTYP:RXD , OILTYP:RSULTRA)
+ MOVOL:460V , MOVOL:380V + OILTYP:RXD , MOVOL:230V) +
FREQ:60HZ + MODEL:GA15P_18W + PRESS:12.5BAR
1005 1092 0026 71 1 GEAR SET (21/01/2020 - ...) ((IDRY:N + MOVOL:230V , MOVOL:460V) +
OILTYP:RSULTRA , (MOVOL:230V , MOVOL:380V , MOVOL:460V) +
OILTYP:RXD) + FREQ:60HZ + MODEL:GA22P_18W + PRESS:7.4BAR
1005 1092 2047 79 1 GEAR SET (21/01/2020 - ...) ((IDRY:N + MOVOL:230V , MOVOL:380V) +
OILTYP:RXD , MOVOL:230V + OILTYP:RSULTRA , MOVOL:460V) +
FREQ:60HZ + MODEL:GA26P_18W + PRESS:12.5BAR
1005 1092 2047 76 1 GEAR SET (21/01/2020 - ...) (MOVOL:380V + OILTYP:RXD , MOVOL:230V ,
MOVOL:460V) + FREQ:60HZ + MODEL:GA30_18W + PRESS:7.4BAR
Legend:
FREQ:50HZ - Frequency:50 Hz
IDRY:Y - Integrated dryer:Yes
MODEL:GA18P_18W - Model:GA 18+
MODEL:GA30_18W - Model:GA 30
MOVOL:380V - Supply voltage:380 V
OILTYP:RSULTRA - Oil type:Roto-Synthetic Fluid ULTRA
PRESS:10.8BAR - Working pressure:10.8 bar
PRESS:7.4BAR - Working pressure:7.4 bar
PRESS:9.1BAR - Working pressure:9.1 bar
FREQ:60HZ - Frequency:60 Hz
MODEL:GA11P_18W - Model:GA 11+
MODEL:GA22P_18W - Model:GA 22+
MOVOL:200V - Supply voltage:200 V
MOVOL:400V - Supply voltage:400 V
OILTYP:RXD - Oil type:Roto-Xtend Duty Fluid
PRESS:12.5BAR - Working pressure:12.5 bar
PRESS:7.5BAR - Working pressure:7.5 bar
IDRY:N - Integrated dryer:No
MODEL:GA15P_18W - Model:GA 15+
MODEL:GA26P_18W - Model:GA 26+
MOVOL:230V - Supply voltage:230 V
MOVOL:460V - Supply voltage:460 V
PRESS:10.5BAR - Working pressure:10.5 bar
PRESS:13BAR - Working pressure:13 bar
PRESS:8.5BAR - Working pressure:8.5 bar
20.5 - HAV - Dryer
184 9829 3527 14
20.5 - HAV - Dryer
9829 3527 14 185
Ref Part Number Qty Name Validity
1005 - 1 AIR DRYER (21/01/2020 - ...)
1010 0147 1963 08 4 SCREW (21/01/2020 - ...) ((((MODEL:GA11P_18W , MODEL:GA15P_18W ,
MODEL:GA18P_18W) + PRESS:7.4BAR , MODEL:GA22P_18W
+ PRESS:12.5BAR) + OILTYP:RSULTRA , MODEL:GA15P_18W
+ OILTYP:RXD + PRESS:12.5BAR) + MOVOL:230V ,
(((MODEL:GA15P_18W , MODEL:GA26P_18W) + OILTYP:RSULTRA ,
MODEL:GA22P_18W + OILTYP:RXD) + PRESS:12.5BAR ,
(MODEL:GA18P_18W + PRESS:12.5BAR , MODEL:GA26P_18W
+ PRESS:10.8BAR) + (OILTYP:RSULTRA , OILTYP:RXD))
+ (MOVOL:230V , MOVOL:460V) , ((PRESS:10.8BAR ,
PRESS:12.5BAR) + MOVOL:380V , MOVOL:460V + PRESS:12.5BAR)
+ MODEL:GA26P_18W + OILTYP:RXD , (MODEL:GA15P_18W ,
MODEL:GA18P_18W , MODEL:GA22P_18W) + (MOVOL:230V +
OILTYP:RSULTRA + PRESS:10.8BAR , MOVOL:380V + OILTYP:RXD
+ PRESS:12.5BAR)) + FREQ:60HZ , ((((MOVOL:230V , MOVOL:380V ,
MOVOL:460V) + OILTYP:RXD , MOVOL:460V + OILTYP:RSULTRA) +
(PRESS:10.8BAR , PRESS:7.4BAR , PRESS:9.1BAR) , MOVOL:230V +
OILTYP:RSULTRA + PRESS:9.1BAR) + FREQ:60HZ , ((MOVOL:200V +
OILTYP:RXD , MOVOL:400V + OILTYP:RSULTRA) + (PRESS:10.5BAR ,
PRESS:13BAR , PRESS:7.5BAR) , (OILTYP:RSULTRA +
PRESS:8.5BAR , OILTYP:RXD + PRESS:7.5BAR) + MOVOL:400V)
+ FREQ:50HZ) + (MODEL:GA11P_18W , MODEL:GA15P_18W ,
MODEL:GA18P_18W , MODEL:GA22P_18W) , (MOVOL:200V +
OILTYP:RXD , MOVOL:400V + OILTYP:RSULTRA) + (PRESS:10.5BAR ,
PRESS:13BAR) + FREQ:50HZ + MODEL:GA26P_18W
1015 1625 2201 25 1 TRAFO COVER (21/01/2020 - ...) (((MODEL:GA15P_18W , MODEL:GA18P_18W)
+ PRESS:7.4BAR , MODEL:GA26P_18W + PRESS:12.5BAR)
+ OILTYP:RSULTRA , (OILTYP:RXD + PRESS:10.8BAR ,
PRESS:7.4BAR , PRESS:9.1BAR) + MODEL:GA11P_18W ,
MODEL:GA26P_18W + PRESS:10.8BAR) + FREQ:60HZ +
MOVOL:230V , (((PRESS:10.5BAR , PRESS:13BAR , PRESS:7.5BAR)
+ FREQ:50HZ + MOVOL:200V , FREQ:60HZ + MOVOL:230V
+ PRESS:7.4BAR) + OILTYP:RXD , (PRESS:10.8BAR ,
PRESS:12.5BAR , PRESS:9.1BAR) + FREQ:60HZ + MOVOL:230V) +
(MODEL:GA15P_18W , MODEL:GA18P_18W , MODEL:GA22P_18W) ,
((PRESS:10.5BAR , PRESS:13BAR) + MODEL:GA26P_18W ,
(PRESS:10.5BAR , PRESS:13BAR , PRESS:7.5BAR) +
MODEL:GA11P_18W) + FREQ:50HZ + MOVOL:200V + OILTYP:RXD
1020 0211 1246 03 2 SCREW (21/01/2020 - ...) (((MODEL:GA15P_18W , MODEL:GA18P_18W)
+ PRESS:7.4BAR , MODEL:GA26P_18W + PRESS:12.5BAR)
+ OILTYP:RSULTRA , (OILTYP:RXD + PRESS:10.8BAR ,
PRESS:7.4BAR , PRESS:9.1BAR) + MODEL:GA11P_18W ,
MODEL:GA26P_18W + PRESS:10.8BAR) + FREQ:60HZ +
MOVOL:230V , (((PRESS:10.5BAR , PRESS:13BAR , PRESS:7.5BAR)
+ FREQ:50HZ + MOVOL:200V , FREQ:60HZ + MOVOL:230V
+ PRESS:7.4BAR) + OILTYP:RXD , (PRESS:10.8BAR ,
PRESS:12.5BAR , PRESS:9.1BAR) + FREQ:60HZ + MOVOL:230V) +
(MODEL:GA15P_18W , MODEL:GA18P_18W , MODEL:GA22P_18W) ,
((PRESS:10.5BAR , PRESS:13BAR) + MODEL:GA26P_18W ,
(PRESS:10.5BAR , PRESS:13BAR , PRESS:7.5BAR) +
MODEL:GA11P_18W) + FREQ:50HZ + MOVOL:200V + OILTYP:RXD
1025 1092 2023 68 1 TRANSFORMER (21/01/2020 - ...) ((MODEL:GA11P_18W + OILTYP:RXD ,
MODEL:GA26P_18W) + PRESS:10.8BAR , (MODEL:GA15P_18W ,
MODEL:GA18P_18W , MODEL:GA22P_18W) + (PRESS:10.8BAR ,
PRESS:12.5BAR , PRESS:9.1BAR) , (MODEL:GA22P_18W +
OILTYP:RXD , MODEL:GA11P_18W , MODEL:GA15P_18W ,
MODEL:GA18P_18W) + PRESS:7.4BAR , MODEL:GA11P_18W
+ PRESS:9.1BAR , MODEL:GA26P_18W + OILTYP:RSULTRA +
PRESS:12.5BAR) + FREQ:60HZ + MOVOL:230V
1025 1089 9610 42 1 TRANSFORMER (21/01/2020 - ...) ((MODEL:GA11P_18W , MODEL:GA15P_18W ,
MODEL:GA18P_18W , MODEL:GA22P_18W) + (PRESS:10.5BAR ,
PRESS:13BAR , PRESS:7.5BAR) , (PRESS:10.5BAR , PRESS:13BAR)
+ MODEL:GA26P_18W) + FREQ:50HZ + MOVOL:200V + OILTYP:RXD
Legend:
FREQ:50HZ - Frequency:50 Hz
MODEL:GA15P_18W - Model:GA 15+
MODEL:GA26P_18W - Model:GA 26+
MOVOL:380V - Supply voltage:380 V
OILTYP:RSULTRA - Oil type:Roto-Synthetic Fluid ULTRA
PRESS:10.8BAR - Working pressure:10.8 bar
PRESS:7.4BAR - Working pressure:7.4 bar
PRESS:9.1BAR - Working pressure:9.1 bar
FREQ:60HZ - Frequency:60 Hz
MODEL:GA18P_18W - Model:GA 18+
MOVOL:200V - Supply voltage:200 V
MOVOL:400V - Supply voltage:400 V
OILTYP:RXD - Oil type:Roto-Xtend Duty Fluid
PRESS:12.5BAR - Working pressure:12.5 bar
PRESS:7.5BAR - Working pressure:7.5 bar
MODEL:GA11P_18W - Model:GA 11+
MODEL:GA22P_18W - Model:GA 22+
MOVOL:230V - Supply voltage:230 V
MOVOL:460V - Supply voltage:460 V
PRESS:10.5BAR - Working pressure:10.5 bar
PRESS:13BAR - Working pressure:13 bar
PRESS:8.5BAR - Working pressure:8.5 bar
20.6 - HAV - Thermostat
186 9829 3527 14
20.6 - HAV - Thermostat
9829 3527 14 187
Ref Part Number Qty Name Validity
1005 1622 7064 05 1 THERMOSTATIC VALVE (21/01/2020 - ...) (MOVOL:230V , MOVOL:460V) + FREQ:60HZ +
MODEL:GA30_18W + OILTYP:RSULTRA + PRESS:9.1BAR
1005 1622 7064 06 1 THERMOSTATIC VALVE (21/01/2020 - ...) (((((MODEL:GA11P_18W , MODEL:GA15P_18W ,
MODEL:GA22P_18W , MODEL:GA26P_18W , MODEL:GA30_18W) +
IDRY:Y , IDRY:N) + PRESS:9.1BAR , IDRY:N + MODEL:GA22P_18W +
PRESS:12.5BAR , PRESS:10.8BAR , PRESS:7.4BAR) + MOVOL:380V ,
((IDRY:N + MOVOL:230V , MOVOL:460V) + MODEL:GA26P_18W ,
(IDRY:N + MOVOL:460V , MOVOL:230V) + MODEL:GA15P_18W) +
PRESS:12.5BAR) + OILTYP:RXD , (((IDRY:N + MODEL:GA26P_18W ,
MODEL:GA11P_18W , MODEL:GA15P_18W , MODEL:GA18P_18W ,
MODEL:GA22P_18W) + PRESS:9.1BAR , (MODEL:GA15P_18W ,
MODEL:GA18P_18W , MODEL:GA26P_18W , MODEL:GA30_18W)
+ PRESS:12.5BAR) + OILTYP:RSULTRA , ((MODEL:GA18P_18W ,
MODEL:GA22P_18W , MODEL:GA30_18W) + PRESS:12.5BAR ,
PRESS:10.8BAR , PRESS:7.4BAR , PRESS:9.1BAR) + OILTYP:RXD)
+ (MOVOL:230V , MOVOL:460V) , (((IDRY:N + MOVOL:460V ,
MOVOL:230V) + PRESS:12.5BAR , IDRY:Y + MOVOL:230V +
PRESS:10.8BAR) + MODEL:GA22P_18W , (IDRY:N + MOVOL:230V ,
MOVOL:460V) + (PRESS:10.8BAR , PRESS:7.4BAR) , IDRY:Y
+ MODEL:GA11P_18W + MOVOL:230V + PRESS:7.4BAR) +
OILTYP:RSULTRA , ((PRESS:10.8BAR , PRESS:7.4BAR) +
IDRY:Y + MOVOL:230V + OILTYP:RSULTRA , MOVOL:380V
+ OILTYP:RXD + PRESS:12.5BAR) + (MODEL:GA15P_18W ,
MODEL:GA18P_18W , MODEL:GA26P_18W , MODEL:GA30_18W))
+ FREQ:60HZ , ((MOVOL:200V + OILTYP:RXD , MOVOL:400V
+ OILTYP:RSULTRA) + (PRESS:10.5BAR , PRESS:13BAR ,
PRESS:7.5BAR) , (OILTYP:RSULTRA + PRESS:8.5BAR , OILTYP:RXD
+ PRESS:7.5BAR) + MOVOL:400V) + FREQ:50HZ
1010 1092 9084 35 1 DECAL UNIT (21/01/2020 - ...) (((((MODEL:GA11P_18W , MODEL:GA15P_18W ,
MODEL:GA22P_18W , MODEL:GA26P_18W , MODEL:GA30_18W) +
IDRY:Y , IDRY:N) + PRESS:9.1BAR , IDRY:N + MODEL:GA22P_18W +
PRESS:12.5BAR , PRESS:10.8BAR , PRESS:7.4BAR) + MOVOL:380V ,
((IDRY:N + MOVOL:230V , MOVOL:460V) + MODEL:GA26P_18W ,
(IDRY:N + MOVOL:460V , MOVOL:230V) + MODEL:GA15P_18W) +
PRESS:12.5BAR) + OILTYP:RXD , (((IDRY:N + MODEL:GA26P_18W ,
MODEL:GA11P_18W , MODEL:GA15P_18W , MODEL:GA18P_18W ,
MODEL:GA22P_18W) + PRESS:9.1BAR , (MODEL:GA15P_18W ,
MODEL:GA18P_18W , MODEL:GA26P_18W , MODEL:GA30_18W)
+ PRESS:12.5BAR) + OILTYP:RSULTRA , ((MODEL:GA18P_18W ,
MODEL:GA22P_18W , MODEL:GA30_18W) + PRESS:12.5BAR ,
PRESS:10.8BAR , PRESS:7.4BAR , PRESS:9.1BAR) + OILTYP:RXD)
+ (MOVOL:230V , MOVOL:460V) , (((IDRY:N + MOVOL:460V ,
MOVOL:230V) + PRESS:12.5BAR , IDRY:Y + MOVOL:230V +
PRESS:10.8BAR) + MODEL:GA22P_18W , (IDRY:N + MOVOL:230V ,
MOVOL:460V) + (PRESS:10.8BAR , PRESS:7.4BAR) , IDRY:Y
+ MODEL:GA11P_18W + MOVOL:230V + PRESS:7.4BAR) +
OILTYP:RSULTRA , ((PRESS:10.8BAR , PRESS:7.4BAR) +
IDRY:Y + MOVOL:230V + OILTYP:RSULTRA , MOVOL:380V
+ OILTYP:RXD + PRESS:12.5BAR) + (MODEL:GA15P_18W ,
MODEL:GA18P_18W , MODEL:GA26P_18W , MODEL:GA30_18W))
+ FREQ:60HZ , ((MOVOL:200V + OILTYP:RXD , MOVOL:400V
+ OILTYP:RSULTRA) + (PRESS:10.5BAR , PRESS:13BAR ,
PRESS:7.5BAR) , (OILTYP:RSULTRA + PRESS:8.5BAR , OILTYP:RXD
+ PRESS:7.5BAR) + MOVOL:400V) + FREQ:50HZ
1010 1079 9932 38 1 DECAL UNIT (21/01/2020 - ...) (MOVOL:230V , MOVOL:460V) + FREQ:60HZ +
MODEL:GA30_18W + OILTYP:RSULTRA + PRESS:9.1BAR
Legend:
FREQ:50HZ - Frequency:50 Hz
IDRY:Y - Integrated dryer:Yes
MODEL:GA18P_18W - Model:GA 18+
MODEL:GA30_18W - Model:GA 30
MOVOL:380V - Supply voltage:380 V
OILTYP:RSULTRA - Oil type:Roto-Synthetic Fluid ULTRA
PRESS:10.8BAR - Working pressure:10.8 bar
PRESS:7.4BAR - Working pressure:7.4 bar
PRESS:9.1BAR - Working pressure:9.1 bar
FREQ:60HZ - Frequency:60 Hz
MODEL:GA11P_18W - Model:GA 11+
MODEL:GA22P_18W - Model:GA 22+
MOVOL:200V - Supply voltage:200 V
MOVOL:400V - Supply voltage:400 V
OILTYP:RXD - Oil type:Roto-Xtend Duty Fluid
PRESS:12.5BAR - Working pressure:12.5 bar
PRESS:7.5BAR - Working pressure:7.5 bar
IDRY:N - Integrated dryer:No
MODEL:GA15P_18W - Model:GA 15+
MODEL:GA26P_18W - Model:GA 26+
MOVOL:230V - Supply voltage:230 V
MOVOL:460V - Supply voltage:460 V
PRESS:10.5BAR - Working pressure:10.5 bar
PRESS:13BAR - Working pressure:13 bar
PRESS:8.5BAR - Working pressure:8.5 bar
20.7 - Dryer bypass ID 47
((PRESS:10.5BAR , PRESS:10.8BAR , PRESS:12.5BAR , PRESS:13BAR , PRESS:7.4BAR , PRESS:7.5BAR , PRESS:8.5BAR , PRESS:9.1BAR) +
MODEL:GA11P_18W , (PRESS:12.5BAR , PRESS:13BAR) + MODEL:GA15P_18W) + IDRY:Y
188 9829 3527 14
20.7 - Dryer bypass ID 47
((PRESS:10.5BAR , PRESS:10.8BAR , PRESS:12.5BAR , PRESS:13BAR , PRESS:7.4BAR , PRESS:7.5BAR , PRESS:8.5BAR , PRESS:9.1BAR) +
MODEL:GA11P_18W , (PRESS:12.5BAR , PRESS:13BAR) + MODEL:GA15P_18W) + IDRY:Y
9829 3527 14 189
Ref Part Number Qty Name Validity
8092 2941 01 1 STANDARD OPTION - DRYER BYPASS (21/01/2020 - ...)
Legend:
IDRY:Y - Integrated dryer:Yes
PRESS:10.5BAR - Working pressure:10.5 bar
PRESS:13BAR - Working pressure:13 bar
PRESS:8.5BAR - Working pressure:8.5 bar
MODEL:GA11P_18W - Model:GA 11+
PRESS:10.8BAR - Working pressure:10.8 bar
PRESS:7.4BAR - Working pressure:7.4 bar
PRESS:9.1BAR - Working pressure:9.1 bar
MODEL:GA15P_18W - Model:GA 15+
PRESS:12.5BAR - Working pressure:12.5 bar
PRESS:7.5BAR - Working pressure:7.5 bar
20.8 - Dryer bypass ID 73, ID 96
(MODEL:GA15P_18W , MODEL:GA18P_18W , MODEL:GA22P_18W , MODEL:GA26P_18W , MODEL:GA30_18W) + (PRESS:10.5BAR , PRESS:10.8BAR ,
PRESS:7.4BAR , PRESS:7.5BAR , PRESS:8.5BAR , PRESS:9.1BAR) + IDRY:Y
190 9829 3527 14
20.8 - Dryer bypass ID 73, ID 96
(MODEL:GA15P_18W , MODEL:GA18P_18W , MODEL:GA22P_18W , MODEL:GA26P_18W , MODEL:GA30_18W) + (PRESS:10.5BAR , PRESS:10.8BAR ,
PRESS:7.4BAR , PRESS:7.5BAR , PRESS:8.5BAR , PRESS:9.1BAR) + IDRY:Y
9829 3527 14 191
Ref Part Number Qty Name Validity
8092 2941 02 1 STANDARD OPTION - DRYER BYPASS (21/01/2020 - ...)
Legend:
IDRY:Y - Integrated dryer:Yes
MODEL:GA22P_18W - Model:GA 22+
PRESS:10.5BAR - Working pressure:10.5 bar
PRESS:7.5BAR - Working pressure:7.5 bar
MODEL:GA15P_18W - Model:GA 15+
MODEL:GA26P_18W - Model:GA 26+
PRESS:10.8BAR - Working pressure:10.8 bar
PRESS:8.5BAR - Working pressure:8.5 bar
MODEL:GA18P_18W - Model:GA 18+
MODEL:GA30_18W - Model:GA 30
PRESS:7.4BAR - Working pressure:7.4 bar
PRESS:9.1BAR - Working pressure:9.1 bar
20.9 - UD+ filter ID 40
((PRESS:10.5BAR , PRESS:10.8BAR , PRESS:12.5BAR , PRESS:13BAR , PRESS:7.4BAR , PRESS:7.5BAR , PRESS:8.5BAR , PRESS:9.1BAR) +
MODEL:GA11P_18W , (PRESS:12.5BAR , PRESS:13BAR) + MODEL:GA15P_18W) + IDRY:Y
192 9829 3527 14
20.9 - UD+ filter ID 40
((PRESS:10.5BAR , PRESS:10.8BAR , PRESS:12.5BAR , PRESS:13BAR , PRESS:7.4BAR , PRESS:7.5BAR , PRESS:8.5BAR , PRESS:9.1BAR) +
MODEL:GA11P_18W , (PRESS:12.5BAR , PRESS:13BAR) + MODEL:GA15P_18W) + IDRY:Y
9829 3527 14 193
Ref Part Number Qty Name Validity
8092 2941 21 1 STANDARD OPTION - UD+ FILTER (21/01/2020 - ...)
Legend:
IDRY:Y - Integrated dryer:Yes
PRESS:10.5BAR - Working pressure:10.5 bar
PRESS:13BAR - Working pressure:13 bar
PRESS:8.5BAR - Working pressure:8.5 bar
MODEL:GA11P_18W - Model:GA 11+
PRESS:10.8BAR - Working pressure:10.8 bar
PRESS:7.4BAR - Working pressure:7.4 bar
PRESS:9.1BAR - Working pressure:9.1 bar
MODEL:GA15P_18W - Model:GA 15+
PRESS:12.5BAR - Working pressure:12.5 bar
PRESS:7.5BAR - Working pressure:7.5 bar
20.10 - UD+ filter ID 73, ID 96
(MODEL:GA15P_18W , MODEL:GA18P_18W , MODEL:GA22P_18W , MODEL:GA26P_18W , MODEL:GA30_18W) + (PRESS:10.5BAR , PRESS:10.8BAR ,
PRESS:7.4BAR , PRESS:7.5BAR , PRESS:8.5BAR , PRESS:9.1BAR) + IDRY:Y
194 9829 3527 14
20.10 - UD+ filter ID 73, ID 96
(MODEL:GA15P_18W , MODEL:GA18P_18W , MODEL:GA22P_18W , MODEL:GA26P_18W , MODEL:GA30_18W) + (PRESS:10.5BAR , PRESS:10.8BAR ,
PRESS:7.4BAR , PRESS:7.5BAR , PRESS:8.5BAR , PRESS:9.1BAR) + IDRY:Y
9829 3527 14 195
Ref Part Number Qty Name Validity
8092 2941 22 1 STANDARD OPTION - UD+ FILTER (21/01/2020 - ...)
Legend:
IDRY:Y - Integrated dryer:Yes
MODEL:GA22P_18W - Model:GA 22+
PRESS:10.5BAR - Working pressure:10.5 bar
PRESS:7.5BAR - Working pressure:7.5 bar
MODEL:GA15P_18W - Model:GA 15+
MODEL:GA26P_18W - Model:GA 26+
PRESS:10.8BAR - Working pressure:10.8 bar
PRESS:8.5BAR - Working pressure:8.5 bar
MODEL:GA18P_18W - Model:GA 18+
MODEL:GA30_18W - Model:GA 30
PRESS:7.4BAR - Working pressure:7.4 bar
PRESS:9.1BAR - Working pressure:9.1 bar
20.11 - DD+ filter ID 40
((PRESS:10.5BAR , PRESS:10.8BAR , PRESS:12.5BAR , PRESS:13BAR , PRESS:7.4BAR , PRESS:7.5BAR , PRESS:8.5BAR , PRESS:9.1BAR) +
MODEL:GA11P_18W , (PRESS:12.5BAR , PRESS:13BAR) + MODEL:GA15P_18W) + IDRY:Y
196 9829 3527 14
20.11 - DD+ filter ID 40
((PRESS:10.5BAR , PRESS:10.8BAR , PRESS:12.5BAR , PRESS:13BAR , PRESS:7.4BAR , PRESS:7.5BAR , PRESS:8.5BAR , PRESS:9.1BAR) +
MODEL:GA11P_18W , (PRESS:12.5BAR , PRESS:13BAR) + MODEL:GA15P_18W) + IDRY:Y
9829 3527 14 197
Ref Part Number Qty Name Validity
8092 2941 19 1 STANDARD OPTION - DD FILTER (21/01/2020 - ...)
Legend:
IDRY:Y - Integrated dryer:Yes
PRESS:10.5BAR - Working pressure:10.5 bar
PRESS:13BAR - Working pressure:13 bar
PRESS:8.5BAR - Working pressure:8.5 bar
MODEL:GA11P_18W - Model:GA 11+
PRESS:10.8BAR - Working pressure:10.8 bar
PRESS:7.4BAR - Working pressure:7.4 bar
PRESS:9.1BAR - Working pressure:9.1 bar
MODEL:GA15P_18W - Model:GA 15+
PRESS:12.5BAR - Working pressure:12.5 bar
PRESS:7.5BAR - Working pressure:7.5 bar
20.12 - DD+ filter ID 73, ID 96
(MODEL:GA15P_18W , MODEL:GA18P_18W , MODEL:GA22P_18W , MODEL:GA26P_18W , MODEL:GA30_18W) + (PRESS:10.5BAR , PRESS:10.8BAR ,
PRESS:7.4BAR , PRESS:7.5BAR , PRESS:8.5BAR , PRESS:9.1BAR) + IDRY:Y
198 9829 3527 14
20.12 - DD+ filter ID 73, ID 96
(MODEL:GA15P_18W , MODEL:GA18P_18W , MODEL:GA22P_18W , MODEL:GA26P_18W , MODEL:GA30_18W) + (PRESS:10.5BAR , PRESS:10.8BAR ,
PRESS:7.4BAR , PRESS:7.5BAR , PRESS:8.5BAR , PRESS:9.1BAR) + IDRY:Y
9829 3527 14 199
Ref Part Number Qty Name Validity
8092 2941 20 1 STANDARD OPTION - DD FILTER (21/01/2020 - ...)
Legend:
IDRY:Y - Integrated dryer:Yes
MODEL:GA22P_18W - Model:GA 22+
PRESS:10.5BAR - Working pressure:10.5 bar
PRESS:7.5BAR - Working pressure:7.5 bar
MODEL:GA15P_18W - Model:GA 15+
MODEL:GA26P_18W - Model:GA 26+
PRESS:10.8BAR - Working pressure:10.8 bar
PRESS:8.5BAR - Working pressure:8.5 bar
MODEL:GA18P_18W - Model:GA 18+
MODEL:GA30_18W - Model:GA 30
PRESS:7.4BAR - Working pressure:7.4 bar
PRESS:9.1BAR - Working pressure:9.1 bar

28/02/2020
No. 9829 3527 14
www.atlascopco.com

(2902016100)

SKU	2902016100
Model #	8193 7556 00
Brand	Atlas Copco
Shipping Weight	0.0500kg
Shipping Width	0.010m
Shipping Height	0.040m
Shipping Length	0.050m
Shipping Cubic	0.000020000m3
Unit Of Measure	ea

Be The First To Review This Product!

Help other Screw Compressor Spares users shop smarter by writing reviews for products you have purchased.

Write a product review

Others Also Bought

10000mAh Power Bank

$100.00

2902016100 Atlas Copco UNLOADER SERVICE KIT

Calculate Shipping

Be The First To Review This Product!

Others Also Bought

10000mAh Power Bank

More From This Category

REBUILD KIT

FAN MOTOR 11

O-RING

GEARS COMPLETE-GA 160

VALVE

INTERCOOLER

MOTOR 5.5KW

Gasket Set

Want to stay in the loop?

Secure Shopping

Get Connected

Service

About Us

Information

Popular Categories

2902016100 Atlas Copco UNLOADER SERVICE KIT

Notify me when back in stock

Be The First To Review This Product!

Others Also Bought

More From This Category

Want to stay in the loop?

Secure Shopping

Get Connected

Service

About Us

Information

Popular Categories

Terms & Conditions

Privacy Policy
