2906 0772 00 UNLOADING VALVE SERVICE KIT.

UNLOADING VALVE SERVICE KIT.





















































Ref. Part number Qty Name Remarks
2906 0770 00 1 Air/oil filter kit (for max 10bar)
2906 0199 00 • 2 Oil filter kit
1621 5742 99 • 3 Air filter element
2906 0771 00 1 Air/oil filter kit (for 13
bar(e) unit)
2906 0586 00 • 2 Oil filter kit
1621 5742 99 • 3 Air filter element

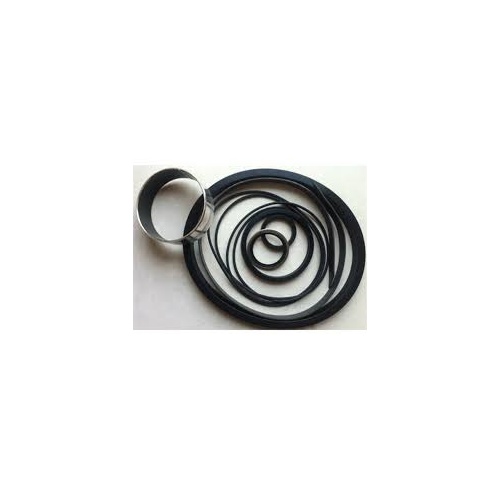

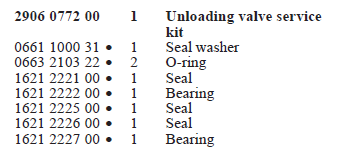

2906 0772 00 1 Unloading valve service
kit
0661 1000 31 • 1 Seal washer
0663 2103 22 • 2 O-ring
1621 2221 00 • 1 Seal
1621 2222 00 • 1 Bearing
1621 2225 00 • 1 Seal
1621 2226 00 • 1 Seal
1621 2227 00 • 1 Bearing
2906 0773 00 1 Drive shaft sealring kit
0663 2106 16 • 1 O-ring
0663 2107 24 • 1 O-ring
1621 2123 00 • 1 Bushing
1621 4835 00 • 1 Seal
2906 0774 00 1 RH compressor element
installation kit (right seen
from the element side)
0211 1409 00 • 3 Cap screw
0337 0009 46 • 1 Key
0663 2102 89 • 1 O-ring
0663 2103 22 • 1 O-ring
0663 2106 10 • 3 O-ring
0663 2106 16 • 1 O-ring
0663 2111 58 • 1 O-ring
0663 2111 65 • 1 O-ring
0663 2111 66 • 3 O-ring
1621 0424 00 • 1 Seal
1621 2207 00 • 1 Bushing
1621 2210 00 • 1 Gasket
Ref. Part number Qty Name Remarks
2906 0775 00 1 LH compressor element
installation kit (left seen
from the element side)
0211 1409 00 • 3 Cap screw
0337 0009 46 • 1 Key
0663 2102 89 • 1 O-ring
0663 2103 22 • 1 O-ring
0663 2107 82 • 1 O-ring
0663 2111 58 • 1 O-ring
0663 2111 65 • 1 O-ring
0663 2111 66 • 3 O-ring
2906 0776 00 1 Gearbox overhaul kit
0211 1480 00 • 10 Cap screw
0506 0100 15 • 1 Bearing
0506 0100 16 • 1 Bearing
0663 2109 74 • 1 O-ring
2906 0777 00 1 4000 hrs maintenance kit
(for max 10 bar(e) units)
0661 1000 30 • 2 Seal washer
0663 2102 89 • 2 O-ring
0663 2106 58 • 2 O-ring
0663 2109 68 • 2 O-ring
0663 2111 58 • 2 O-ring
0663 2111 66 • 6 O-ring
1614 8978 00 • 2 Spring
2906 0201 00 • 2 Min.press. valve kit
2906 0694 00 • 2 Oil stop valve kit
2906 0770 00 • 1 Air/oil filter kit
2906 0887 00 1 8000 hrs maintenance kit
(for max 10 bar(e) units)
0663 2107 77 • 2 O-ring thermostatic valve
2906 0201 00 • 2 Min. pressure valve kit
2906 0693 00 • 2 Check valve kit
2906 0694 00 • 2 Oil stop valve kit
2906 0588 00 • 2 Oil separator element kit
2906 0770 00 • 1 Air/oil filter kit
2906 0772 00 • 2 Unloading valve kit
2906 0884 00 1 4000 hrs maintenance kit
(for max 1 bar(e) units)
0661 1000 30 • 2 Seal washer
0663 2102 89 • 2 O-ring
0663 2106 58 • 2 O-ring
0663 2109 68 • 2 O-ring
0663 2111 58 • 2 O-ring
0663 2111 66 • 6 O-ring
1614 8978 00 • 2 Spring
2906 0201 00 • 2 Min.press. valve kit
2906 0694 00 • 2 Oil stop valve kit
3
2906 0771 00 • 1 Air/Oil filter kit for 13bar
2906 088 00 1 8000 hrs maintenance kit
(for max 1 bar(e) units)
0663 2107 77 • 2 O-ring thermostatic valve
2906 0201 00 • 2 Min. pressure valve kit
2906 0693 00 • 2 Check valve kit
2906 0694 00 • 2 Oil stop valve kit
2906 0588 00 • 2 Oil separator element kit
2906 0771 00 • 1 Air/oil filter kit
2906 0772 00 • 2 Unloading valve kit
9
3
2906 0888 00 1 Overhaul kit for max 10 bar
2906 0890 00 1 Overhaul kit for 13 bar
