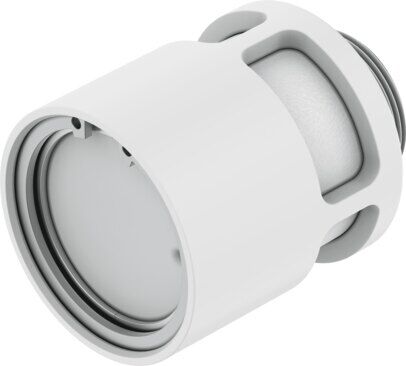

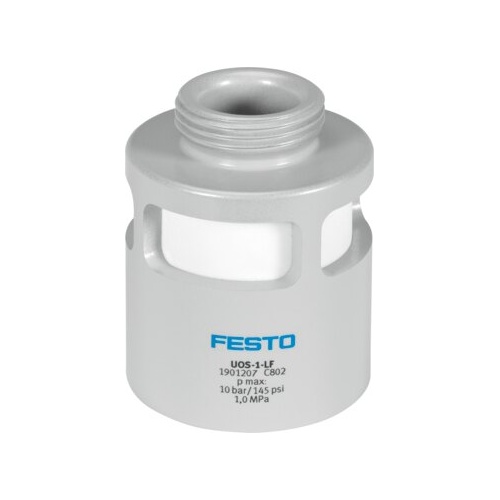

SilencerUOS-1-LF

1901207

GTIN: 4052568108274

Material shock absorber insert
Packaging unit
Pneumatic connection
G1
Operating pressure
0 bar - 10 bar
Design
Open silencer



Technical Data Silencer UOS-1-LF

  • Type of seal on screwed plugNo seal
  • Mounting positionAny
  • DesignOpen silencer
  • Symbol00992064
  • Operating pressure0 MPa ... 1 MPa
  • Operating pressure0 bar ... 10 bar
  • Operating mediumCompressed air to ISO 8573-1:2010 [-:-:-]
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Sound pressure level75 dB(A)
  • Ambient temperature-10 °C ... 50 °C
  • Type of mountingWith male thread
  • Product weight157.9 g
  • Pneumatic connectionG1
  • Material shock absorber insertPackaging unit
  • Note on materialsRoHS compliant
  • Material housingWrought aluminium alloy



SKU 1901207
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
