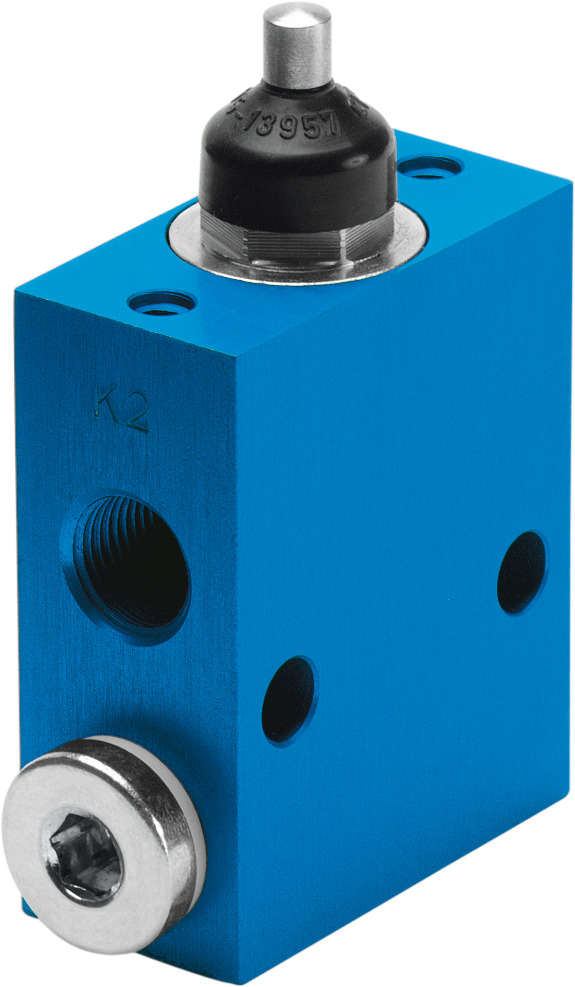

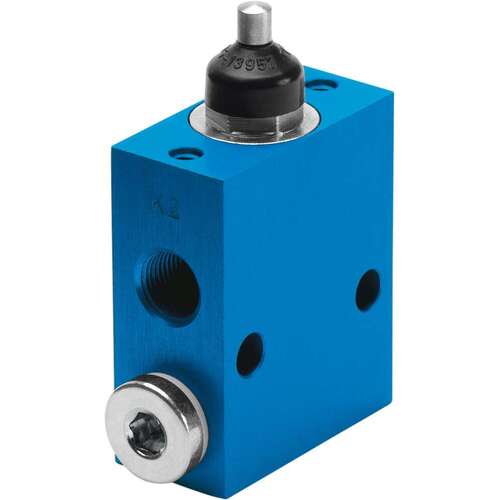

Stem actuated valve FESTO

V/O-3-1/8

4938  GTIN: 4052568000769

Mechanically actuated valves

Technical Data

  • Valve function3/2-way, monostable, open/closed
  • Type of actuationMechanical
  • Standard nominal flow rate (standardised to DIN 1343)140 l/min
  • pneumatic working portG1/8
  • Operating pressure-0.95 bar ... 8 bar
  • DesignPiston seat
  • Nominal size3.5 mm
  • Type of pilotingDirect
  • Symbol00991832
  • Operating mediumCompressed air to ISO 8573-1:2010 [-:-:-]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature-10 °C ... 60 °C
  • Actuating force28 N
  • Actuating force, normally closed37.53 N
  • Product weight90 g
  • Type of mountingWith through-hole
  • Pneumatic connection, port 1G1/8
  • Pneumatic connection, port 2G1/8
  • Pneumatic connection, port 3G1/8
  • Material sealsNBR
  • Material housingAnodised aluminium

VMEM_EN.PDF



Stem actuated valve

SKU 4938
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
