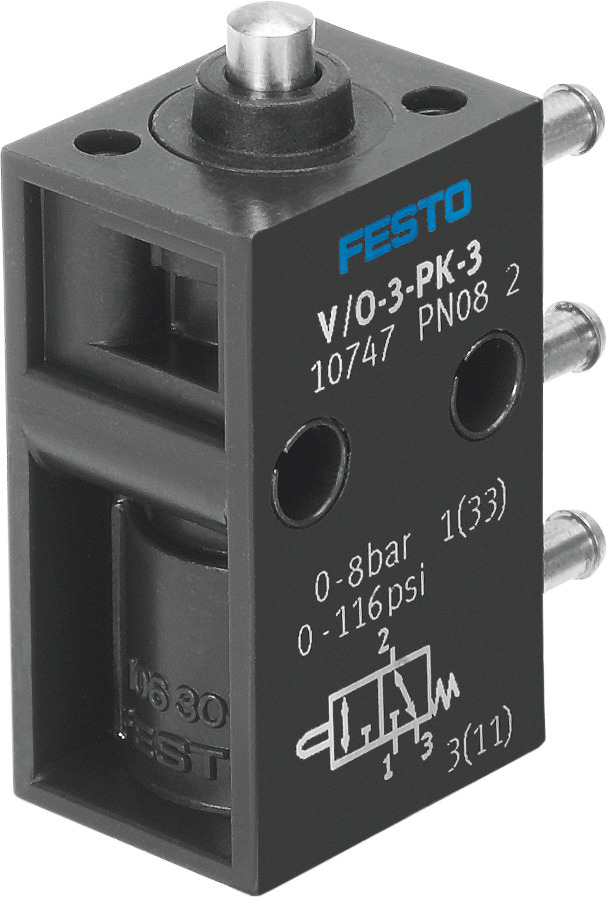

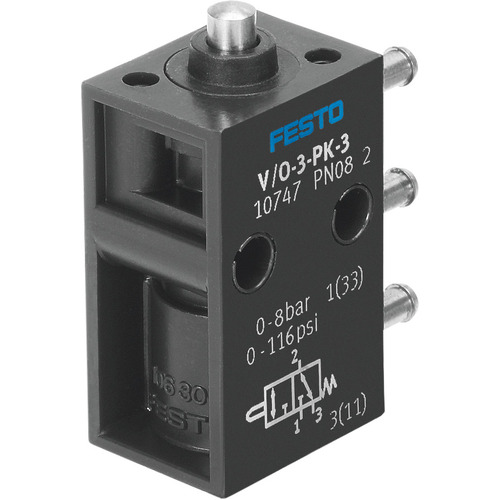

Stem actuated valve

V/O-3-PK-3

10747

GTIN: 4052568002237

Stem actuated valve

Downloads

VMEM_EN.PDF

Technical data

Links

Spare parts

Stem actuated valve

Technical Data

  • Valve function 3/2-way, monostable, open/closed
  • Type of actuation Mechanical
  • Standard nominal flow rate (standardised to DIN 1343) 80 l/min
  • pneumatic working port PK-3
  • Operating pressure 0 bar ... 8 bar
  • Design Piston seat
  • Nominal size 2.5 mm
  • Type of piloting Direct

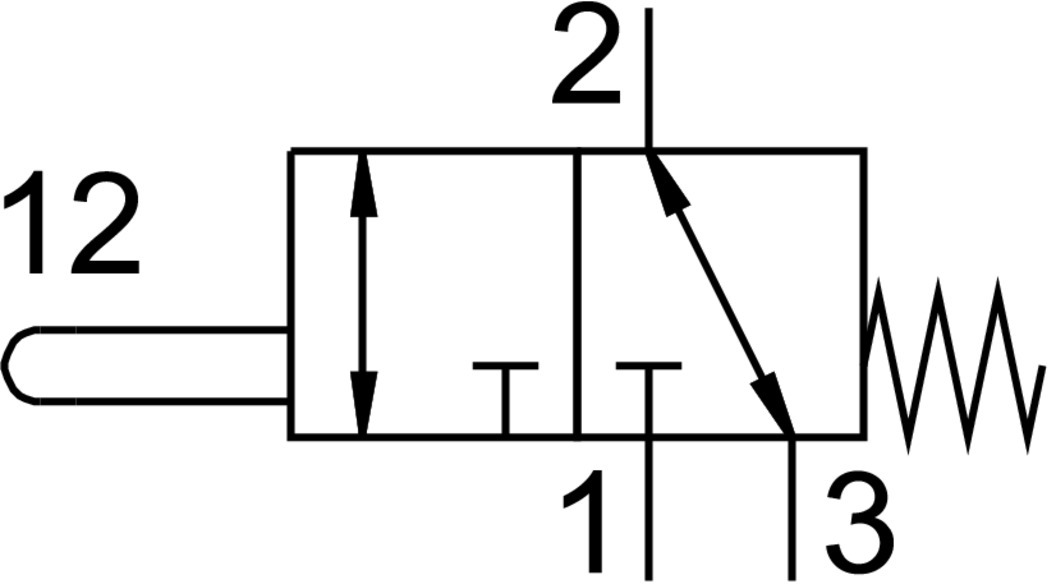

  • Symbol 00991294
  • Operating medium Compressed air to ISO 8573-1:2010 [-:-:-]
  • LABS (PWIS) conformity VDMA24364-B1/B2-L
  • Ambient temperature -10 °C ... 60 °C
  • Actuating force 17 N
  • Actuating force, normally closed 17 N
  • Actuating force, normally open 24 N
  • Product weight 20 g
  • Type of mounting With through-hole
  • Pneumatic connection, port 1PK-3
  • Pneumatic connection, port 2PK-3
  • Pneumatic connection, port 3PK-3
  • Material seals NBR
  • Material housing POM
SKU 10747
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
