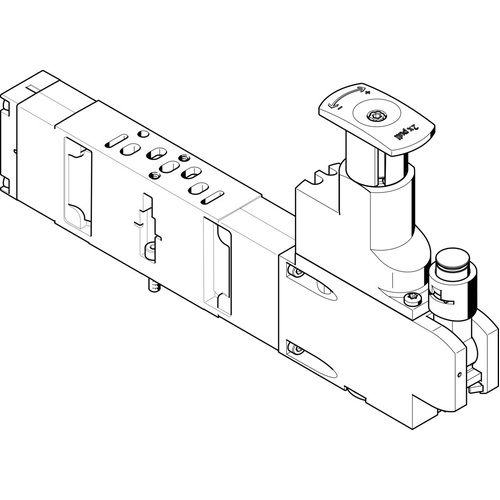

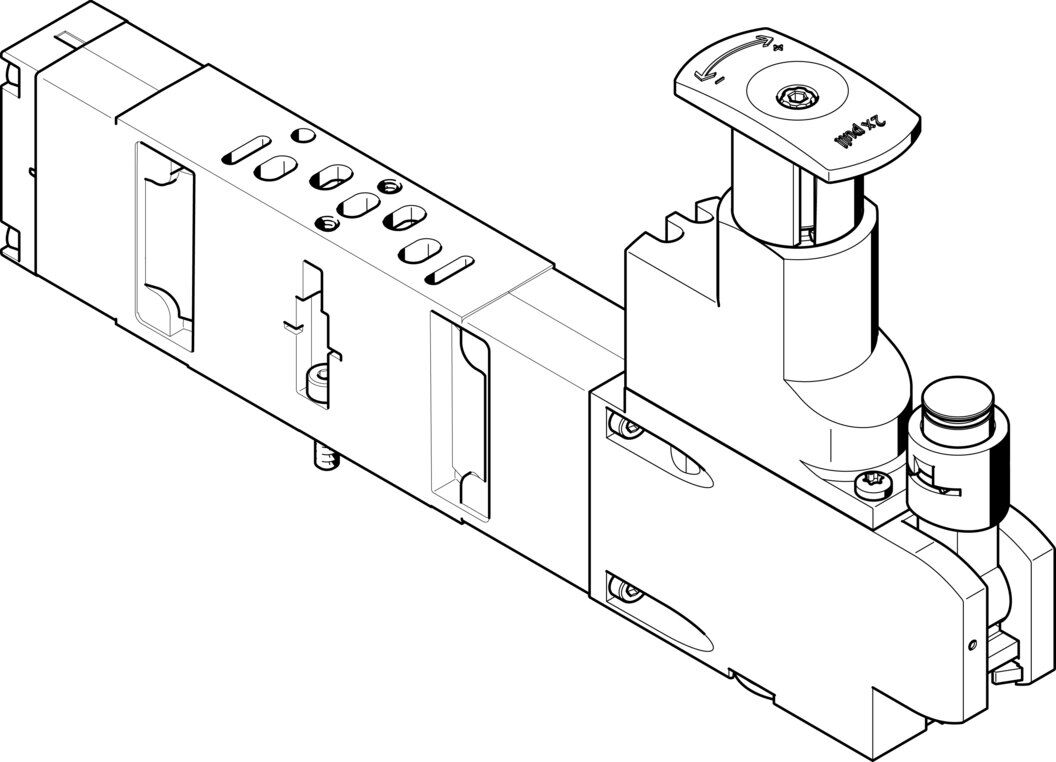

Regulator plate

VABF-S3-2-R2C2-C-10

543534





GTIN: 4052568181963



Technical Data

  • Construction width18 mm
  • Based on standardISO 15407-1
  • Mounting positionoptional
  • Vertical pneumatic linkagePressure regulator for 2
  • Controller functionOutput pressure constant With secondary venting

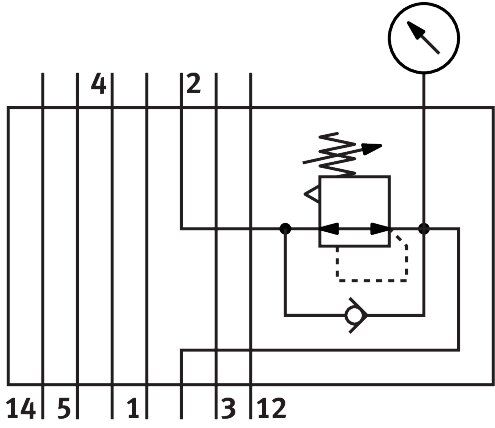

  • Symbol00991581
  • Selection of pressure gaugePossible
  • Pressure regulation range0.2 MPa ... 0.85 MPa
  • Pressure regulation range2 bar ... 8.5 bar
  • Pressure regulation range29 psi ... 123.25 psi
  • Inlet pressure 10.5 bar ... 10 bar
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC0 - No corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Degree of protectionIP65 NEMA 4
  • Ambient temperature-5 °C ... 50 °C
  • Product weight245 g
  • Mounting with vertical stackingOn manifold sub-base On individual sub-base
  • Pressure gauge connectionVia retaining clamp
  • Note on materialsRoHS-compliant
  • Material control panelPA
  • Material regulator housingDie-cast aluminium





SKU 543534
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
