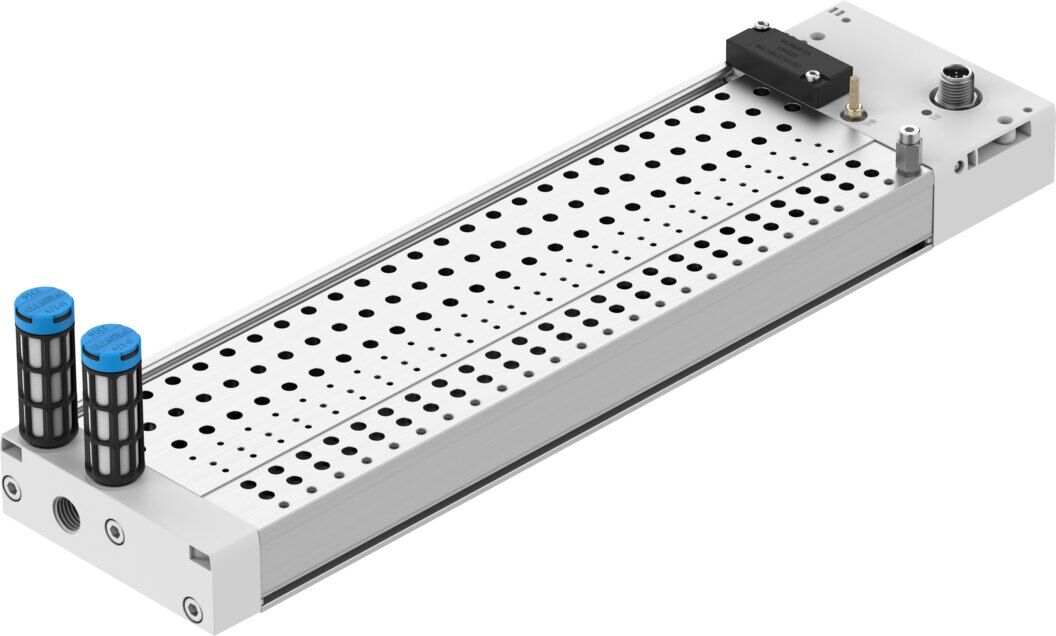

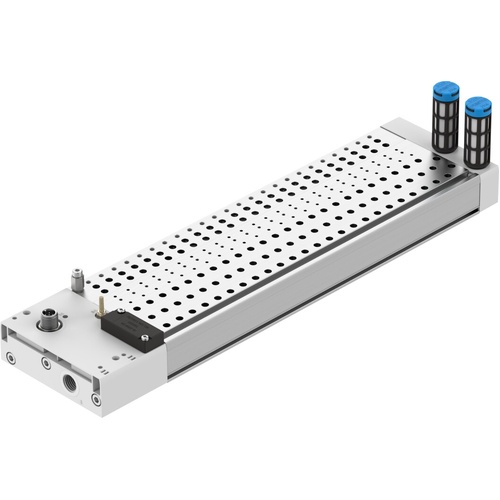

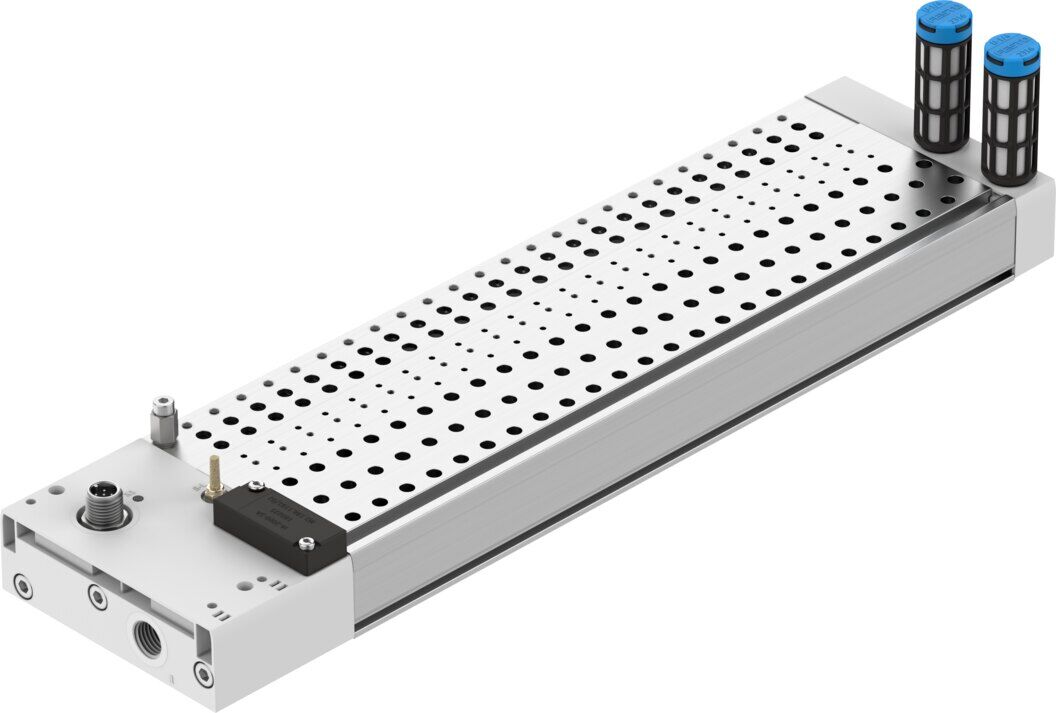

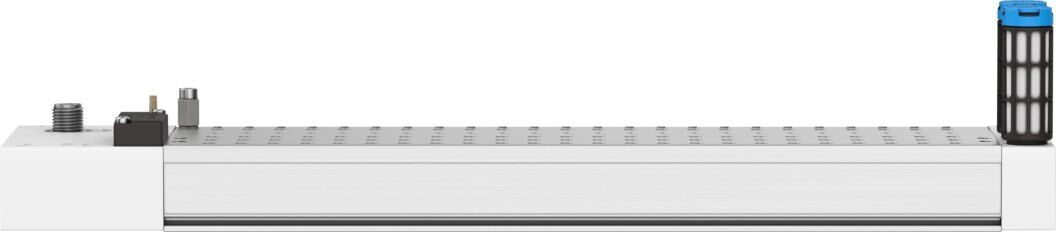

Manifold rail

VABM-C8-12E-G14-24-PT-L

1247984





GTIN: 4052568229092

Technical Data

  • Grid dimension12 mm
  • Max. number of valve positions24
  • UKCA marking (see declaration of conformity)To UK instructions for EMC To UK RoHS instructions
  • Corrosion resistance class CRC0 - No corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Max. tightening torque for valve mounting0.6 Nm
  • Max. tightening torque wall mounting5 Nm
  • Product weight1526 g
  • Pneumatic connection, port 1G1/4
  • Pneumatic connection, port 3G1/4
  • Pneumatic connection, port 5G1/4
  • Note on materialsRoHS-compliant
  • Material manifold railWrought aluminium alloy



SKU 1247984
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
