Vacuum generator

VADMI-200

162510





GTIN: 4052568131326

Nominal size, Laval nozzle
2 mm
Max. vacuum
85 %
Operating pressure
2 bar - 8 bar

Technical Data

  • Nominal size, Laval nozzle2 mm
  • Grid dimension22 mm
  • Silencer designClosed
  • Mounting positionAny
  • Ejector characteristicHigh vacuum
  • Grade of filtration≤40 µm
  • Manual overrideNon-detenting
  • Integrated functionEjector pulse valve, electric Flow control On/off valve, electric Filter Check valve

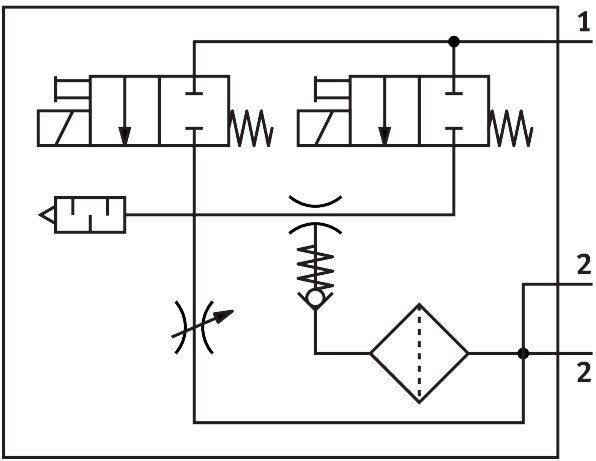

  • Symbol00991305
  • Valve functionClosed
  • Operating pressure0.2 MPa ... 0.8 MPa
  • Operating pressure2 bar ... 8 bar
  • Operating pressure29 psi ... 116 psi
  • Max. vacuum85 %
  • Nominal operating pressure0.6 MPa
  • Nominal operating pressure6 bar
  • Nominal operating pressure87 psi
  • Air supply time at nominal operating pressure with ejector pulse0.15 s
  • Operational voltage range DC21.6 V ... 26.4 V
  • Duty cycle100%
  • Approvalc UL us - Recognised (Oil)
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation not possible
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Media temperature0 °C ... 60 °C
  • Degree of protectionIP65
  • Ambient temperature0 °C ... 60 °C
  • Product weight350 g
  • Electrical connectionPlug
  • Type of mountingWith through-hole With female thread
  • Pneumatic connection, port 1G1/4
  • Pneumatic connection, port 3Integrated silencer
  • Vacuum connectionG3/8
  • Note on materialsRoHS compliant
  • Material sealsNBR
  • Material receiver nozzleNickel-plated brass
  • Material filterProcess automation
  • Material filter housingMakrolon®
  • Material housingWrought aluminium alloy
  • Material silencerPackaging unit POM
  • Material pistonPOM
  • Material transmitter nozzleNickel-plated brass





SKU 162510
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
