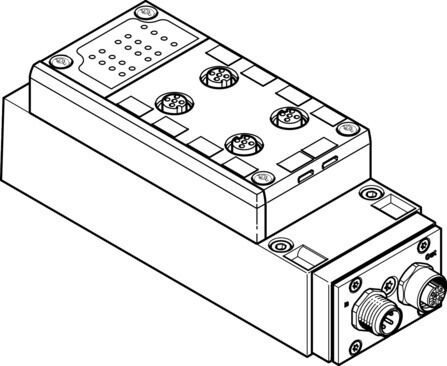

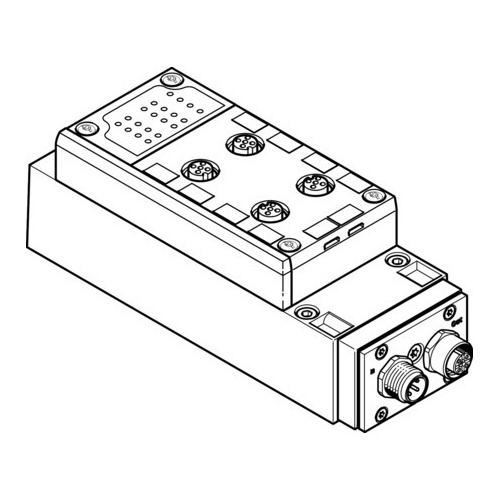

AS-i module

Technical Data

• Field bus interfaceSocket, M12x1, 4-pin Plug connector, M12x1, 4-pin
• Device-specific diagnosticsShort circuit/overload of inputs Undervoltage Via peripherals error:
• Mounting positionoptional
• Max. number of valve positions2 with bistable valves 4 with monostable valves
• Max. number of valve coils4
• Reverse polarity protectionFor all electrical operating voltage connections
• Operator controlsDIL switch
• Number of slaves per device1
• Operating voltage DC AS-interface26.5 V ... 31.6 V
• Note on load voltageVia load voltage connection (24 V DC)
• Load voltage range DC21.6 V ... 26.4 V
• Max. number of outputs4
• Max. number of inputs4
• Nominal DC operating voltage, AS-interface26.5 V
• Nominal load voltage DC24 V
• Nominal operating voltage DC24 V
• Residual ripple, AS interface<= 20 mVpp
• Residual ripple, load voltage4 Vpp
• Switching levelSignal 0: <= 5 V Signal 1: >= 11 V
• Permissible voltage fluctuations+/- 10 %
• CE mark (see declaration of conformity)To EU EMC Directive To EU Low Voltage Directive
• Corrosion resistance class CRC0 - No corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Storage temperature-20 °C ... 60 °C
• Relative air humidity0 - 90%
• Degree of protectionIP65 In assembled state
• Ambient temperature-5 °C ... 50 °C
• Product weight300 g
• Electrical controlFieldbus
• Switching logic for inputsPNP (positive switching)
• Electrical connectionVia CPX
• Addressing range1 ... 31 (0) Set using AS-Interface addressing device
• Electrical isolation fieldbus interfaceOptocoupler
• LED display, bus-specificAS-i: AS-Interface mode Aux/Pwr: AS-Interface power supply Fault: AS-Interface fault
• LED display, product-specific0 ... 7: Switching status of inputs 12/14: switching status of valves (on valve)
• Product identificationID1=Fh ID2=Eh IO code: 7h Profile: S-7.A.7
• Material sealsNBR PUR
• Material housingPA
• Note on materialsRoHS-compliant
