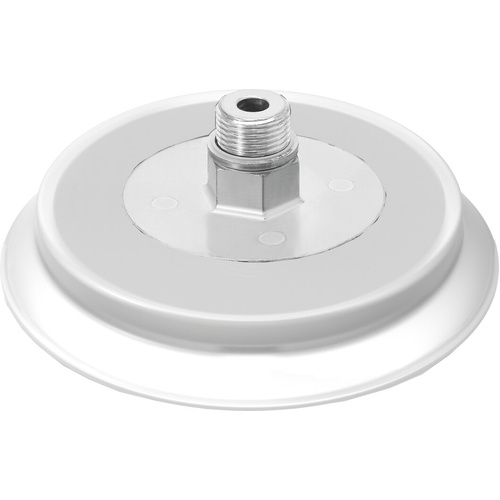

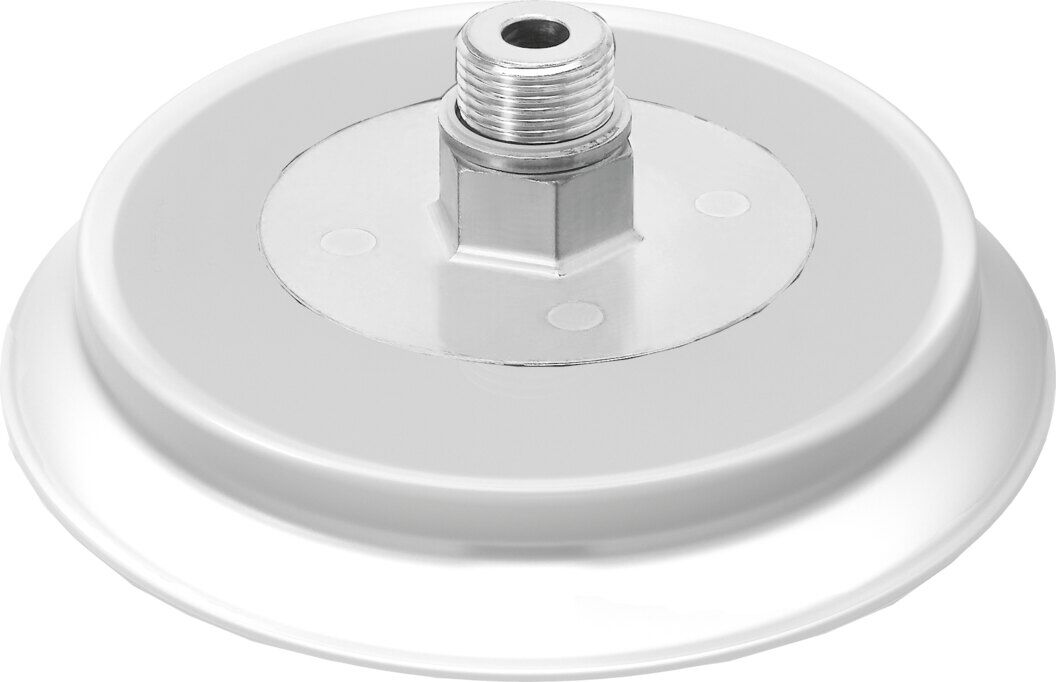

Suction cup with connection

VAS-100-1/4-SI-B

1386376





GTIN: 4052568105679

Suction cup diameter
100 mm
Effective suction diameter
91.9 mm
Suction cup shape
Round, flat
Material suction cup
VMQ (silicone)

Technical Data

  • Height compensator for suction cup3.5 mm
  • Nominal size4 mm
  • Suction cup diameter100 mm
  • Suction cup volume33.5 cm³
  • Effective suction diameter91.9 mm
  • Position of connectionTop
  • Mounting positionoptional
  • Symbol00991485
  • Suction cup shapeRound, flat
  • Operating pressure-0.095 MPa ... 0 MPa
  • Operating pressure-0.95 bar ... 0 bar
  • Operating pressure-13.775 psi ... 0 psi
  • Nominal operating pressure-0.07 MPa
  • Nominal operating pressure-0.7 bar
  • Nominal operating pressure-10.15 psi
  • Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364 zone III
  • Suitable for use with foodSee supplementary material information
  • Ambient temperature-40 °C ... 200 °C
  • Holding force at nominal operating pressure464 N
  • Product weight116 g
  • Type of mountingVia vacuum port
  • Vacuum connectionG1/4
  • ColourTransparent
  • Shore hardness60 +/- 5
  • Material screwed plugWrought aluminium alloy
  • Note on materialsRoHS-compliant
  • Material suction cupVMQ (silicone)



SKU 1386376
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
