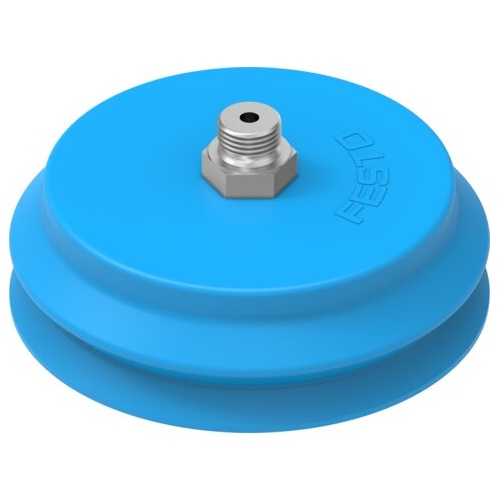

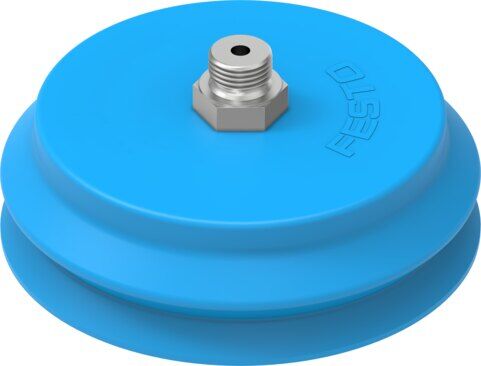

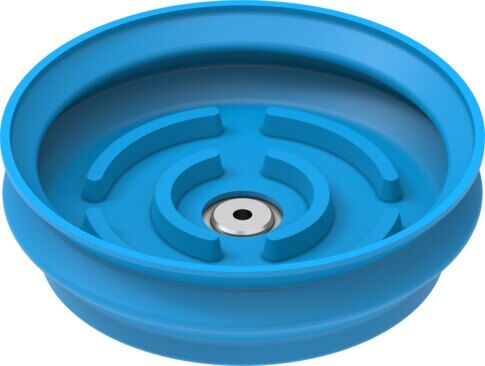

Suction cup with connection

VASB-100-1/4-PUR-B

1396066





GTIN: 4052568105693

Suction cup diameter
100 mm
Effective suction diameter
90.5 mm
Suction cup shape
Round bellows 1.5 convolutions
Material suction cup
PUR

Technical Data

  • Height compensator for suction cup15.5 mm
  • Nominal size4 mm
  • Suction cup diameter100 mm
  • Suction cup volume128 cm³
  • Effective suction diameter90.5 mm
  • Position of connectionTop
  • Mounting positionoptional
  • Symbol00991485
  • Suction cup shapeRound bellows 1.5 convolutions
  • Operating pressure-0.095 MPa ... 0 MPa
  • Operating pressure-0.95 bar ... 0 bar
  • Operating pressure-13.775 psi ... 0 psi
  • Nominal operating pressure-0.07 MPa
  • Nominal operating pressure-0.7 bar
  • Nominal operating pressure-10.15 psi
  • Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-A1-L
  • Ambient temperature-20 °C ... 60 °C
  • Holding force at nominal operating pressure450 N
  • Product weight155 g
  • Type of mountingVia vacuum port
  • Vacuum connectionG1/4
  • ColourBlue
  • Shore hardness60 +/- 5
  • Material screwed plugDie-cast zinc
  • Note on materialsRoHS-compliant
  • Material suction cupPUR



SKU 1396066
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
