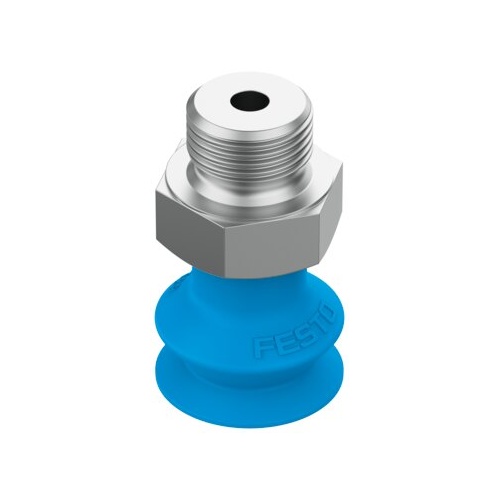

Suction cup with connection

VASB-15-1/8-PUR-B

1395671





GTIN: 4052568061999

Suction cup diameter
15 mm
Effective suction diameter
12.4 mm
Suction cup shape
Round bellows 1.5 convolutions
Material suction cup
PUR

Technical Data

  • Height compensator for suction cup5.6 mm
  • Nominal size3 mm
  • Suction cup diameter15 mm
  • Suction cup volume0.83 cm³
  • Effective suction diameter12.4 mm
  • Position of connectionTop
  • Mounting positionoptional
  • Symbol00991485
  • Suction cup shapeRound bellows 1.5 convolutions
  • Operating pressure-0.095 MPa ... 0 MPa
  • Operating pressure-0.95 bar ... 0 bar
  • Operating pressure-13.775 psi ... 0 psi
  • Nominal operating pressure-0.07 MPa
  • Nominal operating pressure-0.7 bar
  • Nominal operating pressure-10.15 psi
  • Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-A1-L
  • Ambient temperature-20 °C ... 60 °C
  • Holding force at nominal operating pressure8.5 N
  • Product weight11 g
  • Type of mountingVia vacuum port
  • Vacuum connectionG1/8
  • ColourBlue
  • Shore hardness60 +/- 5
  • Material screwed plugBrass
  • Note on materialsRoHS-compliant
  • Material suction cupPUR



SKU 1395671
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
