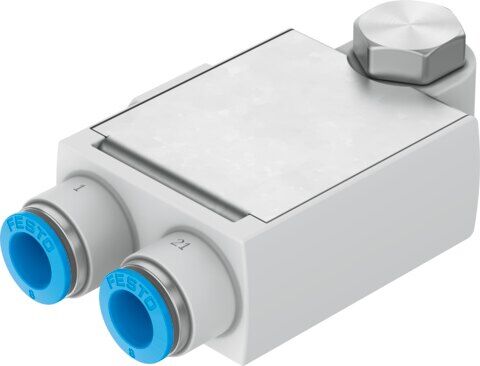

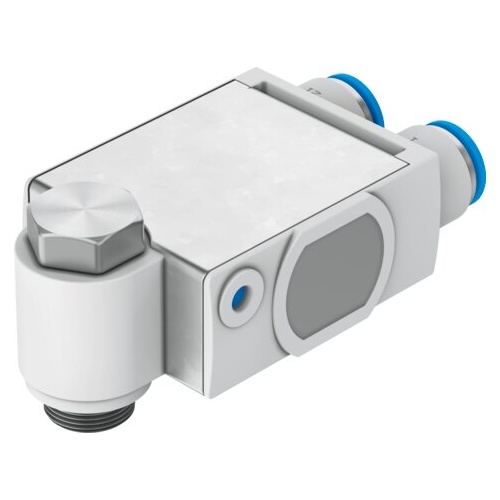

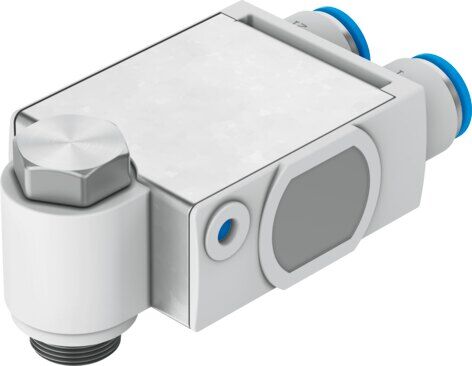

Check valveVBNF-LBA-G14-Q8-F1A

1927027

GTIN: 4052568108977

Technical Data Check valve VBNF-LBA-G14-Q8-F1A

  • Valve functionPiloted non-return function
  • Selection of additional functionsManual exhausting
  • Pneumatic connection, port 1QS-8
  • Pneumatic connection, port 2G1/4
  • Pilot air port 21QS-8
  • Type of mountingScrew-in
  • Operating pressure0.02 MPa ... 1 MPa
  • Operating pressure0.2 bar ... 10 bar
  • Pilot pressure0.2 MPa ... 1 MPa
  • Pilot pressure2 bar ... 10 bar
  • Pilot pressure29 psi ... 145 psi
  • Ambient temperature-10 °C ... 60 °C
  • Material housingPBT
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Mounting positionAny
  • Type act., cont. n.-r. func.Pneumatic
  • Manual exhaust functionNon-detenting
  • Symbol00991957
  • Rotatability360°/no continuous swivelling permissible
  • Operating pressure complete temperature range0.02 MPa ... 1 MPa
  • Operating pressure complete temperature range0.2 bar ... 10 bar
  • Operating pressure complete temperature range2.9 psi ... 145 psi
  • Standard flow rate 1->2 (6-0)1100 l/min
  • Standard nominal flow rate 1->2 (6-5)620 l/min
  • Switching time off11 ms
  • Switching time on8 ms
  • Explosion protectionZone 2 (ATEX) Zone 22 (ATEX)
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
  • Media temperature-10 °C ... 60 °C
  • Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Nominal torque10 Nm
  • Tolerance for nominal tightening torque±20%
  • Product weight65.6 g
  • Material coveringES-BE
  • Note on materialsRoHS compliant
  • Material coverPBT
  • Material sealsNBR
  • Material hollow boltWrought aluminium alloy
  • Material release ringPOM







SKU 1927027
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
