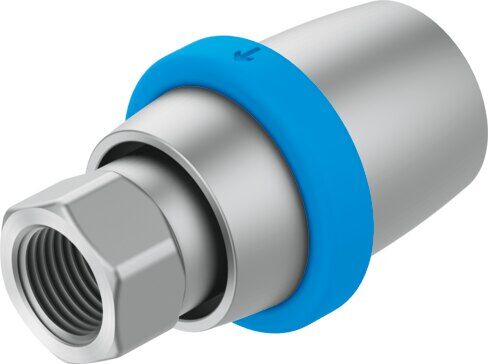

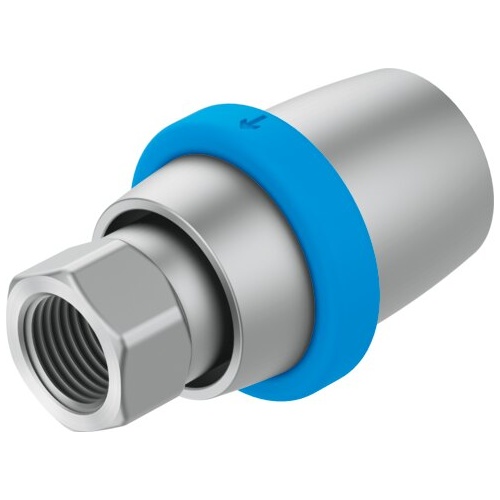

Hand slide valve

VBOH-32-G38

1482679





GTIN: 4052568106201

Valve function
3/2 bistable
Pneumatic connection, port 1
G3/8
Standard nominal flow rate (standardised to DIN 1343)
2201 l/min
Grid dimension
39.5 mm
Operating pressure
-0.95 bar - 12 bar


Technical Data

  • Valve function3/2 bistable
  • Pneumatic connection, port 1G3/8
  • Pneumatic connection, port 2G3/8
  • Type of actuationManual
  • Type of mountingScrew-in
  • Standard nominal flow rate (standardised to DIN 1343)2201 l/min
  • Nominal size9.9 mm
  • Operating pressure-0.095 MPa ... 1.2 MPa
  • Operating pressure-0.95 bar ... 12 bar
  • Ambient temperature-10 °C ... 80 °C
  • Material housingAnodised wrought aluminium alloy
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Grid dimension39.5 mm
  • Instructions on usePlease only screw in fittings with a cylindrical thread. Mounting conical threads can damage the housing and cause clamping or malfunction of the sleeve.
  • Sealing principleSoft
  • Mounting positionoptional
  • DesignSleeve valve
  • Type of pilotingDirect
  • Symbol00991286
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Media temperature-10 °C ... 80 °C
  • Actuating force41 N
  • Product weight70 g
  • Material screwed plugAnodised wrought aluminium alloy
  • Note on materialsRoHS-compliant
  • Material sealsNBR





SKU 1482679
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
