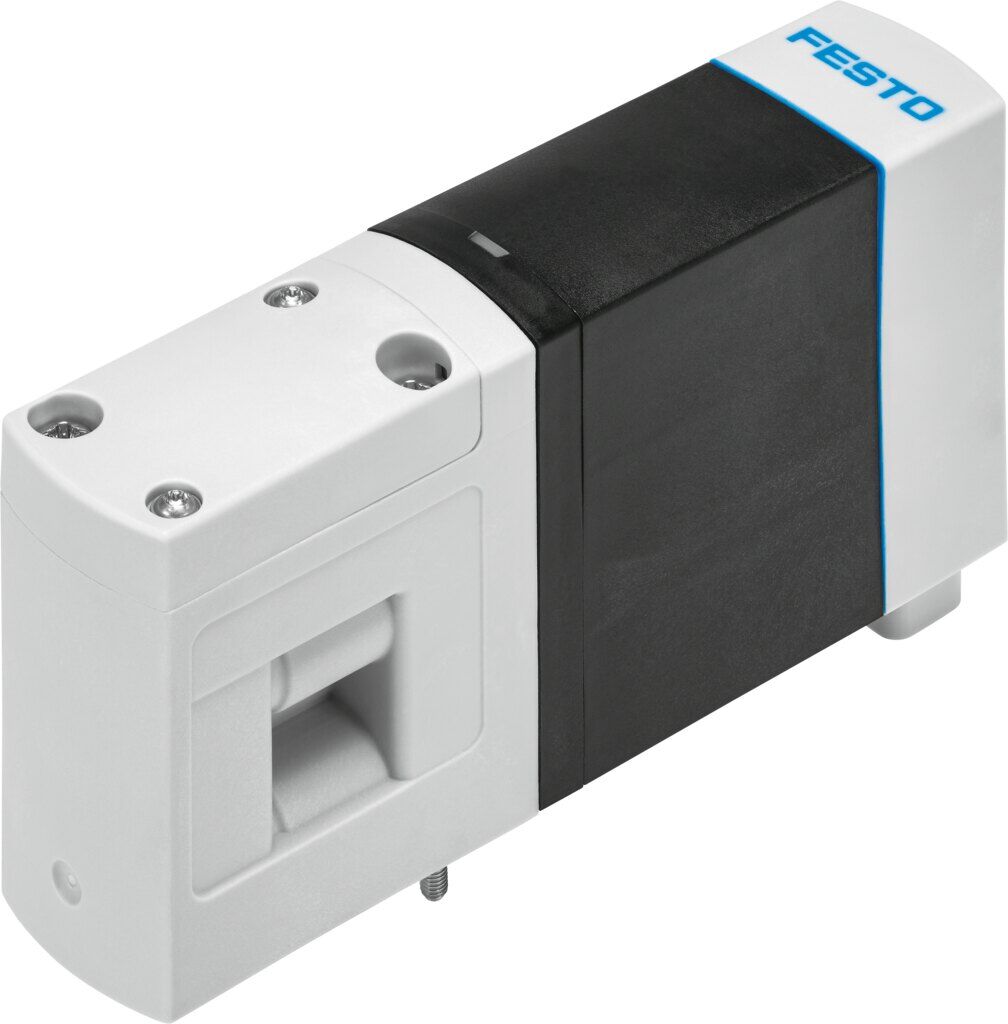

Valve

Technical Data

• Valve size27 mm
• Grid dimension28 mm
• Symbol00995604
• Valve functionCan be allocated using the Motion App
• DesignPiston seat
• Sealing principleSoft
• Type of actuationElectric
• Type of pilotingPilot actuated
• Type of resetMechanical spring
• Mounting positionoptional
• Exhaust-air functionWithout flow control option
• Pilot air supplyExternal
• Suitability for vacuumyes
• Flow directionNon-reversible
• Degree of protectionIP65
• LABS (PWIS) conformityVDMA24364 zone III
• Note on materialsRoHS-compliant
• Material housingPA
• Material sealsNBR TPE-U(PU)
• Fire test materialUL94 HB
• Suitable for use with foodSee supplementary material information
• Product weight200 g
• Switching time on8.5 ms
• Switching time off8.5 ms
• Nominal size4.2 mm
• C value2 l/sbar
• Standard flow rate 0.8->0 MPa (8->0 bar, 116->0 psi)1000 l/min
• Standard nominal flow rate, air flow 0.6->0,5 MPa (6->5 bar, 87->72.5 psi)450 l/min
• Standard nominal flow rate, exhaust 0.6->0.5 MPa (6->5 bar, 87->72.5 psi)480 l/min
• Status indicationBlue LED = normal status Red LED = malfunction
• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Inert gas
• Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4] Inert gases
• Note on operating and pilot mediumLubricated operation not possible Condensation in the valve not allowed
• Operating pressure0.3 MPa ... 0.8 MPa
• Operating pressure3 bar ... 8 bar
• Operating pressure43.5 psi ... 116 psi
• Pilot pressure0.3 MPa ... 0.8 MPa
• Pilot pressure3 bar ... 8 bar
• Pilot pressure43.5 psi ... 116 psi
• Note on operating pressure0 - 8 bar with external pilot air Vacuum operation at connection 3 only
• Nominal operating voltage DC24 V
• Permissible voltage fluctuations+/- 25%
• Duty cycle100%
• Electrical power consumption1.5 W
• Corrosion resistance class CRC2 - Moderate corrosion stress
• Storage temperature-20 °C ... 40 °C
• Media temperature5 °C ... 50 °C
• Ambient temperature5 °C ... 50 °C
• Relative air humidity0 - 90%
• Pneumatic connection, port 2G1/8
• Pneumatic connection, port 4G1/8
• Pilot air port 14M5
• Pneumatic connection, port 1G3/8
• Pneumatic connection, port 3G3/8
• Pilot exhaust port 84M7
• Breather connectionM7
