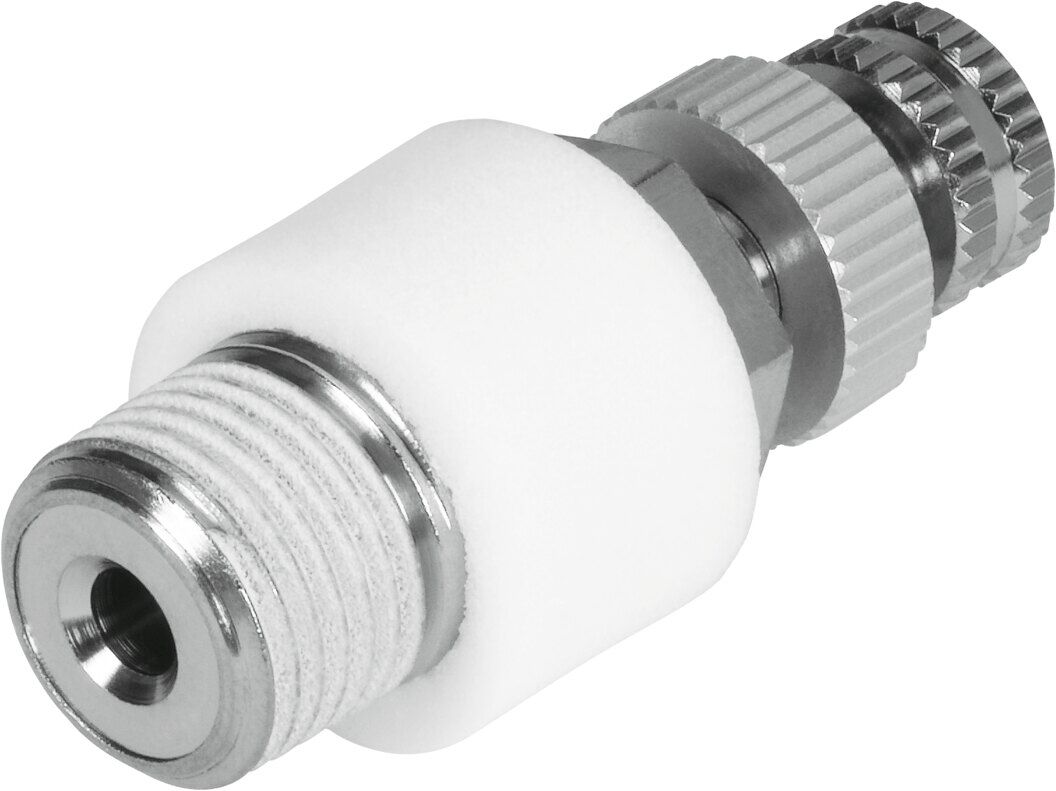

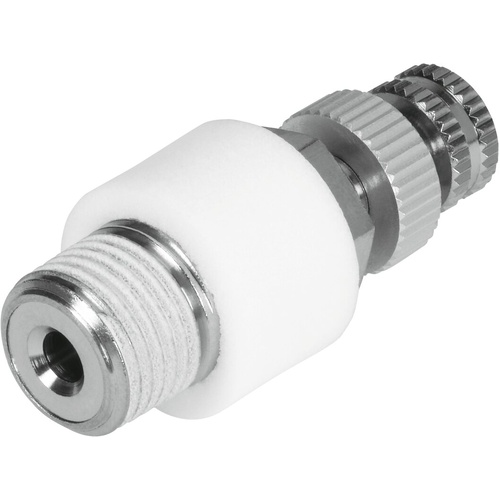

Flow control/silencer

VFFK-C-K-R18-P

133142





GTIN: 4052568030223


Valve function
Sound pressure control function
Standard flow rate 0.6->0 MPa (6->0 bar, 87->0 psi)
0 l/min - 270 l/min
Pneumatic connection, port 1
R1/8
Operating pressure
0 bar - 10 bar
Adjustment component
Knurled screw

Technical Data

  • Valve functionSound pressure control function
  • Selection of additional functionsWith silencer
  • Pneumatic connection, port 1R1/8
  • Adjustment componentKnurled screw
  • Type of mountingScrew-in
  • Standard flow rate 0.6->0 MPa (6->0 bar, 87->0 psi)0 l/min ... 270 l/min
  • Operating pressure0 bar ... 10 bar
  • Ambient temperature0 °C ... 60 °C
  • Type of seal on screwed plugCoating
  • Mounting positionoptional
  • Symbol00991451
  • Operating pressure complete temperature range0 bar ... 10 bar
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Media temperature0 °C ... 60 °C
  • Product weight13.5 g
  • Material shock absorber insertPE
  • Material screwed plugNickel-plated brass
  • Note on materialsRoHS-compliant
  • Material adjusting screwNickel-plated brass





SKU 133142
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
