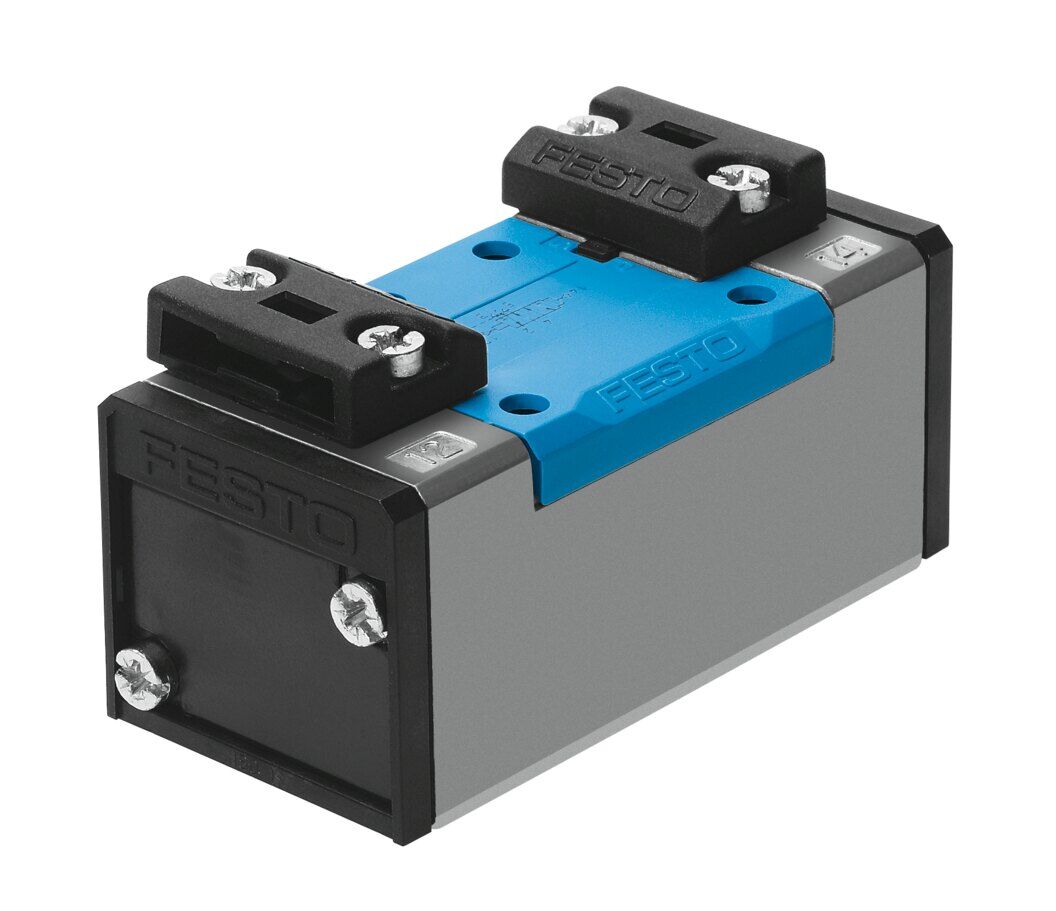

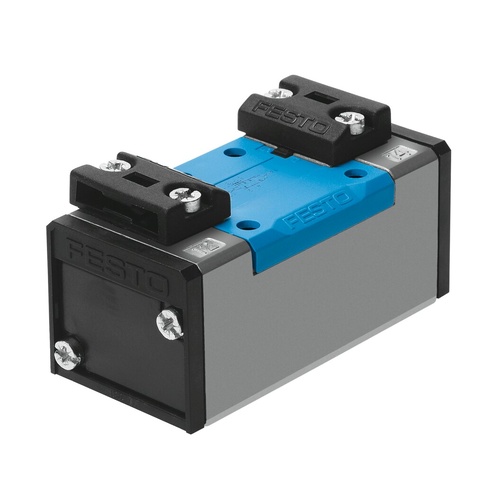

Pneumatic valve

Technical Data

• Valve function5/2-way, monostable
• Type of actuationPneumatic
• Construction width65 mm
• Standard nominal flow rate (standardised to DIN 1343)4500 l/min
• pneumatic working portSub-base size 3 to ISO 5599-1 G1/2
• Operating pressure0.2 MPa ... 1.6 MPa
• Operating pressure2 bar ... 16 bar
• DesignPiston gate valve
• Type of resetPneumatic spring
• Approvalc UL us - Recognized (OL)
• Nominal size14.5 mm
• Grid dimension71 mm
• Exhaust-air functionWith flow control option
• Sealing principleSoft
• Mounting positionoptional
• Conforms to standardISO 5599-1
• Manual overrideNone
• ISO code302
• Type of pilotingDirect
• Flow directionNon-reversible
• Symbol00991048
• lapOverlap
• Pilot pressure0.2 MPa ... 1.6 MPa
• Pilot pressure2 bar ... 16 bar
• Switching time off36 ms
• Switching time on29 ms
• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
• Vibration resistanceTransport application test with severity level 1 to FN 942017-4 and EN 60068-2-6
• Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Media temperature-10 °C ... 60 °C
• Sound pressure level85 dB(A)
• Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Ambient temperature-10 °C ... 60 °C
• Product weight810 g
• Type of mountingOn sub-base Via through-hole and screw
• Pilot air port 14Sub-base size 3 to ISO 5599-1
• Pneumatic connection, port 1Sub-base size 3 to ISO 5599-1
• Pneumatic connection, port 2Sub-base size 3 to ISO 5599-1
• Pneumatic connection, port 3Sub-base size 3 to ISO 5599-1
• Pneumatic connection, port 4Sub-base size 3 to ISO 5599-1
• Pneumatic connection, port 5Sub-base size 3 to ISO 5599-1
• Note on materialsRoHS-compliant
• Material sealsHNBR NBR
• Material housingDie-cast aluminium
